Programmable EM200-2sp CAN Controller with large Heat Sink with Adjustable DKD LCD-M LIN CAN-BUS communication optional LCD Speedometer
EM series controller is sine wave type controller, which is brushless DC controllerwith flux-weakening. Generally, it matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.
P.S. If you have any confused about the shipping cost, please feel free to contact with us.
Also could place order but don't pay first, then we could adjust the price.
ATTENTION：Please note the matched motor parameters when placing the order.
In this way, we can adjust the controller to the best condition for the customer before delivery.
1/If it is matching hub motor, please tell us the motor speed, polar number, motor size and model;
2/If it is matching mid drive motor, please tell us the motor power.
We recommend to match Votol controller with QSMOTOR.(It may not work properly with other brands motors)
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do
customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not
support. (special countries list contact seller)

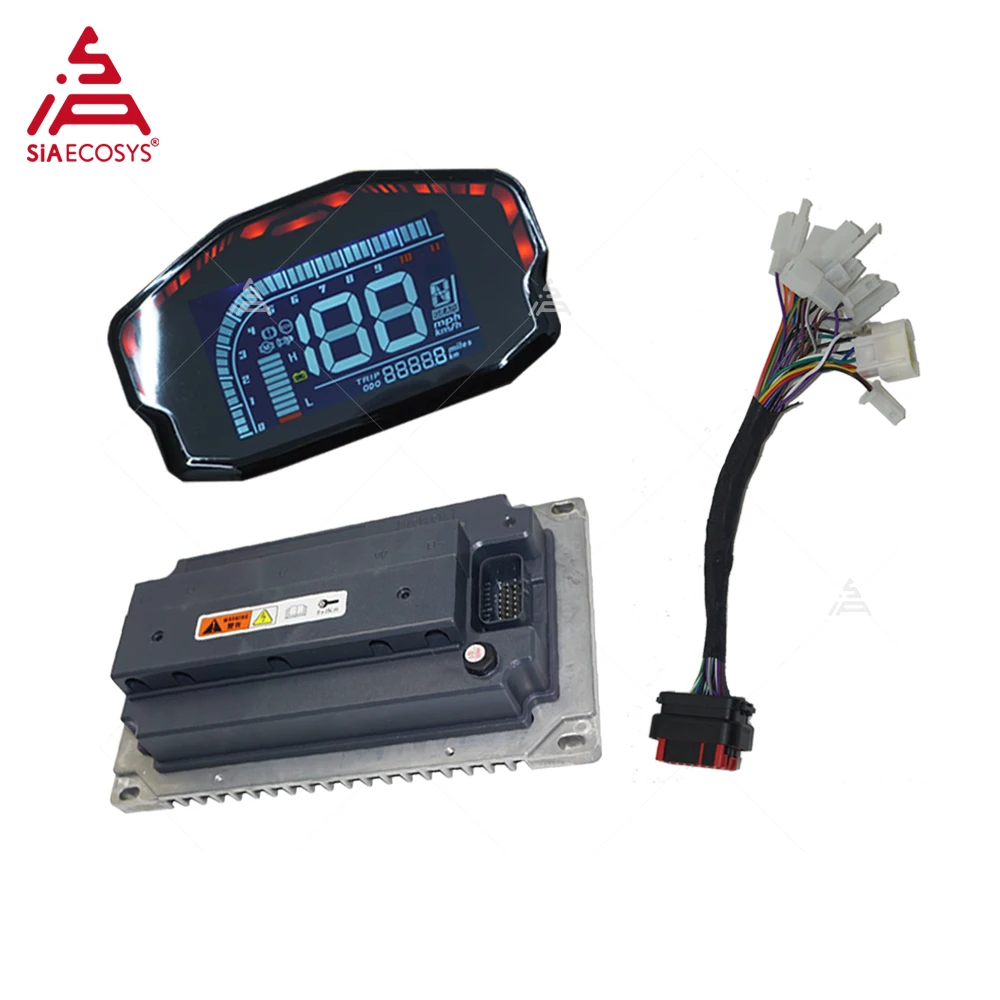

One kits including below part
1. 1pcs X EM200-2sp CAN sine wave controllerwith enlarged heat sink
2. 1pcs X USB programmable cable
3. 1set X Function cable
4. 1pcs X DKD LCD-M speedometer (adjustable)
5. 1pcs X Manual&software link for download
Notice:
The model of plug-in connector isTE 770680-1.
Key Features
1).The materials are imported.
2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board
3). Small in size
4). High efficiency, low temperature rise, small running current
5). With flux weakening function
6).Speedmeter supports both CAN and LIN communication and can overtemperature alarm
Product description

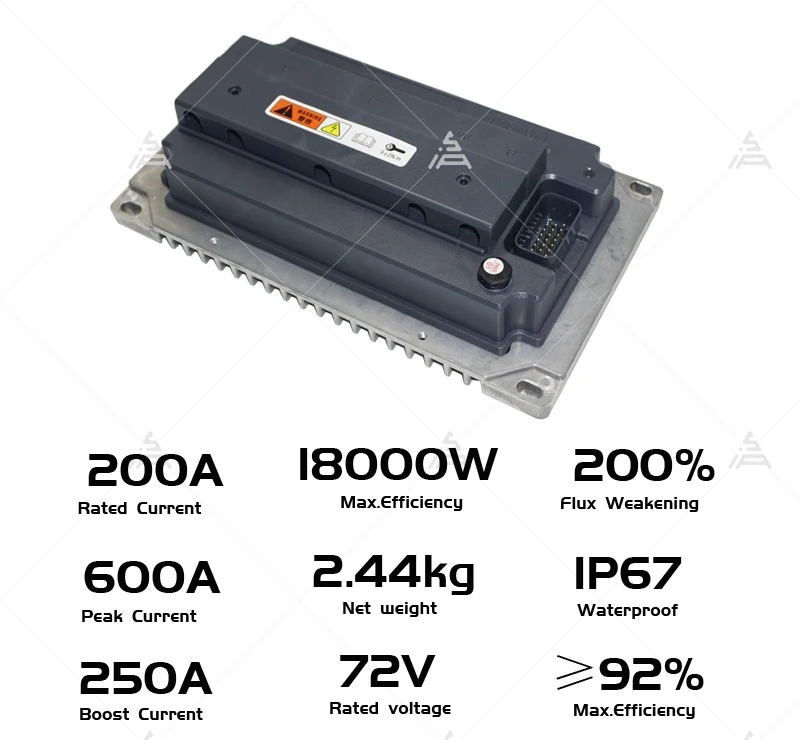

EM200-2sp is cost effective controller with waterproofing grade IP67, suit for 4-8kW motors.
SPEC

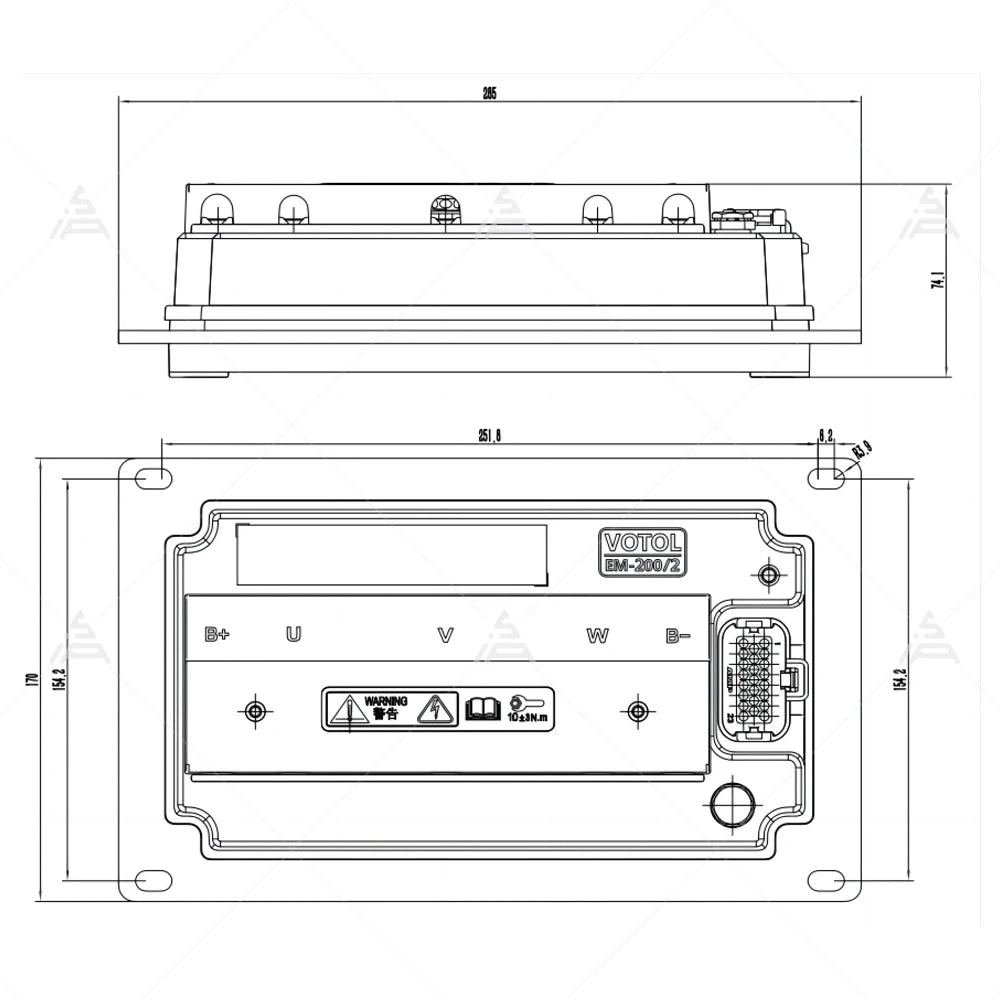

Drawing

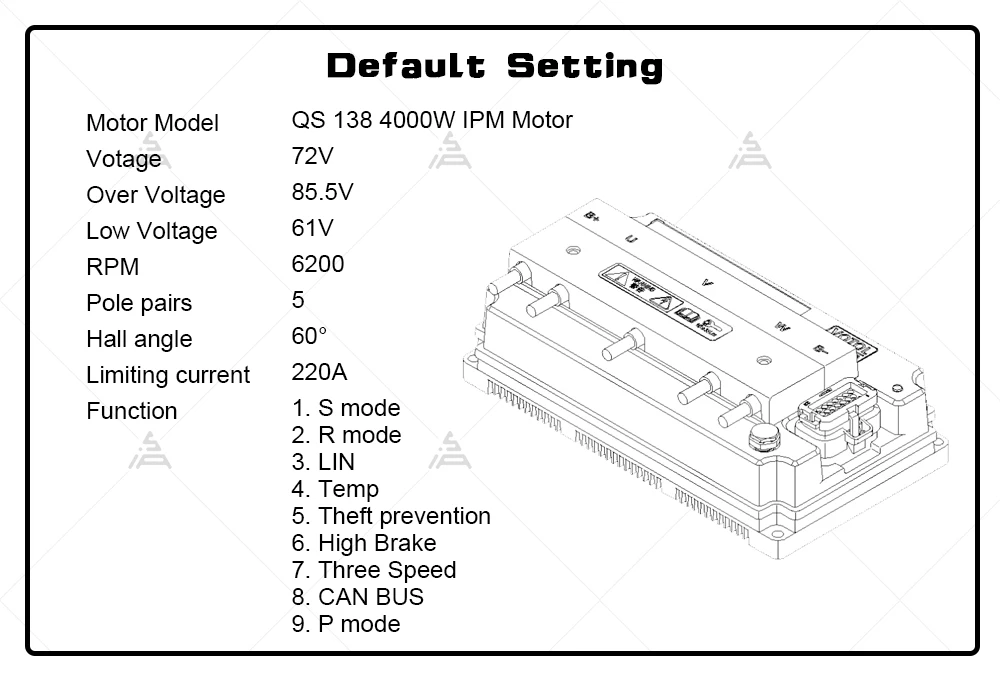

Default Setting
Test Report
EM200-2sp with QSMOTOR 138 4000W mid drive motor
Debugging Cable

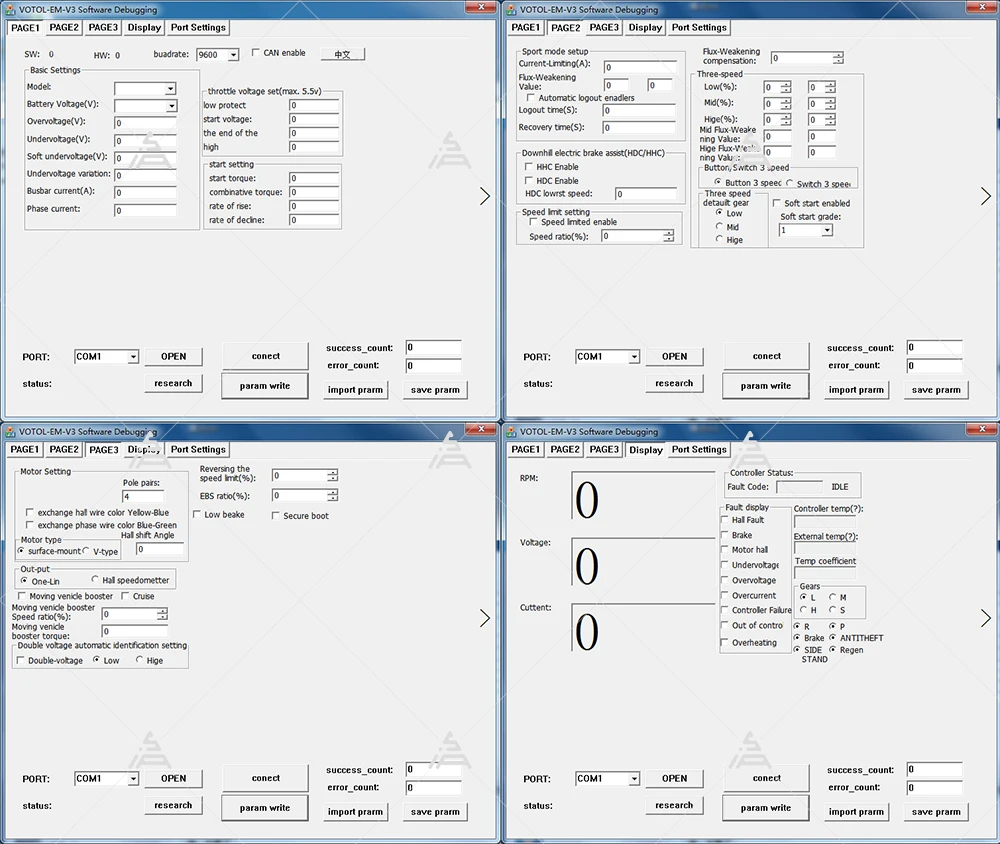

Software interface（PC）
Wiring Diagram
For the detail of wiring manual, pls contact our online service.

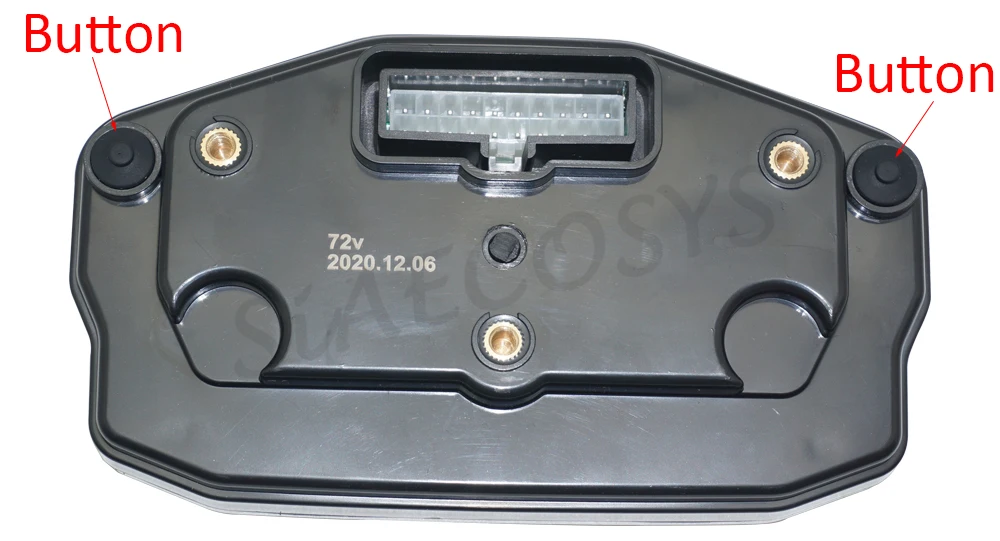

DKD LCD-M speedometer (adjustable)
Product Description
DKD LCD-M speedometer, Adjustable
It displays D, P, R, E, S gear
For the speed, we recommend to set it as following as default (to match with QS138 3kw 12inch assembly).
·Wheel tire size: 150/60-17
·Pole Pairs: 16
·Voltage: 72V (20s Lithium battery)
Wiring Diagram

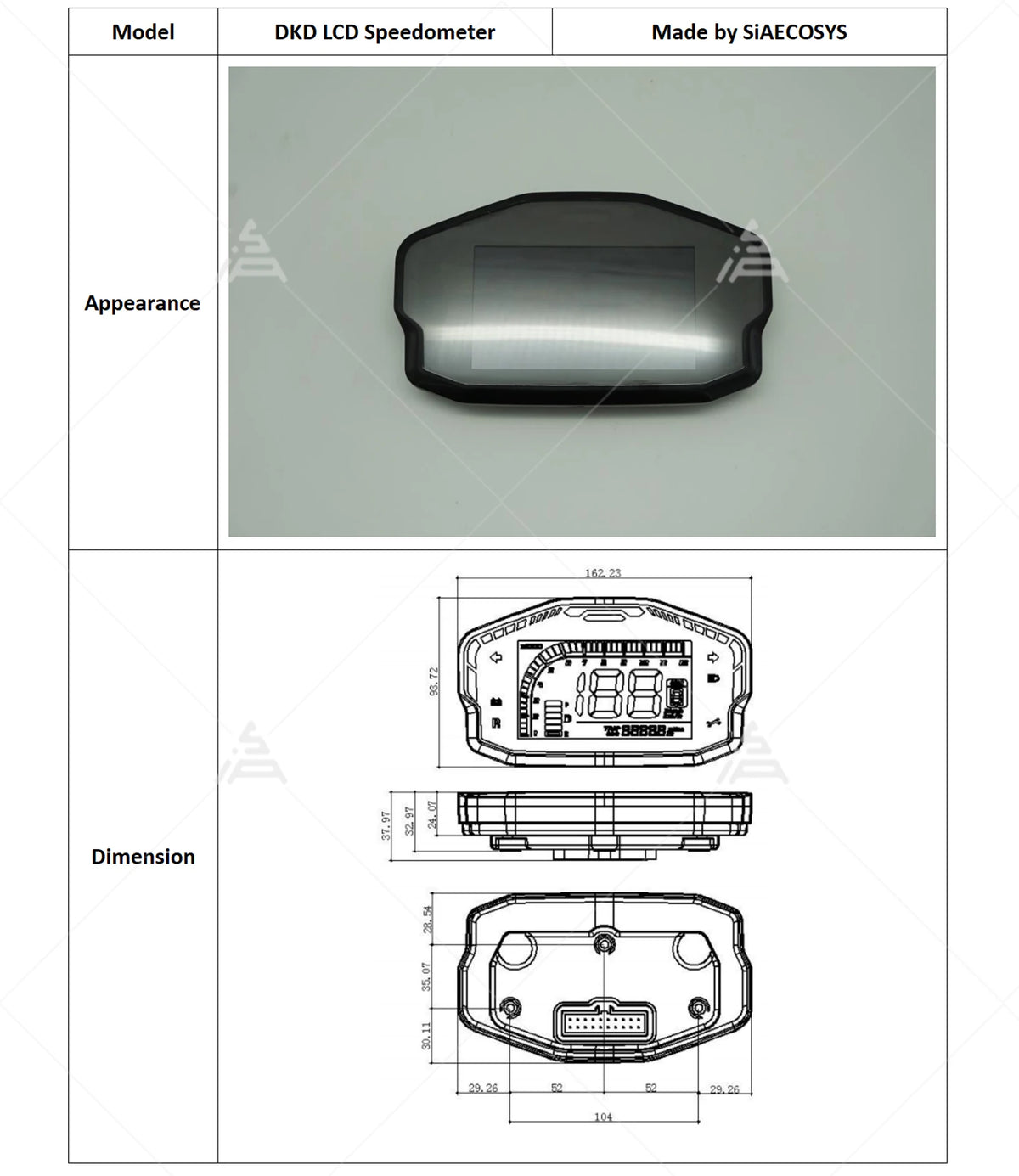

Mounting dimension
Function and description
User Manual
Recommended Motor
QS138 4000W Mid Drive Motor
QS273 8000W V3 E-Motorcycle Spoke Hub Motor lacing 17x4.5 inch Rear Wheel Rim
