electric fat bike kit 65km/h 48v 1500w electric fat bike conversion kit with triangle lithium battery samsung cell
The opional battery for choose.
48v 1500w electric fat bike conversion kit with 48v 13.2ah triangle lithium battery. The below bike is show our triangle battery with 26x4.0 Fat rim Rear Motor wheel 48v 1500w power.
Features of the Product for 48v 1500w electric fat bike conversion kit :
1. High Quality 15 MOSFET 40A ±1 Controller
2. Front or rear motor for choosing
3. Strong Double-wall Aluminium Alloy Rim
4. Full Speed: about 55-65km/hour
5. Certificates: CE, CCC, EN15194, ISO 9001-2000
6. 48V 13.2AH Lithium battery pack , using the samsung brand 22P cell , 40-80km distance with PAS and throttle.
7. The 48v 2A charger is included. EU,AU,USA,UK plug for choosing.
8. The battery and controller and all cables can be put into the bag together .
Electric wheel Motor Specifications
| Electric wheel Size | 20″ Wheel Motor | 24″ Wheel Motor | 26″ Wheel Motor | 700c Wheel Motor | 28″ Wheel Motor | 29″ Wheel Motor |
| Voltage | 48V | 48V | 48V | 48V | 48V | 48V |
| Power | 1500W | 1500W | 1500W | 1500W | 1500W | 1500W |
| High Motor Efficiency | >85% | >85% | >85% | >85% | >85% | >85% |
| Speed | 0-45km | 0-50km | 0-65km | 0-65km | 0-65km | 0-65km |
| Front or Rear Fork Dropout Requirement | 130mm for front motor, 175mm for rear motor | 135m for front motor, 175mm for rear motor | 135mm for front motor, 175mm for rear motor | 136mm for front motor, 175mm for rear motor | 130mm for front motor, 175mm for rear motor | 130mm for front motor, 175mm for rear motor |
| Available Speed Gear Quantity | 7-Speed for rear motor only | 7-Speed rear motor only | 7-Speed rear motor only | 7-Speed rear motor only | 7-Speed rear motor only | 7-Speed rear motor only |
| Bike rim | 20″ | 24″ | 26″ | 700C | 28″ | 29″ |
| Controller Specifications | ||||||
| Input Voltage | DC 48V(Universal) | DC 48V(Universal) | DC 48V(Universal | DC 48V(Universal | DC 48V(Universal | DC 48V(Universal |
| Min.Voltage | DC 40±0.5V | DC 40±0.5V | DC 40±0.5V | DC 40±0.5V | DC 40±0.5V | DC 40±0.5V |
| Rated Current | 20A | 20A | 20A | 20A | 20A | 20A |
| Max. Current | 40±1A | 40±1A | 40±1A | 40±1A | 40±1A | 40±1A |
| Speed set | 1-4.2V | 1-4.2V | 1-4.2V | 1-4.2V | 1-4.2V | 1-4.2V |
Electric Bicycle Bike DIY Conversion Kits Included:
1. 1500W Powerful Brushless Gearless Motorized 26x 80mm red or black rim
2. 48V 1500W Controller, 15Mosfets, 40Amp
3. Stainless strong spokes 12G
4. 1 pair of Top Quality Black Aluminum Alloy Brake Levers
5. Thumb Throttle with battery indicator and ON/OFF switch
6. PAS 8 Magnets High Quality Pedal Assistant Sensor
7. Book manual and ties
8. 7 Speed Freewheel for rear motor only
9. 48V 13.2AH Lithium battery pack , using the samsung brand 22P cell , 40-80km distance with PAS and throttle.
10. The 48v 2A charger is included. EU,AU,USA,UK plug for choosing.

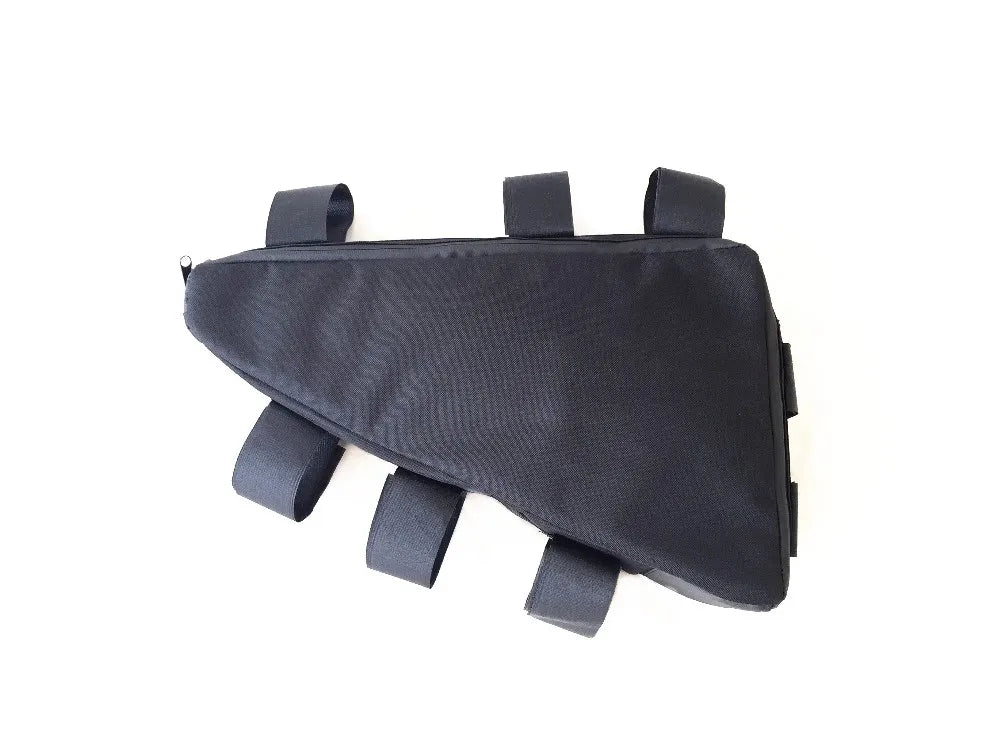

11. The middle battery bag
12. GOOD PACKAGE FOR EXPRESS
