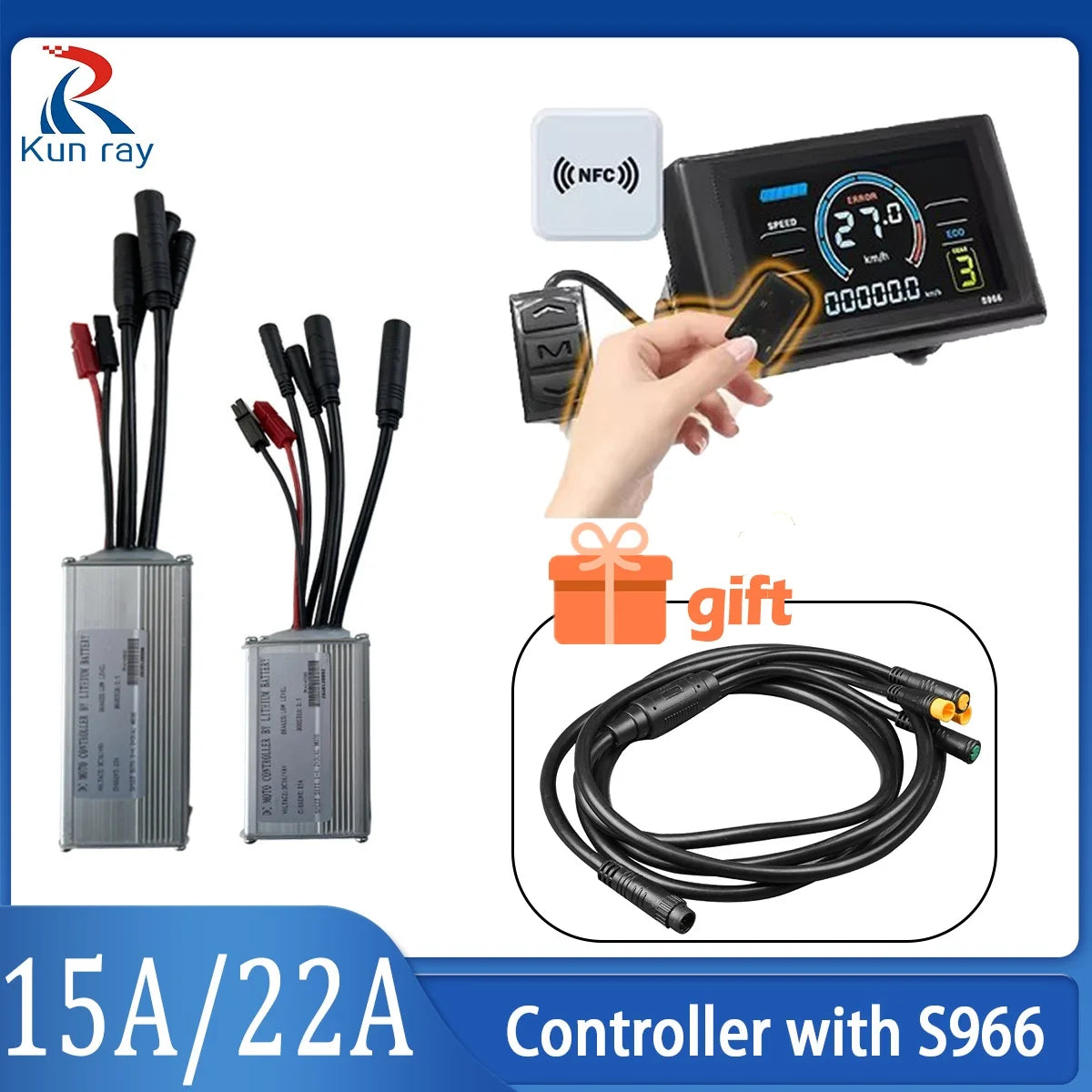

S966 NFC Color LCD Display & Waterproof Brushless Controller Kit - 15A / 22A (36V/48V 250W–500W) with Keyless NFC Unlock
Bring modern digital control, robust weatherproofing, and smart anti-theft security to your electric bicycle with the S966 NFC Color LCD Display & JN Waterproof Brushless Controller Kit. Engineered with standardized Communication Protocol No. 2, this electronic package provides seamless communication between your motor, throttle, pedal assist, and cockpit display.
Featuring an intuitive contactless NFC smart card unlock, the S966 display acts as a digital ignition key—simply swipe your card to power on the system and immobilize your e-bike against unauthorized use. Available in 15A (for 250W–350W motors) and 22A (for 500W motors) configurations, with fully molded waterproof round connectors (WP) for effortless plug-and-play installation and worry-free riding in the rain.
Select the controller amperage that precisely matches your hub motor's wattage rating:

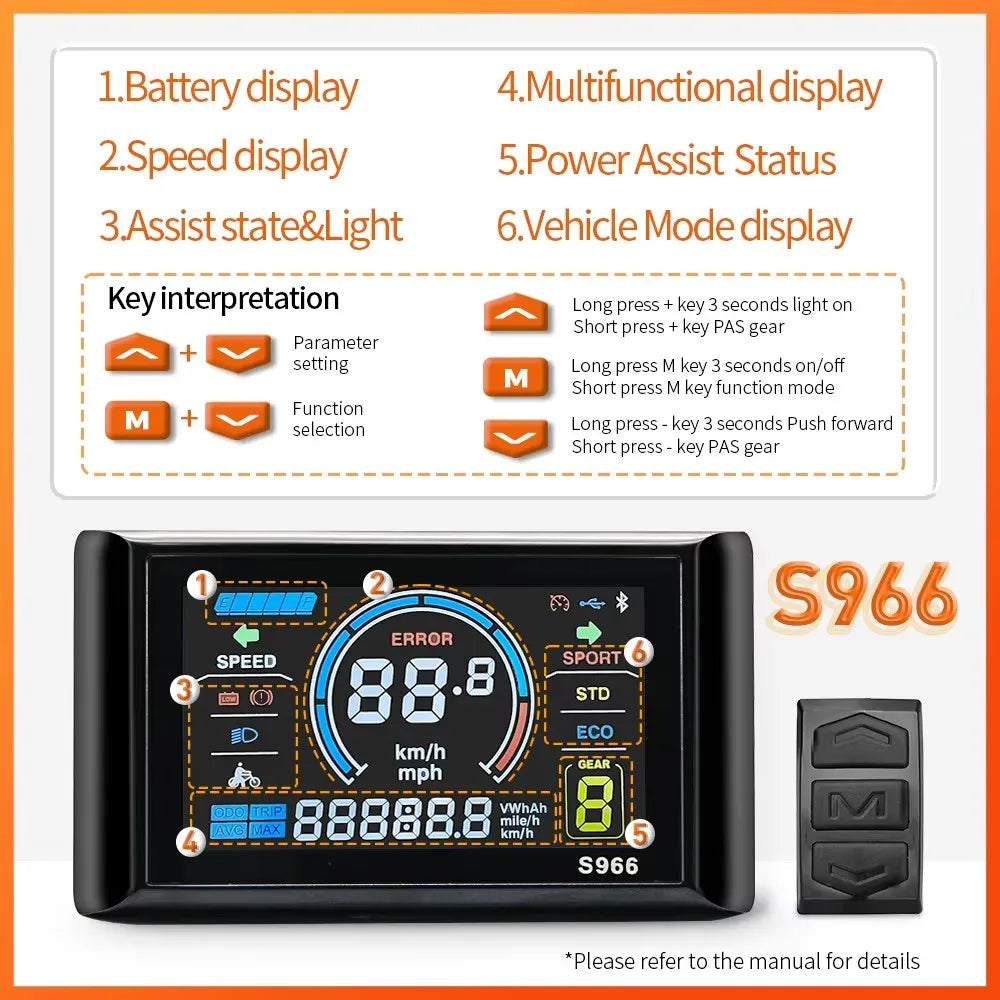

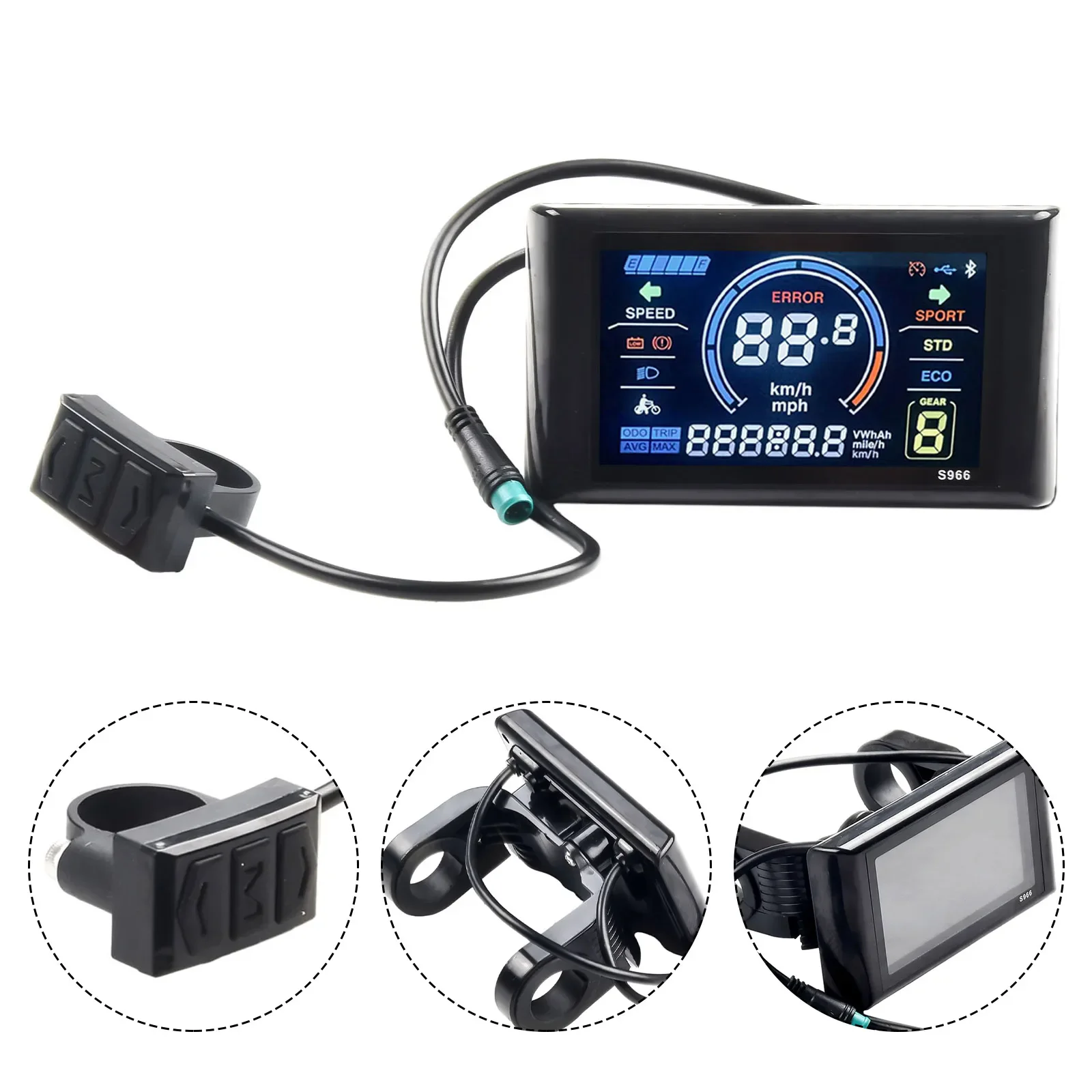

The S966 display mounts securely on standard Φ22.2 mm or Φ25.4 mm bicycle handlebars. Its high-resolution color interface groups critical information into an intuitive central gauge, surrounded by battery health bars, pedal assist mode, and automated system alerts.
| Parameter | Specification |
|---|---|
| System Compatibility | JN Electronic System / Communication Protocol No. 2 |
| Supported System Voltages | DC 24V / 36V / 48V (Display supports 24V–72V) |

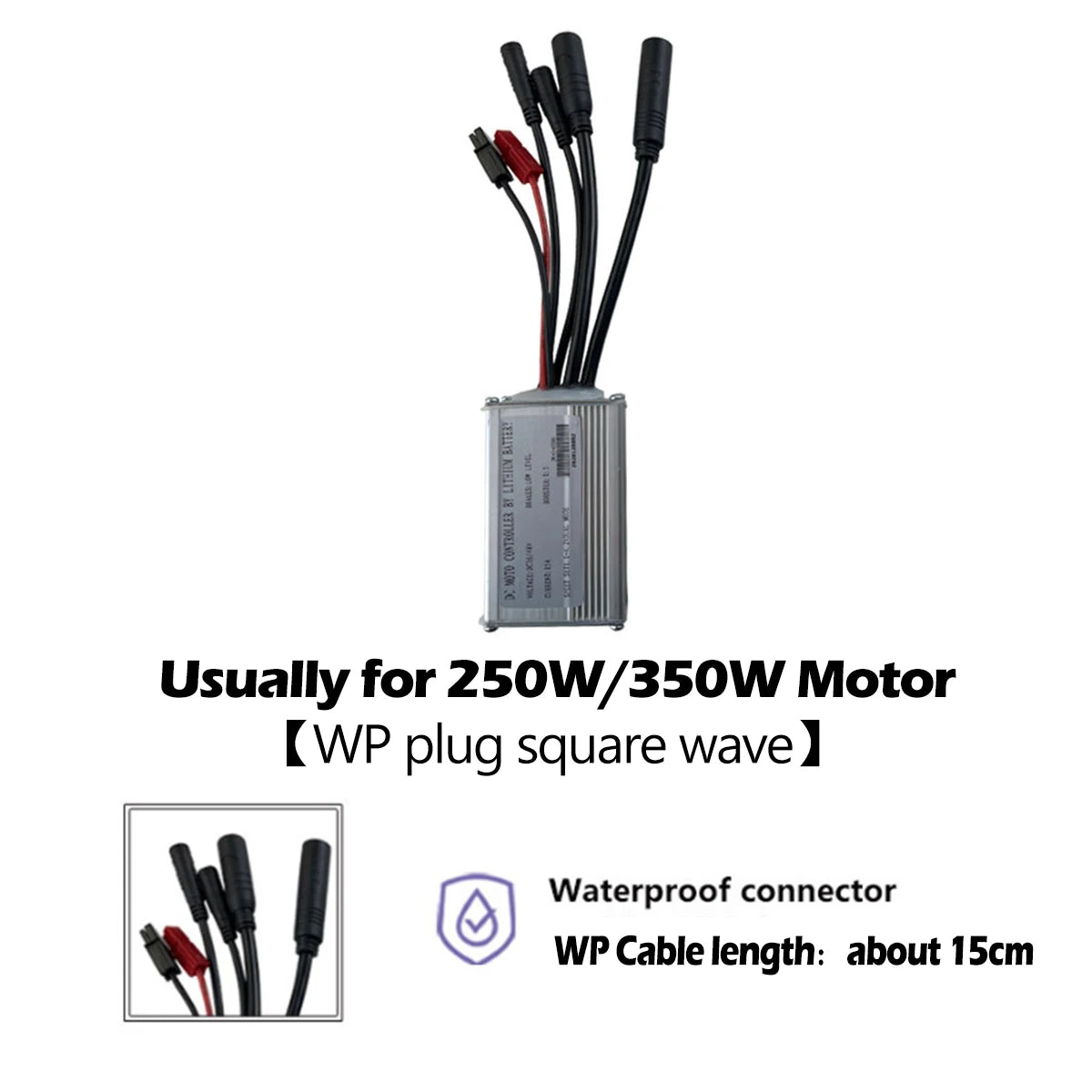

| Controller Options | JN-15A (250W–350W) / JN-22A (500W) |

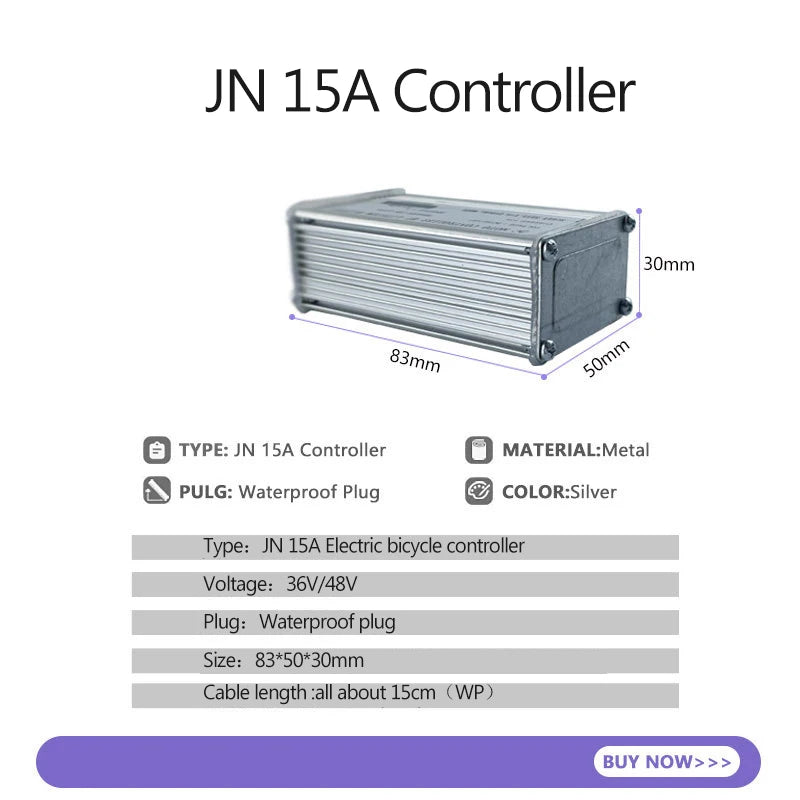

| JN-15A Dimensions & Weight | 83 × 50 × 30 mm | ~200 g |

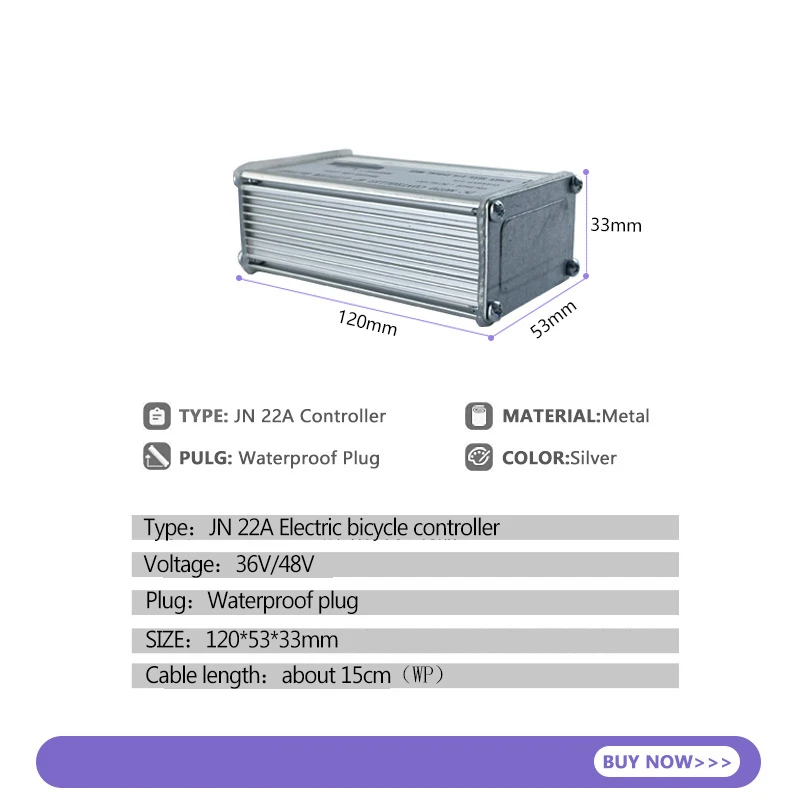

| JN-22A Dimensions & Weight | 120 × 53 × 33 mm | ~200 g |
| Speed Setting Voltage | 1.1V – 4.2V (Standard thumb & twist throttles) |
| Pedal Assist (Booster) Ratio | 1:5 cadence assist |

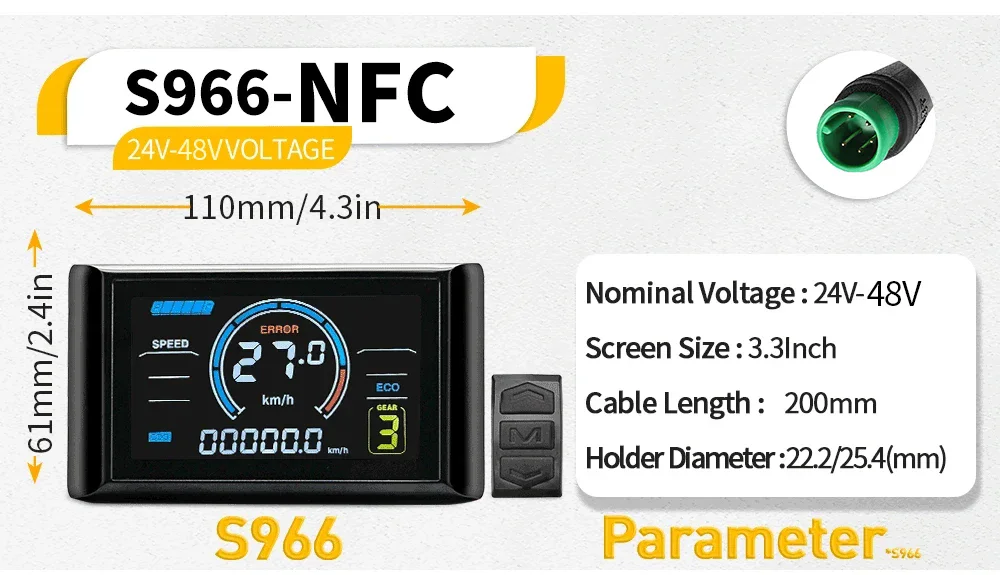

| Display Model & Screen Size | S966-NFC Color LCD | 3.3-Inch Screen (110 × 61 mm) |
| Security Ignition | Contactless NFC Smart Card / Phone NFC Keyless Unlock |
| Handlebar Clamp Diameter | Universal Φ22.2 mm and Φ25.4 mm |
| Connectors Type | Molded Quick-Disconnect Waterproof Round Plugs (WP) |

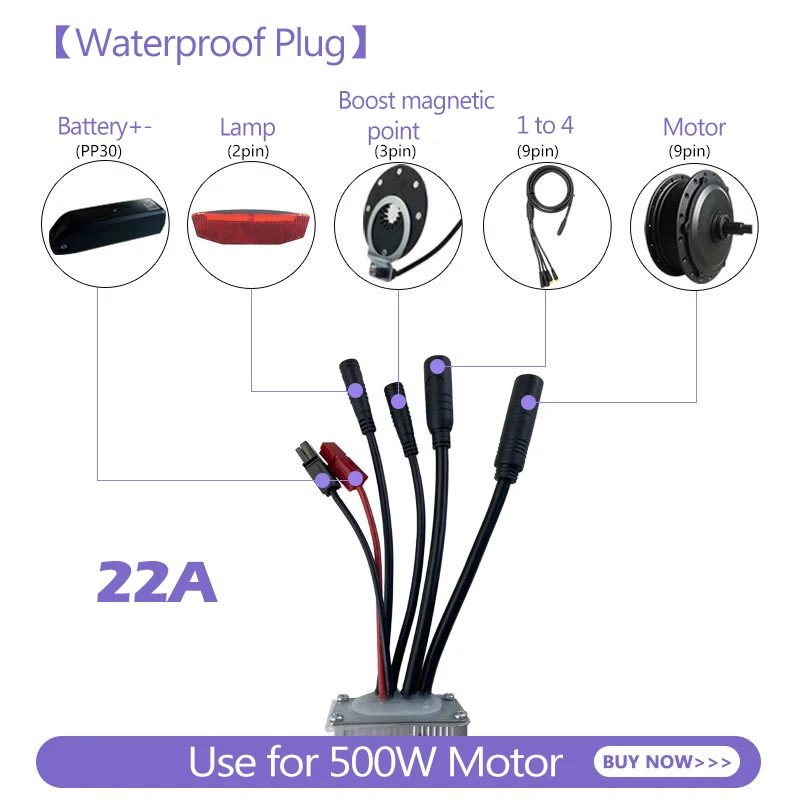

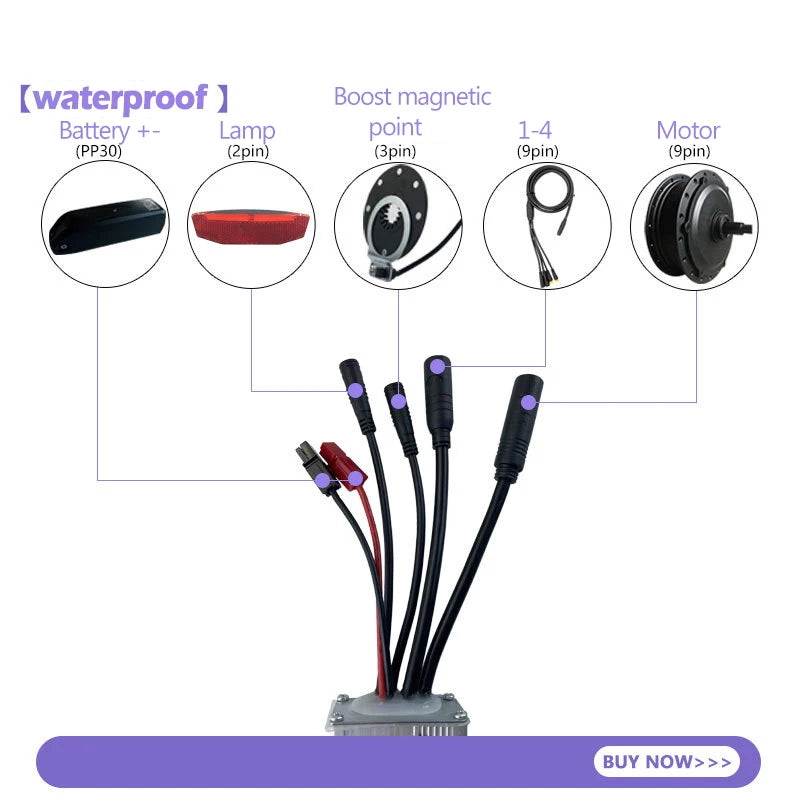

The controller utilizes modular waterproof round connectors that plug directly into your conversion components. When ordering a full kit with the 1-to-4 main EB-BUS harness cable:
Q: Can I use this S966-NFC display with any e-bike controller?
A: No. The S966 display uses Communication Protocol No. 2 and is specifically designed to communicate with JN-series Protocol 2 controllers. For optimal reliability and zero communication error codes, we strongly recommend purchasing the matched display and controller kit together.

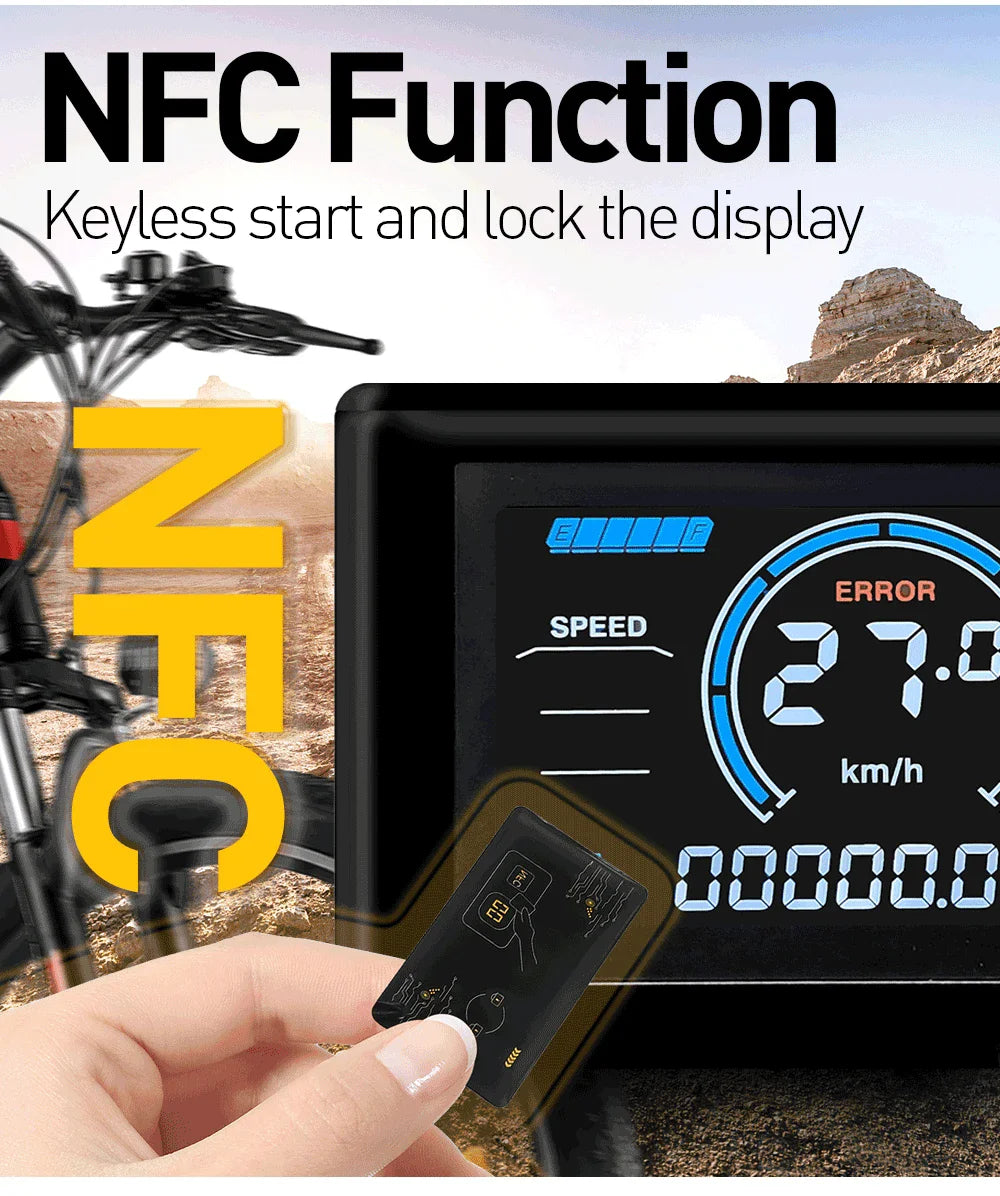

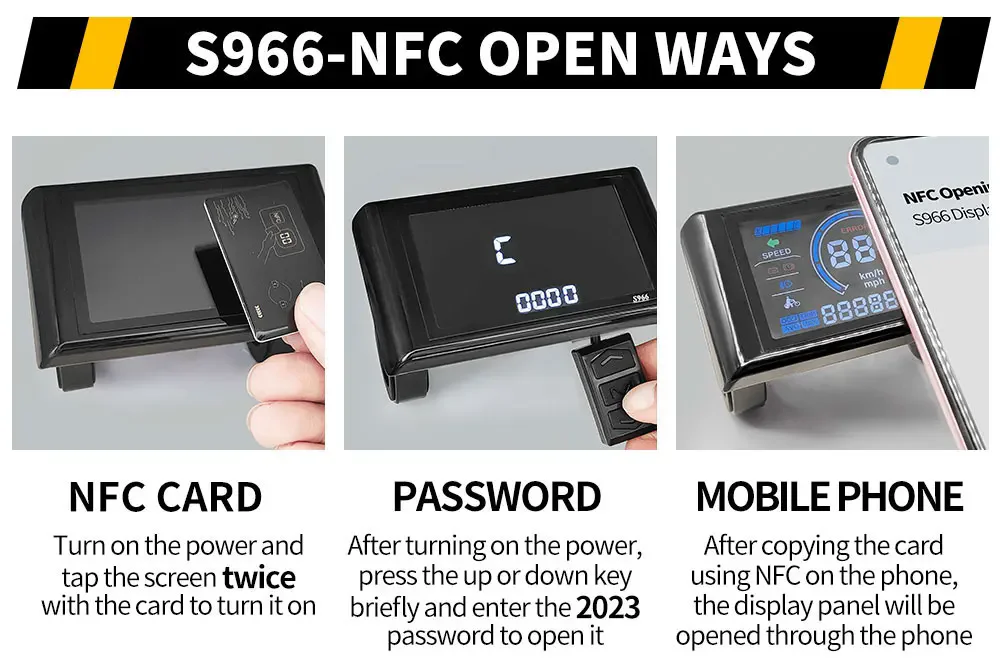

Q: How does the NFC card unlock feature work?
A: When the bike is powered on, the screen remains locked and the throttle/PAS remain inactive until you tap the included NFC card against the designated icon on the screen. Once verified, the dashboard unlocks for normal operation.
Q: Which controller should I choose: 15A or 22A?
A: If your hub motor is rated for 250W or 350W, choose the 15A controller. If your motor is rated for 500W, choose the 22A controller to ensure sufficient current for acceleration and hill climbing.
Q: Are the connectors completely waterproof?
A: Yes. All signal and power lines feature high-grade molded waterproof circular plugs (WP) with internal rubber sealing rings, protecting your electronic connections from heavy rain and puddle splashes.
Q: What warranty and shipping terms are provided by E Smart Way?
A: E Smart Way offers free worldwide shipping with tracking and a comprehensive 3-month replacement warranty on all electronic accessories. All units undergo factory quality inspection prior to shipment.
Free Worldwide Shipping: Every controller and display is bench-tested and securely packaged prior to dispatch. Tracking details are provided upon dispatch.
Customs & Import Duties: Depending on destination regulations, international shipments may occasionally be subject to local VAT, customs clearance fees, or import duties charged by local customs authorities. As standard in international trade, these charges remain the buyer's responsibility.
Smooth Clearance: Please verify your phone number and delivery address at checkout so courier services can reach you easily if clearance coordination is needed.
I wanted to improve the electric bike, but the motor controller doesn't work and it ruined my grip throttle. The screen works but the setup instructions are horrible; there's no information on how to change the startup password. I'm considering whether to return the order.
