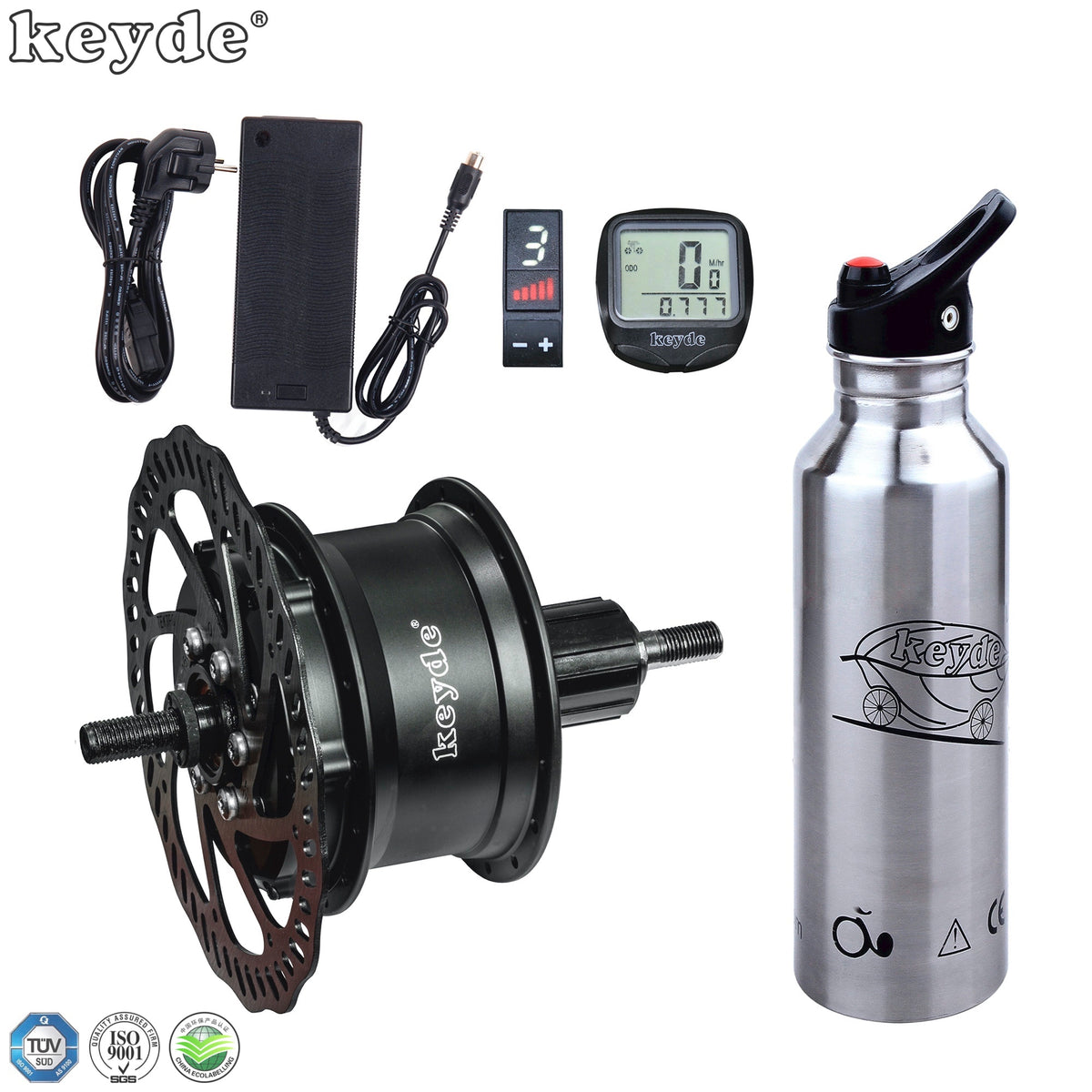

Electric bicycle kit 33V 36V motor with controller and sensor inside 10.5Ah li-ion battery

Electric bicycle kit 33V 36V motor with controller and sensor inside 10.5Ah li-ion battery

              Suitable for almost all types of bikes

                      Two-year warranty

1. rear v-brake motor with controller &sensor inside

• Diameter---110mm
• Width------135mm
• Power----250W
• Voltage---24V/33V/36V
• Revolution---160~260r/min
• Weight-----2.3kg
• Integrate efficient drive and controller &sensor system
• Peak efficiency is more than 85%
• Small volume, light weight, low noise

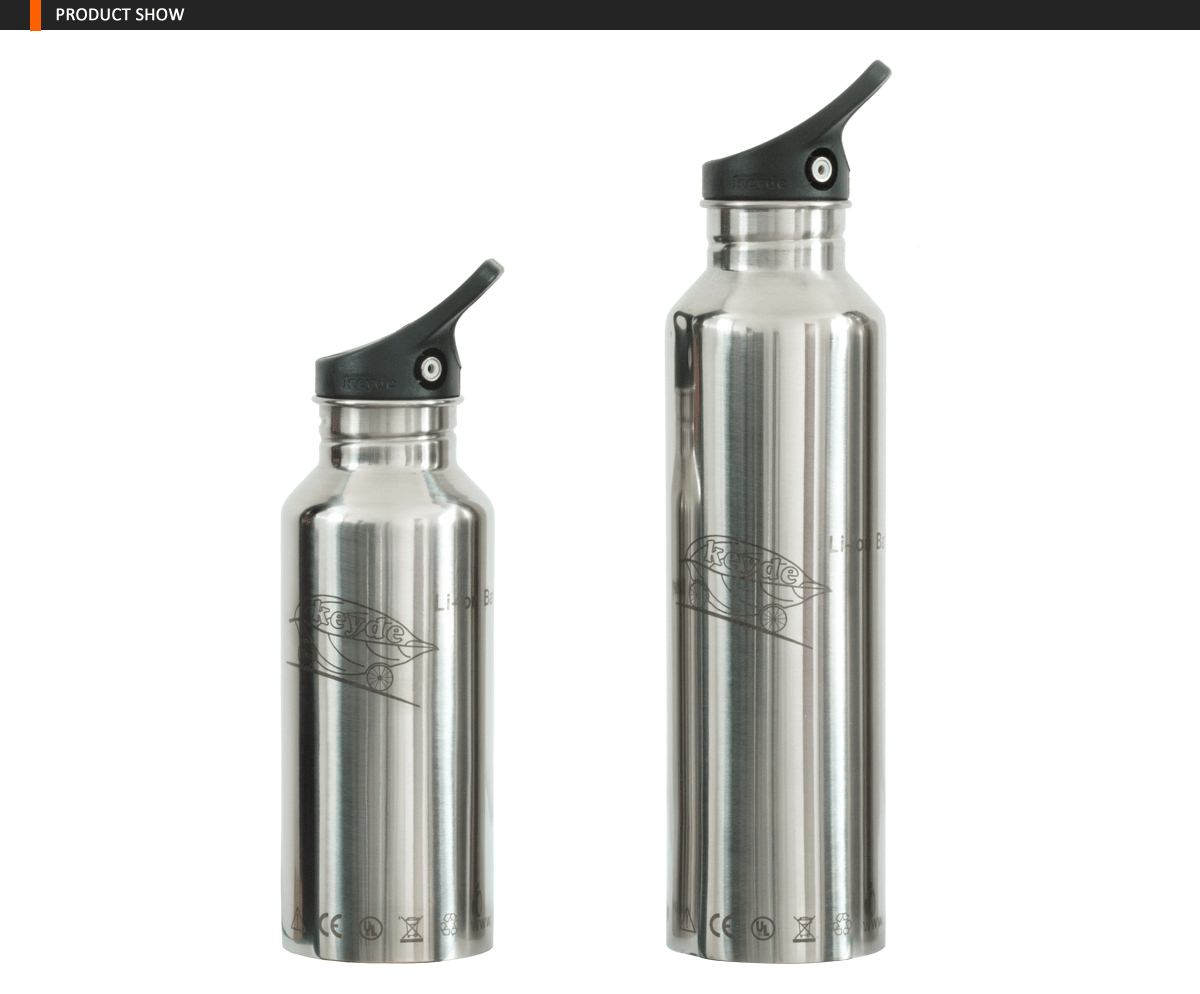

 2. Li-ion battery

• Voltage----36V
• Capacity----10.5Ah
• Cycle life----≥500 times
• Outer diameter----72mm
• Height-----290mm
• Weight----1.8kg
• Endurance mileage---75-85km
• Quick charge, perfect protection fuctions, exquisite appearance
• It can be easily fixed on the water bottle frame

 3. LED regulator + LCD display

• The remaining battery charge display
• Power ratio adjustment
• SPD current speed
• ODO odometer
• DST trip distance
• MXS maximum speed
• TM elapsed time
• "+" "-" comparator
• AVS  average speed

 4.Battery charger

• Input voltage----AC100-240V/50-60Hz
• Output voltage---37.8V
• Transfer power---≥88%
• charging time---3hours

5.  Connecting cable

• Waterproof, high reliability
