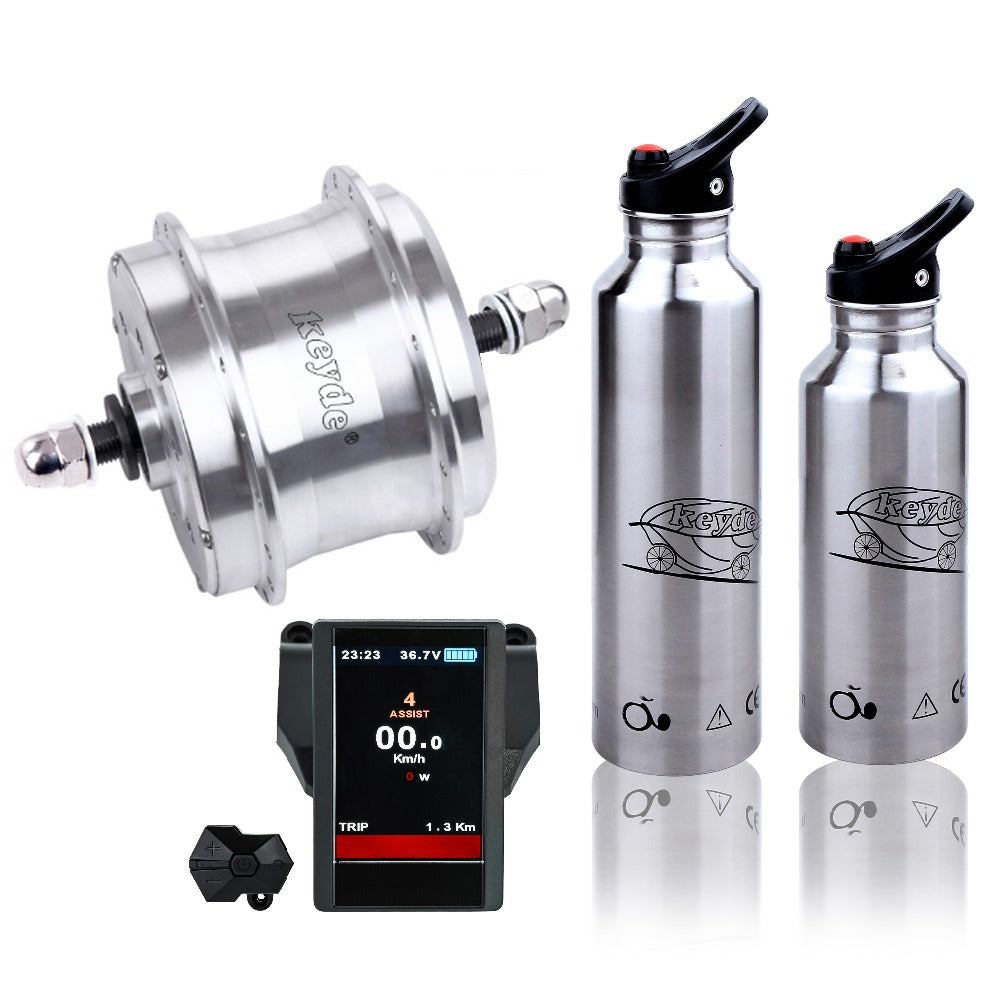

Electric bicycle kit 24V/33V/.36V motor with controller inside 6.3Ah li-ion battery
Suitable for almost all types of bikes
Two-year warranty

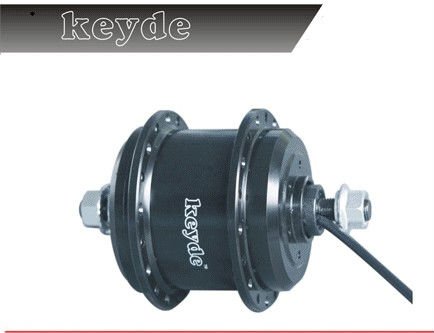

1. V-brake motor with controller inside
- Diameter---98mm
- Width------100mm
- Power----250W
- Voltage---24V/33V/36V
- Revolution---160~260r/min
- Weight-----1.5kg
- Integrate efficient drive and controller system
- Peak efficiency is more than 80%
- Small volume, light weight, low noise
2. Li-ion battery
- Voltage----33V
- Capacity----6.3Ah
- Cycle life----≥500 times
- Outer diameter----72mm
- Height-----220mm
- Weight----1.2kg
- Endurance mileage---40km
- Quick charge, perfect protection fuctions, exquisite appearance
- It can be easily fixed on the water bottle frame
3. LED regulator + LCD display
- The remaining battery charge display
- Power ratio adjustment
- SPD Current speed
- ODO odometer
- DST trip distance
- MXS maximum speed
- TM elapsed time
- "+" "-" comparator
- AVS average speed
4.Battery charger
- Input voltage----AC100-240V/50-60Hz
- Output voltage---37.8V
- Transfer power---≥88%
- charging time---3hours
5. Speed sensor
- High revolution, small volume, high reliability
6. Model
Imagine if you could be satisfied and content with your purchase. That can very much be your reality with the Electric bicycle kit 24V/33V/.36V motor with controller inside 6.3Ah li-ion battery.
