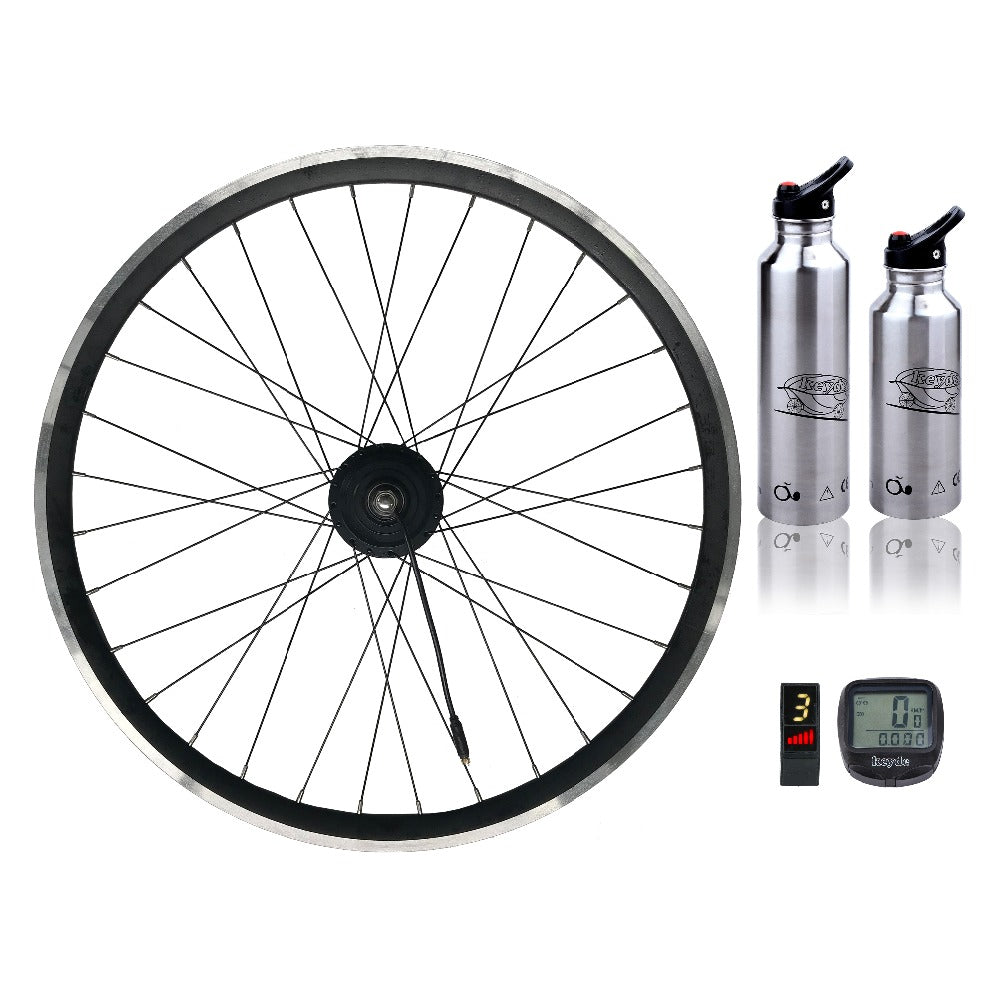

Electric bicycle kit 24V/33V/36V drive and controller unified motor with rim 6.8Ah li-ion battery

Sale price $1,328.00 Regular price $1,488.00

Electric bicycle kit 24V/33V/36V drive and controller unified motor with rim 6.8Ah li-ion battery



         Electric bicycle kit 24V/33V/36V drive and controller unified motor with rim 6.8Ah li-ion battery

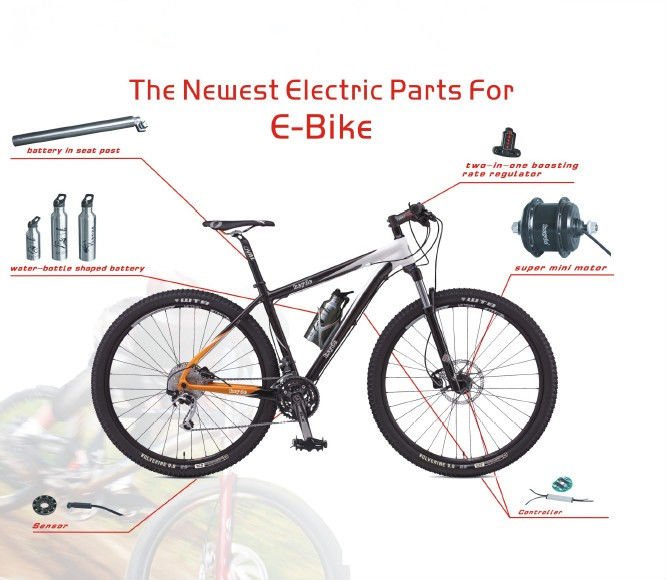

              Suitable for almost all types of bikes



            Electric bicycle kit 24V/33V/36V drive and controller unified motor with rim 6.8Ah li-ion battery

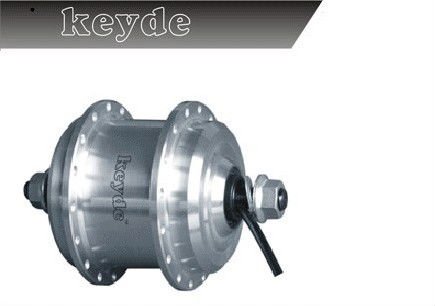

1. Disc-brake motor with controller inside

  • Diameter---98mm
  • Width------100mm
  • Power----250W
  • Voltage---24V/33V/36V
  • Revolution---160~260r/min
  • Weight-----1.5kg
  • Integrate efficient drive and controller system
  • Peak efficiency is more than 85%
  • Small volume, light weight, low noise

         Electric bicycle kit 24V/33V/36V drive and controller unified motor with rim 6.8Ah li-ion battery         Electric bicycle kit 24V/33V/36V drive and controller unified motor with rim 6.8Ah li-ion battery



 2. Li-ion battery

  • Voltage----33V
  • Capacity----6.8Ah
  • Cycle life----≥500 times
  • Outer diameter----72mm
  • Height-----220mm
  • Weight----1.2kg
  • Endurance mileage---45km
  • Perfect protection fuctions, exquisite appearance
  • It can be easily fixed on the water bottle frame

              Electric bicycle kit 24V/33V/36V drive and controller unified motor with rim 6.8Ah li-ion battery



 3. LED regulator + LCD display

  • It can steplessly regulate the boosting rate frm 0 to 100% at will.
  • It can simulately display the dump energy of battery.

            Electric bicycle kit 24V/33V/36V drive and controller unified motor with rim 6.8Ah li-ion battery

 4.Battery charger

  • Input voltage----AC100-240V/50-60Hz
  • Output voltage---37.8V
  • Transfer power---≥88%
  • charging time---3hours

        Electric bicycle kit 24V/33V/36V drive and controller unified motor with rim 6.8Ah li-ion battery



5.  Speed sensor

  • High revolution, small volume, high reliability

         Electric bicycle kit 24V/33V/36V drive and controller unified motor with rim 6.8Ah li-ion battery





               Electric bicycle kit 24V/33V/36V drive and controller unified motor with rim 6.8Ah li-ion battery

              Electric bicycle kit 24V/33V/36V drive and controller unified motor with rim 6.8Ah li-ion battery

                   Electric bicycle kit 24V/33V/36V drive and controller unified motor with rim 6.8Ah li-ion battery

                   Electric bicycle kit 24V/33V/36V drive and controller unified motor with rim 6.8Ah li-ion battery

     Electric bicycle kit 24V/33V/36V drive and controller unified motor with rim 6.8Ah li-ion battery





The Electric bicycle kit 24V/33V/36V drive and controller unified motor with rim 6.8Ah li-ion battery is the product you didn't think you need, but once you have it, something you won't want to live without.
