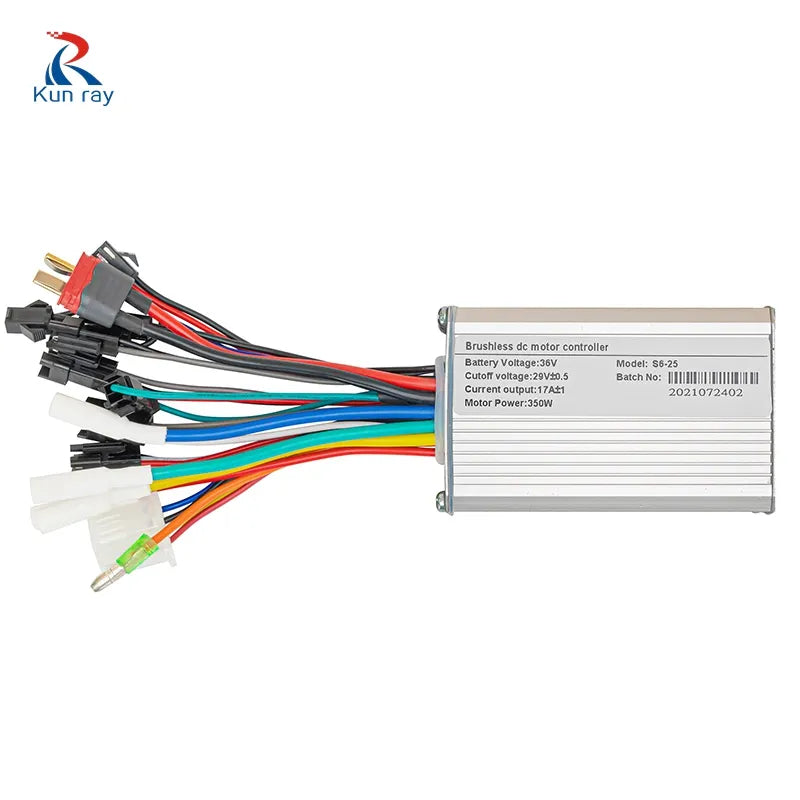

Electric Bicycle BLDC Motor Brushless Speed Controller 250W 350W 24V 36V 48V DC With Hall E-Brake Sensor Reverse 13A 6Mosfet
NOTE!
Battery connectors, T-shaped connectors and bullets are shipped randomly
Product Details
1.Voltage:24V 36V 48V DC
2.Power: 250W-350W
3.Low-Voltage Protection:
24V:19+-0.5V
36V:29+-0.5V
48V:39+-0.5V
4.Current Limite:
250W:13A+-1A
350W:15A+-1A
5.Throttle :4.3V
6.Controller Type: Brushless Speed Controller
7.Usage: For BLDC Motor 24V-48V 250W- 350W, e Bike,Electric Bicycle Scooter,Folding Bike,Unicycle Scooter,Blance CAR ,DIY Motor Controller
8.Function: Hall Reverse, E-Brake,Reverse, 1:1sendor, self-study,Cruise.
9.Wiring diagram：power cable, Motor phase, Electric door lock, Anti-theft, self-study, Hall, brake, 1: 1 boost, Cruise, Throttle
10.SIZE: L 85*W 55*H 30mm about
Weight: 195g about
Wiring connect as below picture
