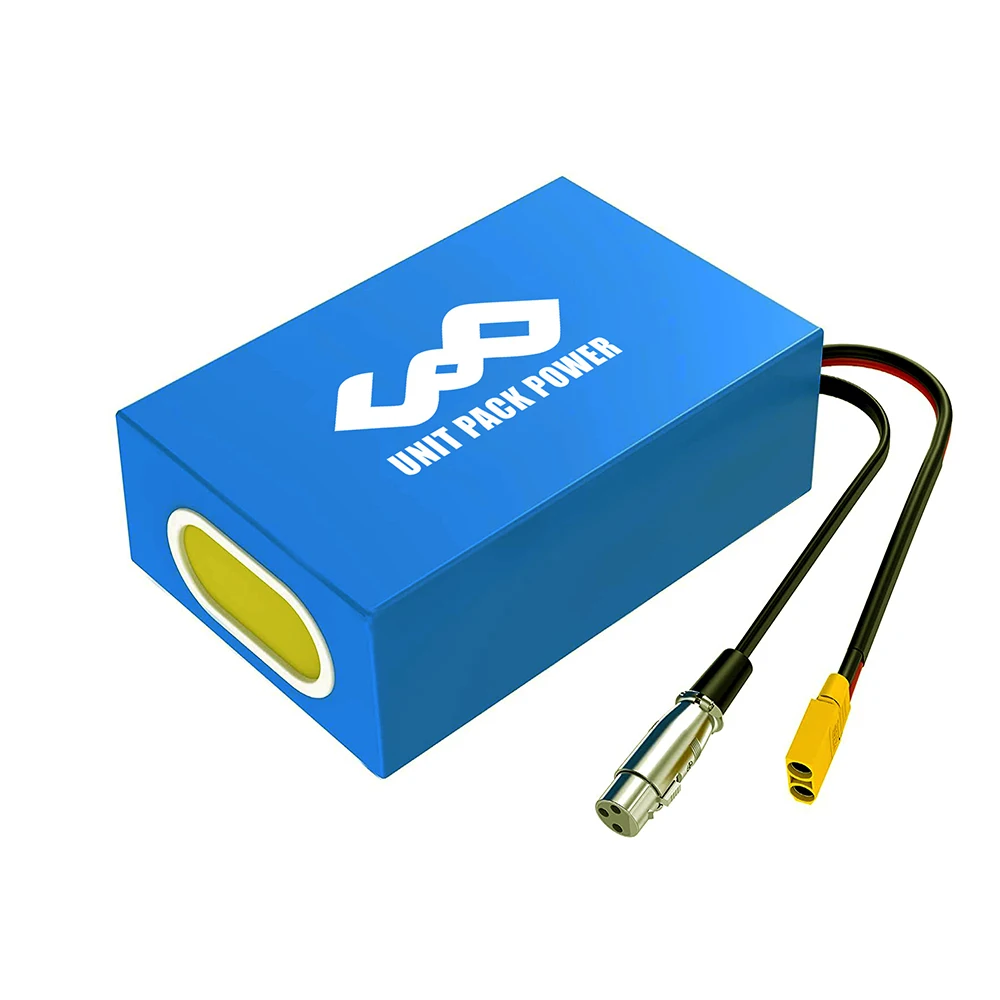

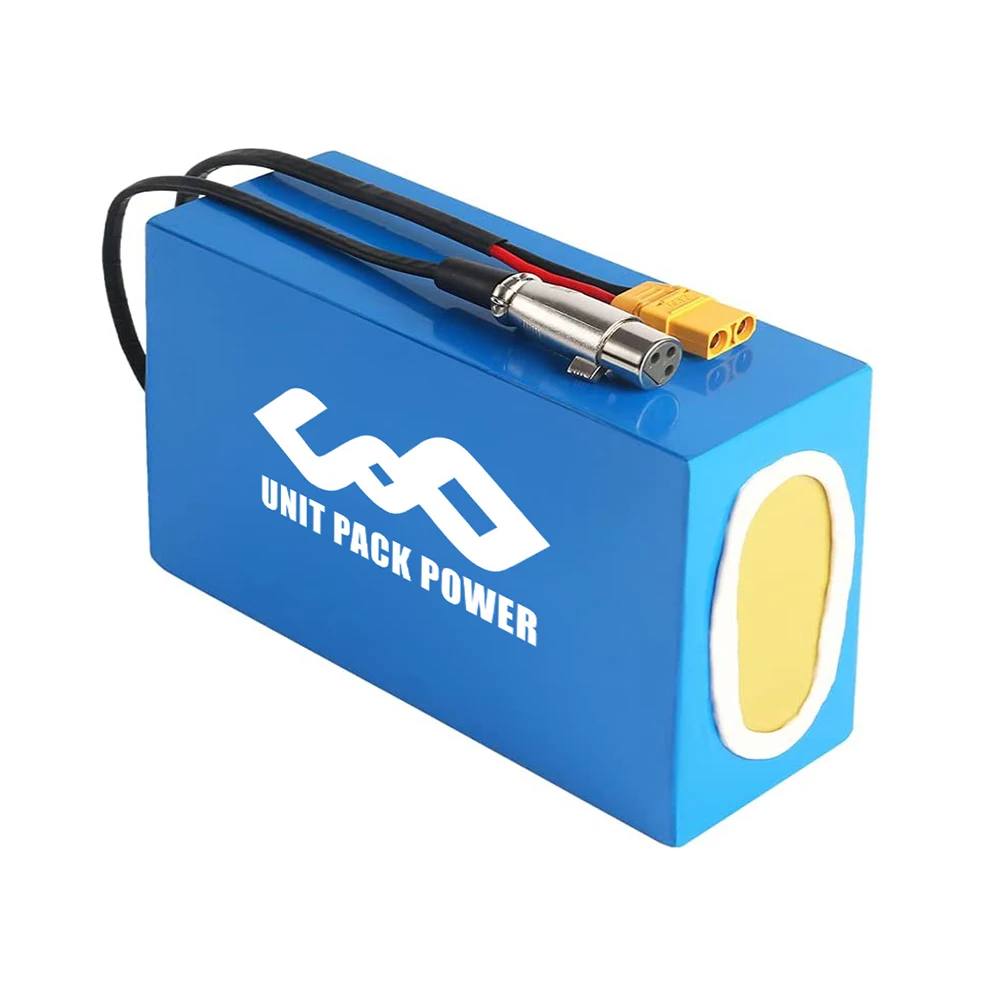

Ebike Battery Pack - Powerful Escooter Batteria Pack for Electric Bicycle 36V-72V, 20Ah-40Ah Capacity, Samsung 21700/Superior 2500mAh Cells
If you're in need of a powerful and reliable ebike battery pack, you've come to the right place. Our ebike battery pack, along with its related keyphrases such as "escooter battery pack", "48V battery pack", "72V battery pack", "60V battery pack", "36V battery pack", "electric bicycle battery pack", "Samsung 21700 battery pack", "2500mAh battery pack", "5600W ebike battery pack", is the perfect solution for your electric vehicle needs.

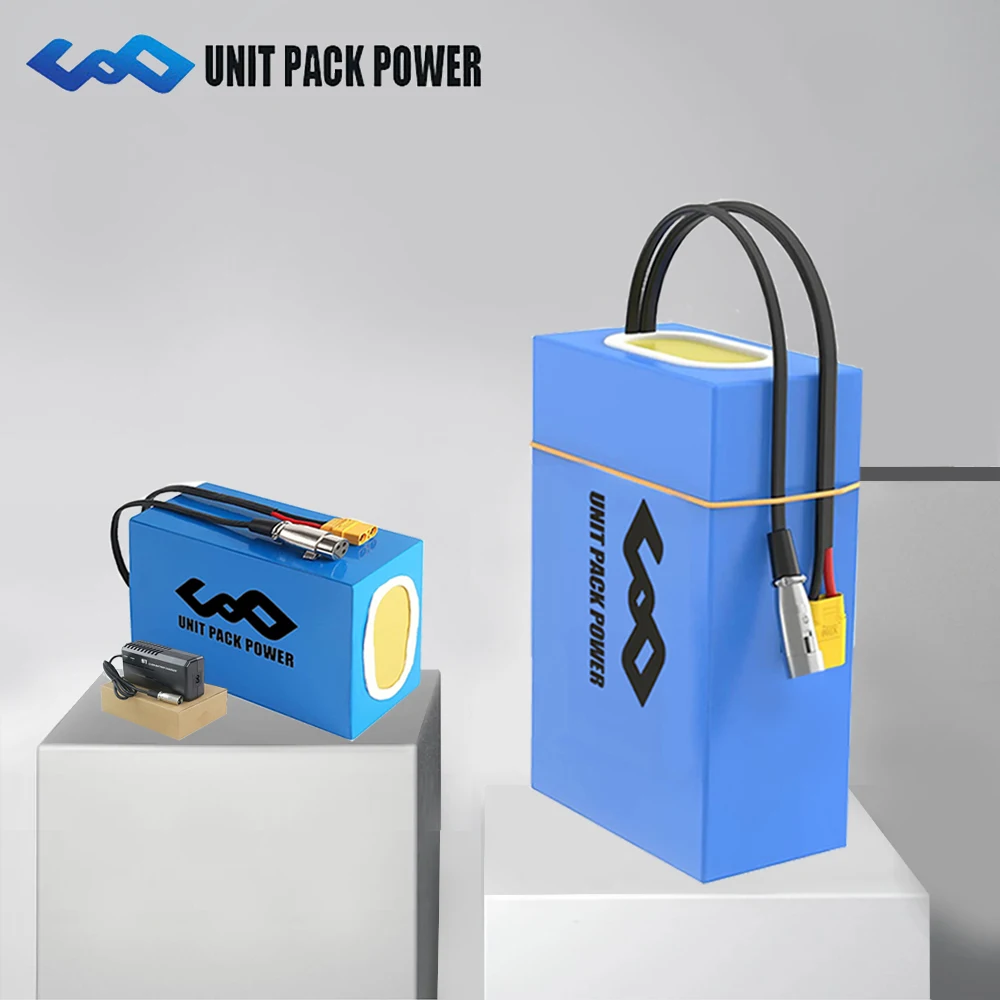

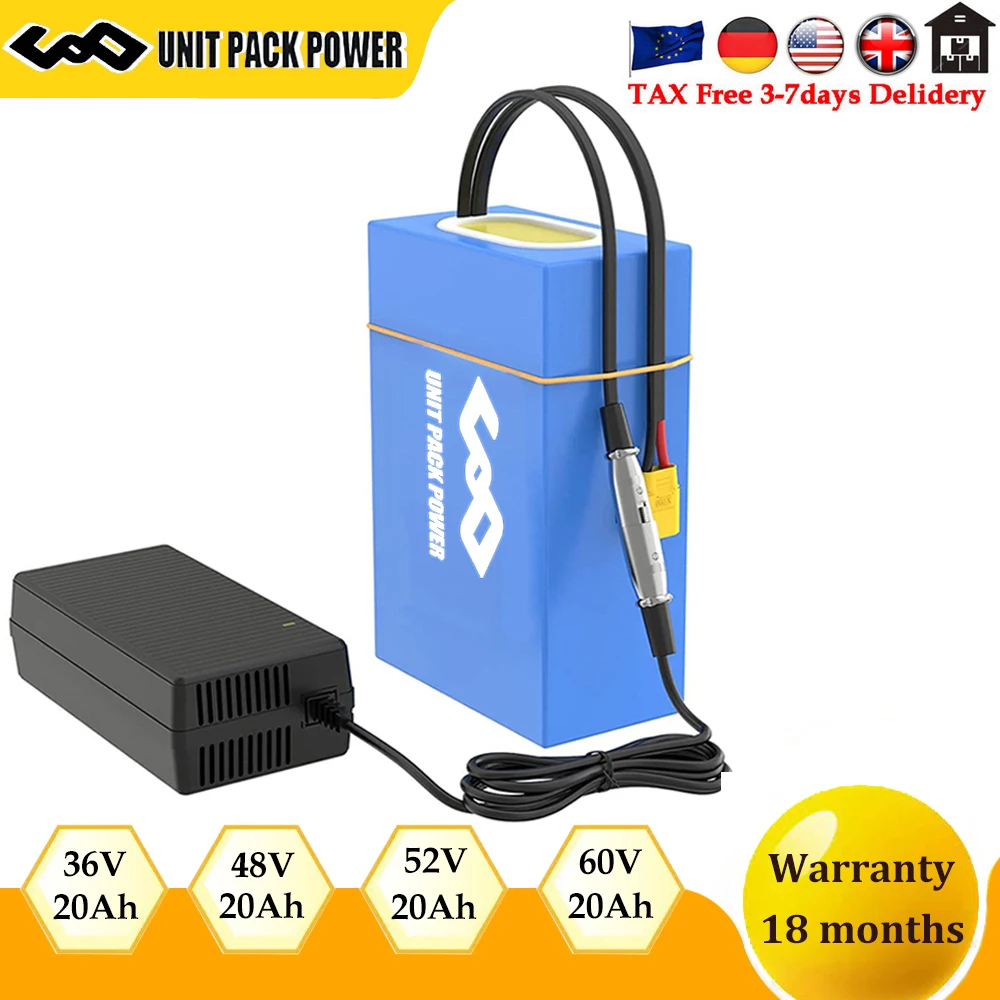

Our ebike battery pack comes in a range of voltages and capacities, including 20Ah, 30Ah, and 40Ah, and is composed of high-quality 2500mAh or Samsung 5000mAh 21700 cells, ensuring reliability and longevity. It features a built-in BMS with various discharge cut-off and charge cut-off voltage options to optimize performance and safety.
Our ebike battery pack is compatible with motors ranging from 250W up to 5600W, making it suitable for a wide range of electric bicycles and scooters. The dimensions range from 190*160*70 mm up to 370*160*70 mm, and the weight varies from 3.4KG to 11.7KG, depending on the capacity.
Upgrade your electric vehicle with our high-capacity and long-lasting ebike battery pack, available in a range of voltages and capacities. Our battery pack is designed to provide reliable and consistent power, ensuring you can enjoy longer rides and better performance. Choose from our range of models, including the 48V20Ah, 52V25Ah, and 72V40Ah, to find the perfect fit for your electric vehicle.
4. UnitPackPower batteries have insured to International Insurance, rest assured to buy.
Parameter |
36V20Ah |
48V20Ah |
52V20Ah |
60V20Ah |
60V 25Ah |
72V 20Ah |
Nominal Voltage |
36V |
48V |
52V |
60V |
60V |
72V |
Nominal Capacity |
20AH |
20AH |
20AH |
20AH |
25AH |
20AH |
Nominal Watt Hour |
540WH |
960WH |
1040WH |
1200WH |
1500WH |
1440WH |
Composed Type |
10S6P |
13S8P |
14S8P |
16S8P |
16S10P |
20S8P |
Battery Pack Cell |
Brand 2500mAH |
Brand 2500mAH |
Brand 2500mAH |
Brand 2500mAH |
Brand 2500mAH |
Brand 2500mAH |
Built-in BMS |
20A |
30A/50A |
30A/40A |
50A |
50A |
50A |
Fit Motor Power |
36V 250W 350W 500W motor maximum |
48V 0-1000W / 0-1800W motor maximum |
48V/52V 0-1000W / 0-1500W motor maximum |
60V 500W 750W 1000W 1500W 1800W 2000W 2250W motor maximum |
60V 500W 750W 1000W 1500W 1800W 2000W 2250W Motor |
72V 0-2800W motor maximum |
Discharge Cut-off Voltage |
28V |
36.4V |
39.2V |
44.8V |
44.8V |
56V |
Charge Cut-off Voltage |
42V |
54.6V |
58.8V |
67.2V |
67.2V |
84V |
Battery Weight |
3.4KG |
5.5 KG |
6KG |
7.5KG |
9KG |
9KG |
Battery Charger |
42V 2A |
54.6V2.5A |
58.8V2.5A |
67.2V3A |
67.2V 3A |
84V 4A |
Dimension |
190*160*70 mm |
260*150*70mm |
280*150*70 mm |
300*160*70 mm |
300*200*70 mm |
370*160*70 mm |
Parameter |
36V30Ah |
48V30Ah |
52V30Ah |
60V30Ah |
72V 30Ah |
72V 40Ah |
Nominal Voltage |
36V |
48V |
52V |
60V |
60V |
72V |
Nominal Capacity |
30AH |
30AH |
30AH |
30AH |
30AH |
30AH |
Nominal Watt Hour |
1080WH |
1440WH |
1560WH |
1800WH |
2160WH |
2880WH |
Composed Type |
10S6P |
13S6P |
14S6P |
16S6P |
20S6P |
20S8P |
Battery Pack Cell |
Samsung 5000mAH 21700 Cell |
|||||
Built-in BMS |
20A |
50A |
50A |
60A |
60A |
60A/80A/100A |
Fit Motor Power |
36V 250W 350W 500W motor maximum |
48V 0-1800W motor maximum |
48V/52V 0-2000W motor maximum |
60V 0-2700W motor maximum |
72V 0-3360W Motor maximum |
72V 0-3360W/0-4500W/0-5600W motor maximum |
Discharge Cut-off Voltage |
28V |
36.4V |
39.2V |
44.8V |
56V |
56V |
Charge Cut-off Voltage |
42V |
54.6V |
58.8V |
67.2V |
84V |
84V |
Battery Weight |
4.7KG |
6 KG |
6.4KG |
7.3KG |
9KG |
11.7KG |
Battery Charger |
42V 4A |
54.6V 4A |
58.8V 4A |
67.2V 4A |
84V 4A |
84V 4A |
Dimension |
245*160*75 mm |
320*160*75mm |
340*160*75 mm |
390*160*75 mm |
250*160*150 mm |
250*220*150 mm |

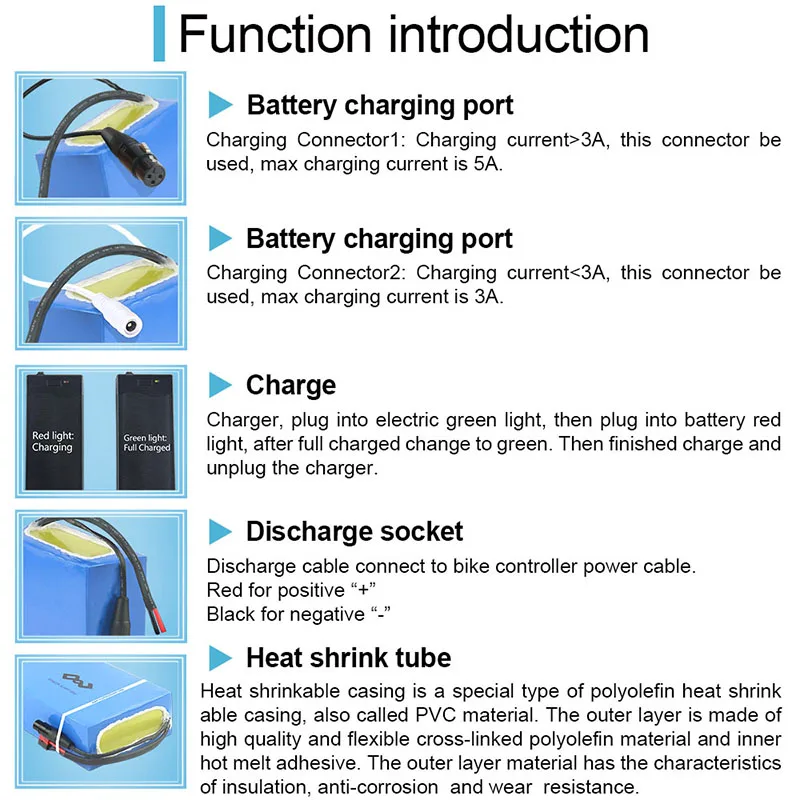

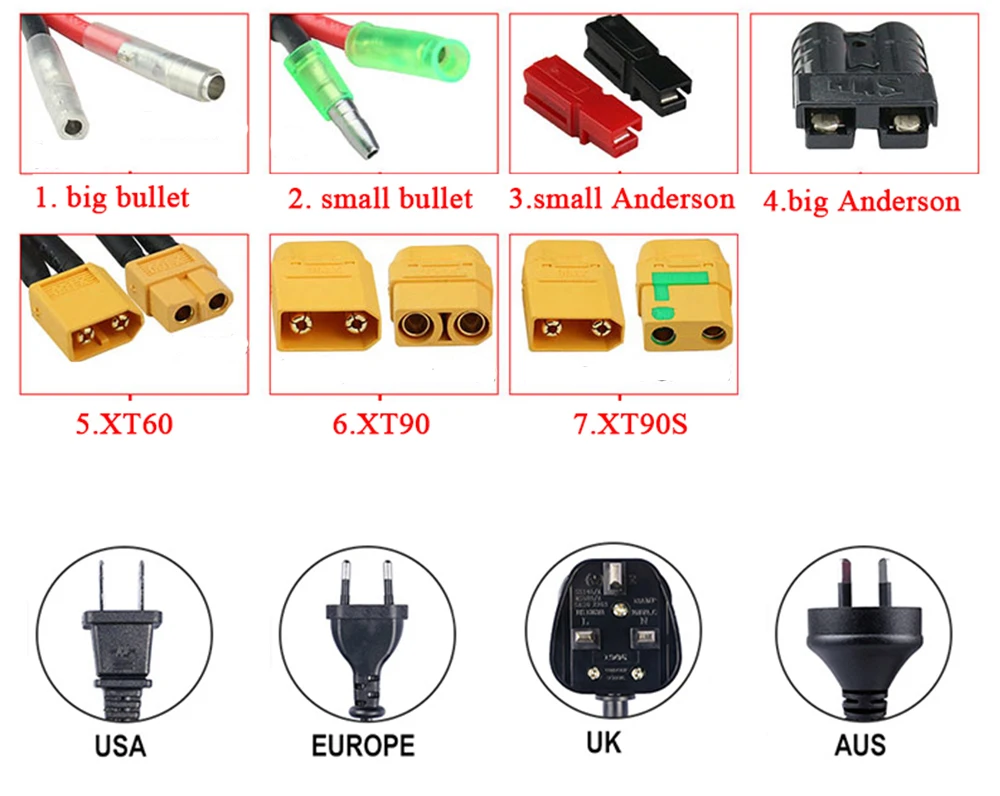

Charger plugs and Discharge connectors optional:
Which Battery Should I choose?
This really depends on the application and can be a hard question. First you need to get a battery voltage match to your motor request , then the capacity , high capacity can make your bike longer trip but more expensive , also need to choose a right amps BMS to fit your motor . do your research if this is your first ebike kit to make sure you are getting the right battery for your needs.
What cells are your battery packs made up of?
All our packs are made up of authentic Grade A 18650 battery cells made in China , Korea or Japan. We use Sanyo Panasonic Samsung , LG or Chinese A grade brand cells and only use the very best models of these brands. and all of our battery would never

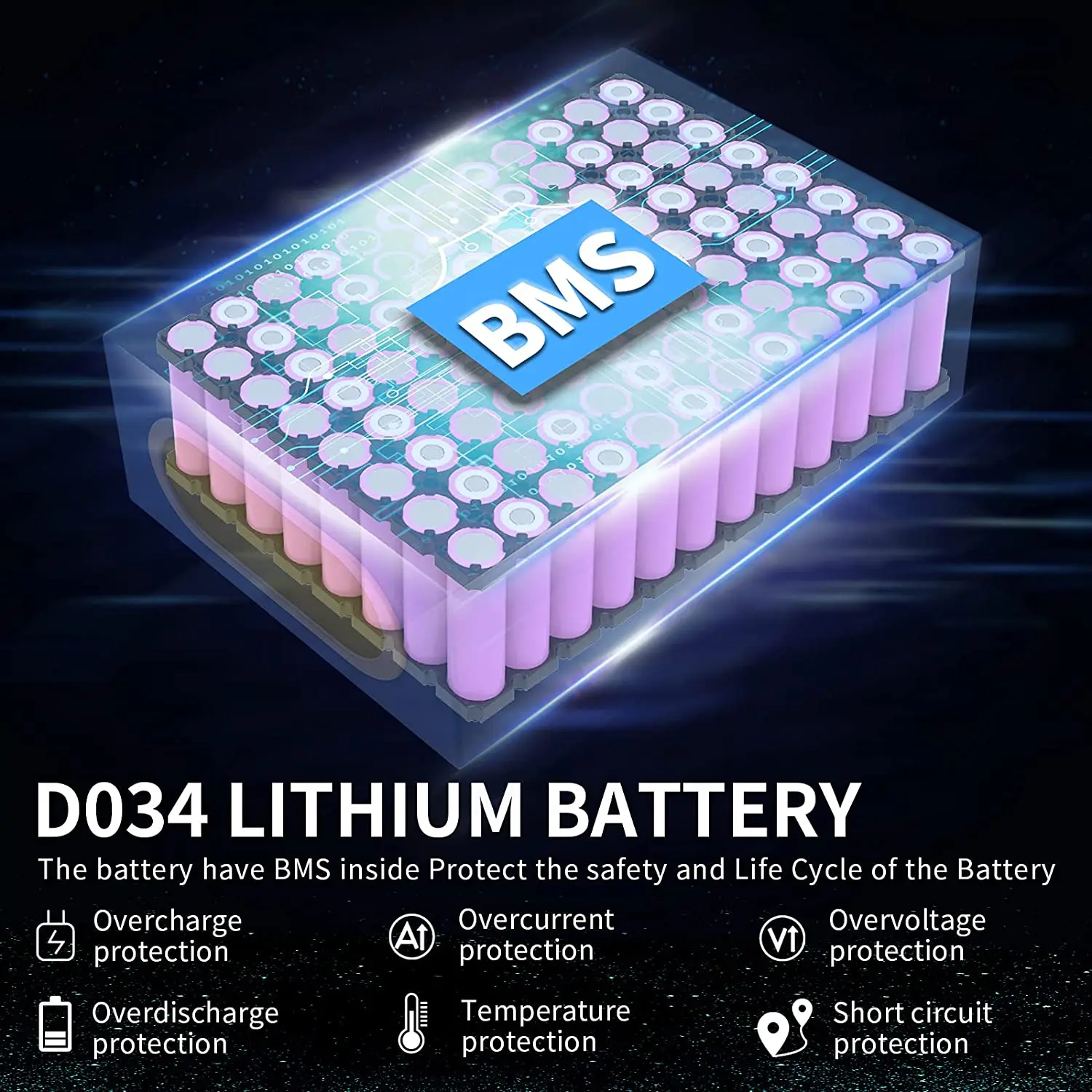

What is a BMS Battery management system.
The circuit board that makes your ebike battery “smart”. All of our packs have state of the art BMS to keep your pack safe.
How many volts should I choose?
Depending on your controller. All 48v controllers can handle either 48v or 52v packs. If you have a 36 volt controller however you will need to upgrade it before you can run a 48 or 52v pack.
How many amps do I need?
Also depending on your ebike motor voltage(V) and power(W), here is for your reference , If your motor is not included by belows , just contact us to check :
36V 20amps if for 36V 500W motor maximun ;
36V 25amps if for 36V 700W motor maximun ;
48V 30amps if for 48V 1000W motor maximun ;
48V 40amps if for 48V 1400W motor maximun ;
48V 50amps if for 48V 1800W motor maximun ;
52V 30amps if for 48V/52V 1100W motor maximun ;
52V 40amps if for 48/52V 1500W motor maximun ;
52V 50amps if for 48V/52V 1800W motor maximun ;
Warning :
Don't hit, pierce, strike, trample or throw the battery.
Don't put the battery in the water, keep the battery cool and dry condition .
Don't put the battery near a heat source such as fire or heater.
Use the specified charger that come with the battery
Don't reverse the position and negative pole.
Don't connect the positive and negative terminals with metal objects which would cause short circuit
Don't transport or store the battery with metal objects together , such as hairpins, necklaces, etc.
But beware that following situations are beyond our guarantees.
>The battery goes over water
> The battery is broken man-made
> Incorrect unsing the battery not according the instrucitons
> Open a case without contacting us
Notice :
Ship from USA :2-5days to USA, but Hawaii and Alaska, need to contact seller to inquire
shipping charge.
Ship from Germany :Within 7days to most of EU countries.
Ship from Australia:5-7days to AUS.
Ship from China (Please ignore Aliexpress default shipping time show on listing):
To Europe defuat shipping is train, free tax 50-60days , or you can choose to ship by air 18-
23days.
To USA/Canada , free tax , will ship by air 18-23days.
To Austrailia , ship by air 18-23days.
To Korea/Japan/Singapore/Malaysia/Thailand : ship by air 9-15days.
To other country , please contact seller. If the uncontrolled delay by Delivery , please
understand and be patient.
