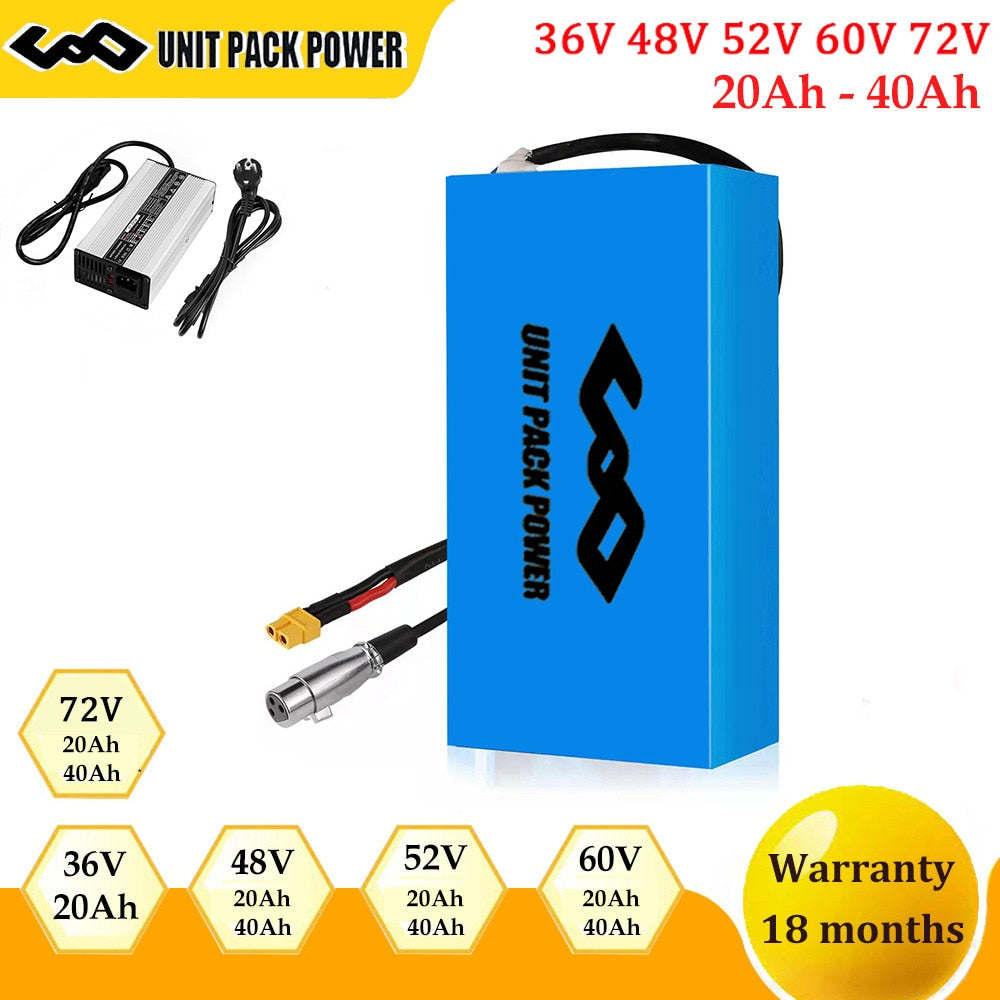

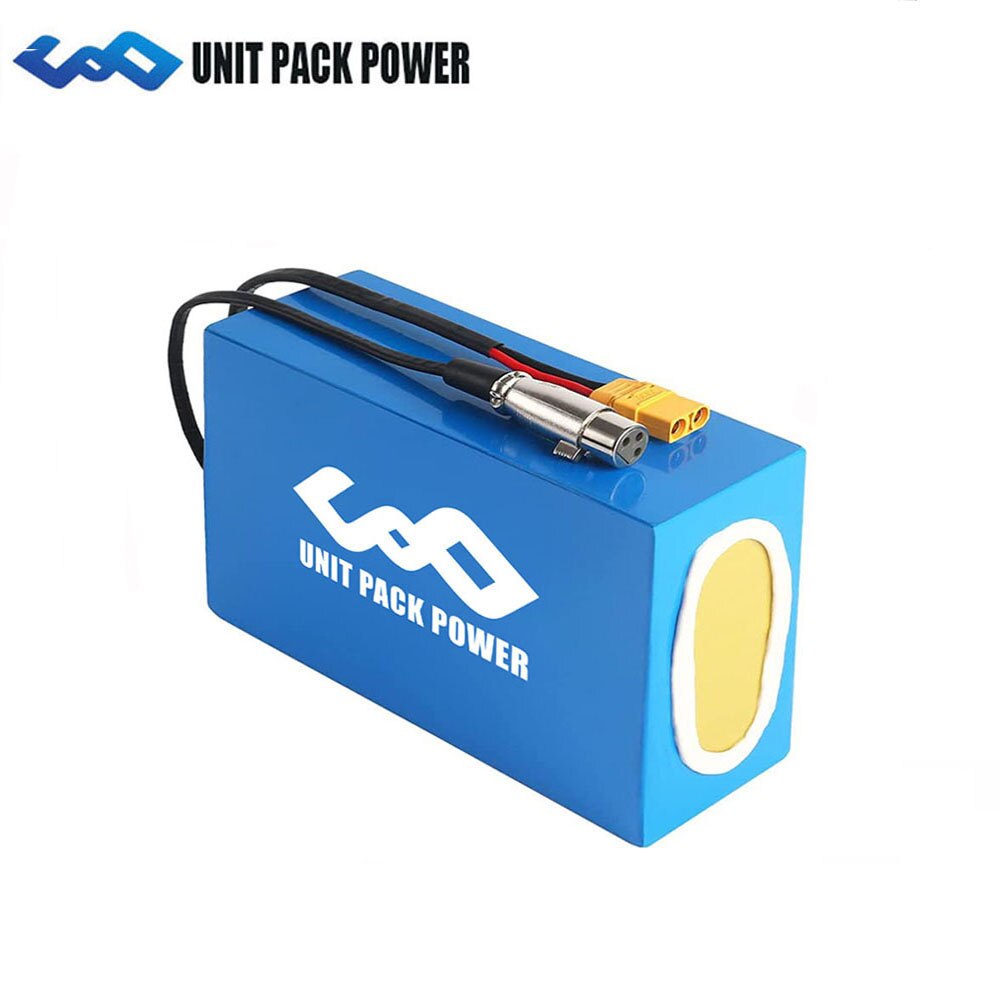

Ebike Battery Pack - 36V-72V, 20Ah-40Ah, 500W-6000W for Electric Bicycles and Scooters Battery
Introducing our high-quality Ebike Battery Pack, designed specifically for electric bicycles and scooters. Our battery pack, also known as an Electric Bicycle Battery or Scooter Battery Pack, is the perfect solution for those in need of a Lithium Battery for Ebike that offers high capacity and reliable performance.

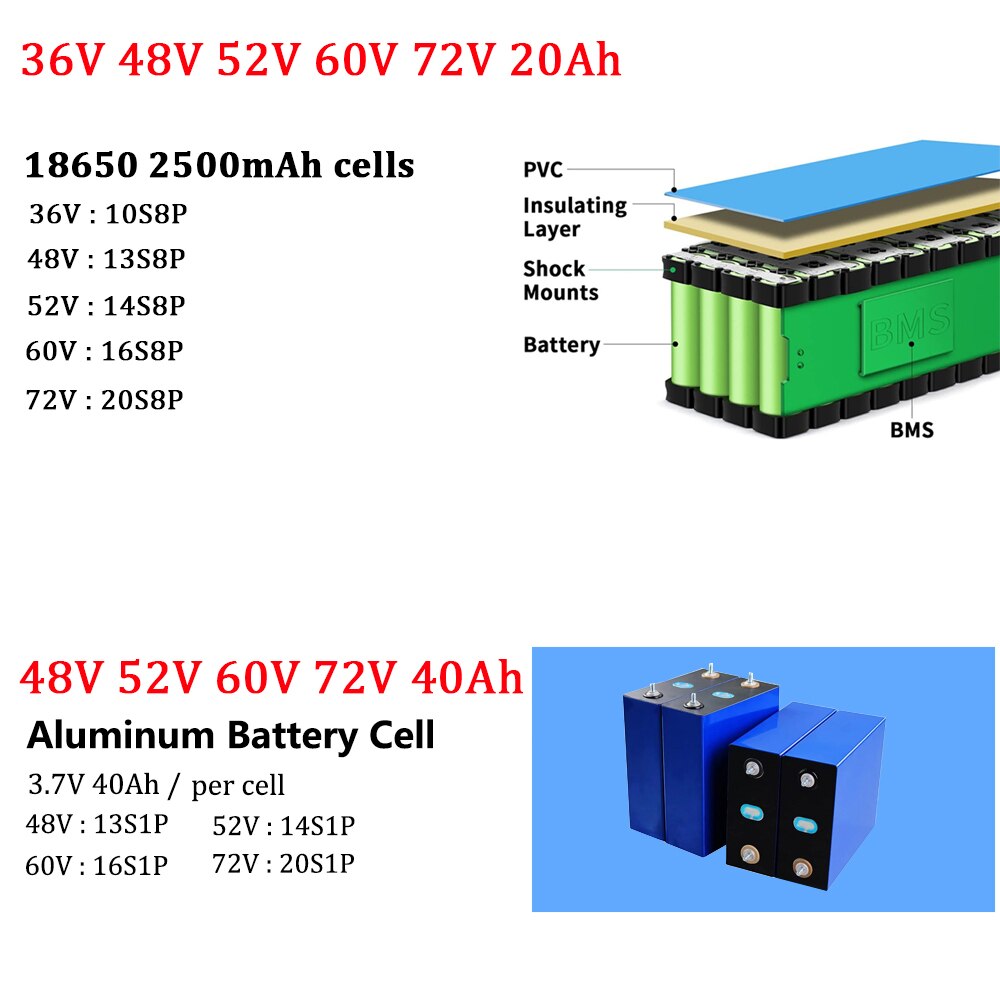

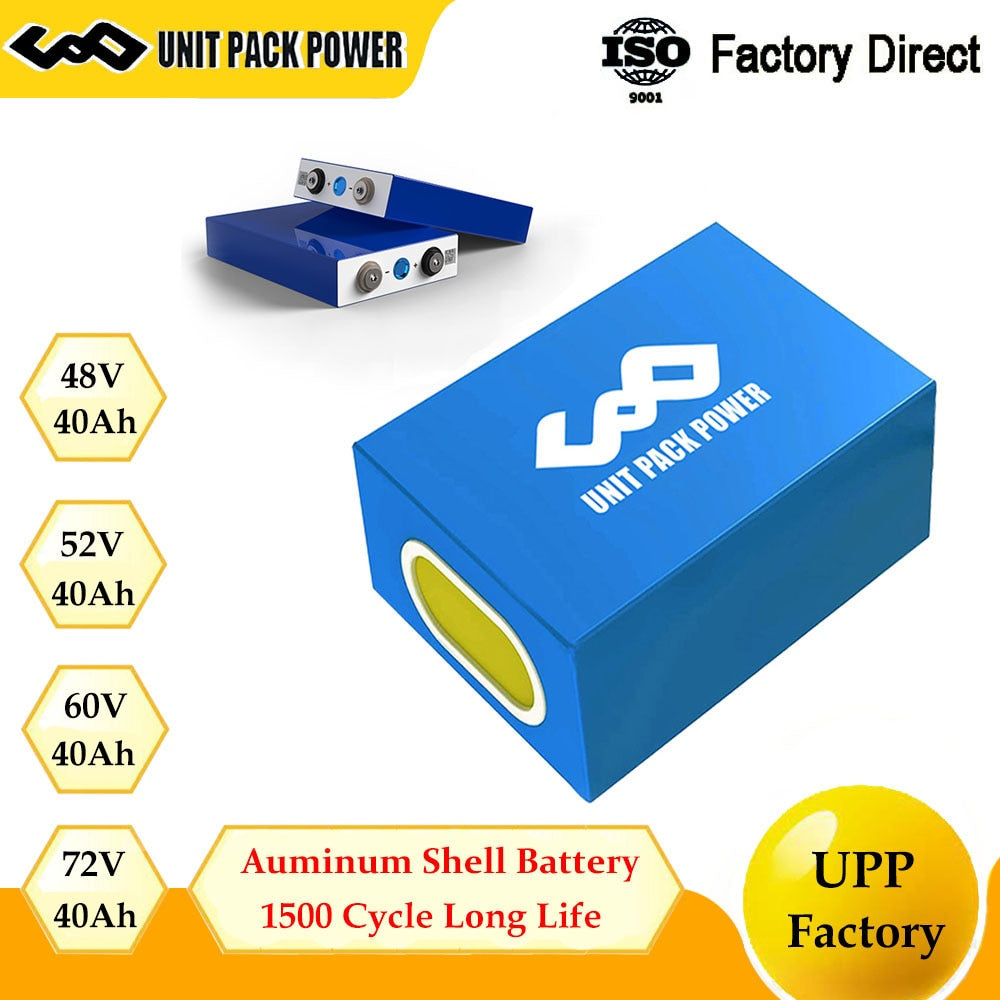

Our Aluminum Shell Battery Pack is composed of Domestic Grade A 2500mAh and 3000mAh 18650 cells, and a ternary rectangular 40Ah cell, ensuring durability, safety, and efficient performance. The Battery Management System (BMS) protects the battery from overcharging, over-discharging, and short-circuiting, making it a High Capacity Ebike Battery that is safe and long-lasting.
We offer different voltage options, including 36V, 48V, 52V, 60V, and 72V, with a nominal capacity of 20Ah-40Ah, and a nominal watt-hour ranging from 720-2880WH, depending on the model. The High Power Motor Battery is capable of handling motors with varying power requirements, ranging from 500W to 6000W.
Our Ebike Battery Pack is lightweight, ranging from 4.5kg-18kg, depending on the model, and comes with a battery charger that matches the voltage and capacity of the battery pack. The charger output ranges from 3A-4A, depending on the model. The battery pack's dimensions vary, depending on the model, ranging from 210*150*70mm to 400*150*70mm.
Whether you're looking for Electric Bicycle Battery or Scooter Battery Pack, our High Capacity Ebike Battery is an excellent choice. The Lithium Battery for Ebike offers efficient and reliable performance, while the BMS Protected Battery Pack ensures your safety. Our 18650 Battery Pack is suitable for different kinds of electric vehicles, making it a versatile option.
36V 48V 52V 60V 72V Ebike Battery Pack 20Ah 24Ah 25Ah 40Ah Electric Bicycle Escooter 18650 Battery 500W 750W 1000W 1500W 1800W 2000W 3300W 5600W
4.UnitPackPower batteries have insured to International Insurance, rest assured to buy.
Parameter |
36V 20Ah |
48V 20Ah |
52V 20Ah |
60V 20Ah |
72V 20Ah |
Nominal Voltage |
36V |
48V |
52V |
60V |
72V |
Nominal Capacity |
20Ah |
20Ah |
20Ah |
20Ah |
20Ah |
Nominal Watt Hour |
720WH |
960WH |
1040WH |
1200WH |
1440WH |
Composed Type |
10S8P |
13S8P |
14S8P |
16S8P |
20S8P |
Built-in BMS |
20A |
30A/50A |
30A/40A/50A |
50A |
50A |
Fit Motor Power |
0-500W maximum |
0- 1000W/ 0-1800W max |
0- 1000W/ 0-1500W/0-2000W max |
0- 2200W max |
0- 2800W max |
Charge Cut-off Voltage |
42V |
54.6V |
58.8V |
67.2V |
84V |
Discharge Cut-off Voltage |
28V |
36.4V |
39.2V |
44.8V |
56V |
Battery Weight |
4.5KG |
5.7KG |
6KG |
7KG |
8.5KG |
Battery Charger |
42V3A |
54.6V3A |
58.8V 3A |
67.2V3A |
84V3A |
Battery Pack Cell |
Domestic Grade A 2500mAh 18650 cells |
||||
Dimension |
210*150*70mm |
260*150*70mm |
280*150*70mm |
320*150*70mm |
400*150*70mm |
Parameter |
60V 25Ah |
72V 25Ah |
48V 24Ah |
52V 24Ah |
72V 40Ah |
Nominal Voltage |
60V |
72V |
48V |
52V |
72V |
Nominal Capacity |
25Ah |
25Ah |
24Ah |
24Ah |
40Ah |
Nominal Watt Hour |
1500WH |
1800WH |
1152WH |
1248WH |
2880WH |
Composed Type |
16S10P |
20S10P |
13S8P |
14S8P |
20S1P |
Built-in BMS |
50A |
60A |
50A |
40A |
100A |
Fit Motor Power |
0-2240W maximum |
0- 3360W max |
0- 1800W max |
0- 1500W max |
0- 5600W max |
Charge Cut-off Voltage |
67.2V |
84V |
54.6V |
58.8V |
84V |
Discharge Cut-off Voltage |
44.8V |
56V |
36.4V |
39.2V |
56V |
Battery Weight |
8.5KG |
10.5KG |
5.7KG |
6.1KG |
18KG |
Battery Charger |
67.2V3A |
84V4A |
54.6V4A |
58.8V 4A |
84V4A |
Battery Pack Cell |
Domestic Grade A 2500mAh 18650 cells |
Domestic Grade A 3000mAh 18650 cells |
Ternary rectangular 40Ah cell |
||
Dimension |
320*185*70mm |
400*185*70mm |
260*150*70mm |
280*150*70mm |
300×310×120mm |
Nominal Voltage: 48V
Rated Capacity: 40AH
Battery Cell: Aluminum shell 40Ah Lithium battery
Max Constant Discharge Current: 60A (BMS)
Peak Discharge Current:180A
Charger: 54.6V 4A
Battery Dimensions: 210*310*120mm & 210*205*165mm & 220*310*105mm (Note the size if order)
Nominal Voltage: 52V
Rated Capacity: 40AH
Battery Cell: Aluminum shell 40Ah Lithium battery
Max Constant Discharge Current: 50A (BMS)
Peak Discharge Current:150A
Charger: 58.8V 4A
Battery Dimensions: 210*310*120mm & 210*205*165mm & 220*310*105mm (Note the size if order)
Nominal Voltage: 60V
Rated Capacity: 40AH
Battery Cell: Aluminum shell 40Ah Lithium battery
Max Constant Discharge Current:60A (BMS)
Peak Discharge Current:180A
Charger: 67.2V 3A
Battery Dimensions: 240*310*120mm & 240*205*165mm (Note the size if order)
Nominal Voltage: 72V
Rated Capacity: 40AH
Battery Cell: Aluminum shell 40Ah Lithium battery
Max Constant Discharge Current:60A (BMS)
Peak Discharge Current:180A
Charger: 84V 4A
Battery Dimensions: 300*310*120mm & 300*205*165mm (Note the size if order)
Charger plugs and Discharge connectors optional:
How do we keep our battery reliable for your electric bycicle
1. We use only authentic name-brand cells made with the best BMS and the best ingredients
2. SIEKO IC BMS for battery over charge, over discharge, short circuit protection
3. We are hazmat certified to ship our battery packs and all our packs are tested and certified (UN38.3) to be shipping safe

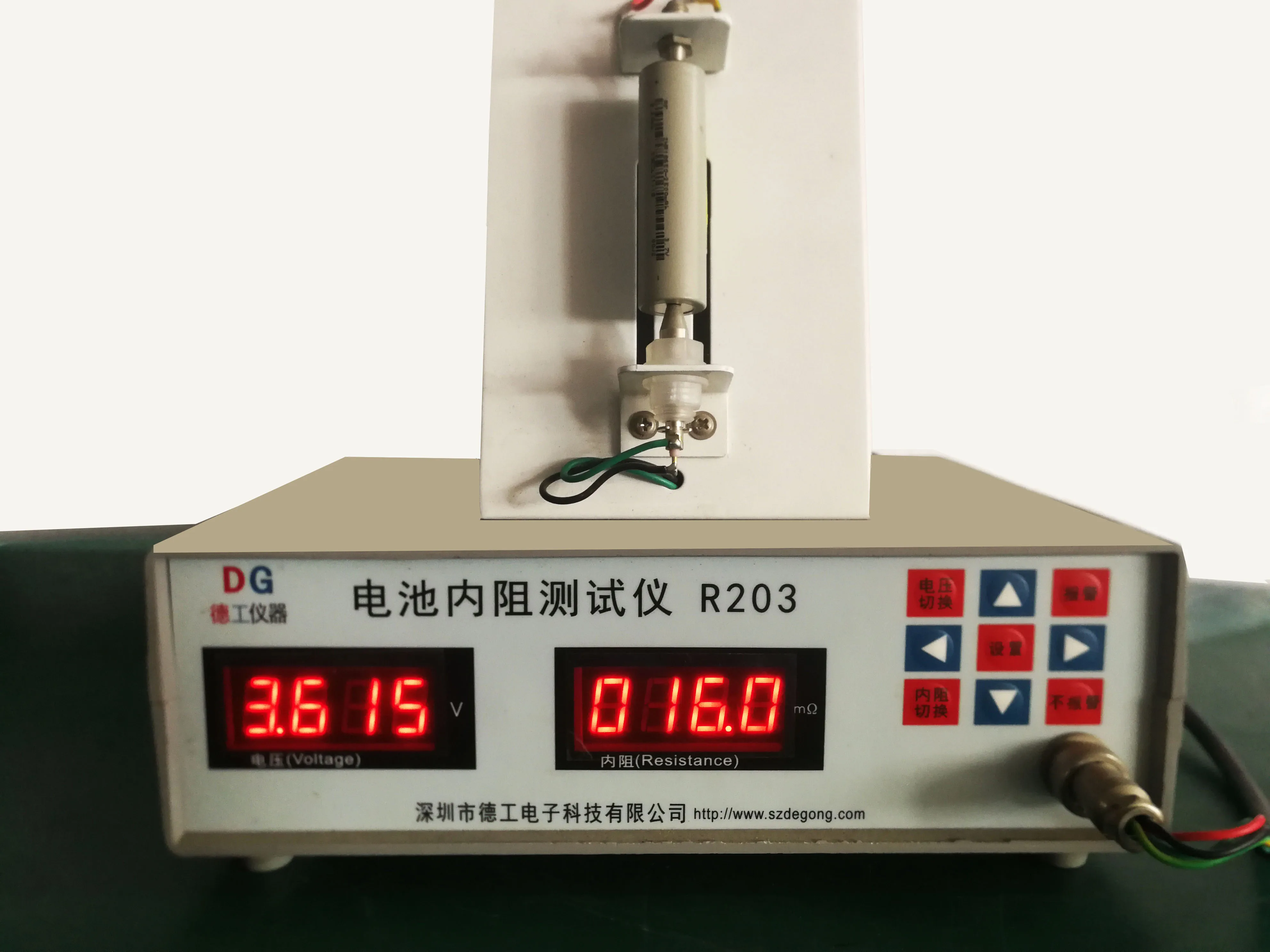

4. Battery cells 100% balance before pack for voltage, resistance and capacity
5. Final battery pack 100% discharge and charge test
6. Waterproof and vibration test
7. 100% inspection of appearance and function by QC before shipping
8. We use state-of-the-art BMS to keep your battery as safe as possible
9.UnitPackPower batteries have insured to International Insurance, rest assured to buy.
Which Battery Should I choose?
This really depends on the application and can be a hard question. First you need to get a battery voltage match to your motor request , then the capacity , high capacity can make your bike longer trip but more expensive , also need to choose a right amps BMS to fit your motor . do your research if this is your first ebike kit to make sure you are getting the right battery for your needs.
What cells are your battery packs made up of?
All our packs are made up of authentic Grade A 18650 battery cells made in China , Korea or Japan. We use Sanyo Panasonic Samsung , LG or Chinese A grade brand cells and only use the very best models of these brands. and all of our battery would never mark false capacity
What is a BMS Battery management system.
The circuit board that makes your ebike battery “smart”. All of our packs have state of the art BMS to keep your pack safe.
