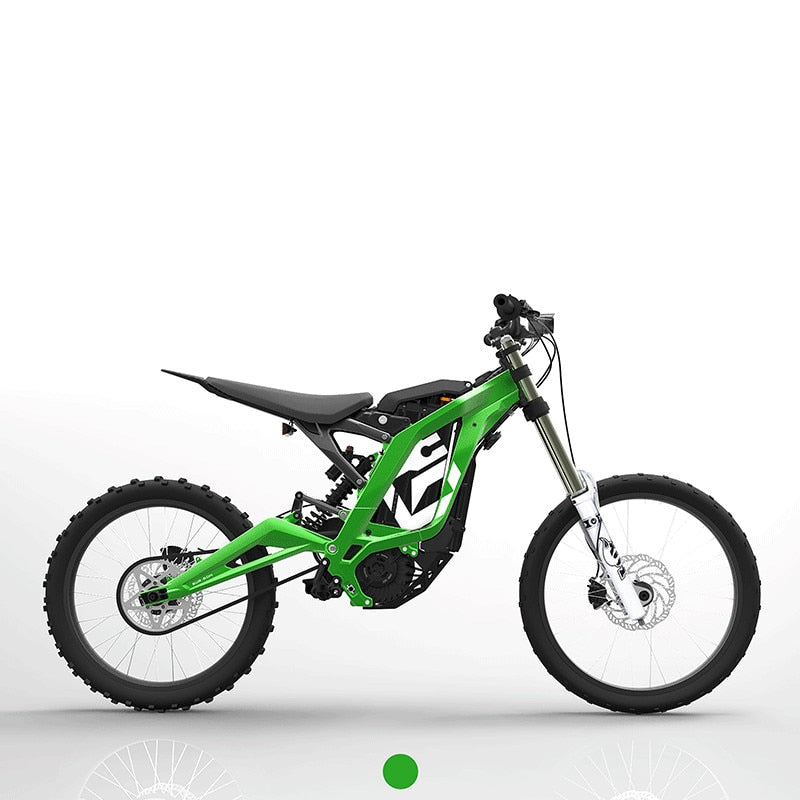

E-Motor Sur-ron Light Bee Electric motocycle off-road electric mountian bicycles super Ebike all terrain SUV electric MTB EBIKE
Rated Passenger Capacity: One Seat
Power Supply: Lithium Battery
Max Speed: >50km/h
Frame Material: Aluminum Alloy
Style: Luxury Type
Brand Name: sur-ron
Model Number: QF1
Range per Power: > 60 km
Voltage: 48V
Motor: Brushless
Wattage: > 500w
Certification: ce
Wheel Size: 20“
Foldable: No
E-Motor Sur-ron Light Bee Electric motocycle off-road electric mountian bicycles super Ebike all terrain SUV electric MTB EBIKE
This product is a custom product
Once the payment confirmation order will be irrevocable.
Please be careful ! ! !
PRE-SALE GOODS
Orders paid within 7 days after delivery
If you have questions please contact customer service
|
PARAMETER
Length: 1870mm |
| Width: 780mm |
| Height: 1040mm |
| Minimum ground distance: 270mm |
| Wheelbase: 1260mm |
| Vehicle quality: 50kg |
| Front axle mass distribution: 24kg |
| Rear axle mass distribution: 26kg |
| Maximum load weight: 100kg |
| Angle and itinerary |
|
Anteversion: 26 ° |
| Direction of the steering angle: 46 ° |
| Front fork travel: 200mm |
| After the reduction / round travel: 87 / 210mm |
| Performance and transmission |
|
Motor maximum speed: 4500r / min |
| Cooling method: forced air cooling |
| Climbing angle: 35 ° |
| Endurance: 100km (20km / h speed) |
| Maximum torque: 200N.m |
| Transmission type and transmission ratio: 1: 7.6 |
| Drive: belt + chain |
| Belt specifications: horse brand HTD 8M CXA drive |
| Frame and shock |
|
Frame type: aluminum double cradle |

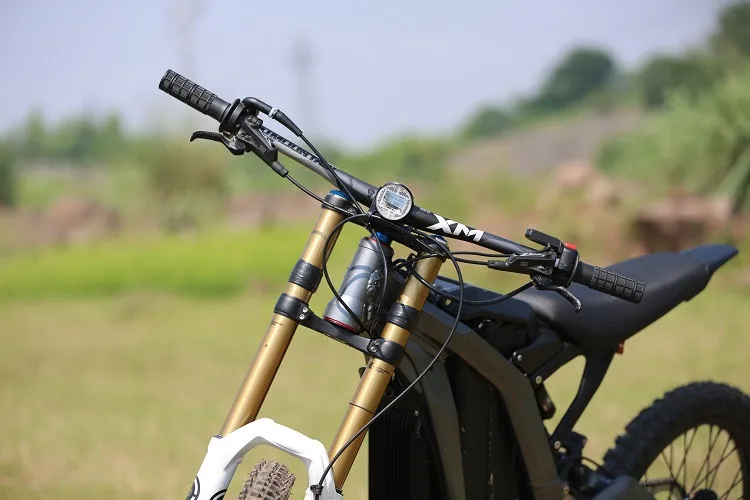

| Front shock type: double cylinder is vertical telescopic |

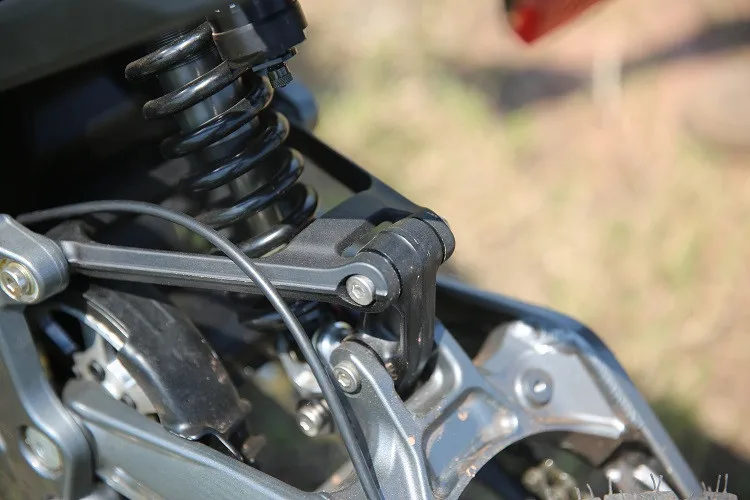

| After the shock type: multi-link center shock |

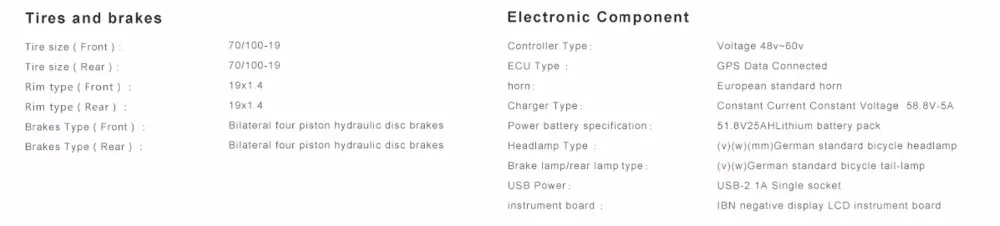

| Tires and Brakes |
|
Tire specifications (front): 70 / 100-19 |
| Tire specifications (after): 70 / 100-19 |
| Rim type (front): 19x1.4 |
| Rim type (after): 19x1.4 |
| Brake type (front): to the four-piston hydraulic disc brake |
| Brake type (rear): to the four-piston hydraulic disc brake |
|
Electronic components Motor : 48V 3000W / 60V 5400W |
|

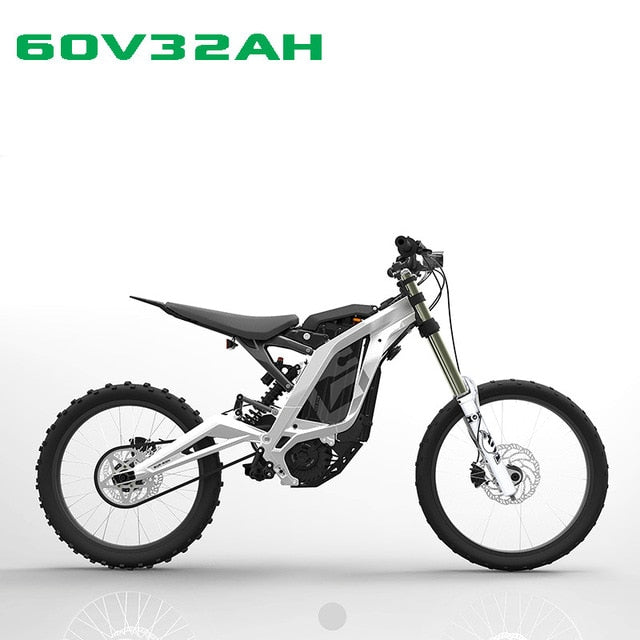

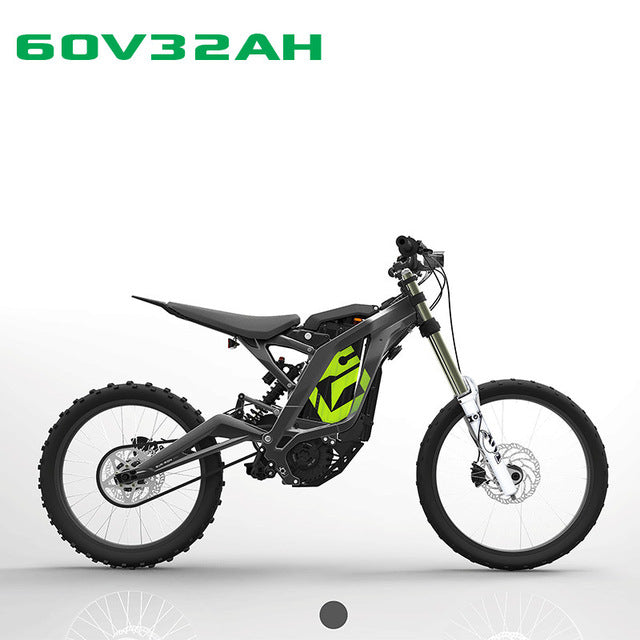

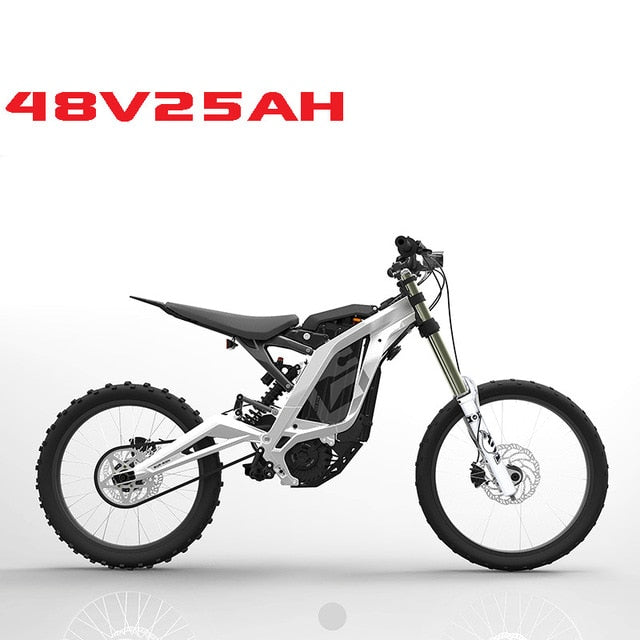

Lithium battery ： 48V25AH/ 60V32AH Controller type: 48 / 60V adaptive |
| ECU type: GPS data connection |
| Speaker: European standard speaker |
| Charger type: constant current constant voltage 58.8V-5A |
| Power battery specifications: 51.8V25AH lithium battery pack |
| Front headlamps type: bicycle headlights (v) (w) (mm) |
| Brake light / rear light Type: Bicycle Deuterium (v) (w) |
| USB power supply: USB-2.1A single socket |
| Instrument: IBN negative liquid crystal instrument |

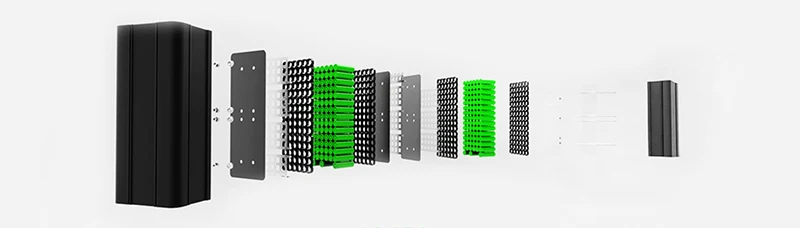

18650
The following techniques are adopted for the products such as the high atio 186 50 electric core,high power battery management system,soc battery statistics,4 temperature sensor
real time monitoring. upper computer management program and data interface The high battery load capacity and long life are ensured.Safe and Relible.
Ater 500 cycles o1 charging and discharging, 80% of the battery capacity is lef and the maximum load capacity is 6000w.

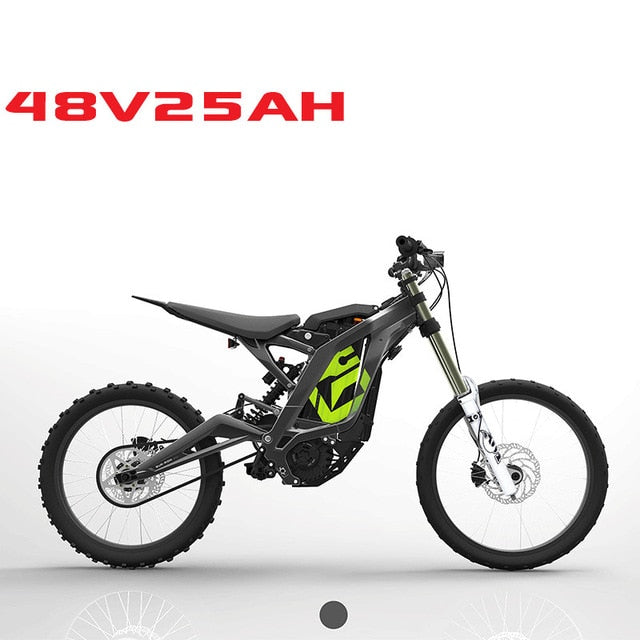

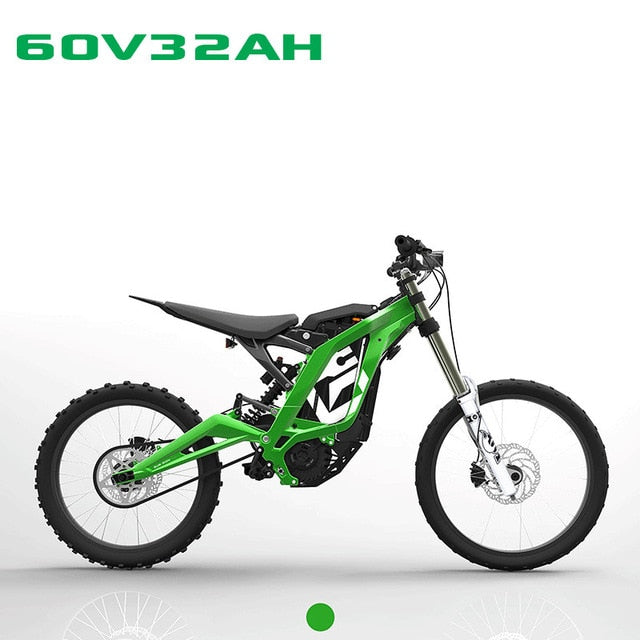

Battery optional: Standard Version ol battery 48V, compettve version of tattery 60V
ChargeroptionalStandardchargerwith5A,6hoursful Optionalversionchargerwith10A,3hoursfull
KICK PEDAL SYSTEM ASSEMBLY
Terms of Service
Configuration
Due to the different production batch, parts may change, we promise all changes there will be no debasement of quality of parts, only USES the equivalent grade configuration to replace, please rest assured purchase.
About Shipping:
1)When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 4-7 days once your payment is completely verified.
2)We do not guarantee delivery time on all international shipments (especially for the china air mailpost) due to difference in customs clearing times in individual countries, which may affect how quickly your product is inspected.
3) If you have other ideas, please contact our service for changing. Any import charges or tax fees will be at your side. Please note.
About Warranty:
> Warranty 1: body part --- Frame 5 years, front fork 1 year, the other six months, inner and outer tires and other wearing parts are not covered by the warranty;
> Warranty two: electric part --- battery / motor / controller for 1 year, the other 3 months.
We offer the 1-month free replacement. Buyers may request for a replacement within 7days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. We also provide 12-month free maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced. Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will refund or exchange them ASAP.
About Sizes:
The sizes are illustrated with specific measurements in the detailed specifications. Please check the specifications before you place an order. Normally the allowable differences in the size are approximately 0.5 inch in measurement. If you find the size of the products do not fit you, you can directly contact us.
About Colors:
Differences in color may be caused by some other reasons such as color reflection in the monitor, lighting, background etc. However, if you believe that the item received is wrong color, please contact us to see if a return or refund is possible.
About Feedback:
Your feedback is extremely important to us. Please click 5 stars feedback if you like our items and service. I will provide competitive price and better service all the way.
Please contact us before leaving any negative feedback or opening any dispute We understand the unhappiness you might have if the order go wrong, as we think any problems will be solved after active cooperation and good communication! Thank
We value 'word of mouth' so much that we've put together a generous affiliate (referral) program. Which means, every time you refer a customer to buy E-Motor Sur-ron Light Bee Electric motocycle off-road electric mountian bicycles super Ebike all terrain SUV electric MTB EBIKE, we'll pay you a percentage of the sale as a thank you. You can sign up for our affiliate program by click left column tap Affiliates Program
