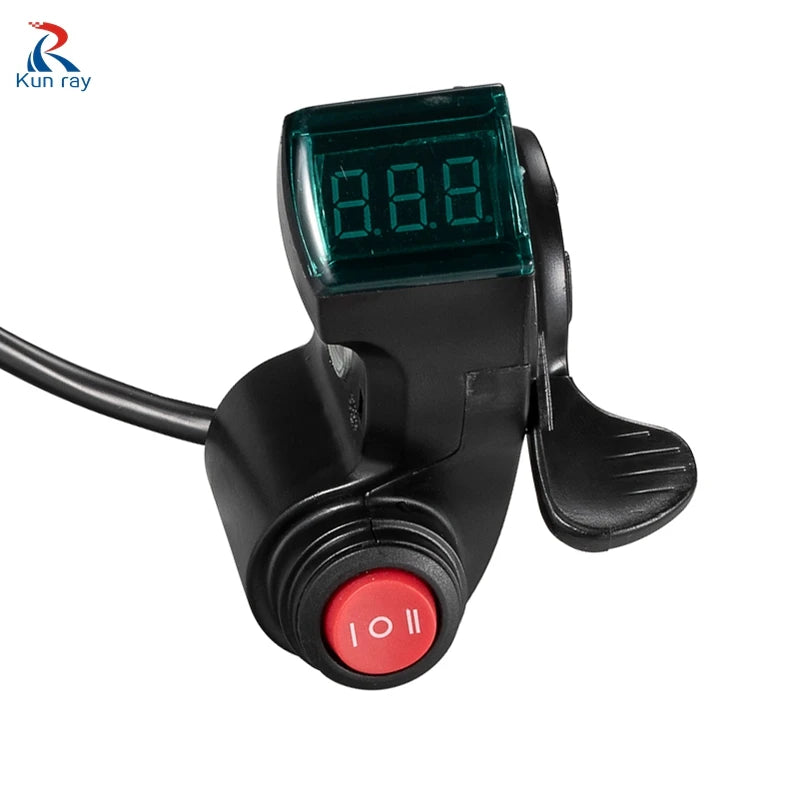

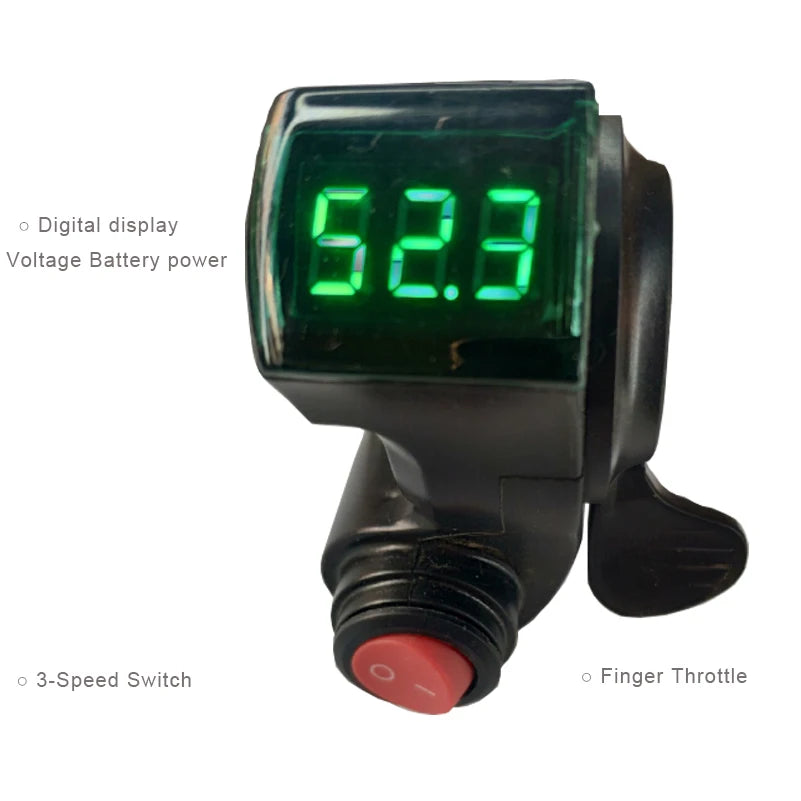

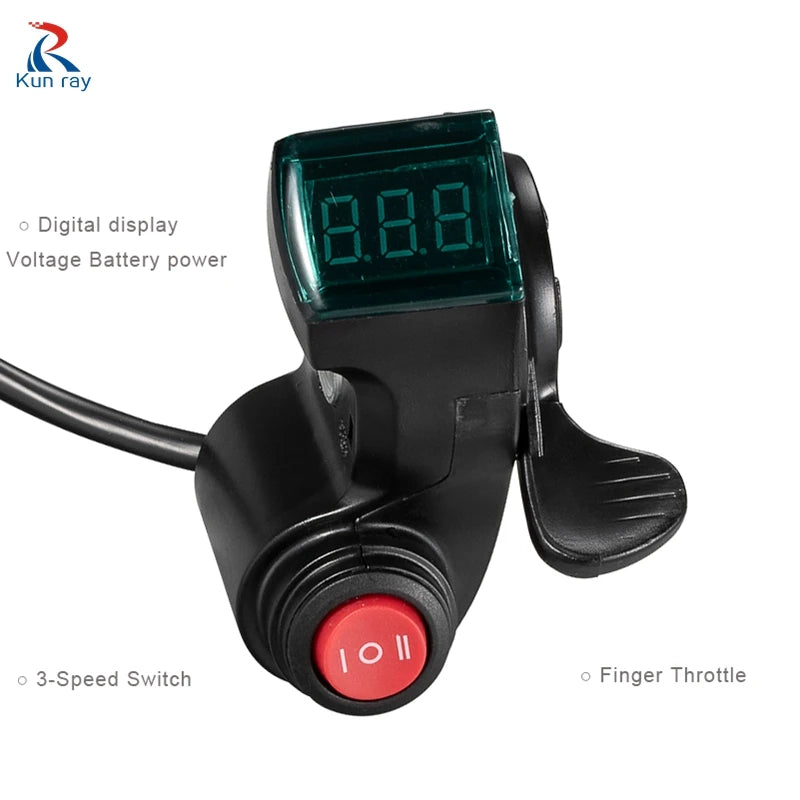

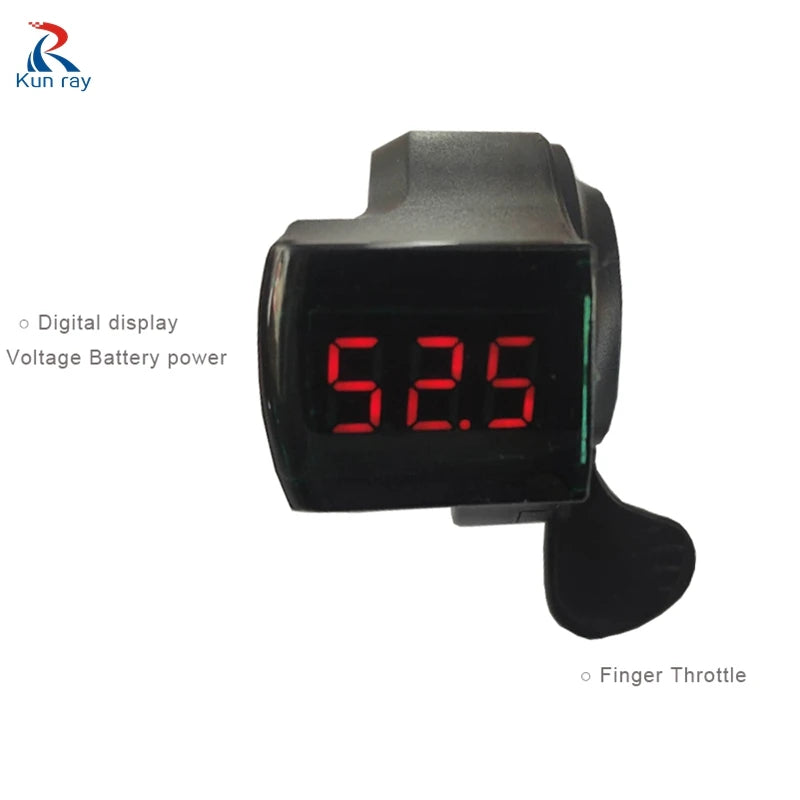

36V/48/60/72V Finger Thumb Throttle With LCD Digital Battery Voltage Display Switch Electric Vehicle Display Switch E-Bike Thumb Throttle Electric Scooter with Power Switch For Electric Bike Bicycle
Details:
1. Fit voltage: 12V-96V Universal.
2. Tube Size : fit for 22mm handlebar tube
3. Wire length : 150-160mm about
4. Cable type: random
5. Material: High-quality PVC
6.Work Voltage: DC 0.8V-42.V
7. Thumb throttle Without Handle with LCD display and power switch.
Features and Benefits:
1:Suitable for all of Lithium battery, LiFePo4 battery and Lead acid battery.
2:Battery 12V-84V automatically Identify, Throttle DC 0.8-4.2V
3:Digital voltage display, intuitive and accurate judgment of remaining capacity, mileage.
4:Can indicate vehicle error according to voltage
About Wiring: ( according your itmes wiring number,below date not only for one items)
4 wires : yellow is for voltage display wire, connect with electric bike power positive.
5 wires: blue wire connect with controller power lock output wire, yellow wire connected with controller electric switch input wire power positive,
6 wires ; yellow connected with power positive, blue wire and white is is function wire(can work as reverse switch, horn switch, cruise switch, power lock and so on)
7 wires: yellow connected with power positive, blue is share wire, middle gear for 3 gears , white is high gear, brown is low gear.
Features or buyer note ：
For 12v electric bike, maximum voltage is about 12.6v, mini is about 9v or higher
For 24 electric bike, maximum voltage is about 29.4v, mini is about 21v or higher
For 36v electric bike, maximum voltage is about 42v, mini is about 29v or higher
For 48v electric bike, maximum voltage is about 54.6v, /58.8v, mini is about 40v or higher
For 60v electric bike, maximum voltage is about 72v, mini is about 49v or higher
For 72v electric bike, maximum voltage is about 84v, mini is about 60v or higher
For other electric bike with higher voltage there should be a voltmeter installed
Picture Show
Kun ray Ebike Specializes in Bicycles, E-bike, Scooter, Riding Equipment Industries For 8 years, With Professional Technical Team, And Have Our Own Factory and Superior Sales Teams.
With The Development Of The Electric Bicycle Industry and The People Enjoy of Riding, Our Products and Our Services are All Over The World.
We Have Excellent Team Of Experts, Engineers, Can Provide You With High Quality Electric Bicycles and Accessories Products. Welcome to Our Company to Visit And Procurement.
Let the Life More Better, Kunray is Offer Excellence To you.
Questions from customers
Q1: Is There Any Customs Duties?
A: We usually declare the lowest price to avoid customs duties. Due to the different national policies in different countries, the customs duties would be for buyer account. Therefore, please leave us a message when you purchase the order to tell us how much you can paid for the customs duties.Russia, Ukraine ,Spain and us warehouse NO Customs Duties.
Q2. How to Keep Tracking With My Parcel?
A: You can check your shipping details from the follow Link with your tracking number: www .17track.net ( copy it to browser)
Q3. Wholesale and Drop Shipping Are Both Welcomed.
Wholesale: We will offer more discount or free delivery in the basis of the Quantity you want to order. The Transportation Time is about 3-7 work days.( If you want to Designated us to your Third Party,We can ship cargo to your customer Directly, Please be assured and Trust Us, we won’t Leave Any information about us).
Drop shipping: We could send the products to your customers and won’t leave any information about us if you’d like to. And we can ship out very fast.
Q4: How to do Wire Diagram?
A: We will put a wiring diagram in each package.And We will Put Wire Connect Photos in the link with Video Too. Also, You can search the keyword "kunray motor" in YouTube to find the model of the motor you purchased and watch the testing video.
Q5:Color Difference & Scratched .
A: The pictures showing at our store are taken based on the true products .Because of different monitor and brightness,there may exist normal tiny colour difference,please donnot leave a bad feedback or
return goods to us without contacting us.
Q6: After-Sale Policy:
A: Within 15days After Delivery We will provide Free Maintenance or replacement of new products if the products are unable to work properly due to their own reasons. Logistics Damage and man-made Modification Damage Will not be within the Scope of Replacement.
