Fardriver Controller far driver controller ND72680 Electric Motorcycle Accessories Controller 680A BLDC Programmable Bluetooth

FarDriver controller is sine wave type controller, which is brushless DC controllerwith self-learning function. Generally, it matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.

P.S. If you have any confused about the shipping cost, please feel free to contact with us.

Also could place order but don't pay first, then we could adjust the price.

NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

One set including below kits

1. 1pcs X ND72680 sine wave controller

2. 1pcs X Bluetooth adaptor

Key Features

1). All the raw materials are imported, using high-performance Moss tube

2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board

3). Small in size

4). High efficiency, low temperature rise, small running current

5). With self-learning function, excellent commonality

6). The app compatible with Android and Apple

7). With flux weakening function.(The product does not contain magnetism)

Product Description

ND72680/ND84680/ ND96680 are sine wave controller with waterproofing grade IP67, suit for 4-6kw motors.

For ND72680, the peak voltage is 88V;

For ND84680, the peak voltage is 100V;

For ND96680, the peak voltage is 115V.

It’s hall version (as default) which suit with hall motors.

It could also support encoders, please check with sales.

ND72680 Spec

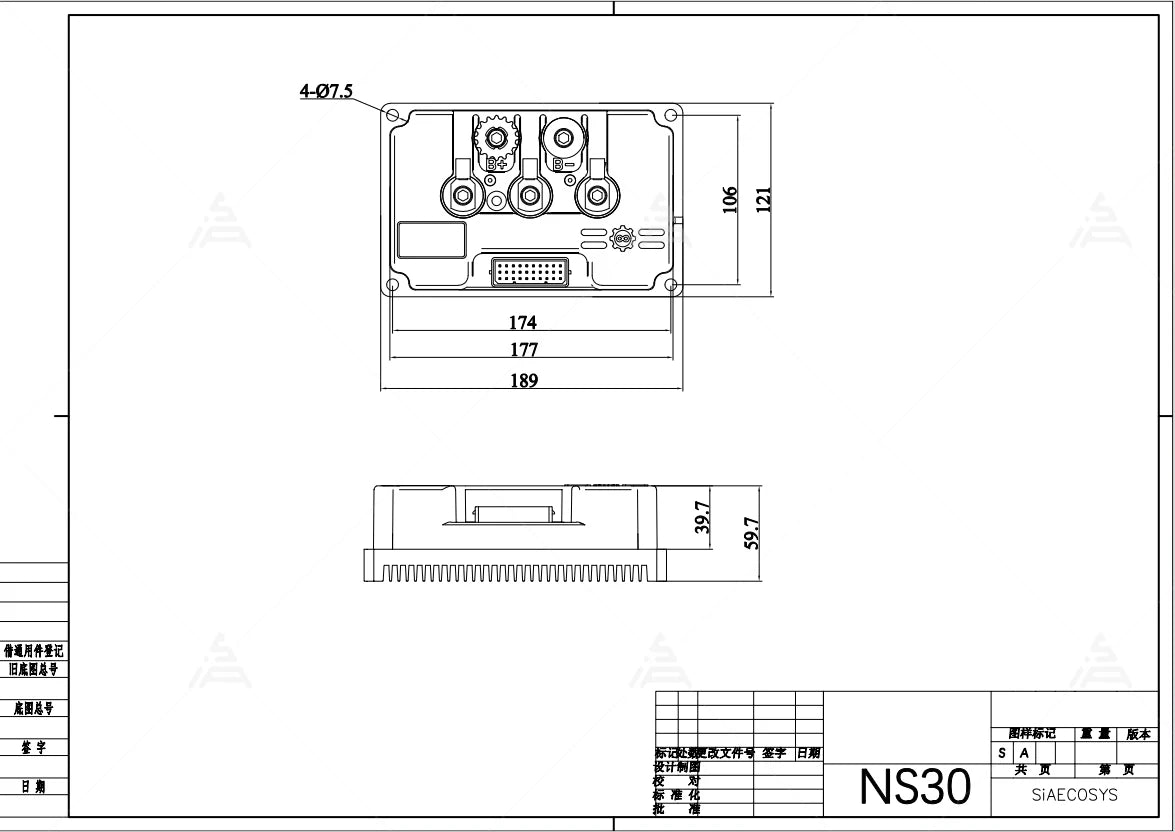

Drawing

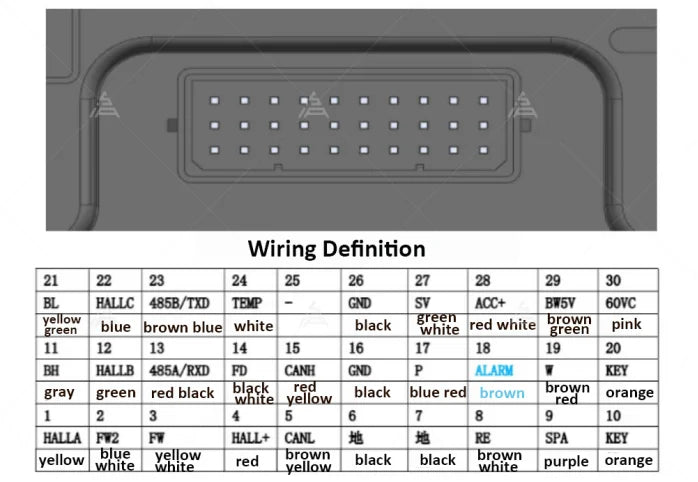

Harness Definition

Adapter Cable

we free provide wiring function lable, connector and pin,
which will be more convenient to wire.

Bluetooth

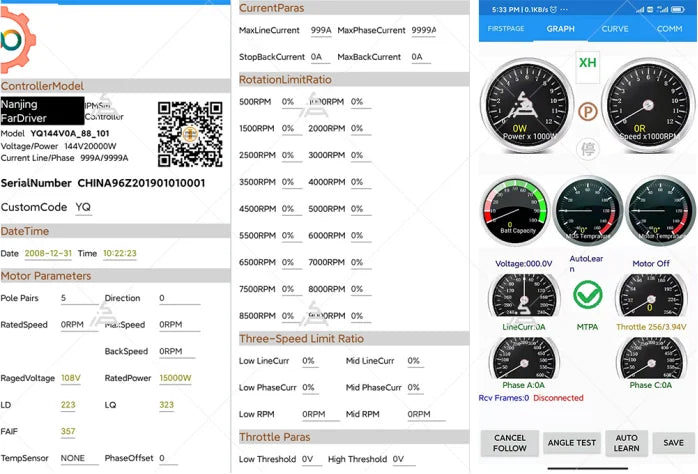

Software interface（APP）

Programmable Software & User manual (Before you received the controller)

Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.

Application
