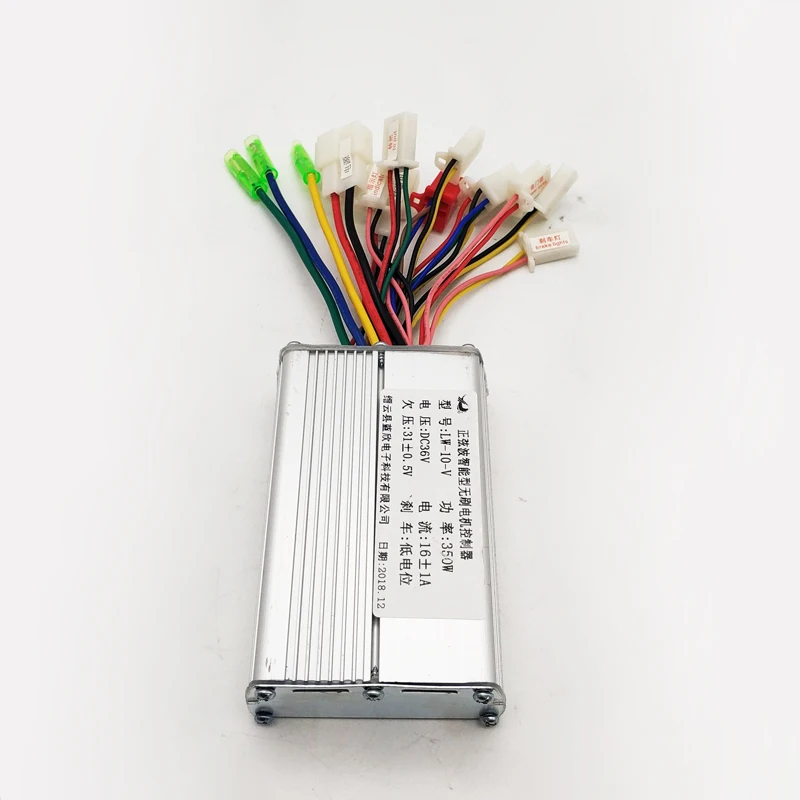

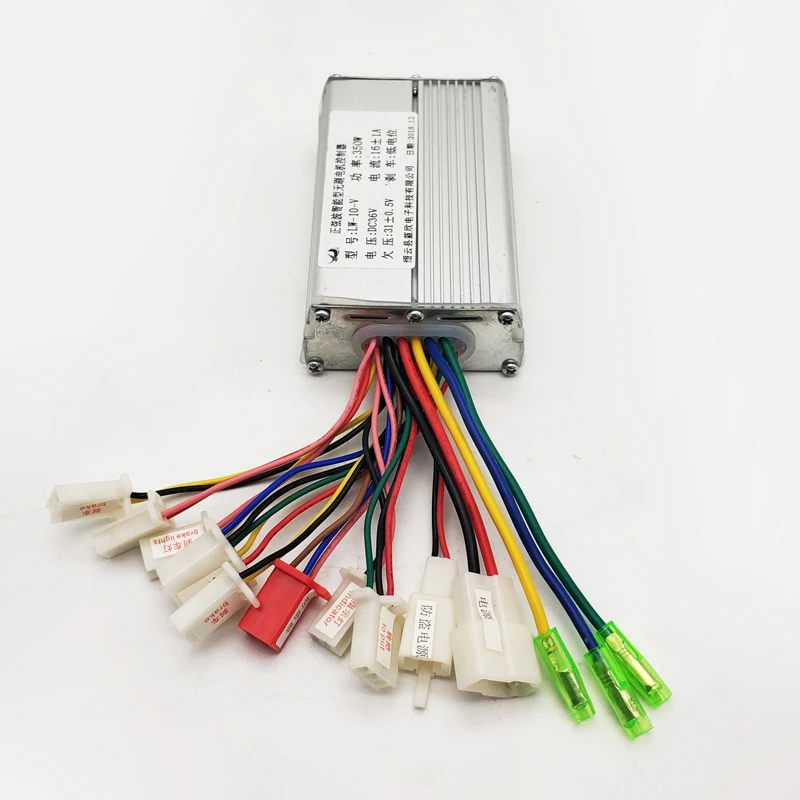

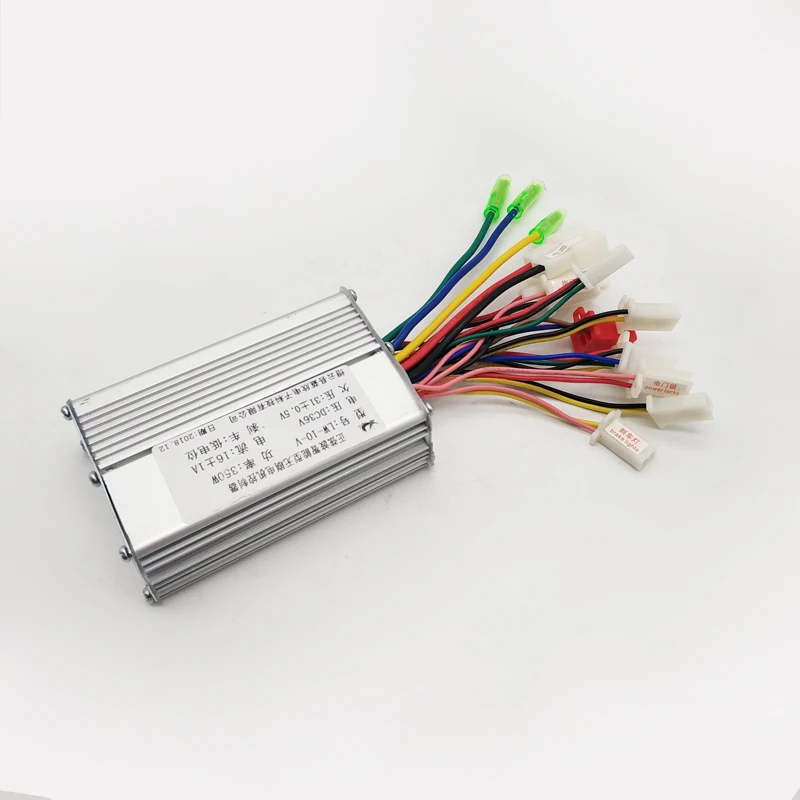

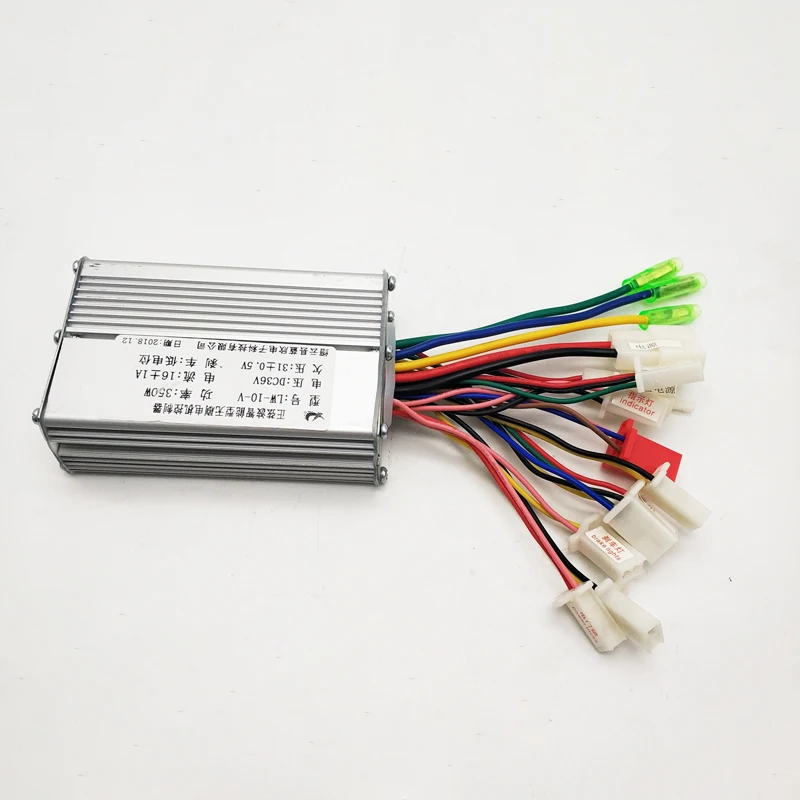

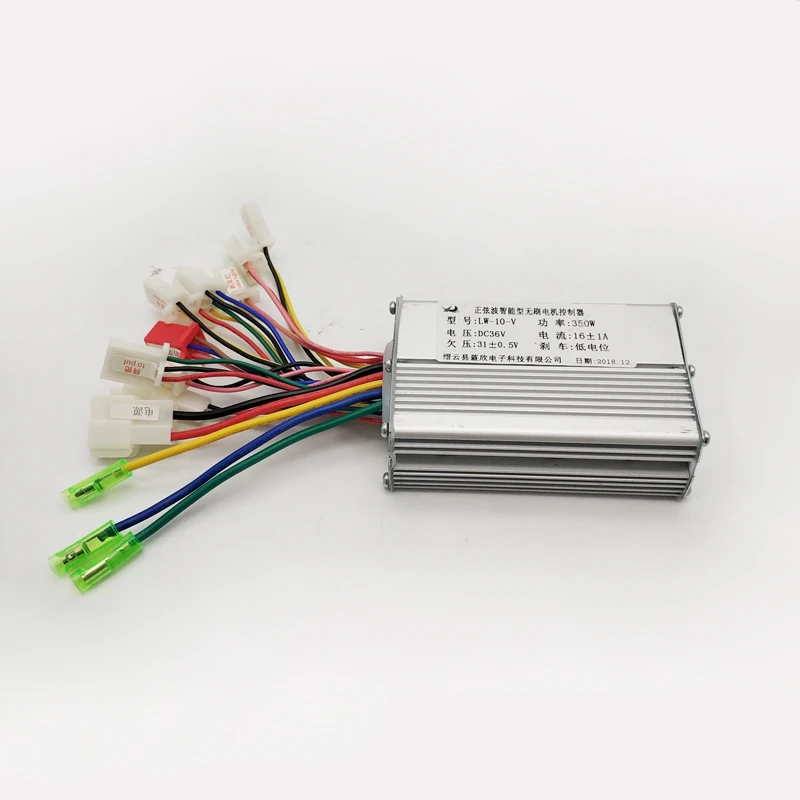

DC 24V/36V/48V 350W Brushless DC Motor Regulator Speed Controller 100x70x35mm for Electric Bicycle E-bike Scooter

Sale price $29.68 Regular price $32.88

DC 24V/36V/48V 350W Brushless DC Motor Regulator Speed Controller 100x70x35mm for Electric Bicycle E-bike Scooter

HTB1e5S2USzqK1RjSZPxq6A4tVXak

Wiring instructions:

Red and Black (Coarse Wire): Power Supply

Yellow, Green and Blue (Coarse Wire): Motor Phase Wire

Red, Black, Yellow, Green and Blue: Hall Signal Line

Red and Black: Anti-theft Power Supply

Red, Blue and Brown: Anti-theft Device

Red, Black and Green: Throttle

Yellow and Black: Brake

Yellow and Black: Brake

Red and Pink: Electric Door Lock

Black and Pink: Indicators

Yellow and pink: brake lights

IMG_20190507_114000-1IMG_20190507_114009-1IMG_20190507_114021-1IMG_20190507_114047-1IMG_20190507_114053-1
HTB1jsRJzFmWBuNjSspdq6zugXXatHTB18BsKi0cnBKNjSZR0q6AFqFXa4
Imagine if you could be satisfied and content with your purchase. That can very much be your reality with the DC 24V/36V/48V 350W Brushless DC Motor Regulator Speed Controller 100x70x35mm for Electric Bicycle E-bike Scooter.
