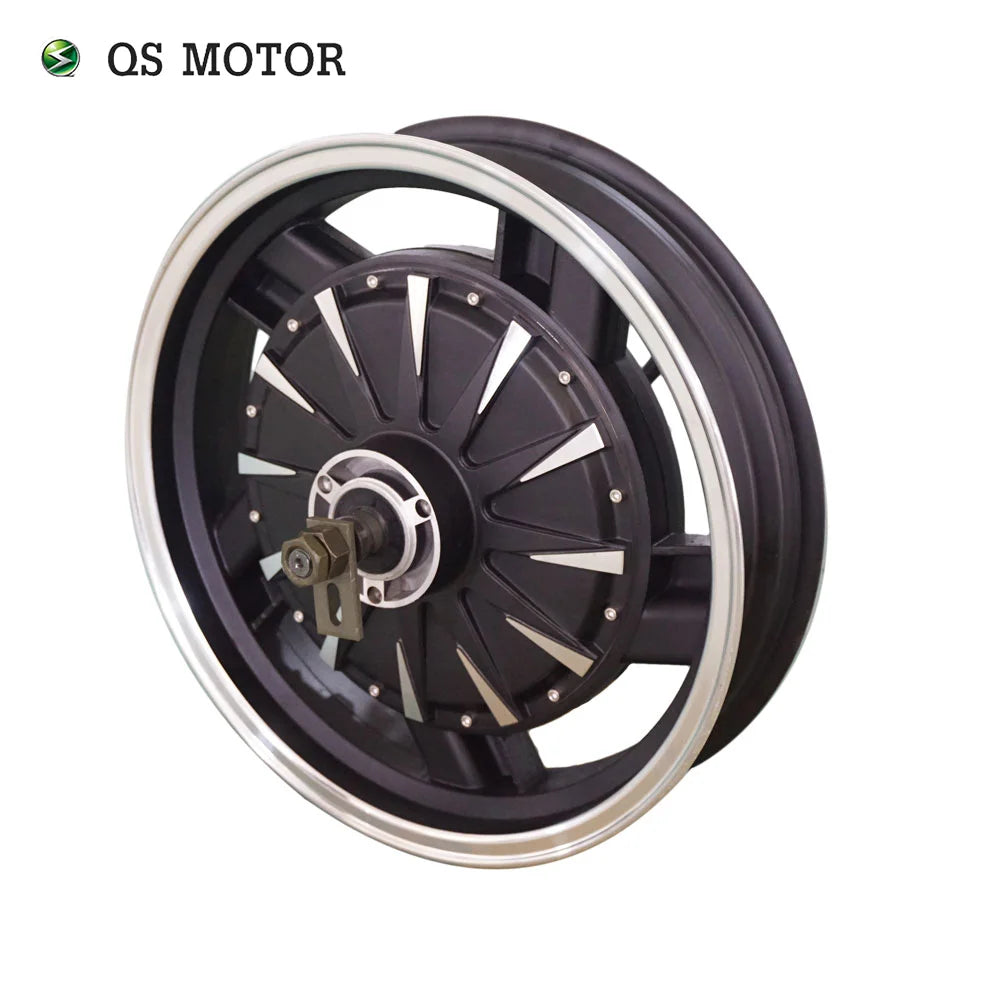

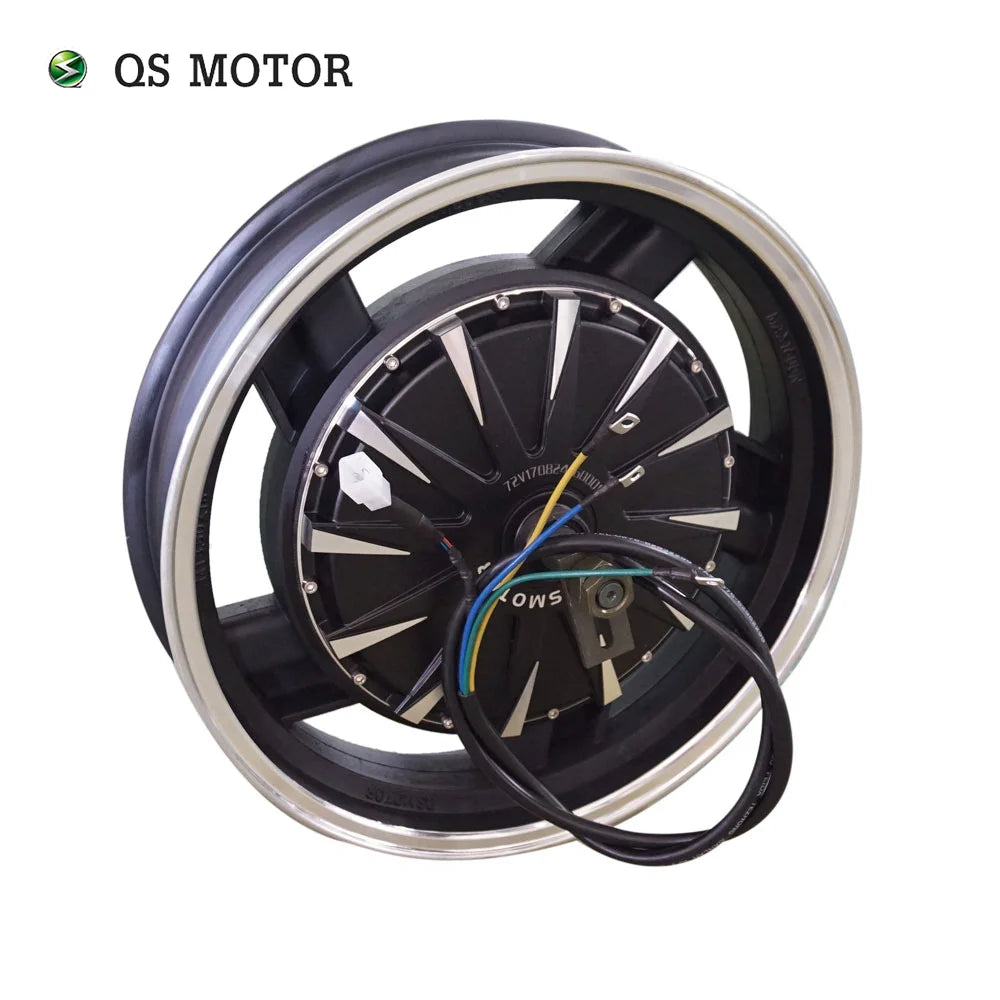

Cost-effective QS Motor 16*3.5inch 3000W 260 40H V1.12 E-Motorcycle Wheel Hub Motor
$571.00
Cost-effective QS Motor 16*3.5inch 48V50KPH 3000W 260 40H V1.12 E-Motorcycle Wheel Hub Motor
NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.
(special countries list contact seller)
For 16inch E-Motorcycle wheel hub motor, it could be used electric motorcycle.
It's high cost effective compare to 16inch 273 E-scooter Hub Motor.
260 motor means the diameter of iron ring/hoop of rotor is 260mm, for all 260 motor, e.g. 12inch,13inch & 14inch 260 e-scooter hub motor, etc., the configuration & performance are the same.
There has only one width of wheel:
Narrow Tire 16X3.5inch (as default), max. 5000W 260 45H V3, it's integrated wheel design.
Key Features
1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
Product description
Genearlly Spec:
Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
Brand: QS Motor, QSMOTOR
Motor Design: Double axle with 16inch moped rim (integrated)
Rim Size:16x3.5inch(Narrow Tire as default), matched tire: 120/70-16 etc
Magnet Height: 40mm, 24 pole pairs
Stator: Steel Core
Rated Power: 3000W
Speed: 30KPH-80KPH, it's customized, genearlly we will design as 72V65KPH.
Work voltage range: 48V-96V, will be 72V as default.
Max Torque approx >177.2N.m
KV: 7.7/10.3/11.7/13.2(optional)
Thermic Probe: KTY83-122 (as default, optional)
Max Efficiency approx 88%
Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm
Drop-outs: 200mm
Dual Halls with waterproof connectos(One for spare, in case of damage)
10mm² Phase Wire
Waterproof Grade: IP54
Color: Black (As default)
Dimension Drawing:

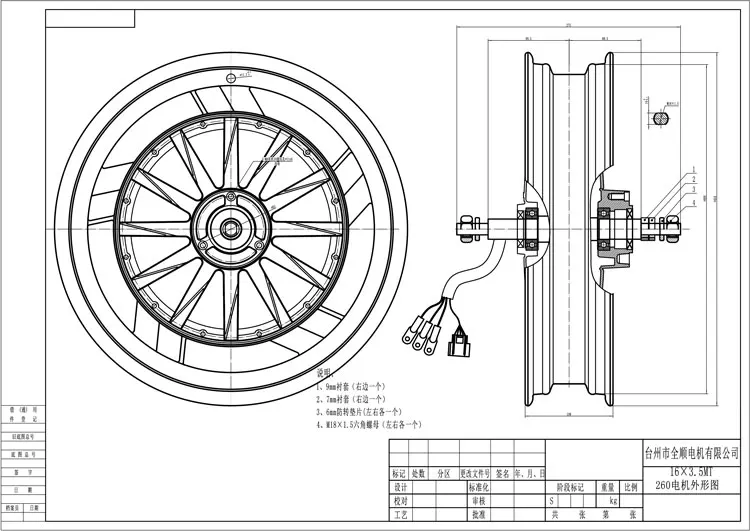

16*3.5inch 260 in-wheel hub motor(Integrated)

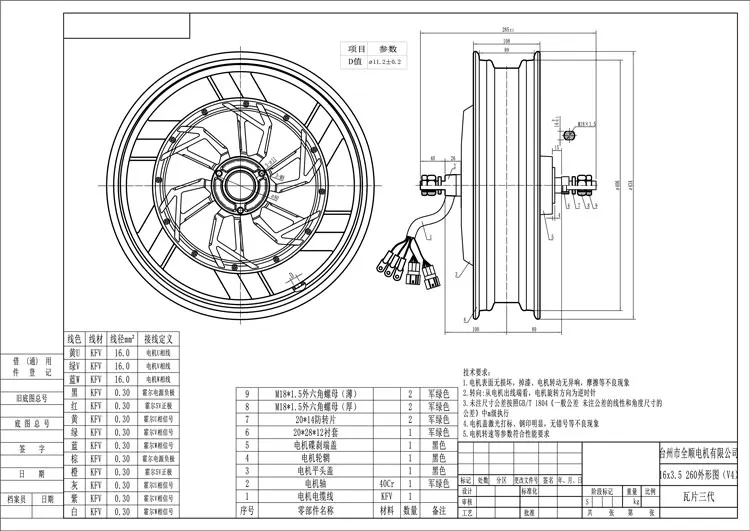

16*3.0inch 260 V4 in-wheel hub motor(Integrated)
Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.

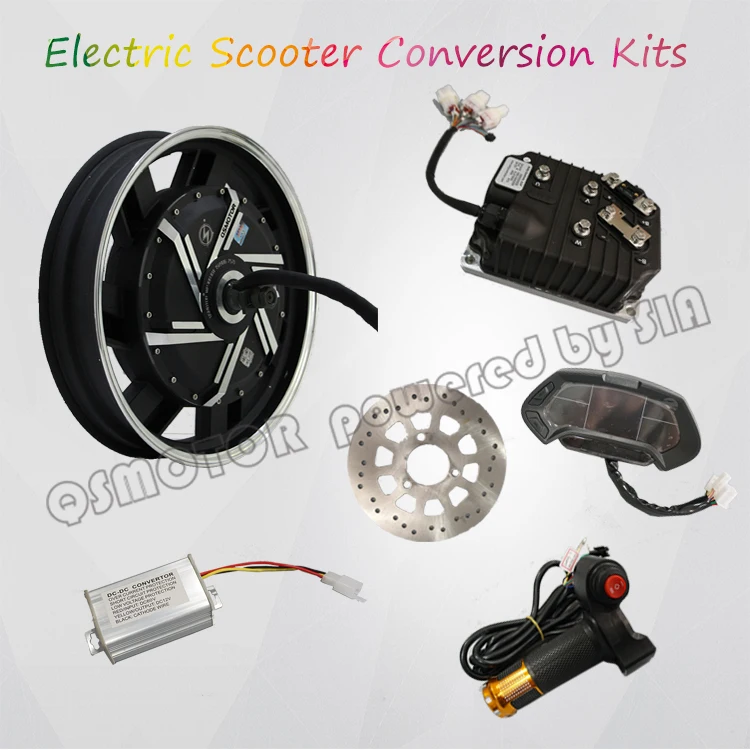

Conversion kits for 16inch in-wheel hub motor
We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.
Application for 16inch in-wheel hub motor
