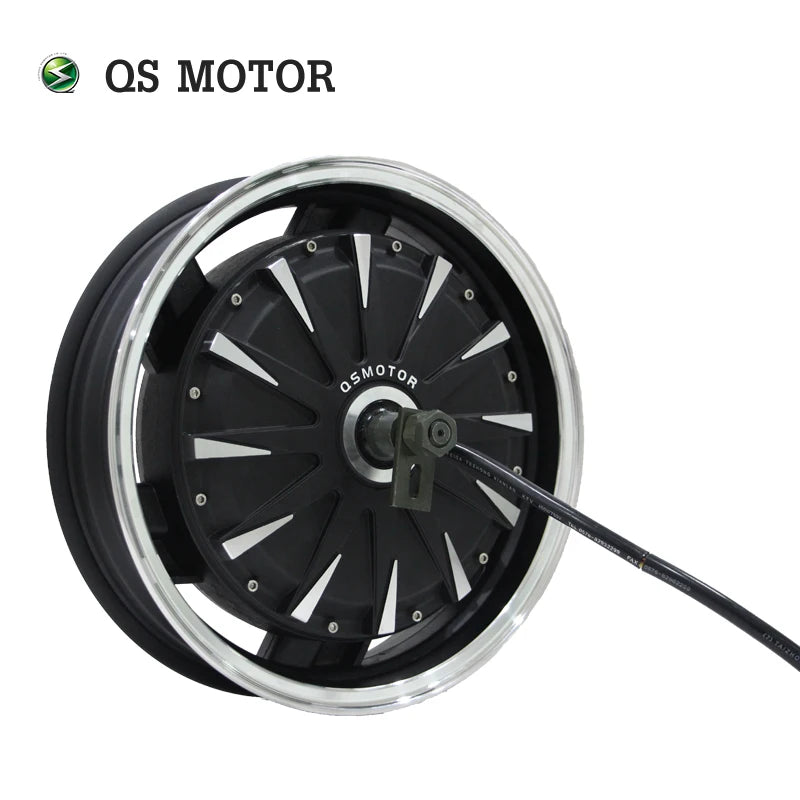

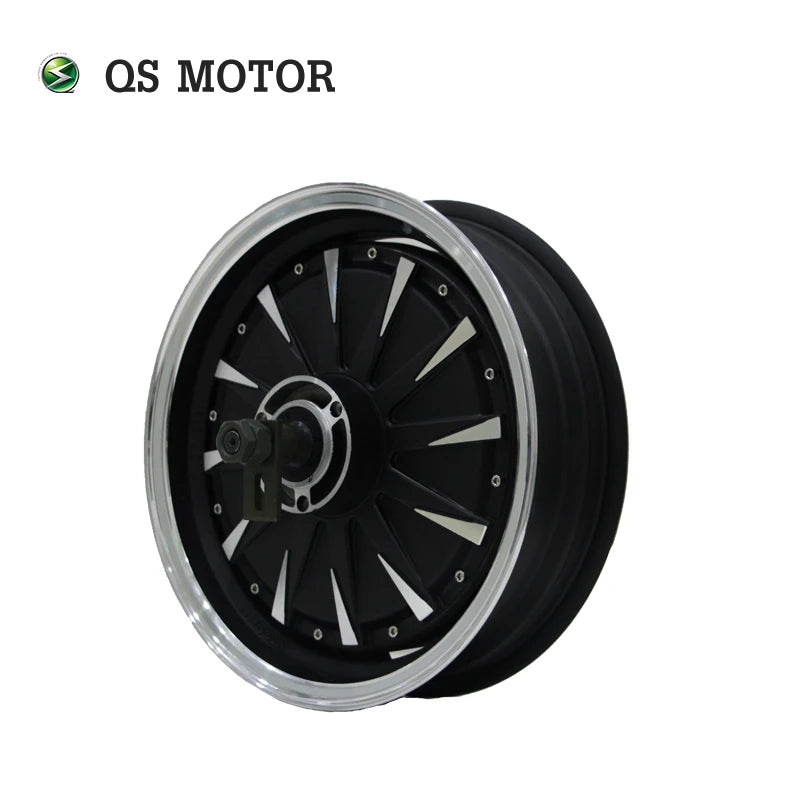

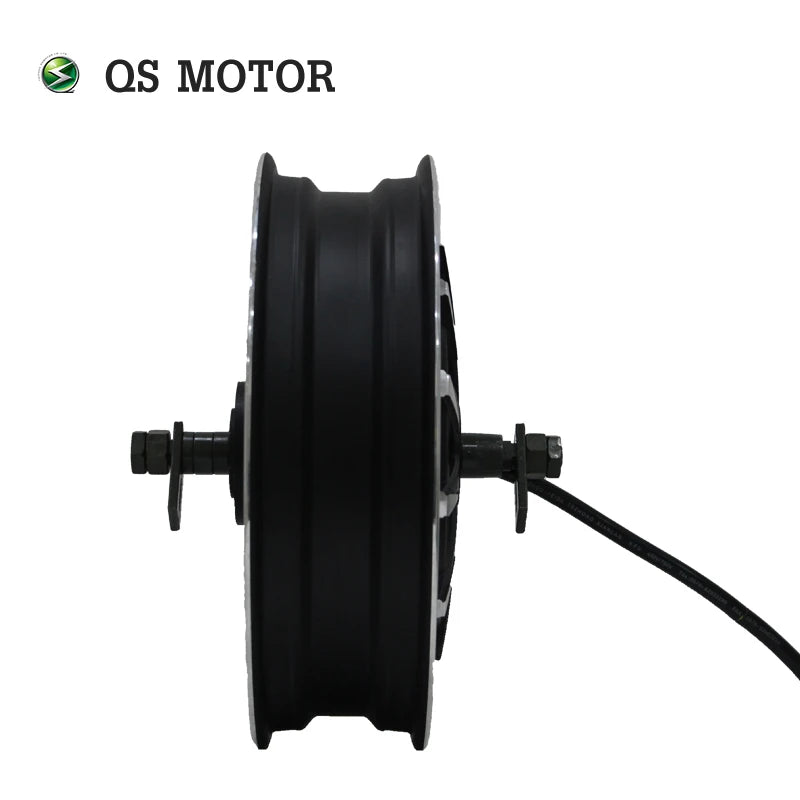

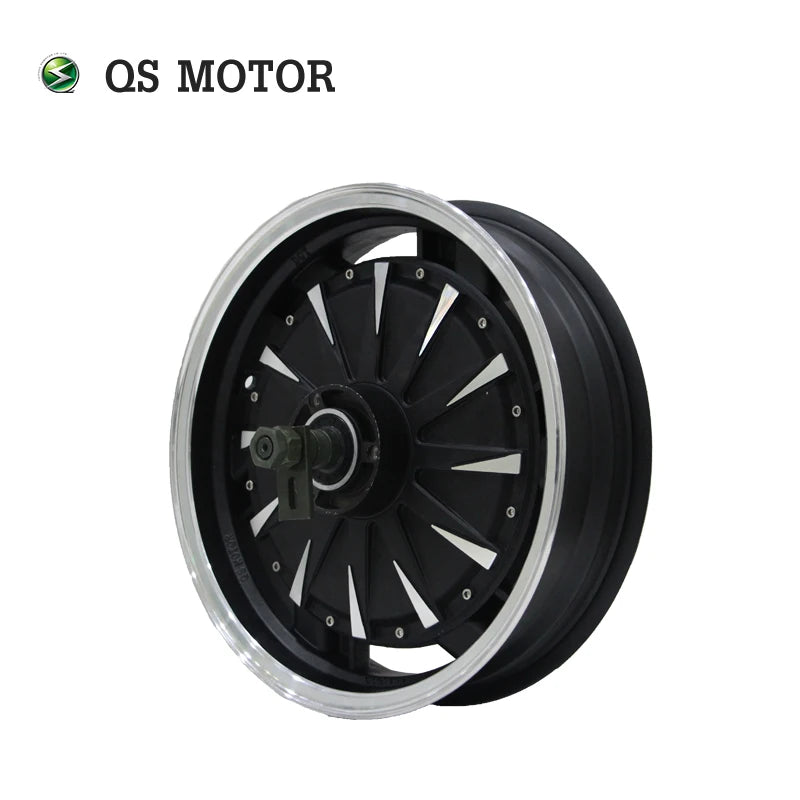

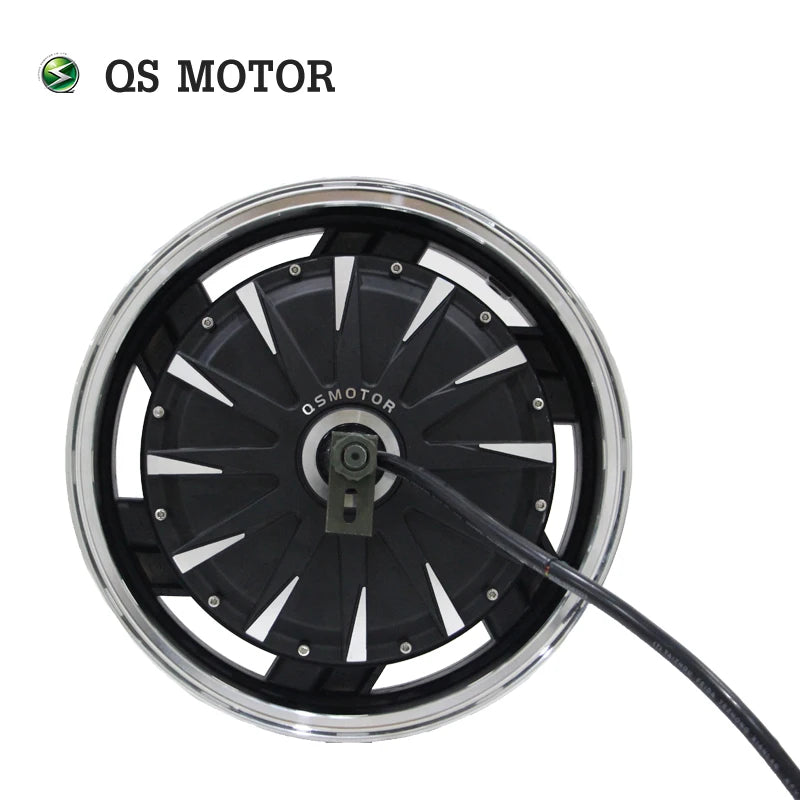

Cost-effective QS Motor 14inch 3000W 40H V1.12 72V 70KPH BLDC Electric Scooter Motorcycle Hub Motor
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.
(special countries list contact seller)
For 14inch E-Scooter wheel hub motor, it could be used for electric scooter, electric motorcycle.
It's high cost effective compare to 14inch 273 E-scooter Hub Motor.
260 motor means the diameter of iron ring/hoop of rotor is 260mm, for all 260 motor, e.g. 12inch,13inch & 14inch 260 e-scooter hub motor, etc., the configuration & performance are the same.
There are two width of wheel:
1. Narrow Tire 14X3.5inch (as default), max. 5000W 260 45H V3, it's integrated wheel design.
2. Wide Tire 14X4.25inch, max. 5000W 260 45H V3, it's detachable wheel design.
Key Features
1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
PS.1). Above quotation base on 260 14inch electric scooter wheel hub motor, 48V~96V.
2). Above configuration is suggested for mass production,
for EV enthusiast, V2 & V3 motor could be over-voltaged to gain more speed/performance (customizable).
Since 2019, all 260 V3 has updated to V4 version, it has better performance than previous V3, with higher speed and stronger torque.
Product description
Genearlly Spec:
Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
Brand: QS Motor, QSMOTOR
Motor Design: Double axle with 14inch moped rim (integrated)
Rim Size:14x3.5inch(Narrow Tire as default), matched tire: 120/70-14 etc
Magnet Height: 40mm, 24 pole pairs
Stator: Steel Core
Rated Power: 3000W
Speed: 30KPH-70KPH, it's customized, genearlly we will design as 72V60KPH.
Work voltage range: 48V-96V, will be 72V as default.
Max Torque approx 187.0N.m
KV: 10.3/11.7/13.2/14.8 (optional)
Thermic Probe: KTY83-122 (as default, optional)
Max Efficiency approx 88%
Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm
Drop-outs: 200mm
Dual Halls with waterproof connectos(One for spare, in case of damage)
10mm² Phase Wire
Waterproof Grade: IP54
Color: Black (As default)

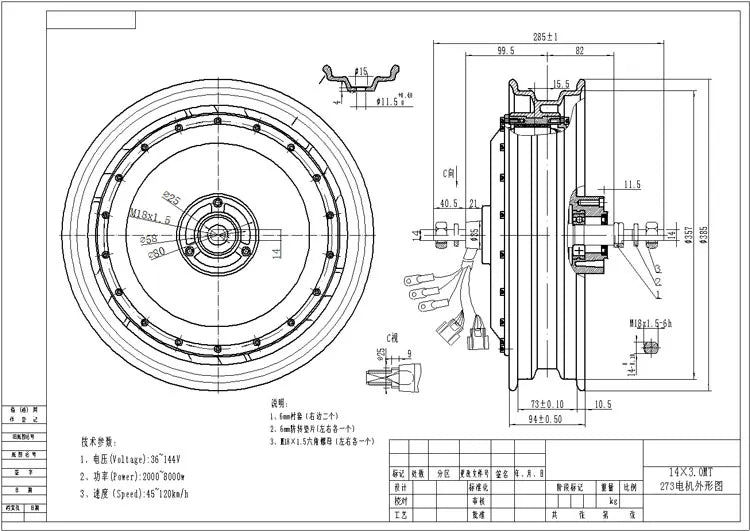

Dimension Drawing:
14*2.75inch 273 in-wheel hub motor(Integrated), for reference purpose, for 14inch 260 in-wheel hub motor drawing, it will comes soon.
Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.
Conversion kits for 14inch in-wheel hub motor
We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.
Application for 14inch in-wheel hub motor
