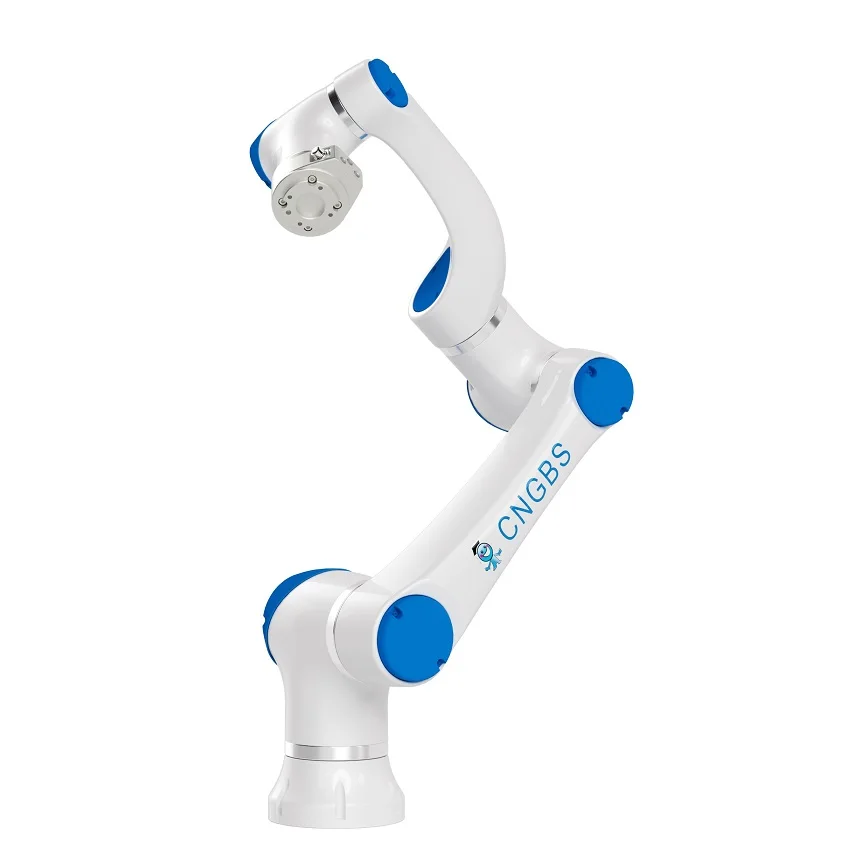

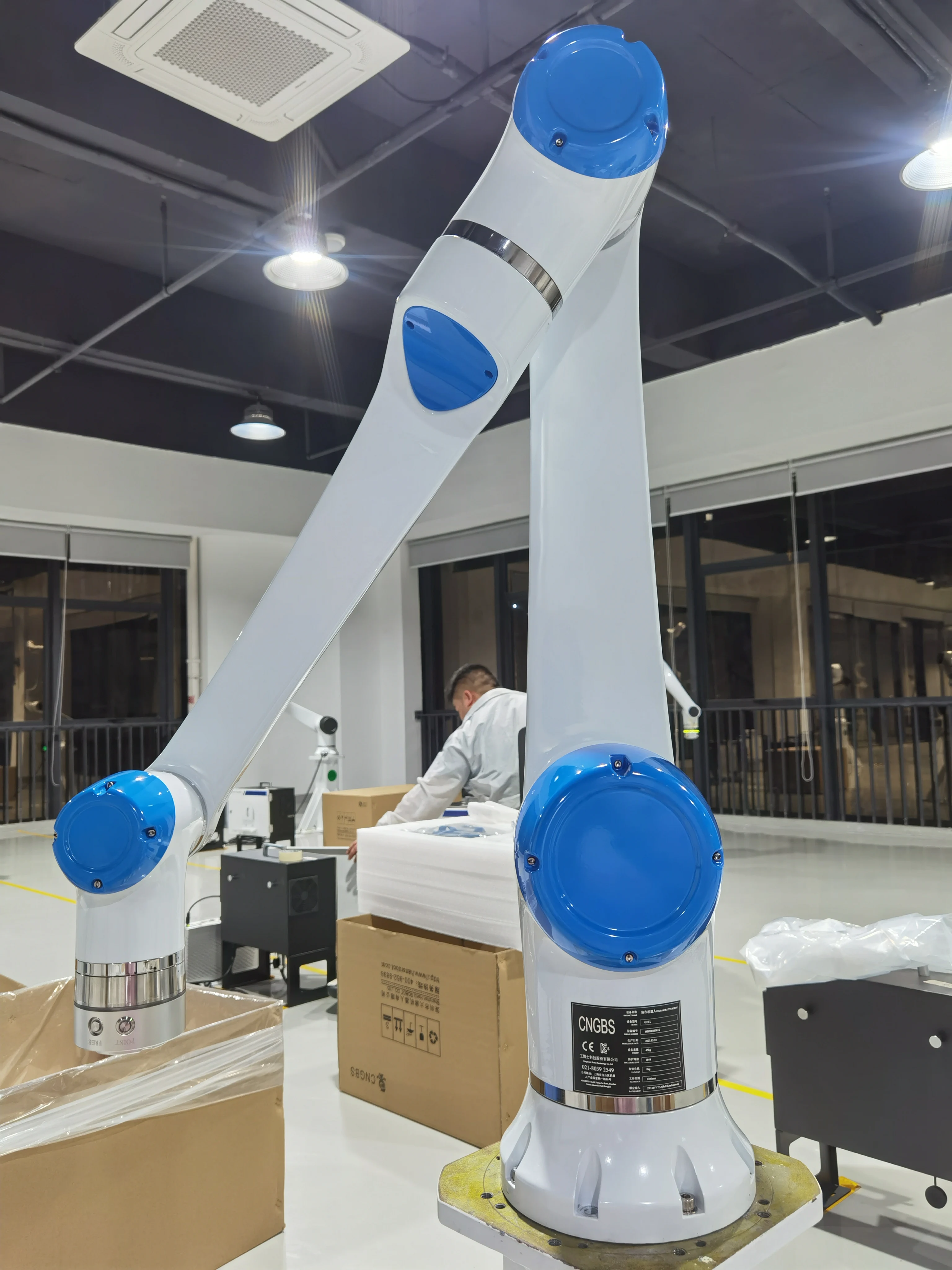

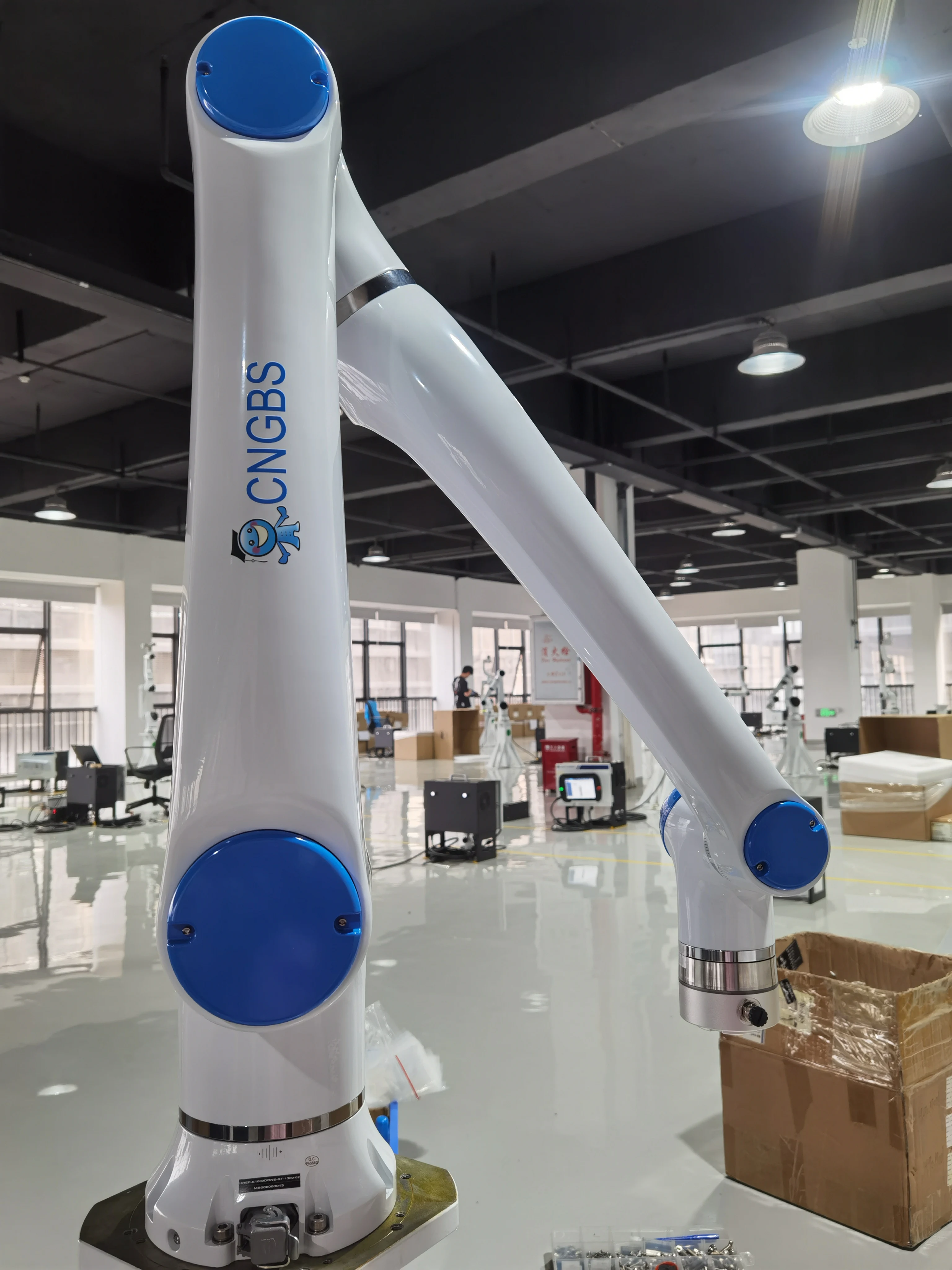

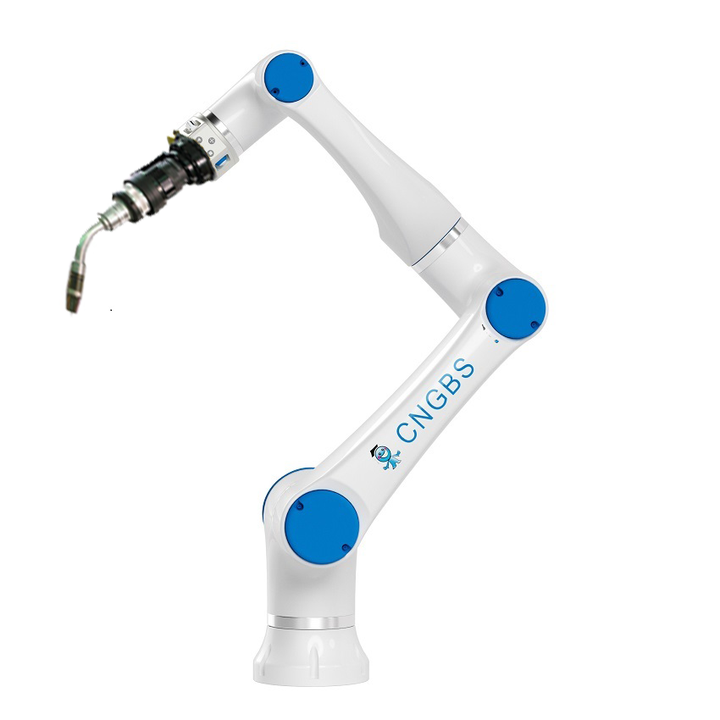

CNGBS G10 Cobot Welding Collaborative Robot Arm 6 Axis 8kg Payload Cobot Robot With welding torches For Mig Welding Robot
Overview
The G10L 6-axis collaborative robots excel in a range of automated applications such as integrated production lines, assembly, picking, welding, grinding, and painting. They have been exported to over 100 countries and regions worldwide, including Europe, America, Japan, and South Korea. The G series robots feature a distinctive dual-joint module design, where each motion module comprises two joints, creating a unique kinematic structure. This design not only sets them apart from other collaborative robots in the market but also enables them to achieve superior flexibility during operation.
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Shanghai
|
|
Brand Name
|
CNGBS
|
|
Application
|
pick and place
|
|
Features
|
safety collaborative
|
|
Condition
|
New
|
|
Production Capacity
|
3kg/590mm arm
|
|
Warranty
|
1 year
|
|
Dimension(L*W*H)
|
536*445*319mm
|
|
Power
|
100W
|
|
Voltage
|
200-240V AC
|
|
Applicable Industries
|
Hotels, Building Material Shops, Food & Beverage Factory, Farms, Restaurant
|
|
Weight (KG)
|
18
|
|
Showroom Location
|
Egypt, Canada, Turkey, United States, France, Germany, Brazil
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
New Product 2020
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
PLC, Engine, Bearing
|
|
Joint range
|
±360°
|
|
Joint speed
|
J1-J4 180°/s J5-J6 200°/s
|
|
Repeatability
|
±0.03mm
|
|
Degrees of freedom
|
6
|
|
End I/O port
|
Digital input: 3, digital output: 3, analog input: 2
|
|
Communication
|
TCP/IP and Modbus
|
|
Programming
|
Graphical programming, remote call interface
|
|
Collaborative operation
|
10 advanced security configuration functions
|
|
Main material
|
Aluminum alloy
|
|
Working temperature
|
0-50°C
|
On the fence about this CNGBS G10 Cobot Welding Collaborative Robot Arm 6 Axis 8kg Payload Cobot Robot With welding torches For Mig Welding Robot? Don't be. Let our satisfaction guarantee address your concerns.
