Clearance Sale! QSMOTOR Quick Disassembly 17x1.6inch 1500W 205 V3 Electric BLDC Hub Motor

Sales Clearance! QSMOTOR Quick Disassembly 17x1.6inch 1500W 205 V3 Electric BLDC Hub Motor

NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance,

otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

For 205 E-Bike spoke hub motor, it could be used for electric bike, high power electric bi-cycle.

Especially suit for electric bicycle, max. speed for 70km/h.

Application

Vehicle weight + loading weight : 159kg

Tire OD: 584.2MM

Speed: 70kph@60V ,support three speed mode

Key Features

1). Simplify to make a electric-bicycle. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 86~92%

Kits Include

1x 17x1.6inch wheel rim hub motor 1500W

1x freewheel (installed)

1x 203 disc brake plate (installed)

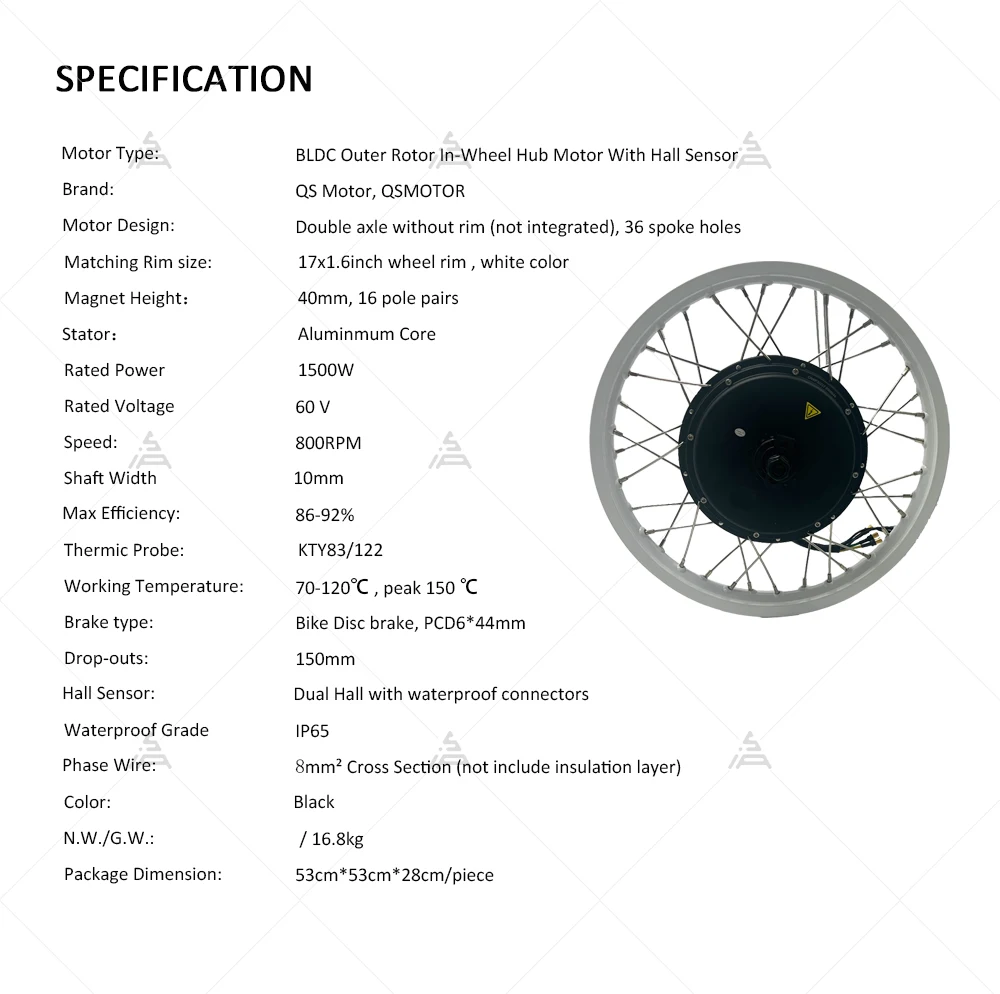

Motor SPEC

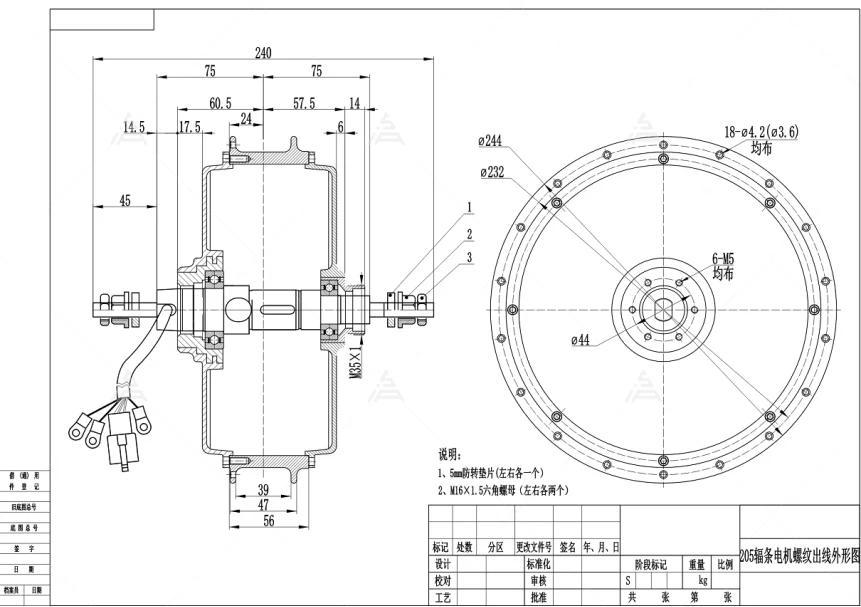

Motor Drawing

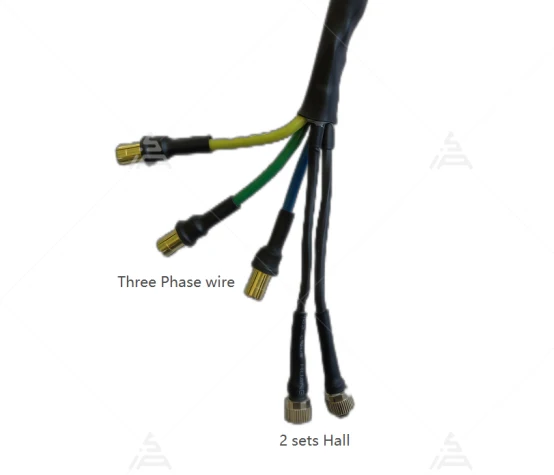

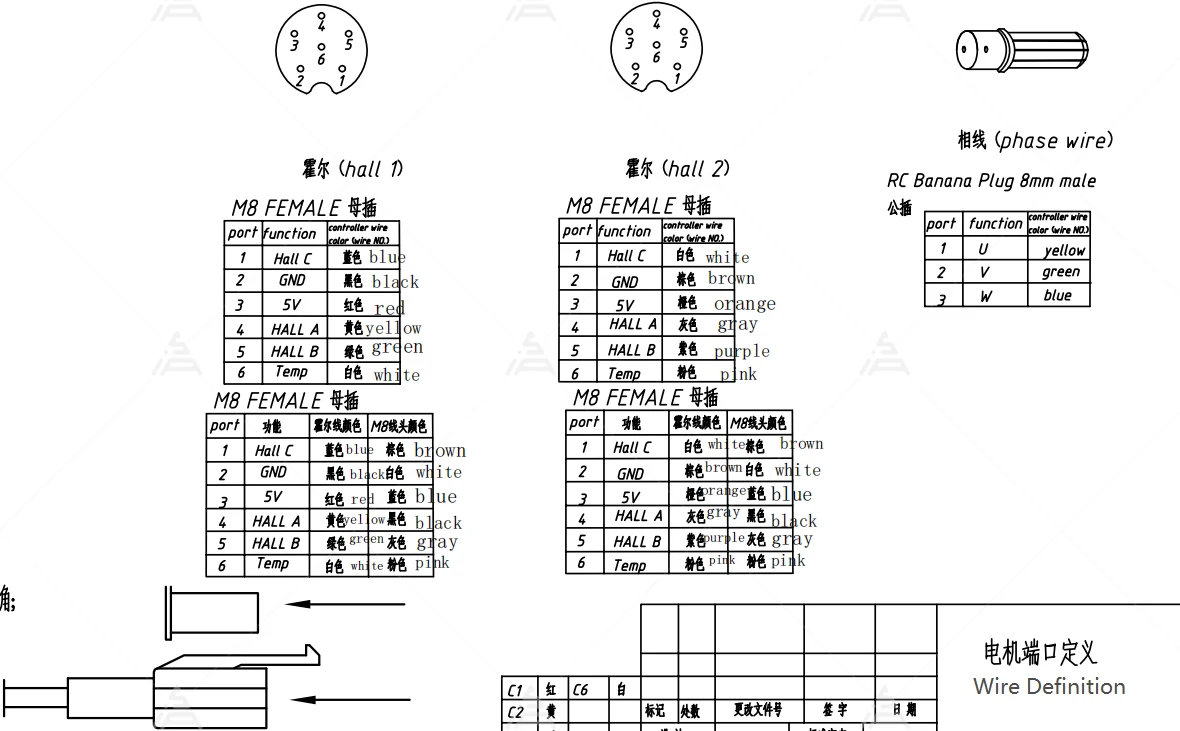

Phase Wire & Hall Connector Definition

Test Report

Other Kits please refer :

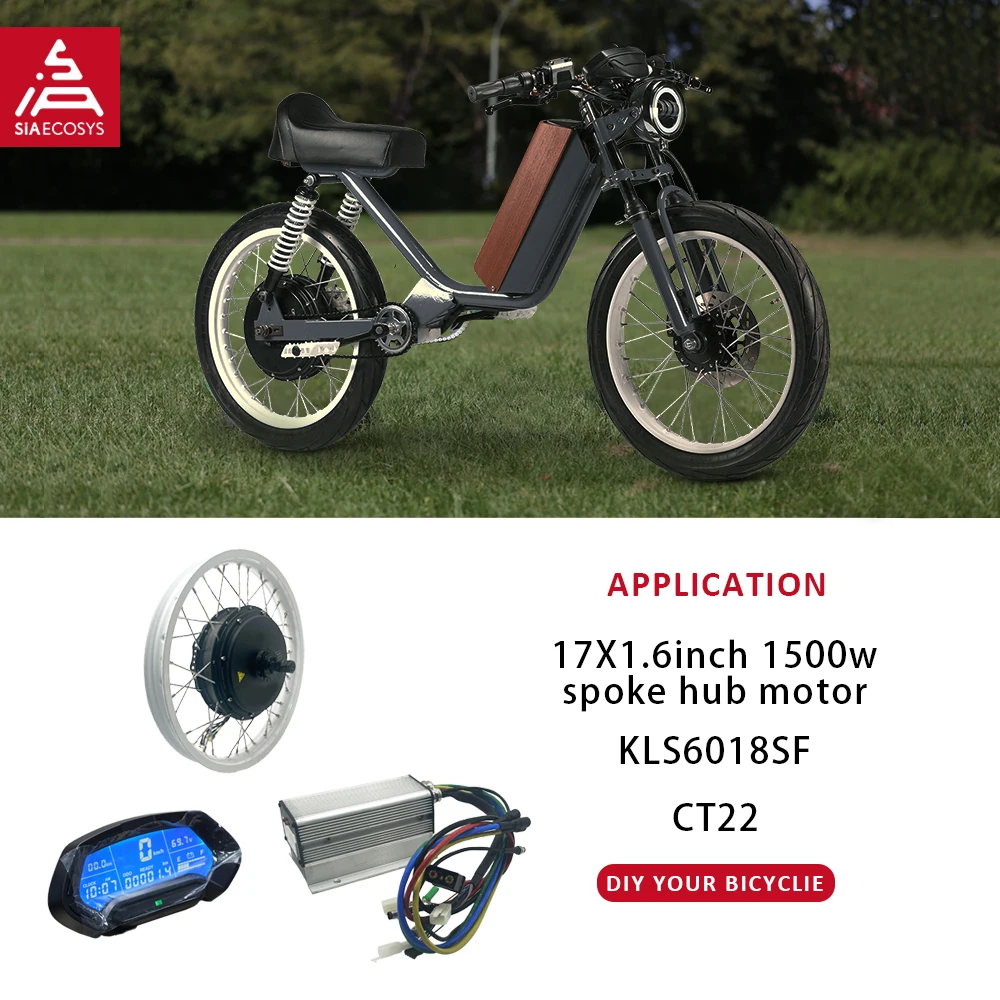

Application:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

A note to client

1. Please contact seller confirm the parameter, otherwise we will produce as default.

2. When place order please leave email address, for seller provide manual.

3. Please read manual careful before using motor and controller, and if meet problem please contact seller in time, and don't disassemble cargo without seller permit, otherwise there will be no warranty.
