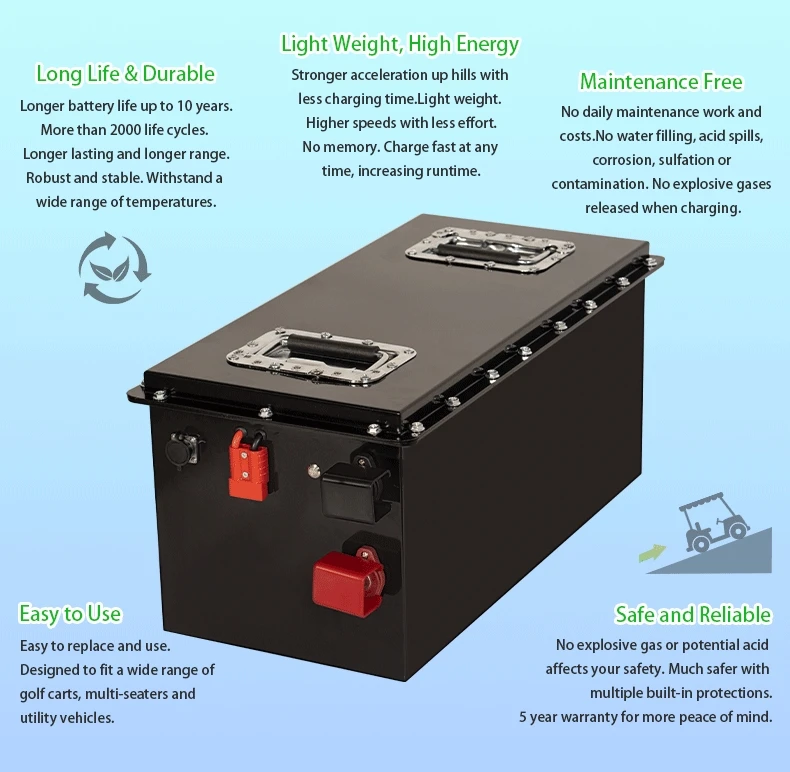

Long life & Durable
Light weight, high energy
Maintenance free
Safe and reliable
Easy to use

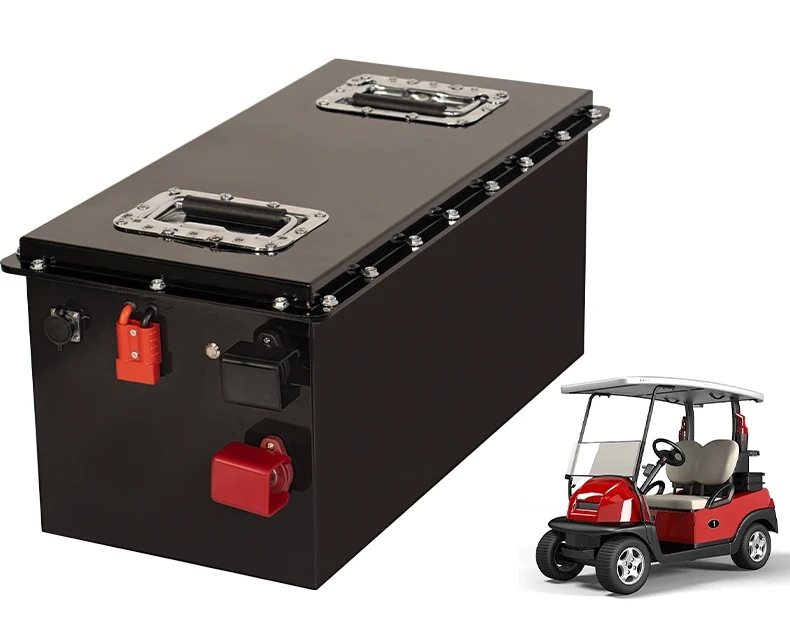

This Lithium Ion Golf Cart Battery is dealt with on B2B basis not for retail, the price is for reference only
Item
|
Standards
|
Standards
|
Nominal Voltage (V)
|
51.2V
|
51.2V
|
Nominal Capacity (AH)
|
134Ah
|
105Ah
|
Charging Cut-off Voltage (V)
|
58.4V
|
58.4V
|
Maximum Charging Current (a)
|
≦50A
|
≦50A
|
Overcharge Cut-off Voltage (V)
|
3.95V±0.025V
|
3.95V±0.025V
|
Over-discharge Cut-off Voltage (V)
|
2.2V±0.05V
|
2.2V±0.05V
|
Transient Current (a)
|
600A
|
300A
|
Maximum Continuous Discharge Current (a)
|
≦250A
|
≦200A
|
Charging Temperature (C)
|
10℃-45℃
|
10℃-45℃
|
Discharge Temperature (C)
|
-20℃-60℃
|
-10℃-60℃
|
Storage Temperature (C)
|
-40
|
-40
|
Internal Resistance (m)
|
≤15
|
≤15
|

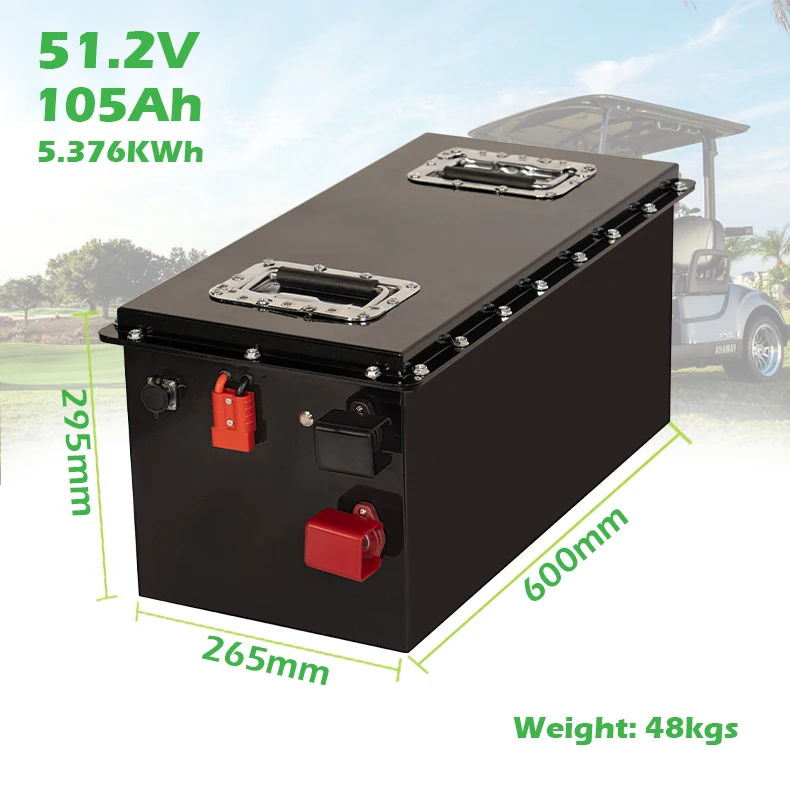

Size (mm)
|
720*370*280mm
|
600*295*265mm
|
Weight (kg)
|
Around 63kg
|
Around 48kg
|
Storage Ambient Humidity (RH)
|
5%~95%
|
5%~95%
|
Working Environment Humidity (RH)
|
≤85%
|
≤85%
|
Cycle Life
|
≥2000 Cycles
|
≥2000 Cycles
|
Positive and Negative Terminal
|
IF-FM8-3457-32-500A
|
IF-FM8-3457-32-500A
|
Shell Material
|
Sheet metal box
|
Sheet metal box
|

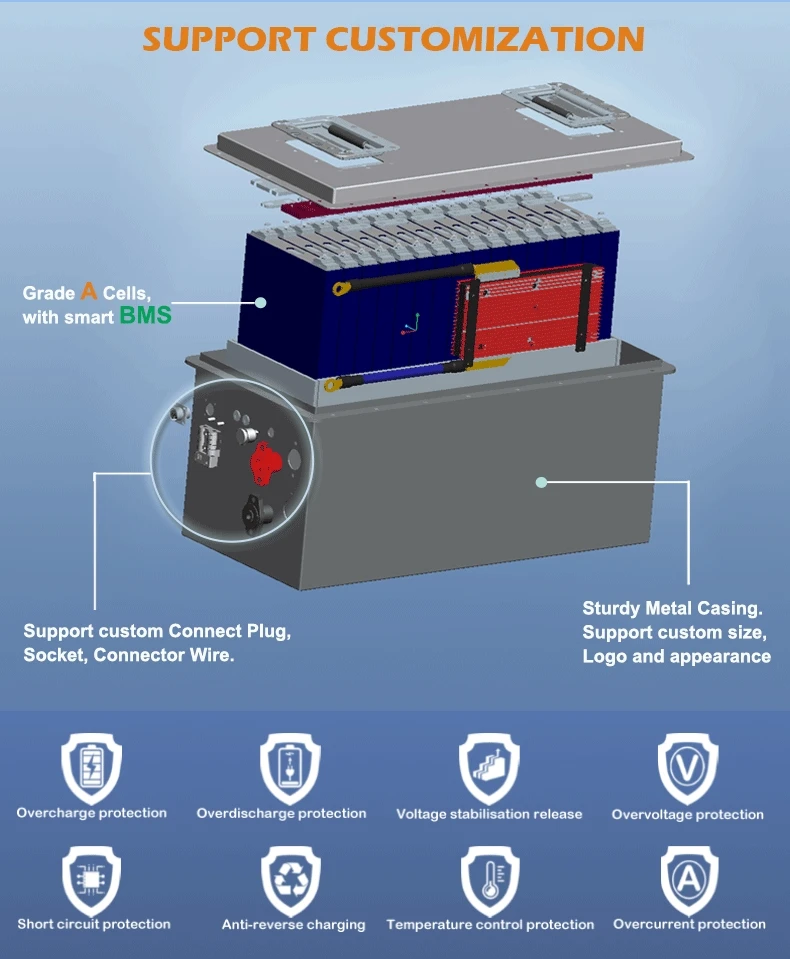

We Can Provide Diversified Lithium Battery Customization Services.
|
*Customize Voltage: 12V / 24V / 36V / 48V / 51.2V / 60V / 72V / 96V, etc.
|
*Customize Any Capacity: 50Ah, 100Ah, 150Ah, 200Ah, 300Ah, 400Ah, 500Ah, etc
|
*Customize Size and Shell Material
|

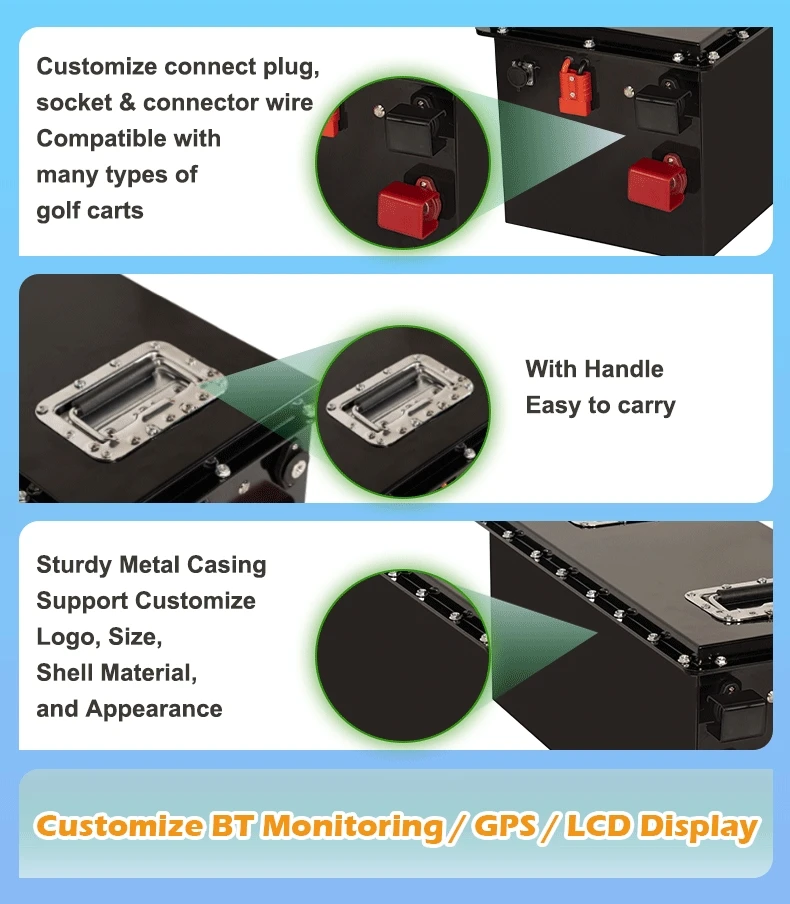

*Customize Connect Plug, Socket, Connector Wire.
|
*Customize BMS Module
|
*Customize BT Monitoring/GPS/ LCD Display
|
*Customize Logo, Sticker and Package
|
*Customizable Product Areas:Golf Cart Battery / Electric Forklift Battery / Cleaning Car Battery / AGV Battery / Robot Battery / Marine Battery / RV Battery / Electric Car Battery
|
*More...
|
