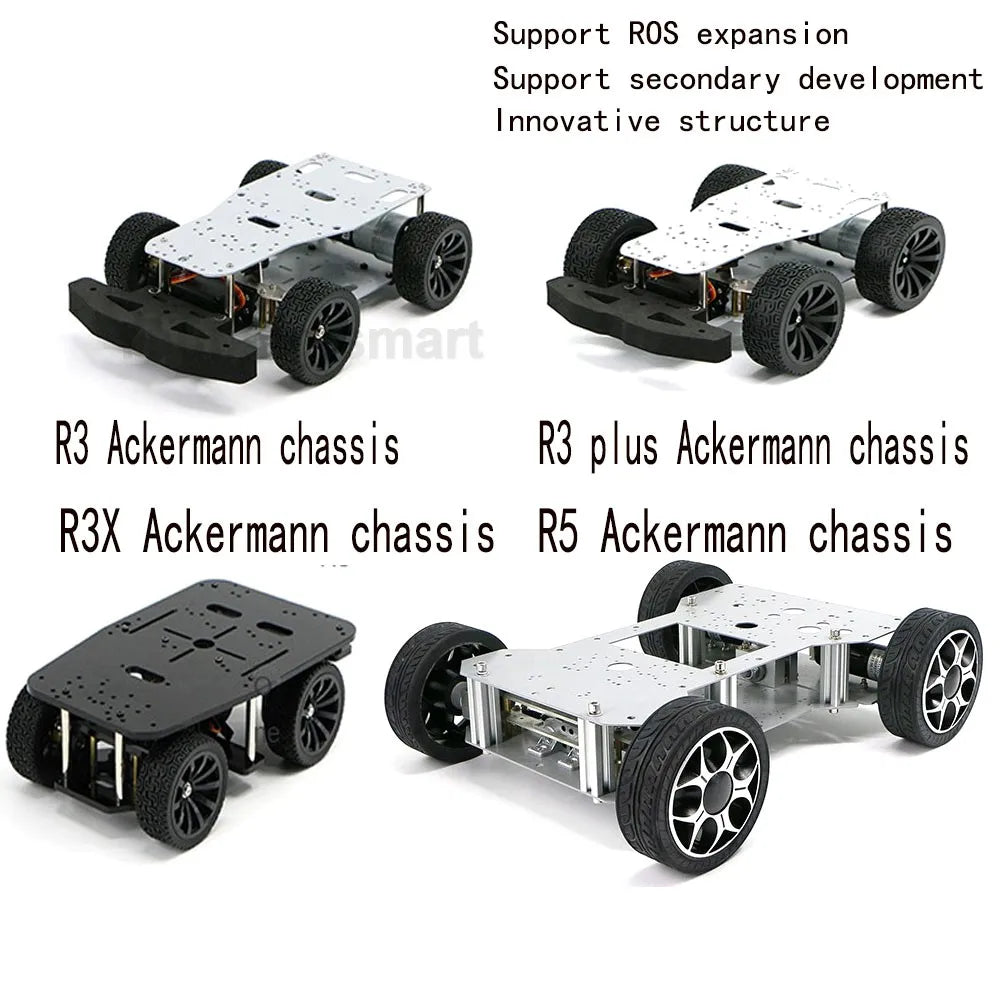

Big Ackerman Chassis 4WD Drive Robot Car Unmanned Vehicle High-Precision GMR Encoder Motor RC Tank Programmable Robot DIY Kit

Sale price $141.68 Regular price $172.88

Big Ackerman Chassis 4WD Drive Robot Car Unmanned Vehicle High-Precision GMR Encoder Motor RC Tank Programmable Robot DIY Kittion



Features:

  • Title: Ackerman chassis series, intelligent trolley chassis, unmanned vehicles, high-precision GMR encoder motors, four-wheel drive electric

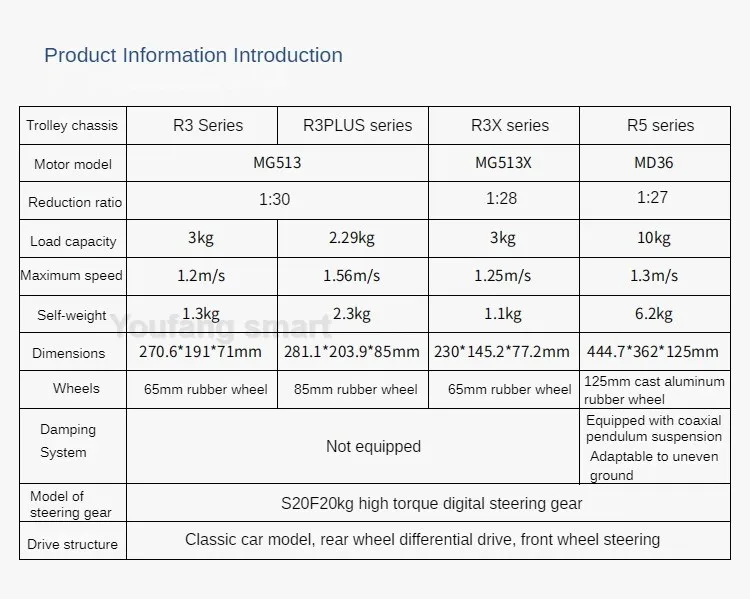

    Product parameters:

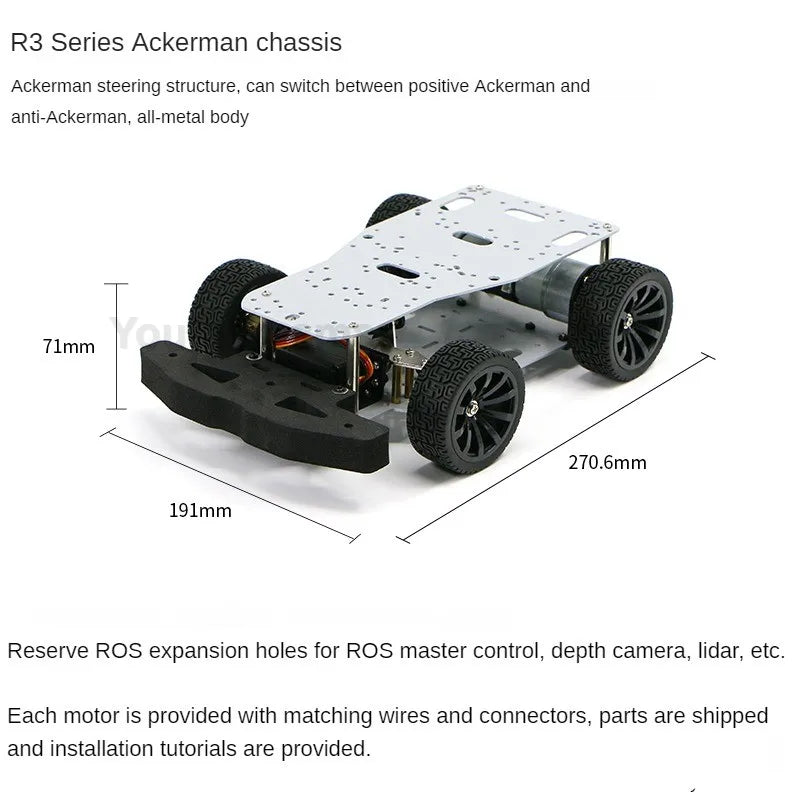

    Trolley chassis: R3 series

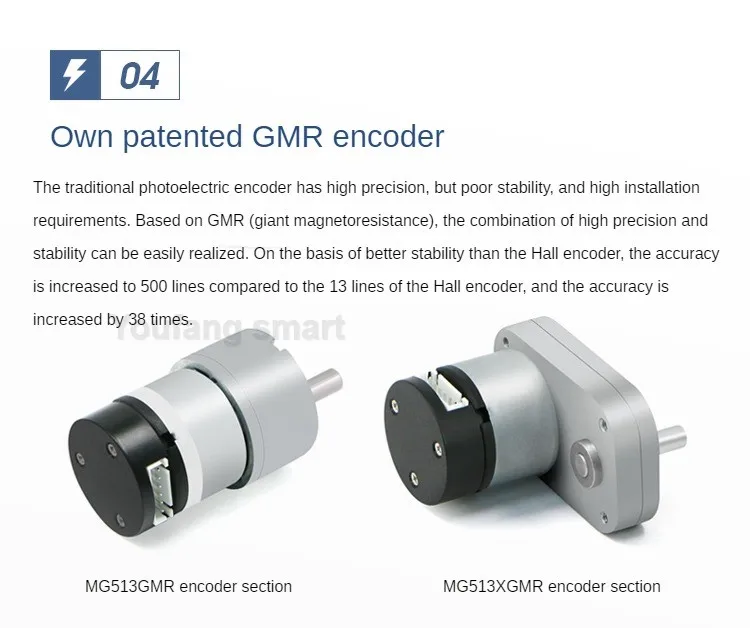

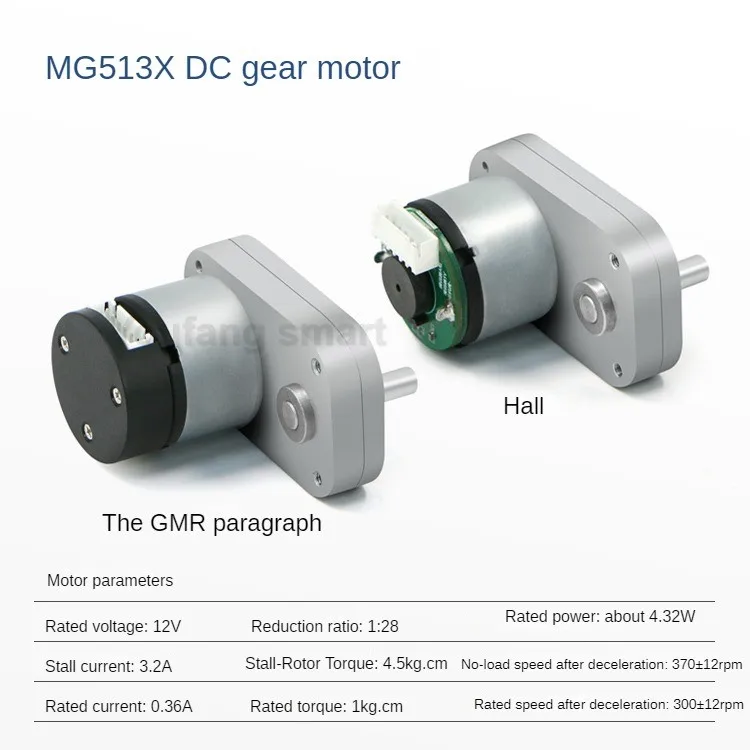

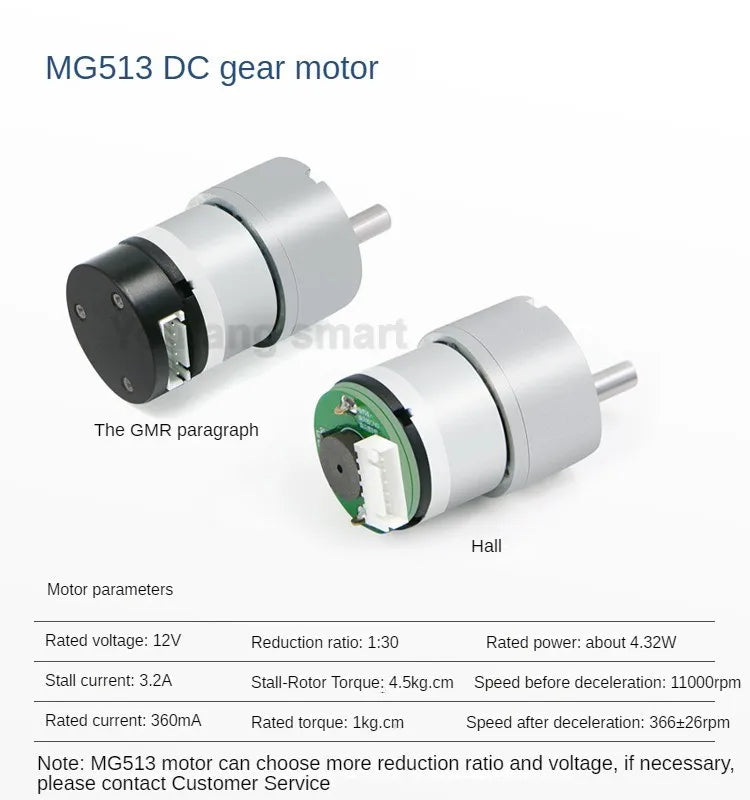

    Motor model: MG513

    Reduction ratio: 1:30

    Load capacity: 3kg

    Maximum speed: 1.2m/s

    Self-weight: 1.3kg

    Size: 270.6*191*71mm

    Wheels: 65mm rubber wheels

    Shock absorption system: Not equipped

    Servo model: S20F20kg high torque digital servo

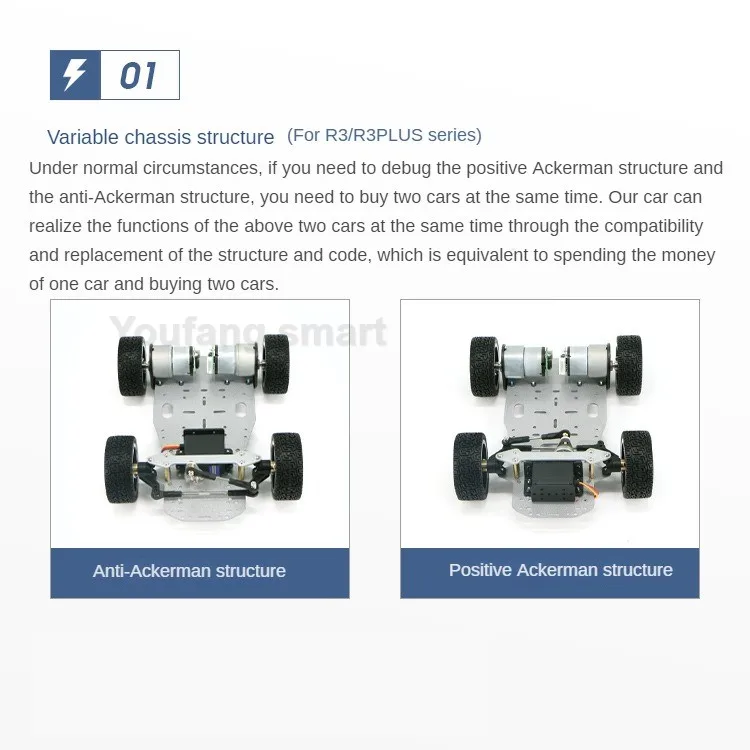

    Drive structure: classic car model, rear wheel differential drive, front wheel servo steering

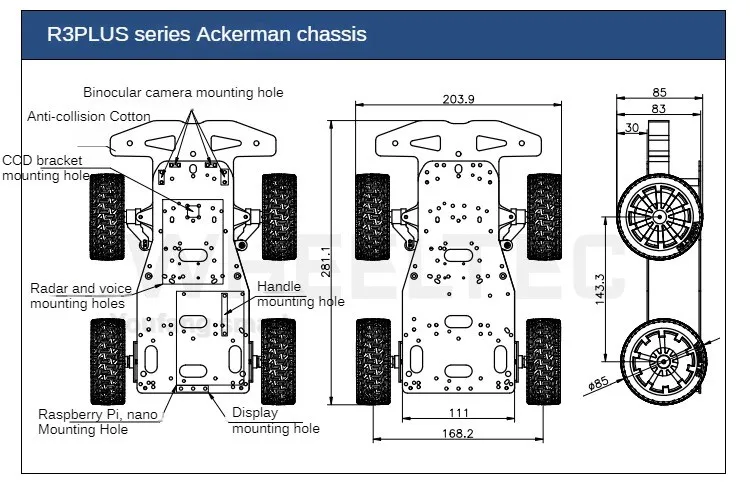

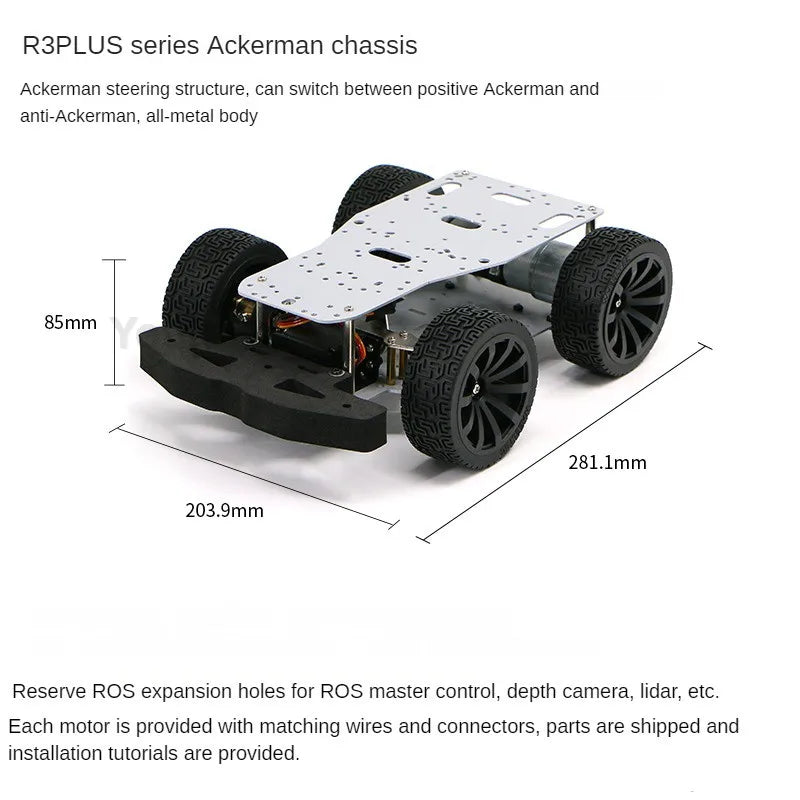

    Trolley chassis: R3 PLUS series

    Motor model: MG513

    Reduction ratio: 1:30

    Load capacity: 2.29kg

    Maximum speed: 1.56m/s

    Self-weight: 2.3kg

    Size: 281.1*203.9*85mm

    Wheels: 85mm rubber wheels

    Shock absorption system: Not equipped

    Servo model: S20F20kg high torque digital servo

    Drive structure: classic car model, rear wheel differential drive, front wheel servo steering

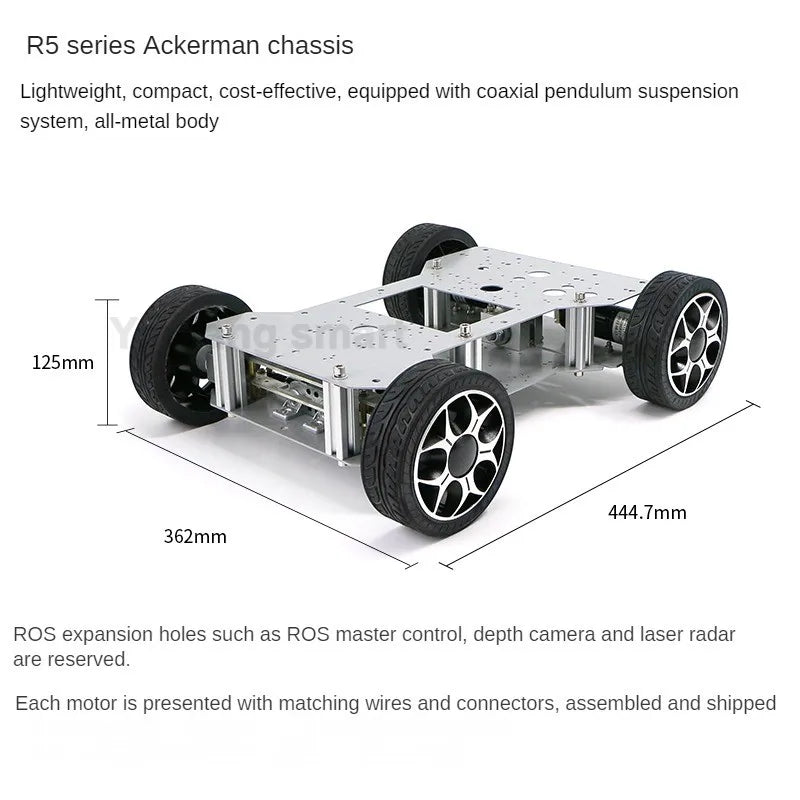

    Trolley chassis: R5 series

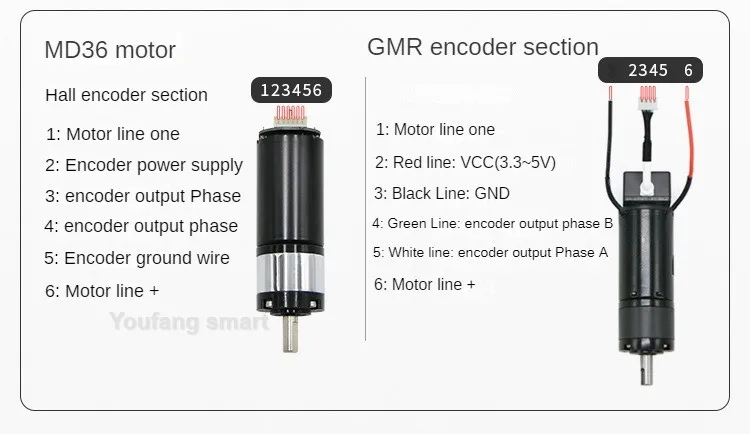

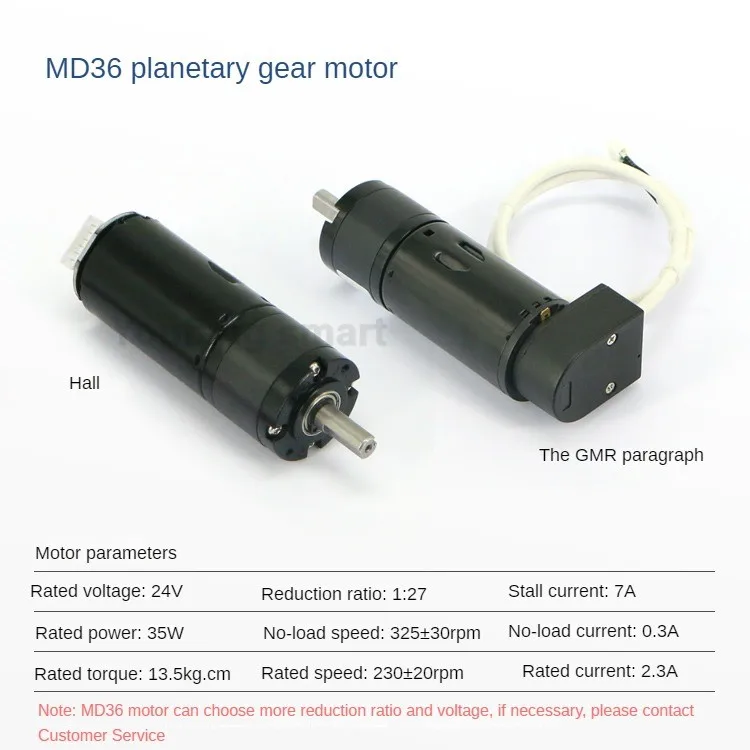

    Motor model: MD36

    Reduction ratio: 1:27

    Load capacity: 10kg

    Maximum speed: 1.3m/s

    Self-weight: 6.2kg

    Size: 444.7*362*125mm

    Wheels: 125mm cast aluminum-rubber wheels

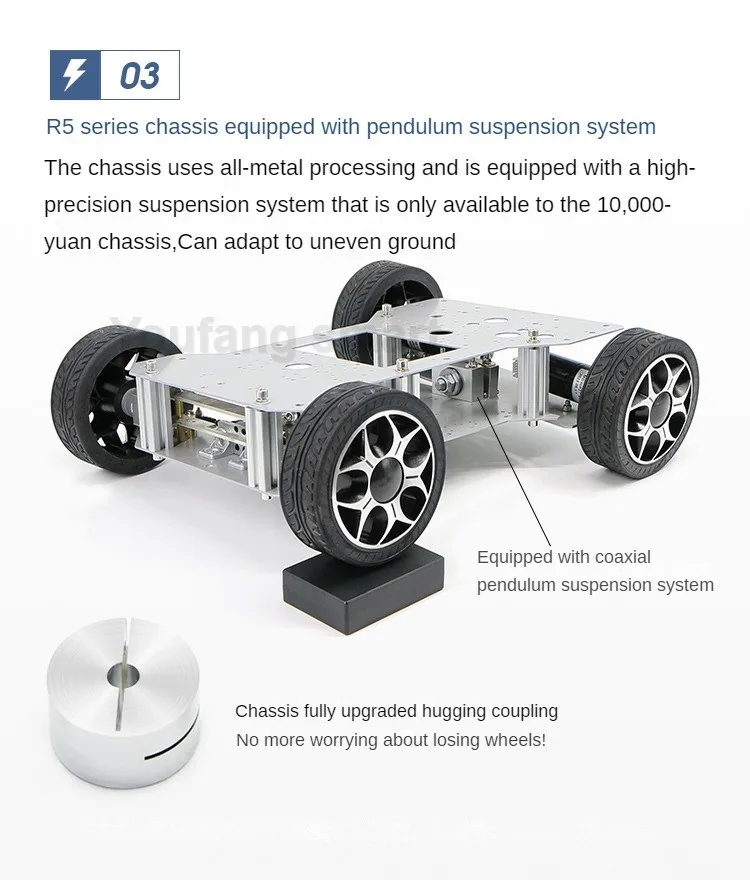

    Shock absorption system: Equipped with a coaxial pendulum suspension to adapt to uneven ground

    Servo model: S20F20kg high torque digital servo

    Drive structure: classic car model, rear wheel differential drive, front wheel servo steering


Note:

1.R3 and R3 plus car is unassembled, we will offer the installation manual.Please leave your email address

2.Due to the customs policy, the product is mailed without a battery
