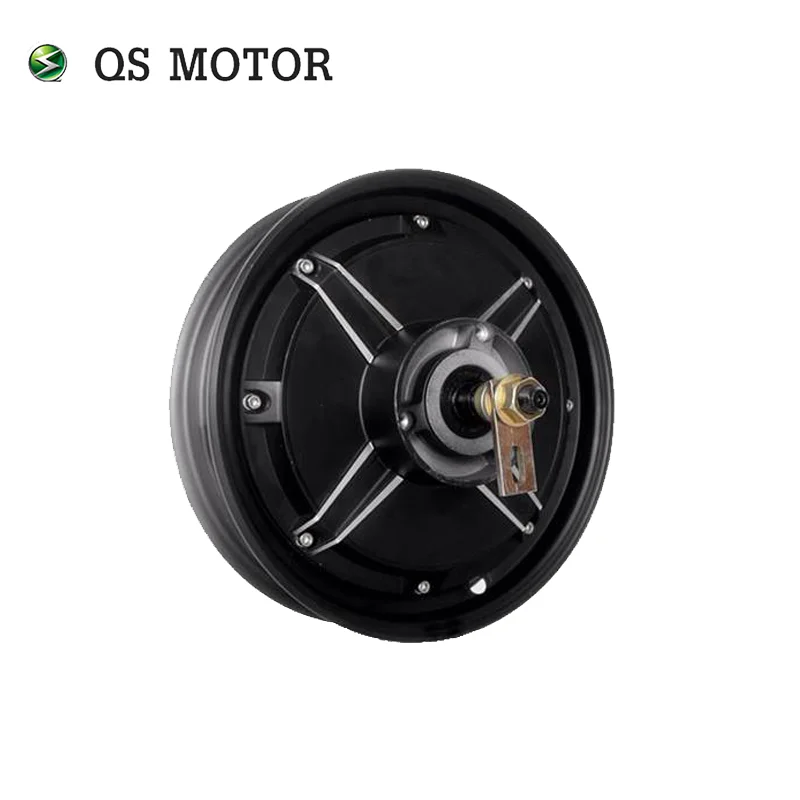

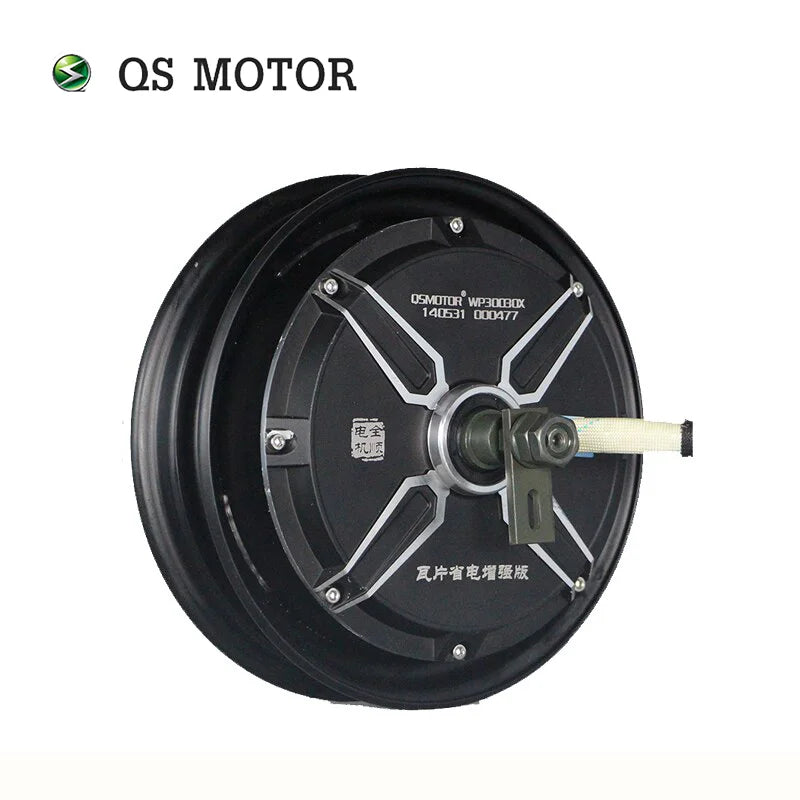

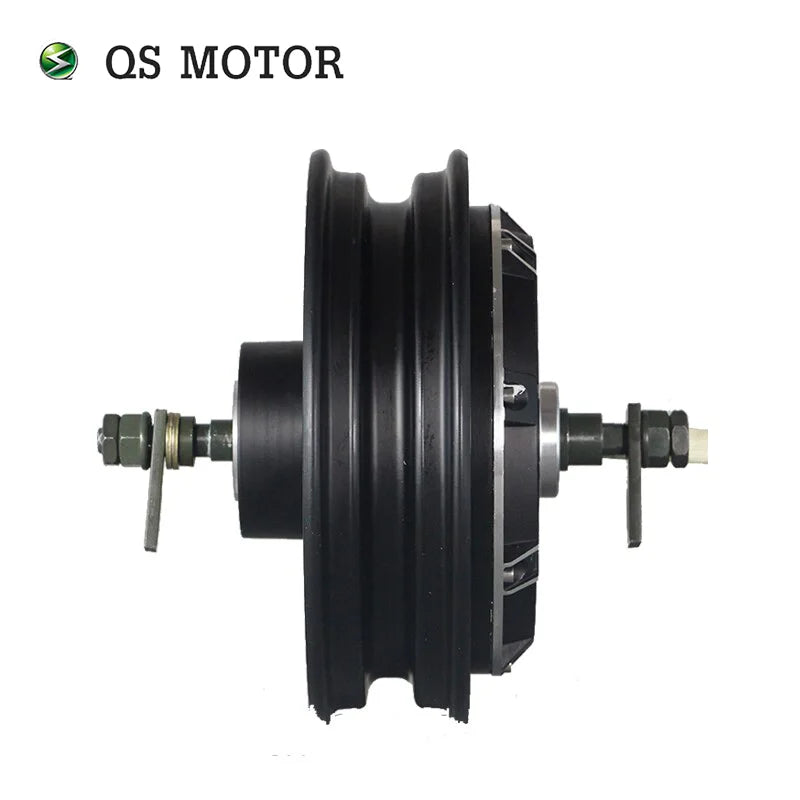

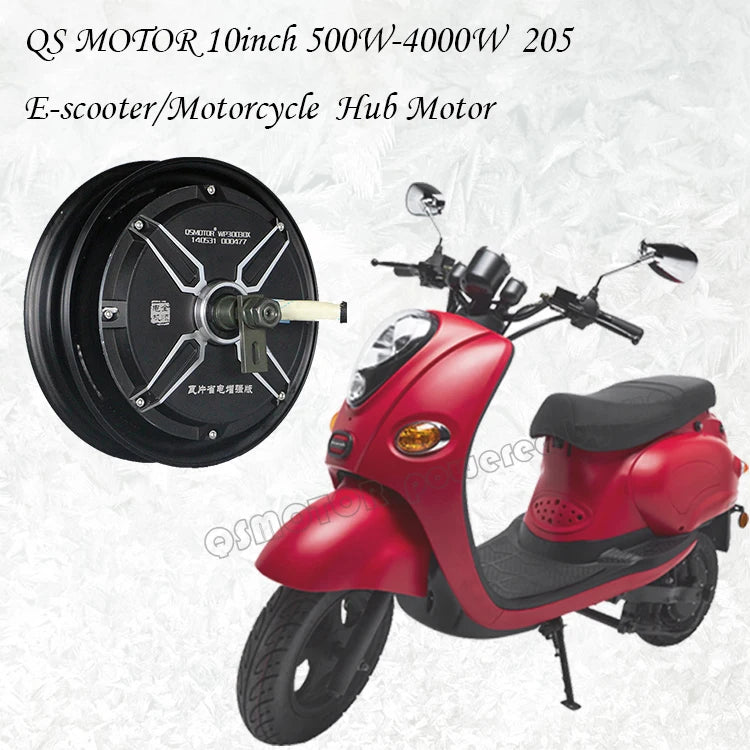

Best-Selling 10inch 1500W 205 40H V3 Brushless DC Electric Scooter Hub Motor

NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.

(special countries list contact seller)

For 10inch E-Scooter wheel hub motor, it could be used for electric scooter, electric motorcycle.

There are three width of wheel,10X2.15inch(500W-4000W), 10X3.0inch(500w-4000W)and10x5.5inch(Customized type, 1000W-4000W)for choice.

We offer narrow tire,10X2.15inch as default.

All black cover

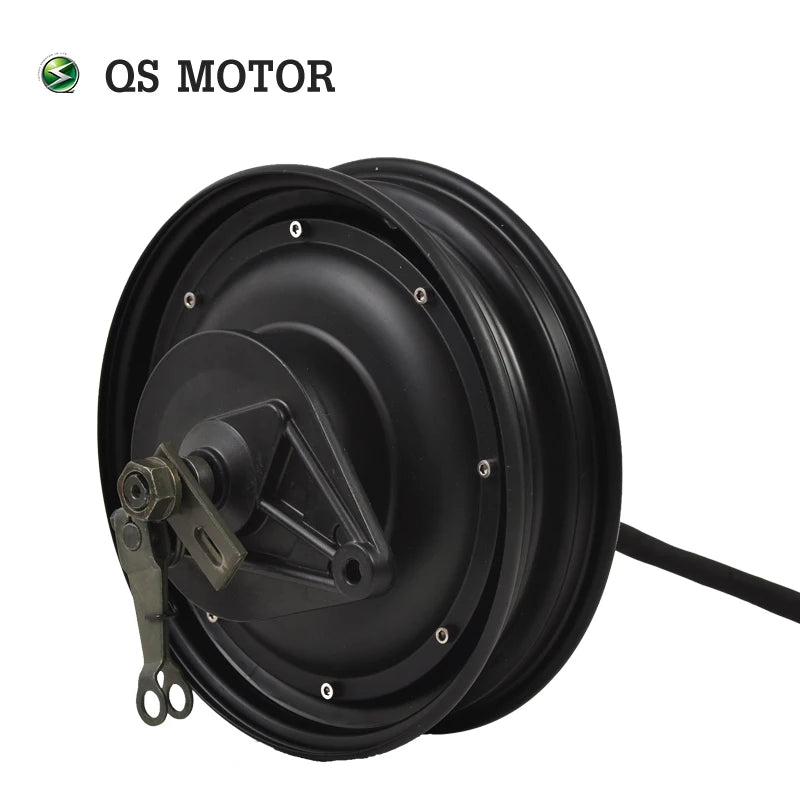

Optional drum brake hub motor

Only available for top speed no more than 50KPH application

Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

PS.1). Above quotation base on 205 electric scooter wheel hub motor, 48V~72V.

2). Above configuration is suggested for mass production.

for EV enthusiast, V2 & V3 motor could be over-voltaged to gain more speed/performance (customizable).

Product description

Genearlly Spec:

• Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor

• Brand: QS Motor,QSMOTOR

• Motor Design: Double axle with 10inch moped rim (integrated)

• Rim Size:10x2.15inch(Narrow Tire as default), matched tire:3.0-10,3.5-10 etc

• 10x3.0inch(Wide Tire), matched tire: 130/90-10 etc

• P.s.: For Wide tire design, the additional cost will be $3.5/pcs

• Magnet Height: 40mm, 16 pole pairs

• Stator: Aluminum Core

• Rated Power: 1500W

• Speed: 30KPH-60KPH, it can be customized, genearlly we will design as 72V55KPH.

• Work voltage range: 48V-96V, will be 72V as default.

• Max Torque approx 148.3N.m

• KV: 10.2/12.5/16.2/20.2 (optional)

• Thermic Probe: KTY83-122 (as default, optional)

• Max Efficiency approx 88%

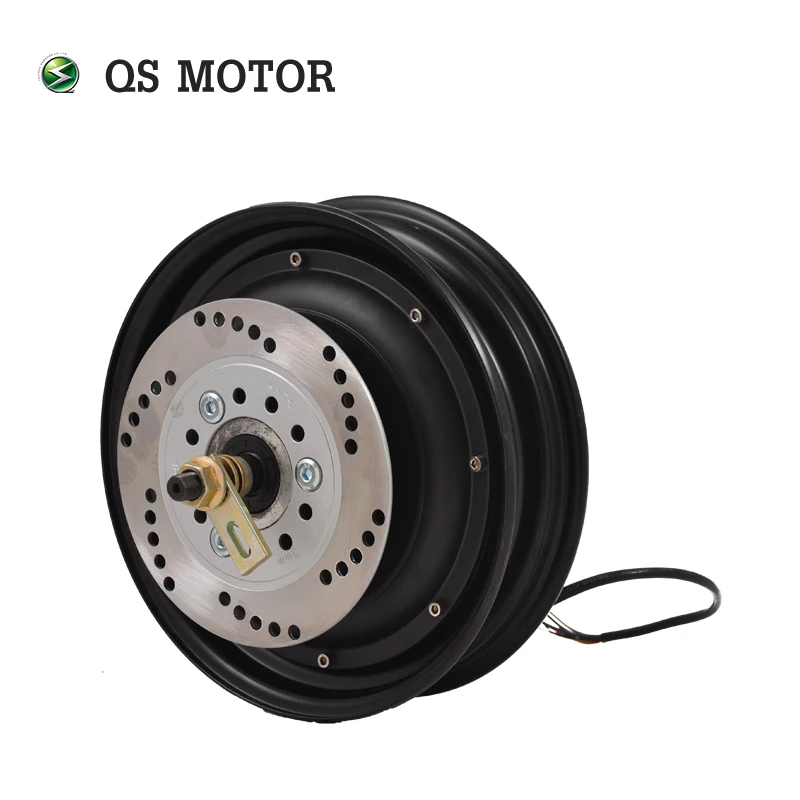

• Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm

• Drop-outs: 200mm

• Dual Halls with waterproof connectos(One for spare, in case of damage)

• 6mm² Phase Wire

• Waterproof Grade: IP54

• Color: Black (As default)

Drawing for 10inch in-wheel hub motor:

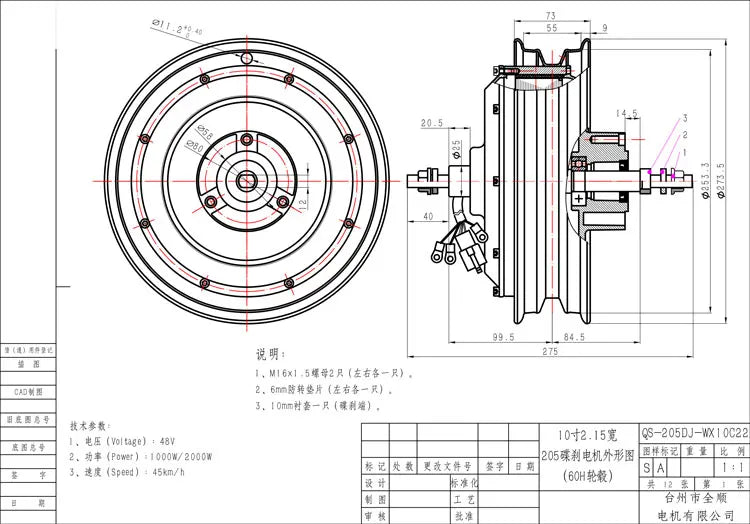

1. 10*2.15inch in-wheel hub motor

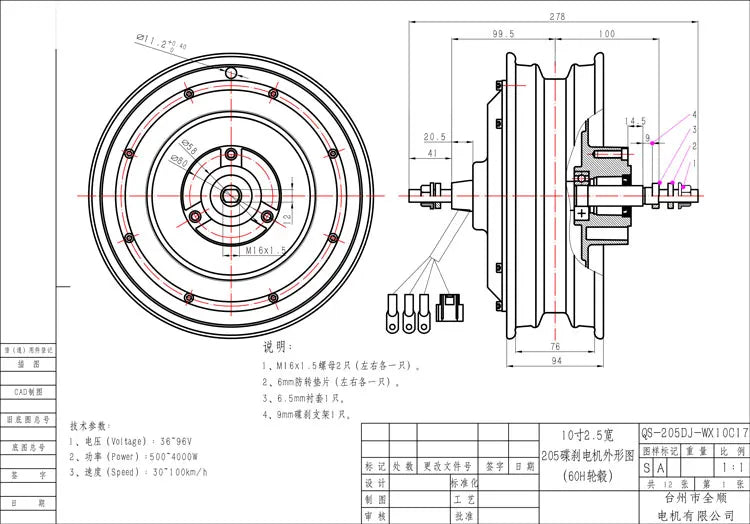

2. 10*3.0inch in-wheel hub motor:

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

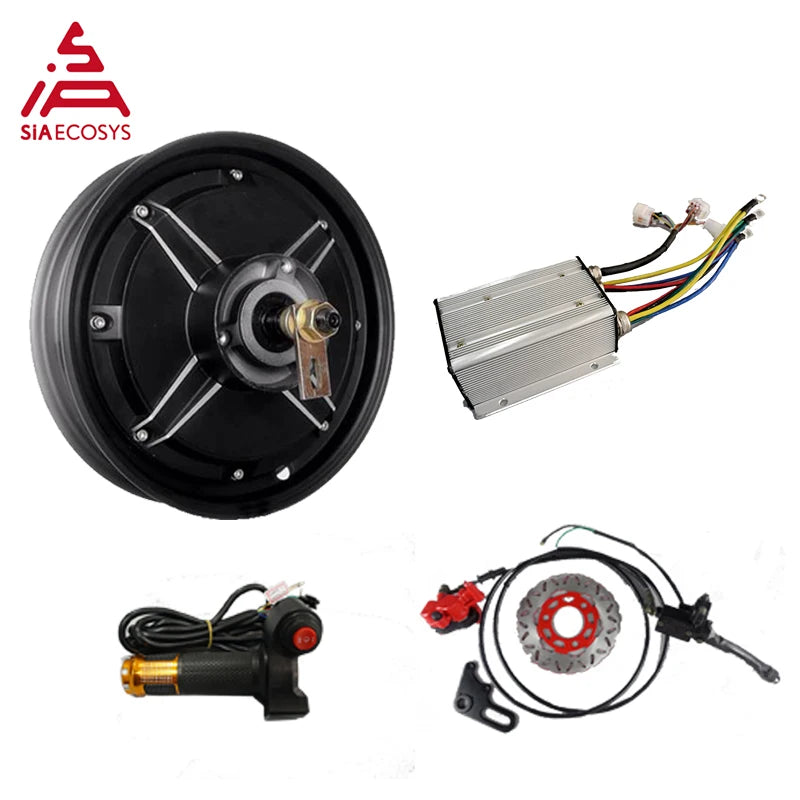

Conversion kits for 10inch in-wheel hub motor

We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.

Application for 10inch in-wheel hub motor
