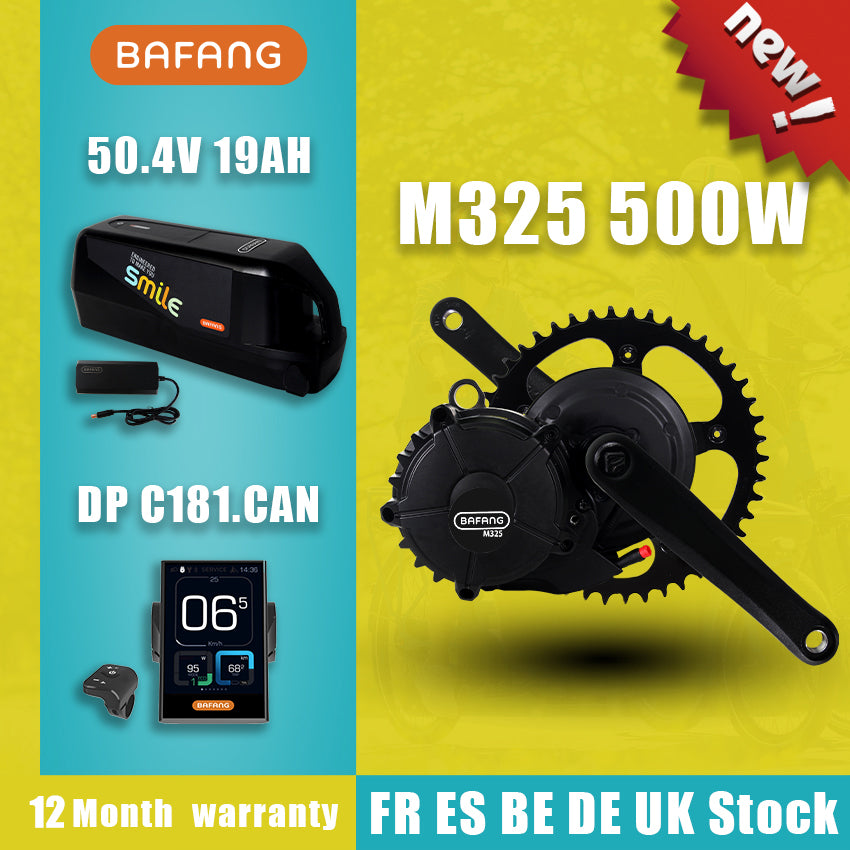

BAFANG Motor M325 50.4V 500W Mid Drive Motor Electric Bike Conversion Kits MM G341.500.C Engine with 19AH Samsung 21700 Cells

Sale price $1,222.68 Regular price $1,316.88

BAFANG Motor M325 50.4V 500W Mid Drive Motor Electric Bike Conversion Kits MM G341.500.C Engine with 19AH Samsung 21700 Cells



Brand Name: BAFANG
Origin: CN(Origin)
Design: Brushless
Certification: RoHS
Certification: UL
Voltage: 48V
Wattage: > 400w
Motor Type: Side Hung Motor

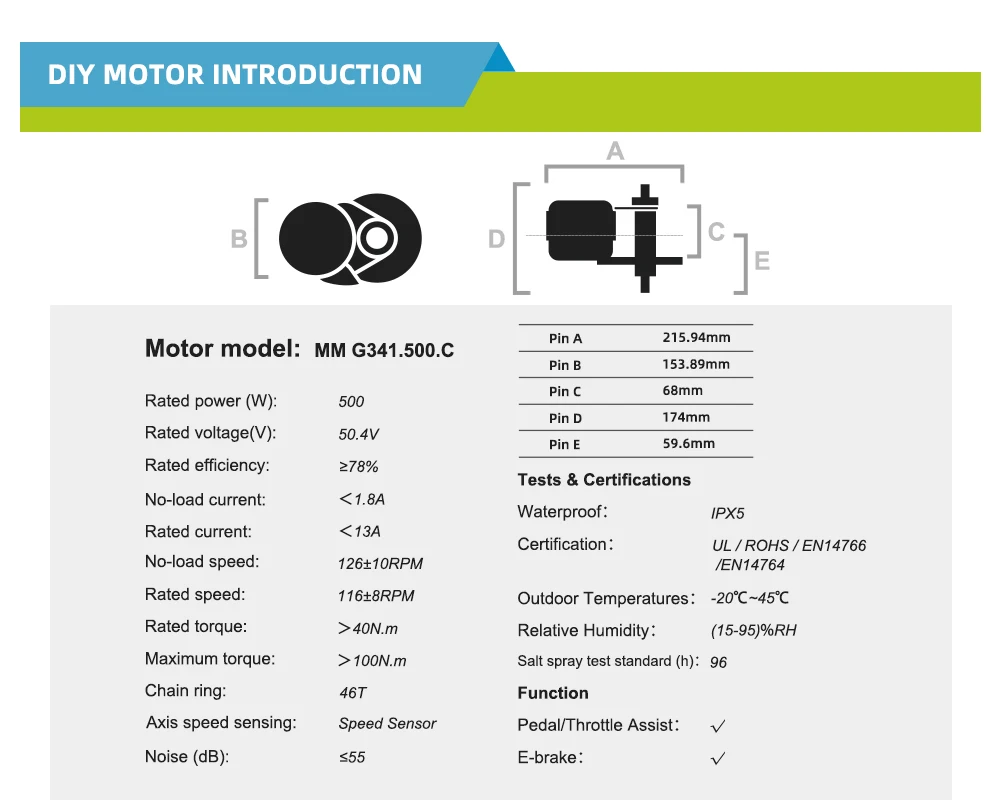

Motor model: MM G341.500.C
Model type: M325 500W
Battery ( AH): 50.4V19AH
Charger: 58.8V4A (EU/US)
Battery cycle Life(time): 600
Display: DPC 181.CAN BUS
Chainwheel: 46T
No-load speed: 126±10RPM
Rated speed: 116±8RPM
Rated torque: 40N.m
Max Torque: 100N.m
Waterproof: IPX5
Relative Humidity: (15-95)%RH
Noise (dB): ≤55






Certificate of Authorization

Features:

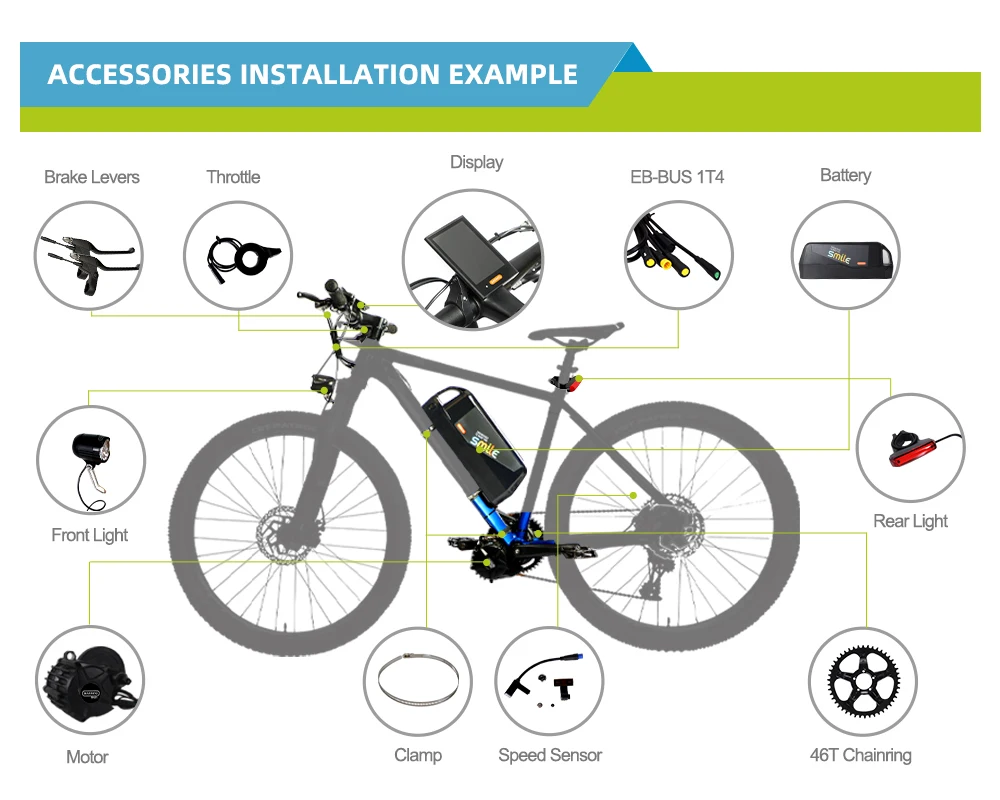

◆【All Parts inclusive】:BAFANG Latest model M325 M625 500W/750W/1000W mid drive motor kit with 19Ah battery, DPC181 display, headlight, taillight, speed sensor, etc. All necessary mounting accessories are included.


◆【Integrated powerful motor】: Speed-sensored central motor with slow startup provides more smoother and fabulous cycling experience.Solid construction motor with integrated hidden controller. High performance in climbing and loading.


◆【Larger capacity battery】:Made up of authentic Grade A 21700 battery cells made by Samsung. Fast-charging, long-life battery with communication protocol that indicate accurate and real-time battery capacity.


◆【Compatible with Varieties】:We recommend this electric bike conversion kit for most bicycles ≥ 27.5 inches. Please check if the battery size is compatible with your bicycle frame.

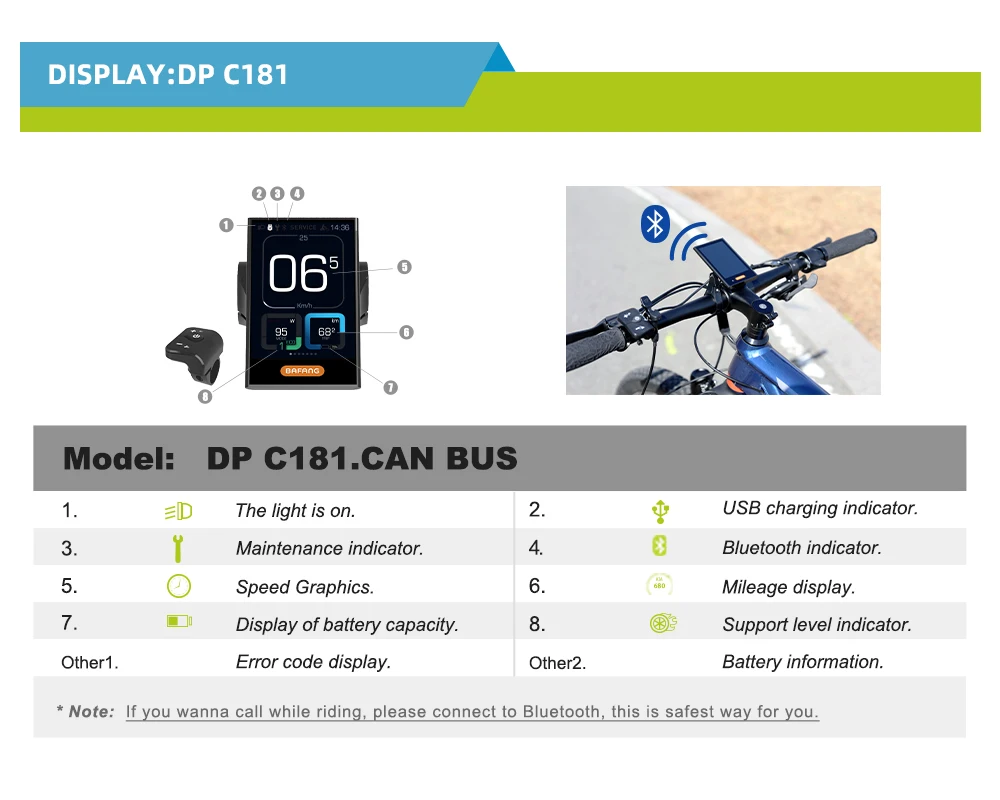

◆【Waterproof DPC181.CAN Bluetooth Display】:The large high-contrast color matrix display delivers all important data at a glance.The USB port supports mobile devices and the Bluetooth communication addresses the Bafang GO app.


Delivery:

ALL Motors and Batteries are shipped directly to your home from the EU/UK/US/CA warehouse. With fast shipping!! 2-7 Days


Warranty:

12 Months warranty.Our company only repairs the damage caused by the correct use of the product during the warranty period. Please read the precautions of the product carefully.


Note:

Bafang M625/M325 drive systems can only be used on vehicles intended for off-road use and designed to travel on unpaved surfaces. Please make sure to comply with local laws and regulations.

FAQ

Q: How do I know whether this kit will be suitable for my bike?


A: The kit will only suitable for the bike≥27.5inch

(The upper area of downtube shall have a motion range of 390mm in length and 170mm in helight for battery installation)


Q: Can I buy the battery from other seller to match the motor to use?


A: This New M325 & M625 motor is only suitable for BAFANG 50.4V battery, if you use other type battery, it will not suitable






Imagine if you could be satisfied and content with your purchase. That can very much be your reality with the BAFANG Motor M325 50.4V 500W Mid Drive Motor Electric Bike Conversion Kits MM G341.500.C Engine with 19AH Samsung 21700 Cells.
