Bafang 8Fun BBS02B 48V 500W MMG320 48T 52T 850C EBike Mid Crank Drive Motor Conversion Kit Kits for Electrical Bicycles

EJOYQI Service Advantages


1.If your brake lever is Hydraulic Brake .We can upgrade the ebrake to brake sensor.Please leave a message when you place the order.

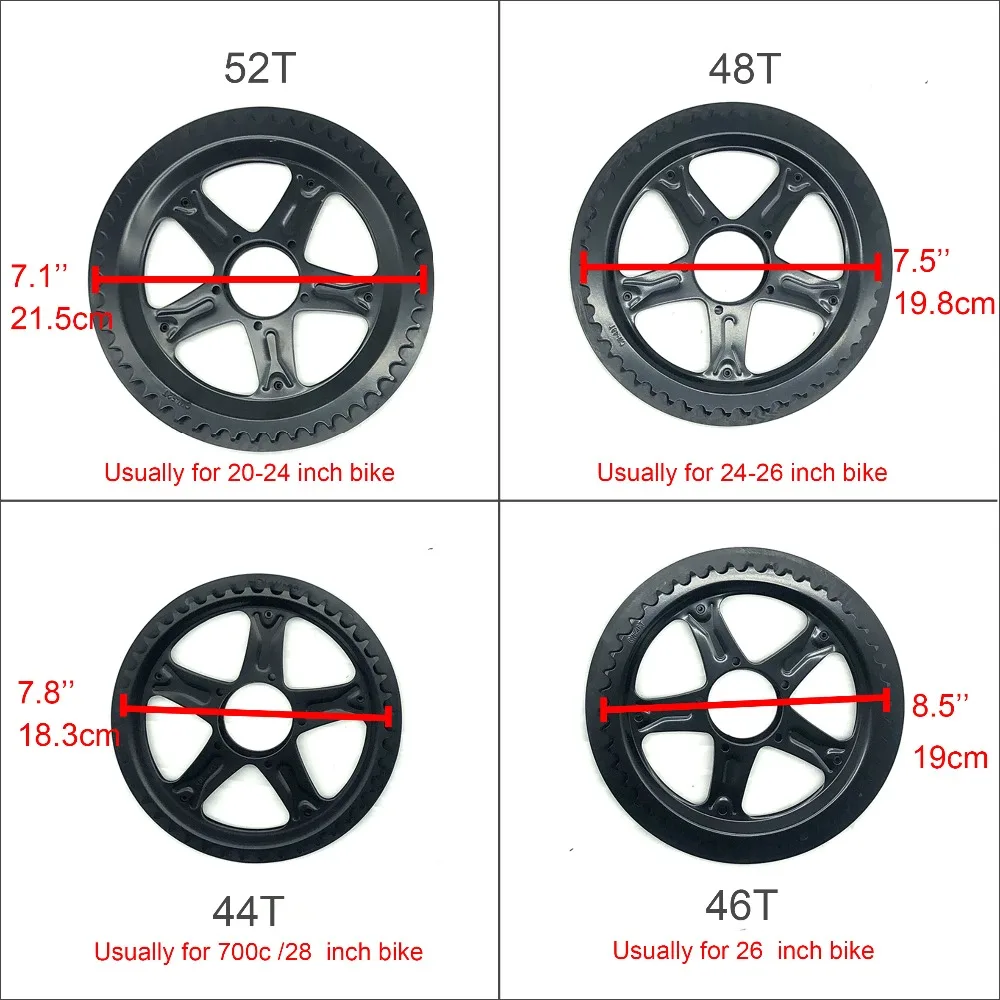

2.We supply 44T 46T 48T 52T chainwheel.If you need replace.Please also leave a message.Thanks.

3.About the battery connector.We supply 3 versions.Bullet.PP30.XT60.Please also leave a message.Thanks.

4.If you need a label sticker of 36V 250W.Please tell me .We can send the sticker to you.

5.This is for 68mm bottom branket.(JIS)    If your bottom branket is 73mm.Please contact us.

6.This kit is not for Carbon fiber bicycle.

7.We provide a installation tool or a light as gift.Please leave us a message.If you do not leave a message, the default installation tool.

8.In the following countries, your tax will be paied by us if you buy DDP shipping service together with motor kit.



Netherlands, Belgium, Luxembourg, Germany ,France, The United Kingdom  ,Czech Republic , Poland , Denmark ,Italy, Austria, Finland , Ireland  ,Portugal ,Sweden ,Spain ,   Estonia , Greece ,Hungary  , Latvia ,  Lithuania ,Romania , Slovakia ,Slovenia ,we bear the customs fees for these countries.please contact us if you are from island or remote places.

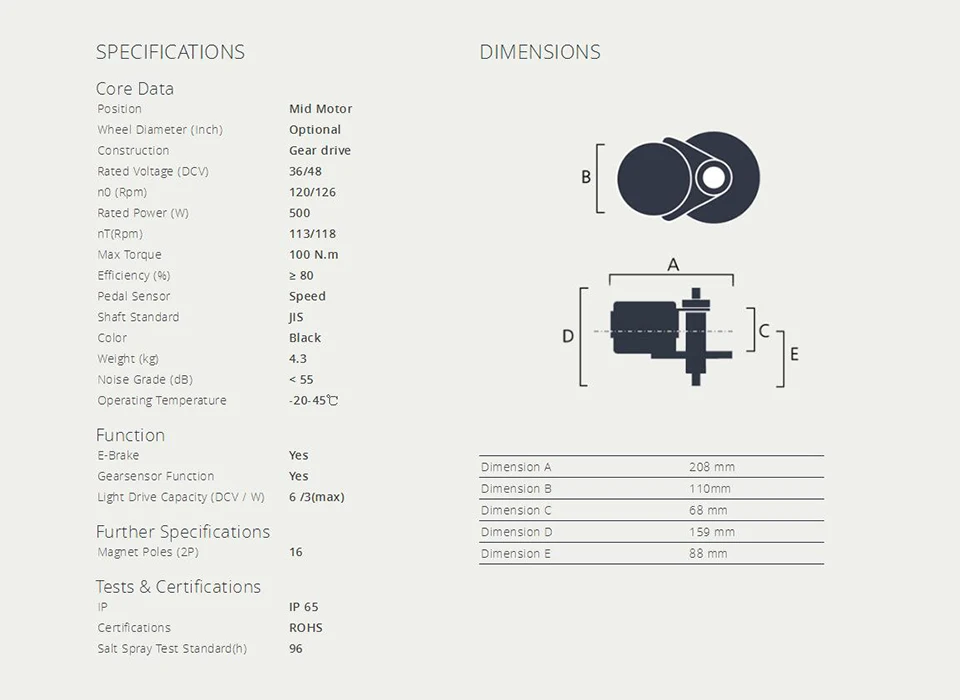

_{Power : 500W
Max Torque : 100 N.m
Display(Optional) : C961 C965 SW102  850C 750C DPC18 KD718 500C (colorful display)
Integrated Controller Current : 18A
New Controller Code : 213
Stator Widing : 9T
Teeth Number(Optional) : 44T 46T 48T 52T(Optional)
Gross Weight : 6kg
Bracket bottom length : 68mm
Display Working Temperature : -20-80℃
Waterproof Grade : IP65
Efficiency : ≥80%
Pedal sensor : speed sensor
Noise Grade : ＜55dB
Shaft Standard : JIS
Certifications : CE / EN 14764 / ROHS
Salt Spray Test Standard(h) : 96}

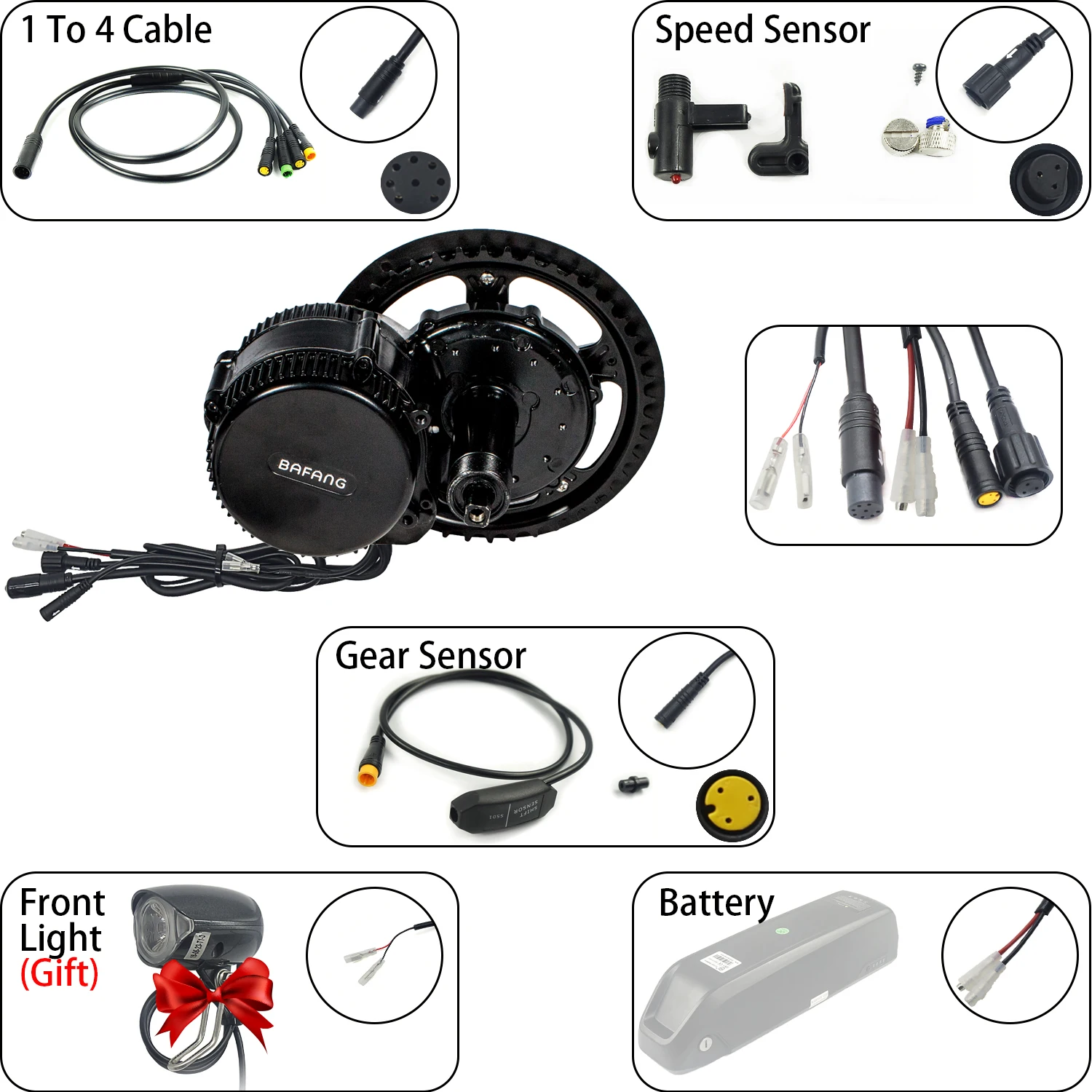

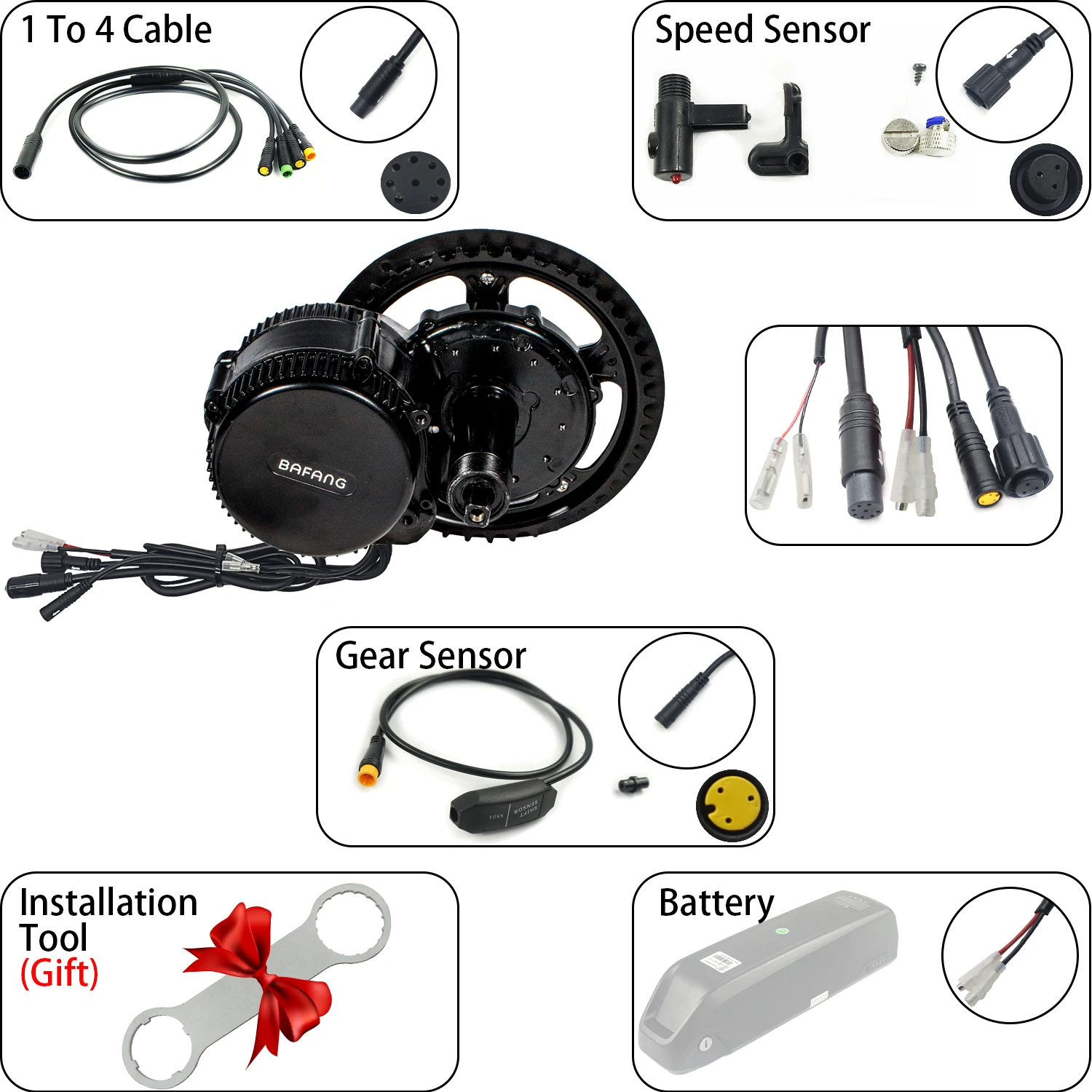

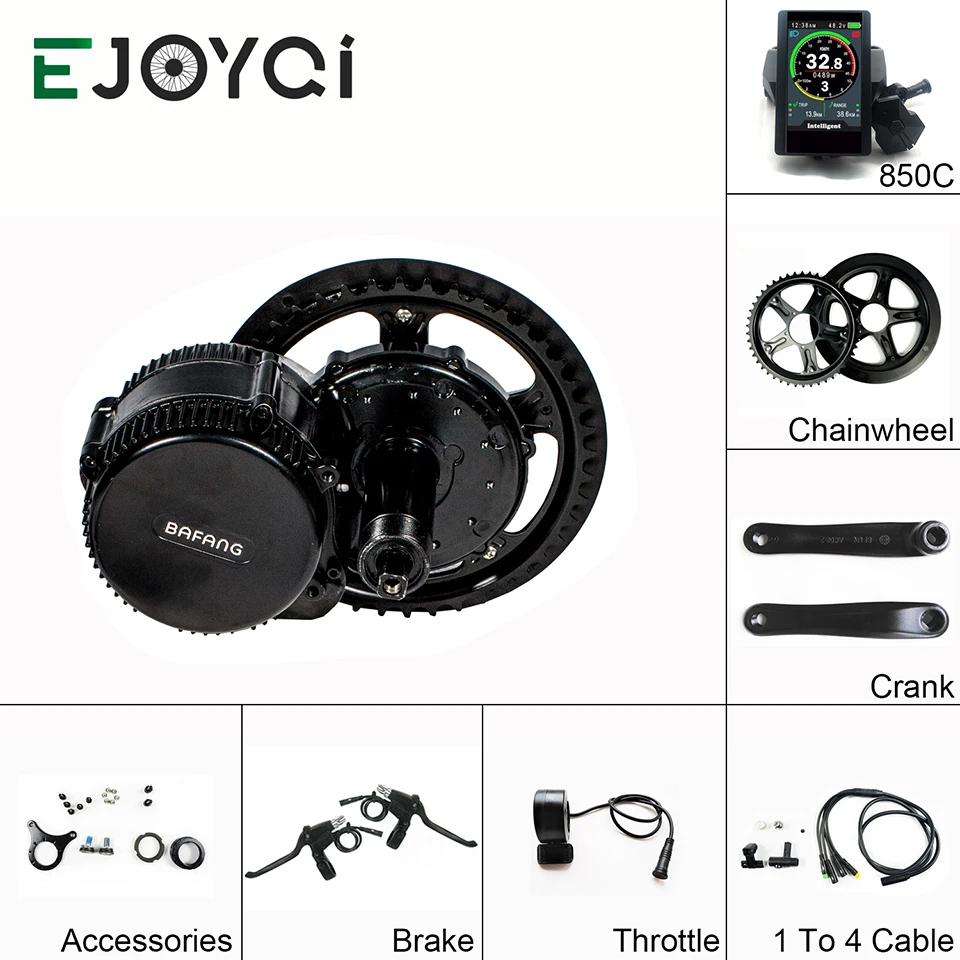

Packing list:

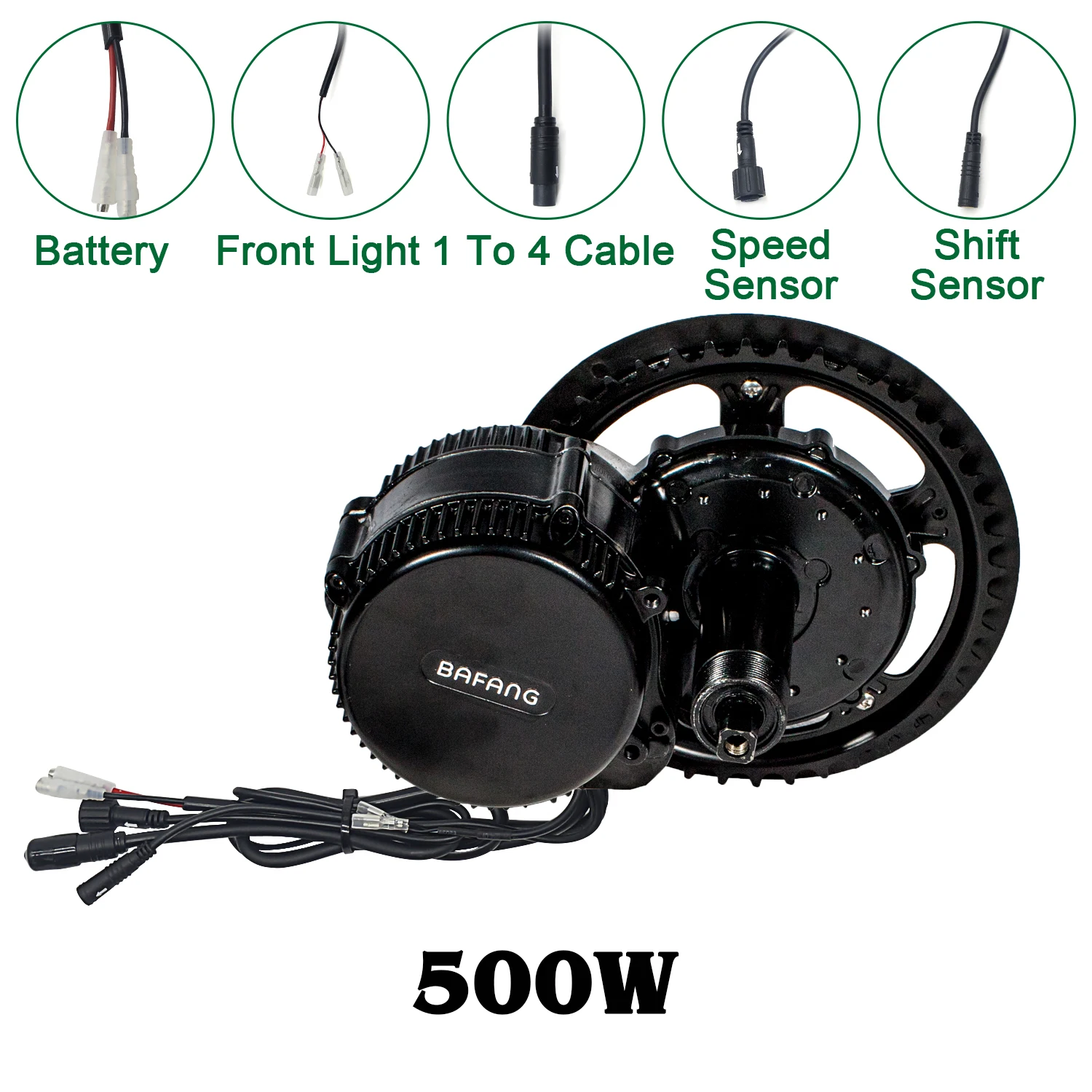

Bafang Mid Drive Motor * 1 pcs
Speed Detecting Sensor + Magnet * 1 set

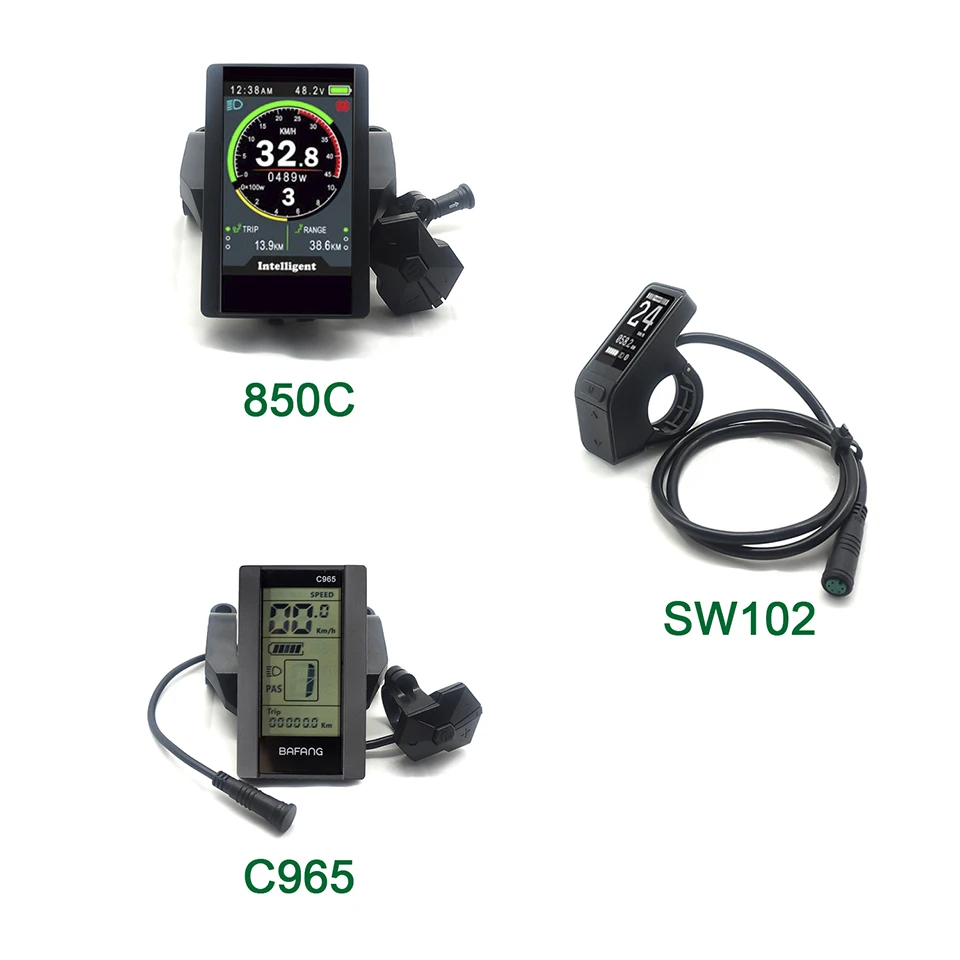

Display * 1 (C965/850C/SW102 optional,please kindly leave us message if you need change display)
Brake Lever * 1 Pair (We can change the brake levers to Hydraulic Brake Sensor freely, leave us message)
Thumb Throttle * 1 pcs
1T4 Cable *1 pcs
Crank* 1 pair
Chainwheel*1set
Screw and Nut Accessories * 1 set

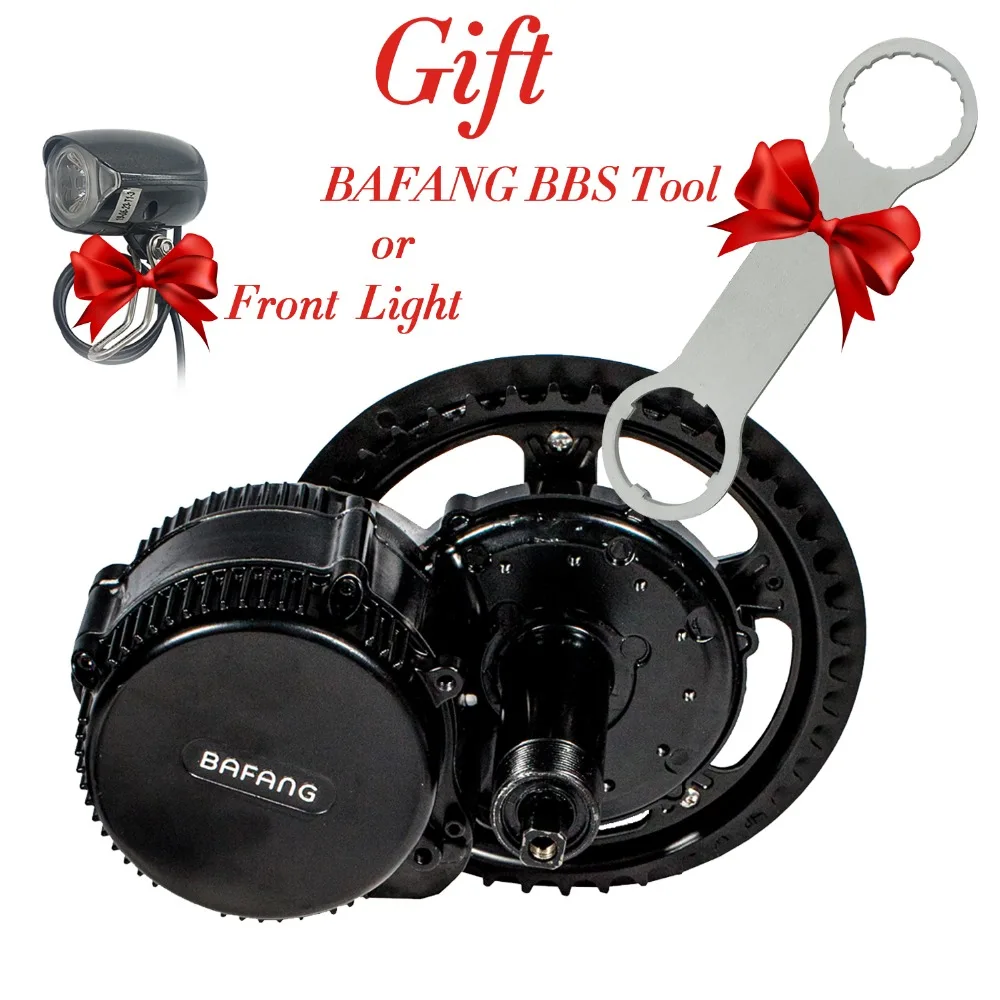

Gift * 1(We offer two gift options, please leave us a message, gift selection light or installation tool.If you do not leave a message, the default installation tool.)
