BAFANG 8FUN BBS02 BBS02B 48V 750W Mid Drive Crank Motor Electric Bike - E Smart Way

Free Shipping On All Orders Storewide



BAFANG 8FUN BBS02 BBS02B 48V 750W Mid Drive Crank Motor Electric Bike Conversion Kit EBIKE BB68-73mm Powerful Middle Engine w/ install tool

Sale price $556.88 Regular price $600.88

Description

  • Product Name: BAFANG 8FUN BBS02 BBS02B 48V 750W Mid Drive Crank Motor Electric Bike Conversion Kit EBIKE BB68-73mm Powerful Middle Engine w/ install tool

  • Item Code: 410034847
  • Short Description:

    With an integrated speed sensor, this mid-drive motor, which is compatible with standard bikes, providing ideal power for vehicles. Light but strong and efficient, this motor greatly enhances riding comfort and is suitable for touring bikes and commuter bikes. MID drives are not the easiest or the cheapest electric bikes to build, but can be the cream of the crop once you are out riding, especially off road, especially climbing hills or even mountains.

  • Quantity: 1   Set
  • Package Size: 32.0 * 27.0 * 29.0 ( cm )
  • Gross Weight/Package: 6.5 ( kg )



1, We provide change the brake leversto Hydraulic Brake Sensors for free.  Please kindly mark while you make the order if you need.



2. There are 44T, 46T,48T,52T chain wheels for BBS01B/BBS02B mid motors to choose.  All of them can't be added in the link.  Please kindly leave us message if you want to change the chain wheel for free.



3. We have 36V 250W label sticker. Please kindly leave us message if you need, we'll send them to you for free.



4. We have one-year quality warranty of motor and battery kit.



5. Overseas after-sales site: Dutch maintenance point for EU countries and US maintenance point.



6. DDP SERVICE

1) US, Russian Federation and the United Kingdom, DDP Service ( tax charge) is included.



2) In the following countries, your tax will be paid by us if you buy DDP shipping service together with the motor kit in 20 USD DDP Service.
Germany,France,Spain,Netherlands,Italy,Bulgaria,Belgium,Latvia,Poland,Denmark,
Finland,Portugal,Sweden,Slovakia,Slovenia,Greece,Hungary,Czech Republic,
Lithuania, Luxembourg, Romania, Ireland, Estonia, Austria





48V 750W Bafang Mid Drive Motor



Specification:
Power:750W
Voltage:48V
Controller Current: 25A
Net Motor Weight: 4.2kg
Bracket bottom length:68mm

Display Working Temperature:-20-80℃

Waterproof Grade: IP65

800 02 48 750

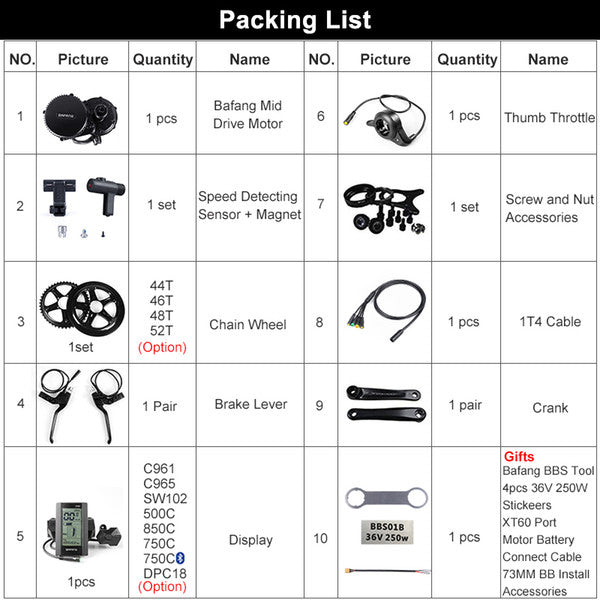

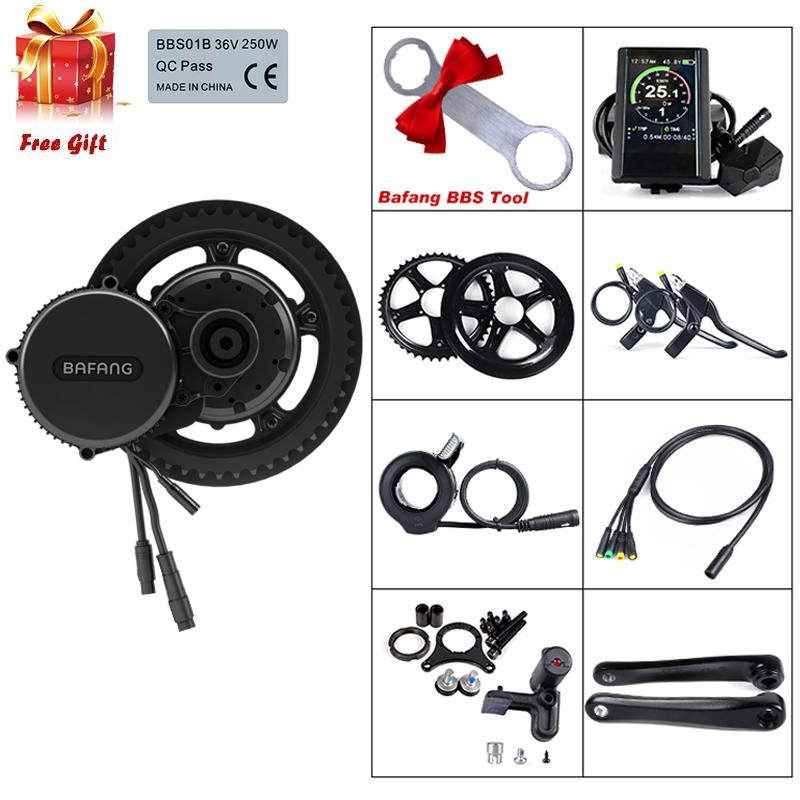

BAFANG 8FUN BBS02 BBS02B 48V 750W Mid Drive Crank Motor Electric Bike Conversion Kit  Packing List:



1 * 48V 750W Mid Drive Motor

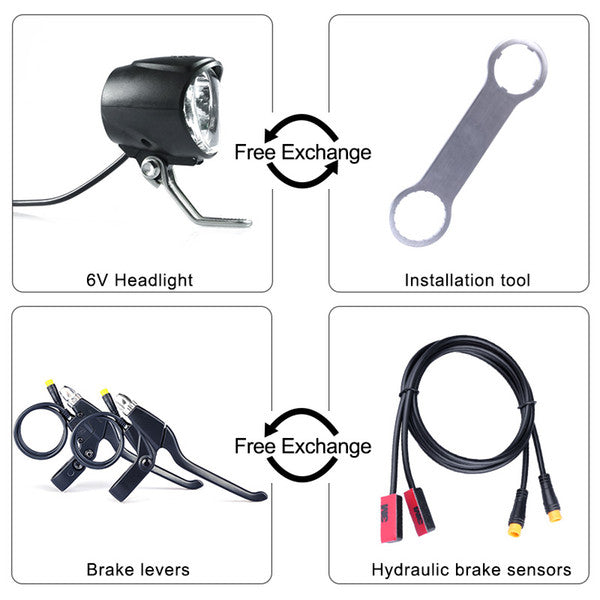

1 Pair * Brake Levers (can be changed to hydraulic brake sensor for free, please kindly leave us message if you need)

1 Pair * Crank

1 Pair * Chainwheel (44T/46T/48T/52T option, please kindly leave us message if you want to change the chain wheel)

1 Set * Thumb Throttle

1 Set * Speed Sensor

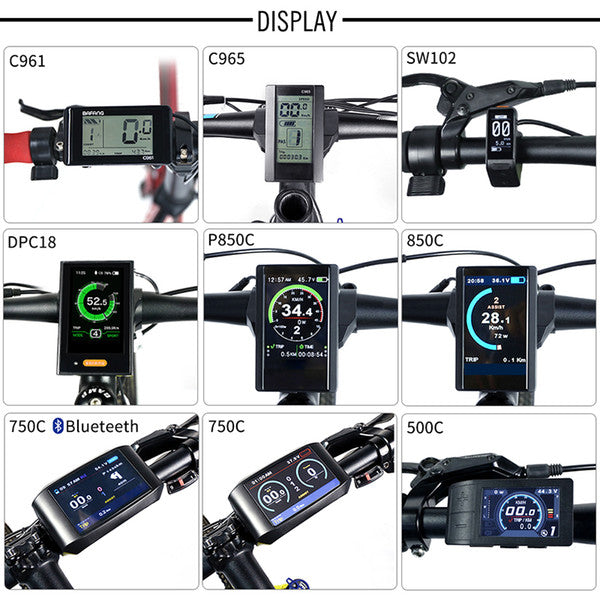

1 * Display ( B750C BluetoothDPC18P850C(NEW)850C750C,500CSW102C965C961Option)

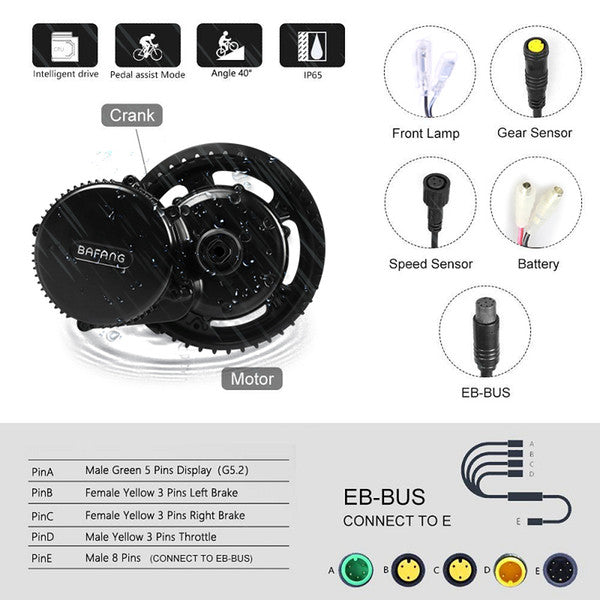

1 * 4 in 1 Cable

1 * Accessories



Gifts: 1* BBS Tool  + 1*XT60 port motor battery connector cable + Install accessories for 73mm bottom bracket + 4*36V 250W label stickers (Only for EU)



BAFANG 8FUN BBS02 BBS02B 48V 750W Mid Drive Crank Motor Electric Bike Conversion Kit EBIKE BB68-73mm Powerful Middle Engine w/ install tool

Please kindly mark while you make the order if you need.





How do I know if this mid drive motor fits for my bike?

This mid drive motor fits for the bike with 68mm or 73mm wide bottom bracket. The inner diameter of the bracket should be not less than 33.5mm. We'll send extra install accessories for the 73mm bottom bracket.







-







Bluetooth B750C display only supports iPhone ios 9.4+









0102



()

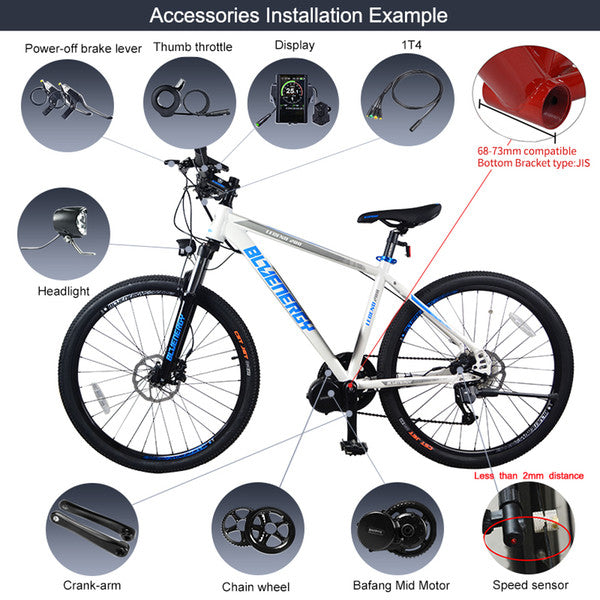

Installation Shows





HTB1tthzKrGYBuNjy0Foq6AiBFXav

HTB1tHZlKqmWBuNjy1Xaq6xCbXXaT

2





greenergy

The BAFANG 8FUN BBS02 BBS02B 48V 750W Mid Drive Crank Motor Electric Bike Conversion Kit EBIKE BB68-73mm Powerful Middle Engine w/ install tool is evocative, to say the least, but that's why you're drawn to it in the first place.

Inventory Last Updated: Oct 07, 2024
