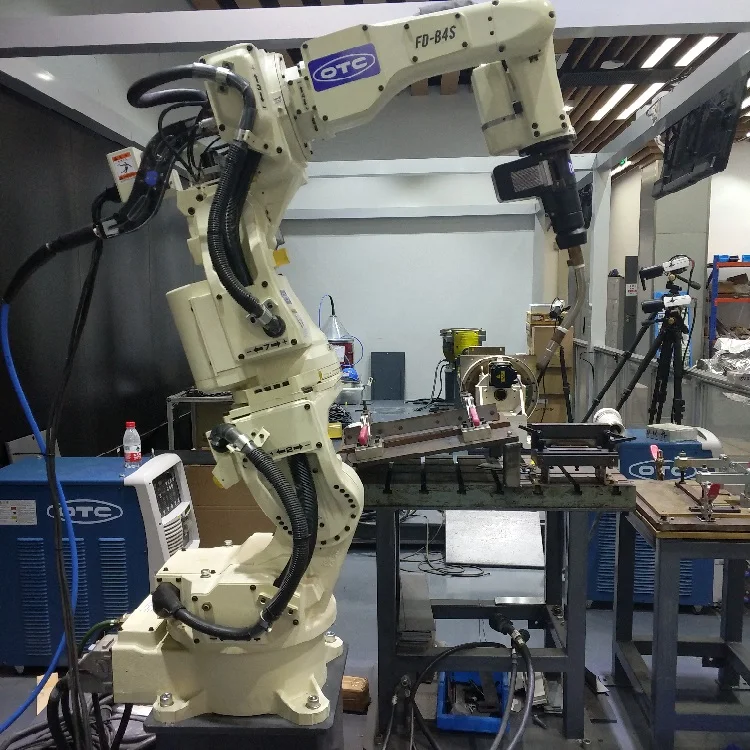

automatic welding robot FD-B4S 7 axis other welding equipment robot and 3 axis postioner and robot linear tracker

LDING ROBOT MANIPULATOR

• Rotation of the 7th-axis enables interference avoidance without changing the position and/or attitude of the end-of-arm tool

• Maintains the optimal angle and attitude of the end-of-arm tool at all times, resulting in enhanced weld quality and ease of programming

• Offers a wide working range with an independently articulated arm

• Seamless digital connection with all OTC DAIHEN brand welding power supplies

• Improved vibration restraining control provides smooth robot movement

• Built-in mechanical shock sensor

• Single source technology – all components are manufactured by OTC Daihen.

• Highly versatile design supports most welding applications

FD11 ROBOT CONTROLLER

• Windows XP based open architecture

• Large memory capacity and 40 Input / 40 Output control signals

• Advanced PLC functions allow for ladder diagram editing directly through the teach pendant

• Network capabilities – connects to Ethernet, DeviceNet, and PROFIBUS connections (may require additional hardware)

TEACH PENDANT

• Icon displays assist in quick & easy teaching

• 640×480 VGA color screen with LED backlight 65536 color display

• 3 position enable switch provides increased safety

• Multi-screen function allows user to view up to 4 screens simultaneously

• On-screen help function with complete instruction manuals

• Standard touch screen display with jog dial operation
