A Clearance Sale! QSMOTOR 205 1500W 40H V3 Electric Bicycle BLDC Spoke Hub Motor
For 205 E-Bike 1500W Electric Bicycle Hub Motor, it could be used for electric bike, high power electric bicycle.
Especially suit for electric bicycle, max. speed for 60km/h.
Key Features
1). Simplify to make a electric-bicycle. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 86~89%
PS.1). Above quotation base on 205 electric spoke hub motor, 48V~96V.
2). Above configuration is suggested for mass production,for EV enthusiast, V2 & V3 motor could be over-voltaged to gain more speed/performance (customizable).
Product description

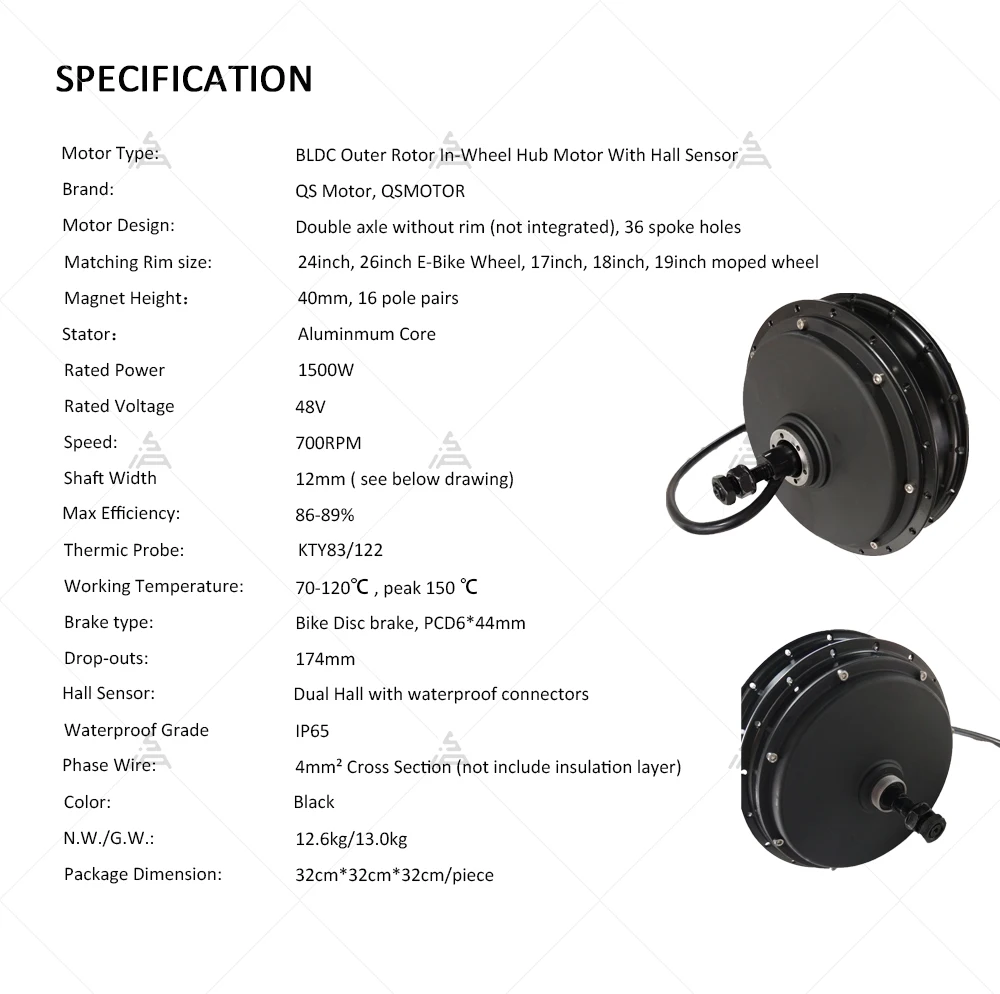

Genearlly Spec:

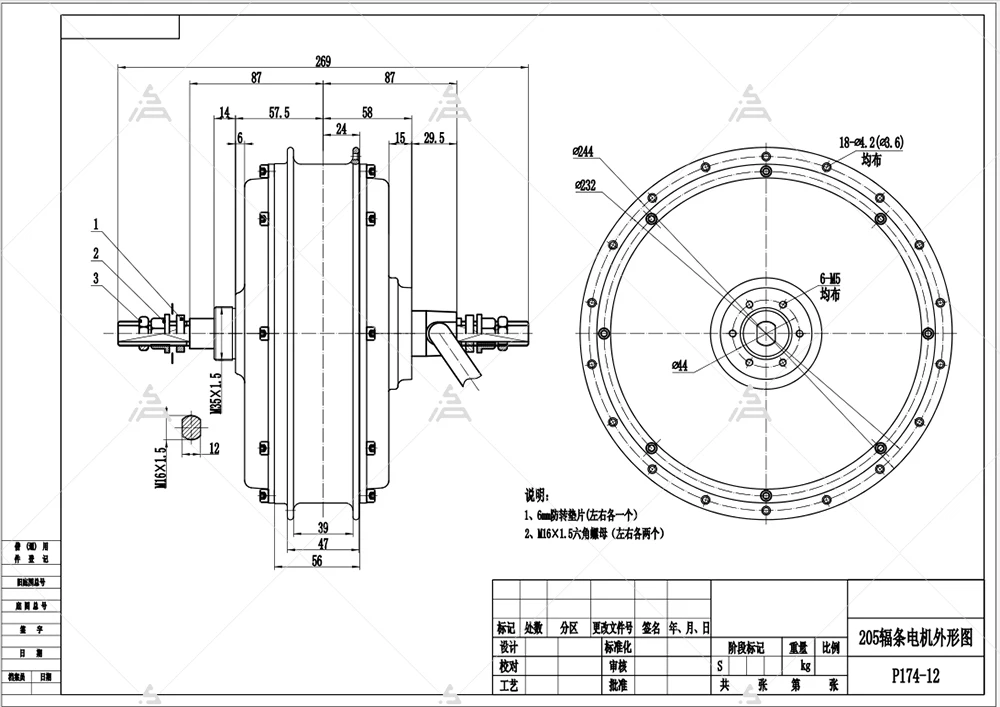

Motor Drawing
Please note that the dropout is 174mm.

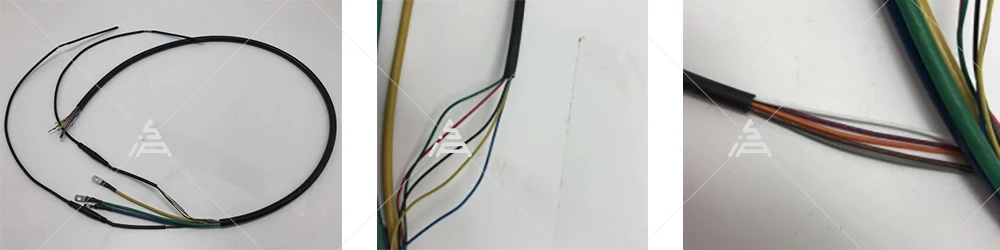

Phase Wire
The two sets of Hall wires and phase wire are integrated.
The hall wire and the phase wire are separated at a length of 480mm.
Length of Hall wire: 725mm
Length of Phase wire: 590mm

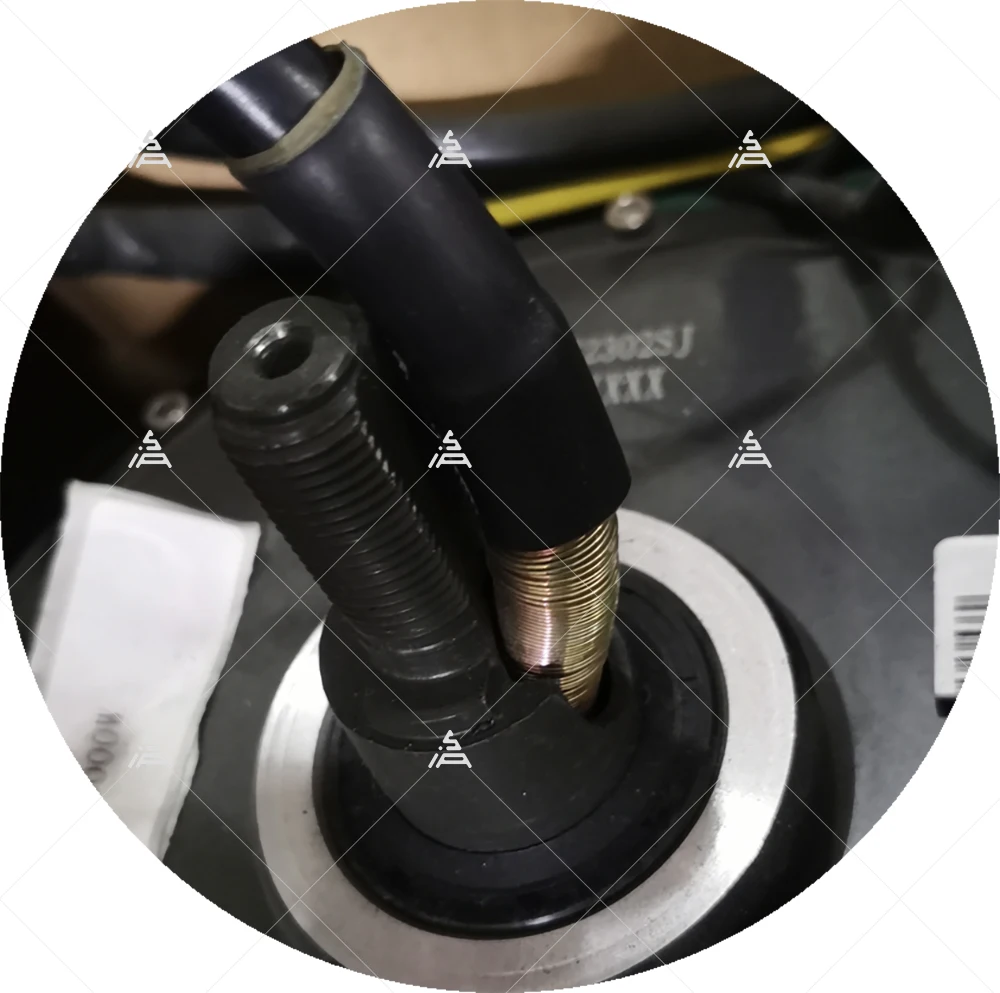

Add springs and double walled tubes to the phase wire of the motor to improve waterproof grade.
Please note that the motor does not have an Anti rotation plate installed.
Hall Connector
We will provide the conversion cable to convert this connector into a regular 6pin Hall connector (see below picture) when ship.
Test Report
