8-20Kg Load RC Tank Smart Mecanum Wheel Robot Car for Arduino Robot DIY Kit with 12V Encoder Motor Ps2 Handle Project Starter Kit
【 Read carefully before buying 】
Product details
Product name: McNamm Wheel intelligent car aluminum alloy metal version
Product packaging: color box
Product weight: 1.5Kg
Product size: 70mmx210mmx215mm
Note:
1. If you buy a smart car without an encoder, the maximum load is about 8kg, and it is recommended to use a 12V power lithium battery.
2. If you want the maximum load to be 25kg, it is recommended to buy a motor smart car with an encoder reduction ratio of 1-90, and use a 12V power lithium battery to achieve such a large load of 25kg.
3.
The smaller the reduction ratio, the faster the motor speed and the less load.
The larger the reduction ratio, the fuller the motor speed, and the greater the load.
Product battery(Shipping without battery)
A 12V lithium battery is recommended，Connector :DC5.5-2.1
Cell features: continuous discharge at 15A current, maximum instantaneous current up to 30A
Product characteristics
Aluminum alloy metal chassis, reinforced and durable, surface anodized treatment equipped with 37-520 gear motor, optional encoder motor and different tooth ratio。
The maximum load is 30kg, and it is recommended not to exceed 20Kg for the effect of use.

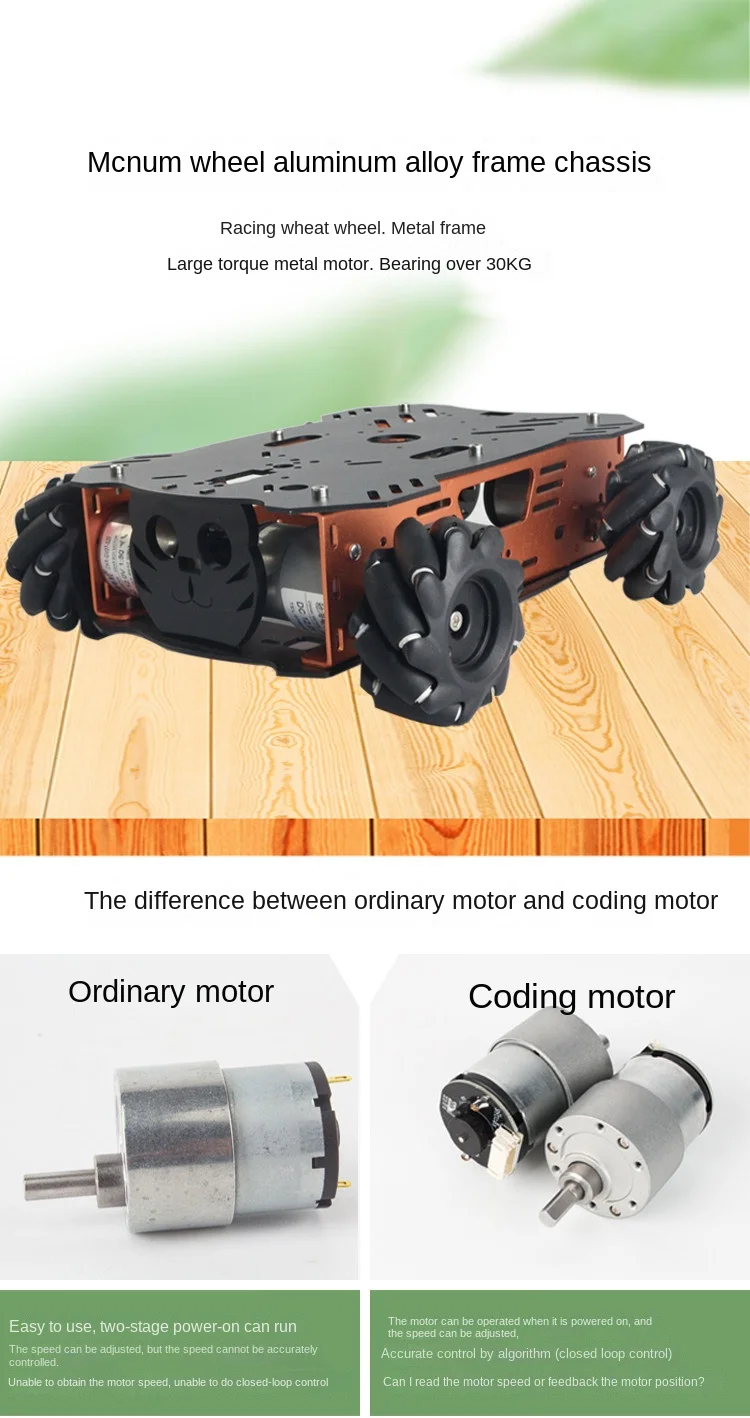

37 motor:
-
Simple and easy to use, two stages can be powered on and can be adjusted, but can not accurately control the speed can not get motor speed can not do closed-loop control

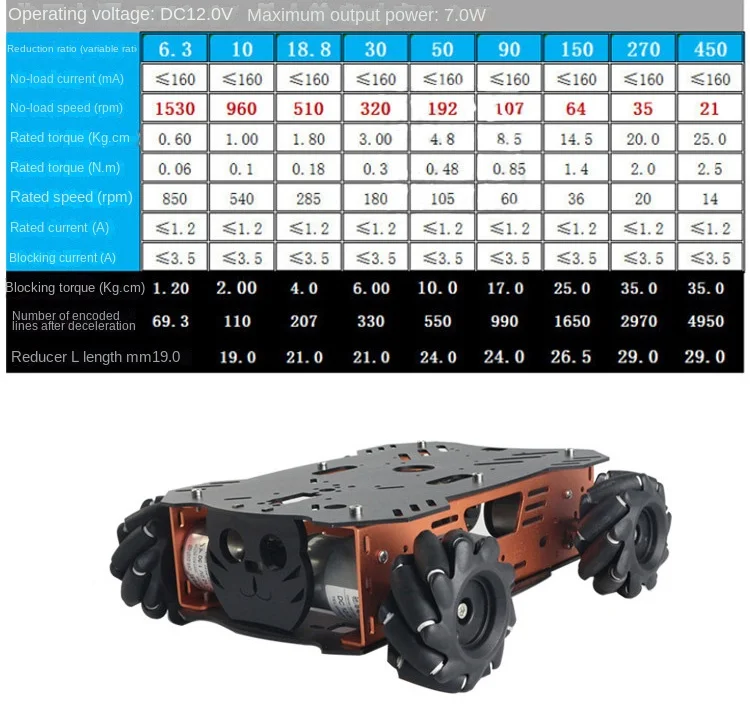

37 Motor encoder Motor:
-
The motor can run with power and speed can be accurately controlled by algorithm (closed-loop control)
-
You can read the motor speed or feedback the motor position

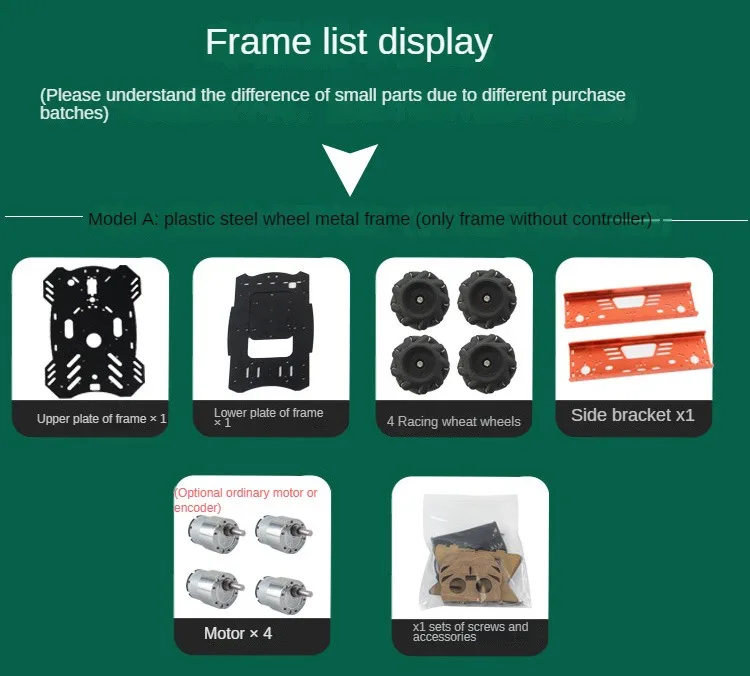

Note: Shipments in pieces! Need to install yourself!
Technical documents the most complete development and design, you deserve to own this engineering project, we do technology first, service first, not just sell goods.
If you need this manual of Robotic car development documentation, such as Arduino open source code, please contact us and leave your email.
Best quality, best service!!
