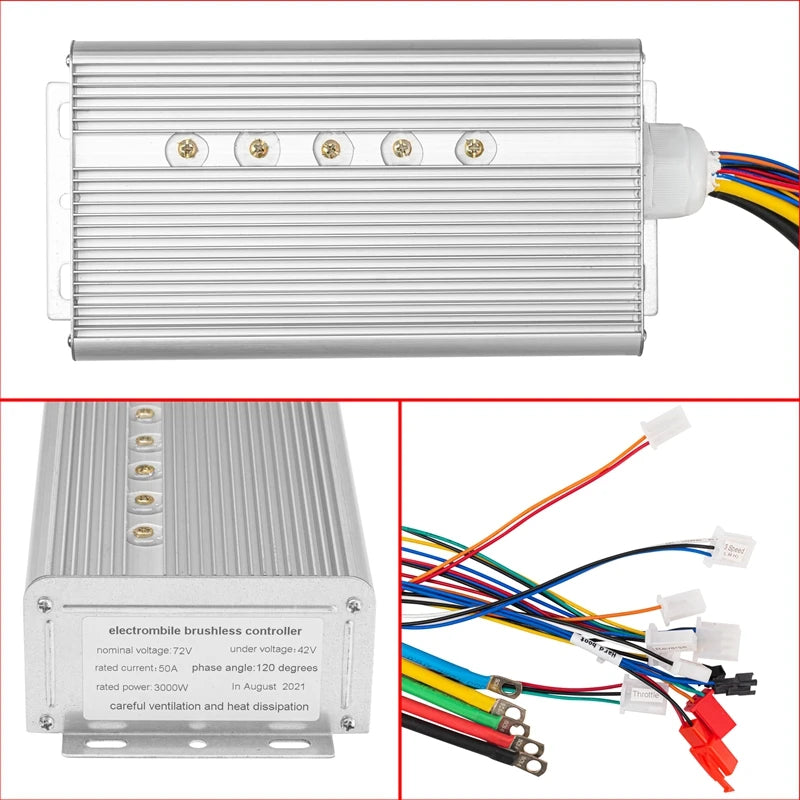

50A-150A Brushless Controller 48V-120V 3000W 5000W 9000W 24Mosfet Phase Controller for Ebike Motor Cargo Engine Controller

How to connection:

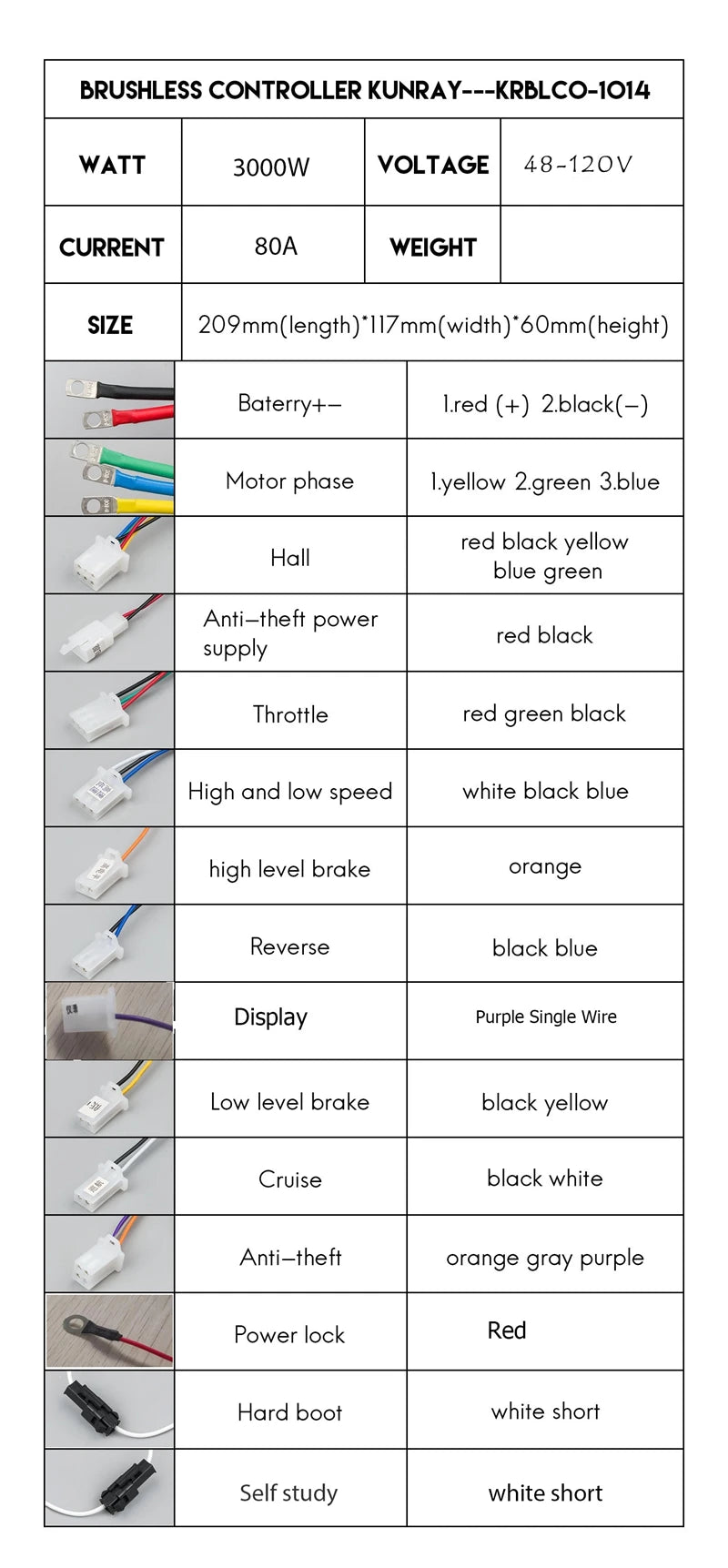

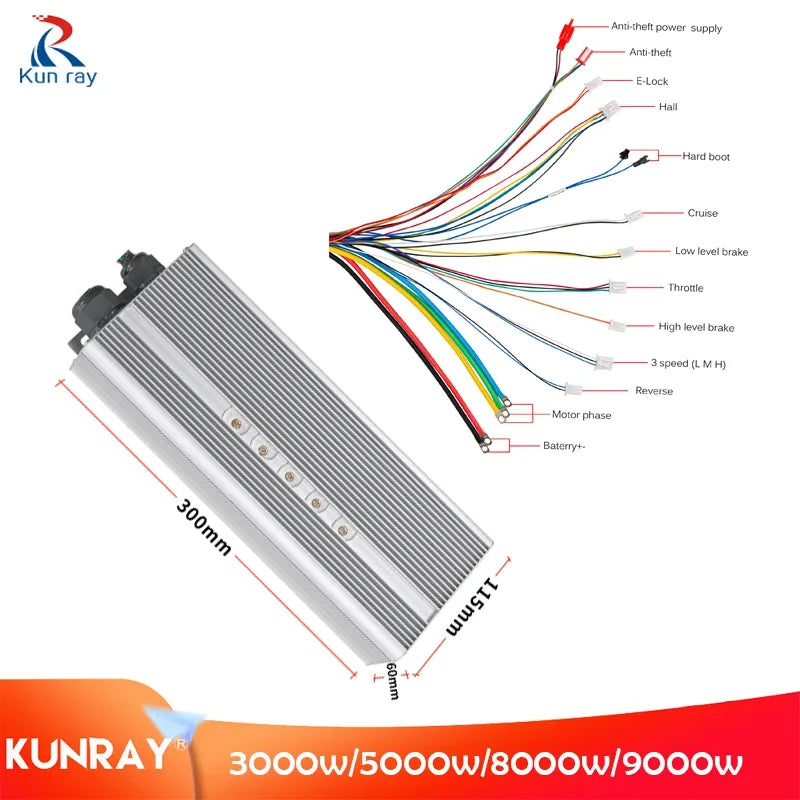

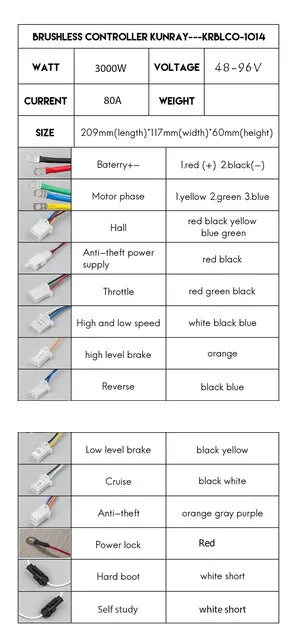

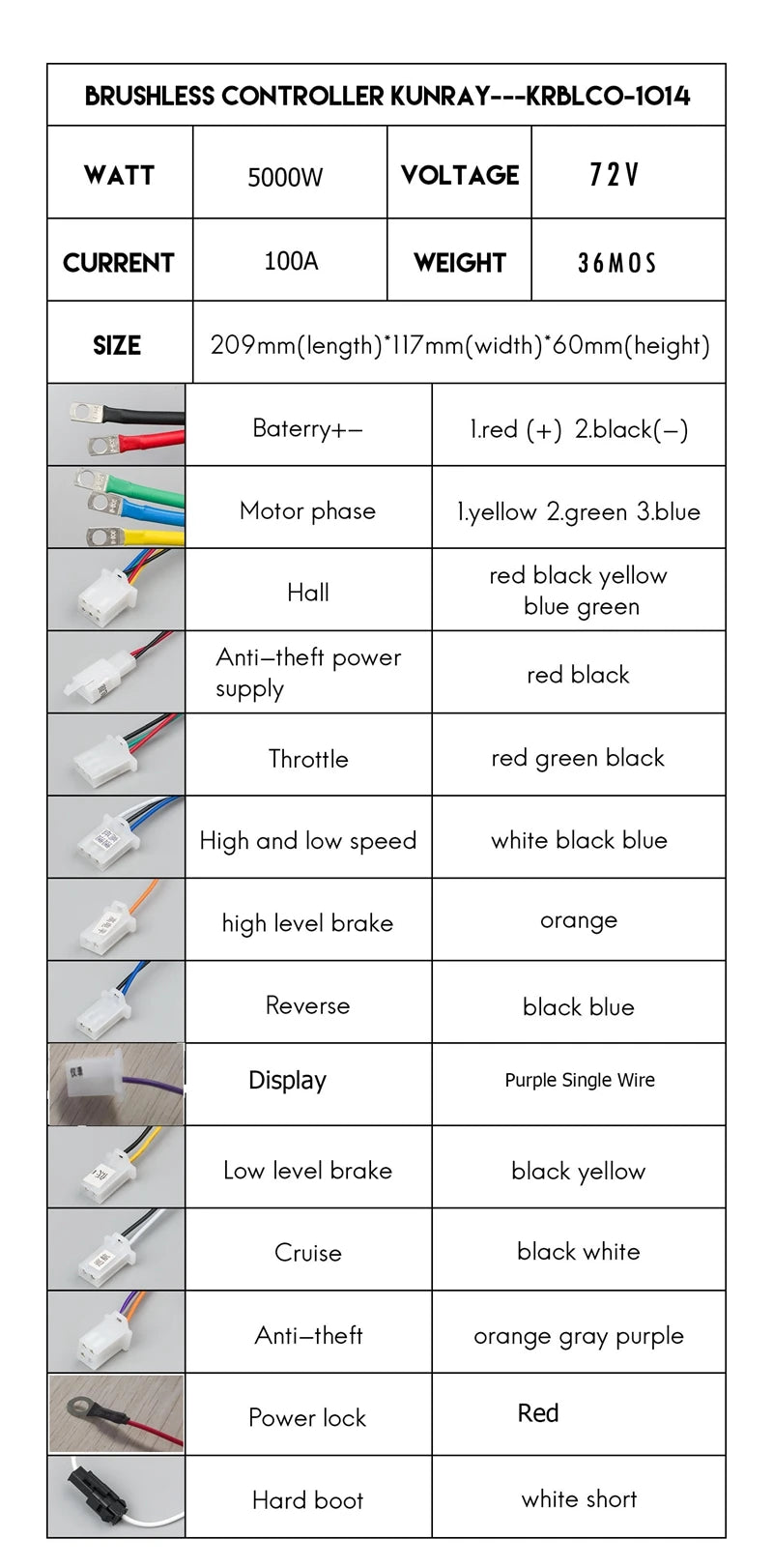

1.Connect motor phase wire,battery wire,electric power lock wire,hall wire and self-study wire.

2.Turn on the battery and power lock,then the motor can work(If the motor is run opposite,please cut off the self-study wire,after motor stop running,then connect the self-study wire.After work 10 seconds,cut off the self-study wire,turn off the power lock.Wait for about 10 seconds,restart,then the motor can be used to work)

3.If you want to use the other functions of the controller,you can connect the function wire

Not all the controller with the self study wire!! over 3000w, there is no!!

k.If not use,just leave the wire not connection.
