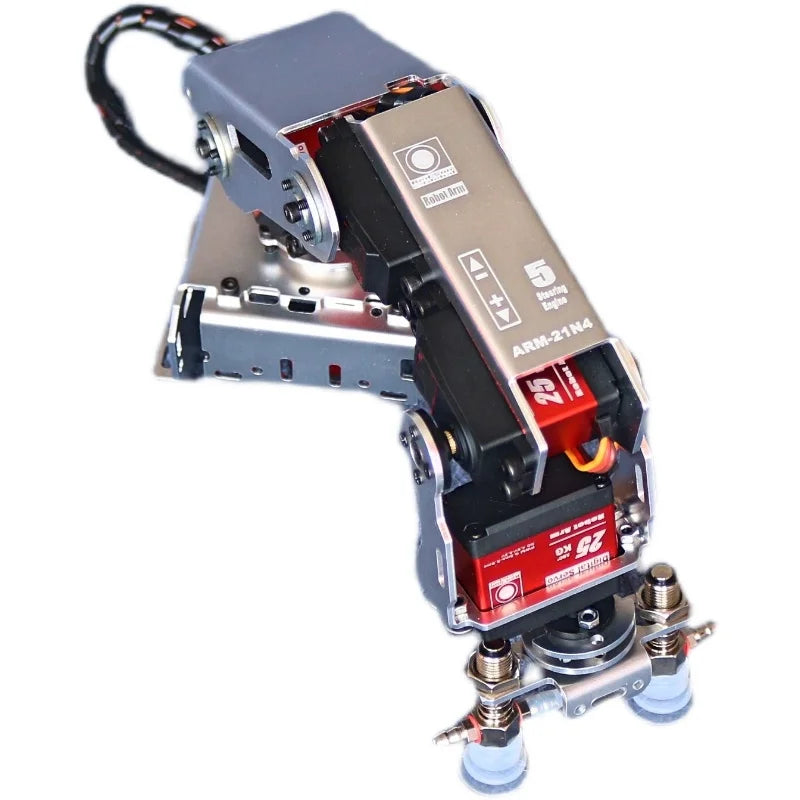

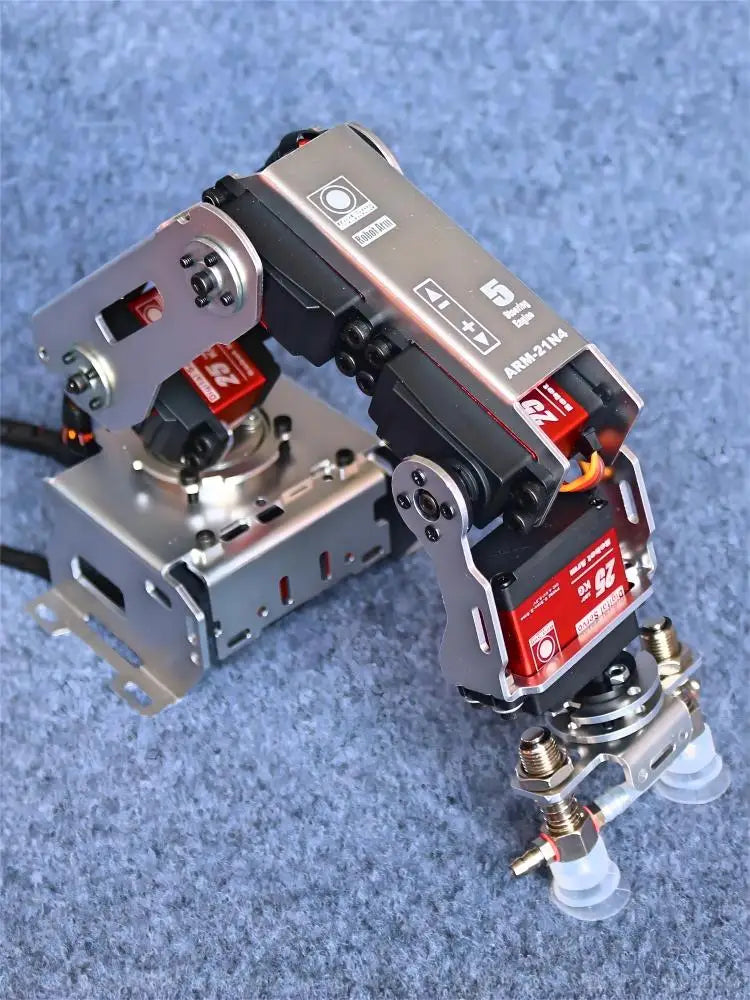

5 DOF Robot Arm Industrial Robotic Arm With 20KG/25Kg Digital Servos For Raspberry Pi For Arduino Robot DIY Programmable Robot

Sale price $219.68 Regular price $267.88

5 DOF Robot Arm Industrial Robotic Arm With 20KG/25Kg Digital Servos or For Raspberry Pi For Arduino Robot DIY kIT Programmable Robot



Title: Robot arm Robot arm manipulator Industrial robot model Robot arm model robot hand

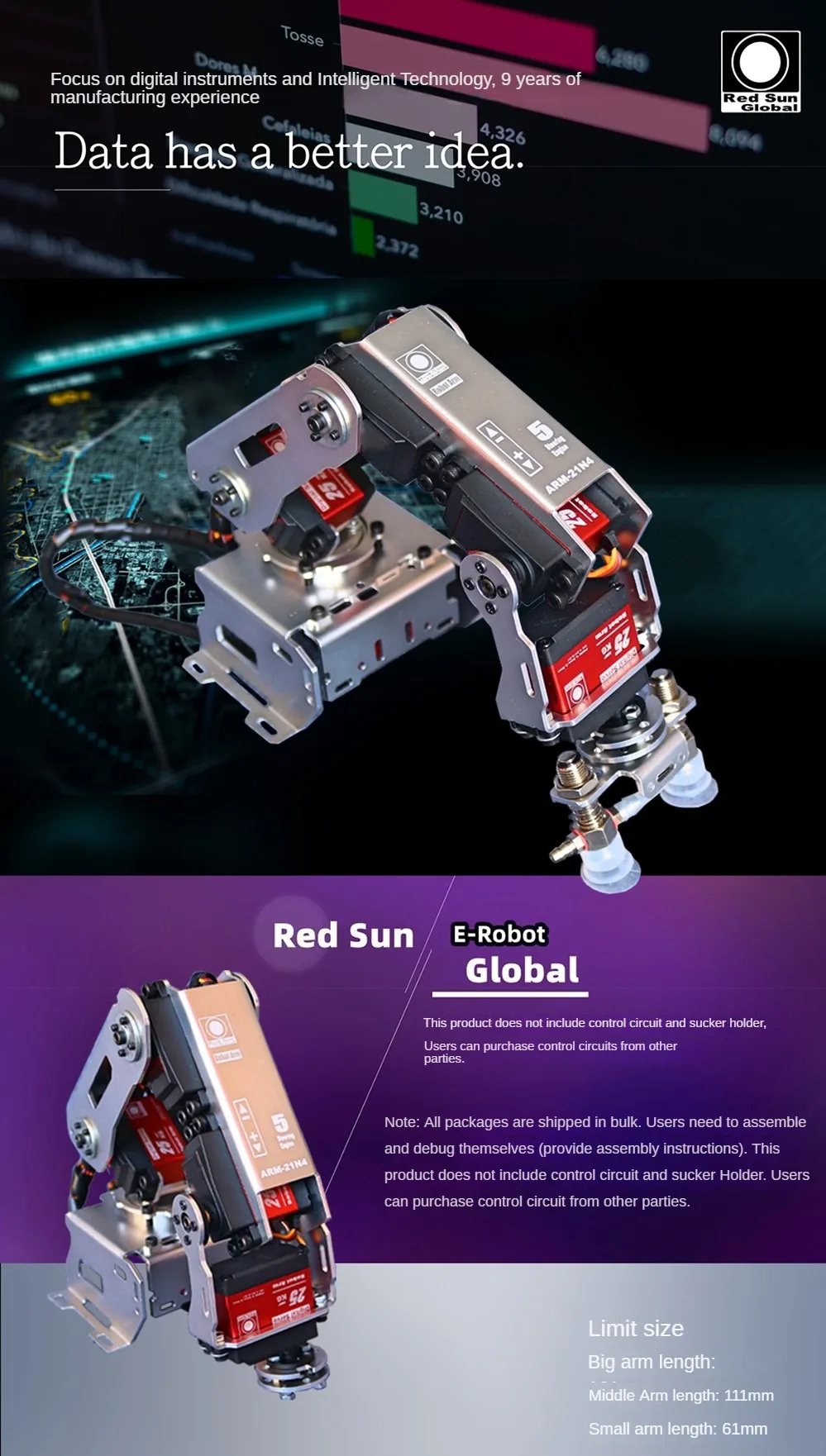

This product does not include control circuit and suction clamp, users can purchase control circuit from other parties

Note: All packages are shipped in pieces, users need to assemble and debug themselves (provide assembly instructions), this product does not include control circuit and suction clamp, users can purchase control circuit from other parties



Upper arm length: 121mm

Middle arm length: 111mm

Lower arm length: 61mm

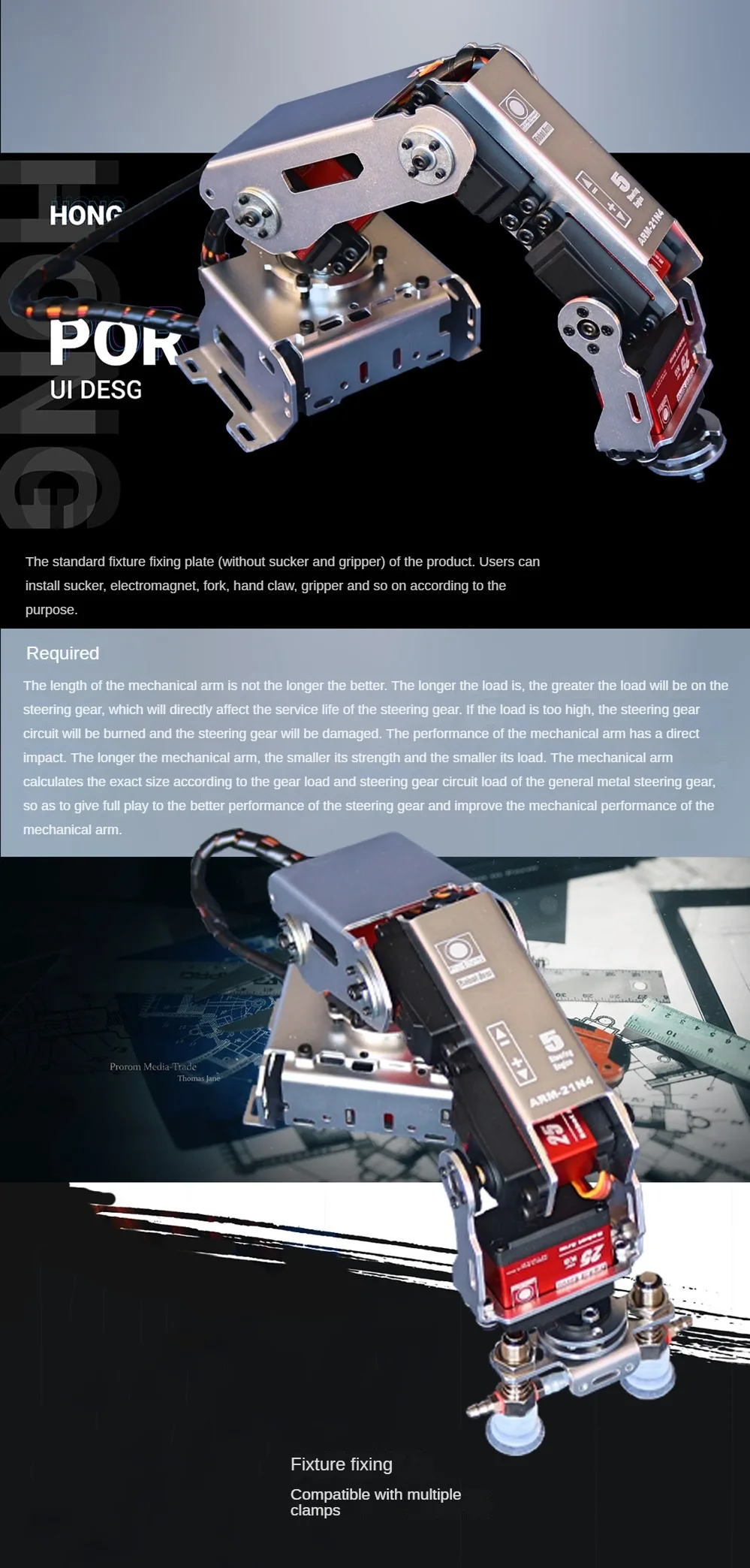

The length of the robotic arm is not the longer the better. The longer, the load on the steering gear is also large, will directly affect the life of the steering gear, the load is too large will burn the steering gear circuit, damage the steering gear. The performance of the mechanical arm has a direct impact, and the longer the mechanical arm, the smaller the force, the smaller the load. The mechanical arm is calculated to the exact size according to the gear load of the universal metal steering gear and the steering gear circuit load, so as to exert the better performance of the steering gear and improve the mechanical properties of the mechanical arm.




Only Metal Frame

Features:

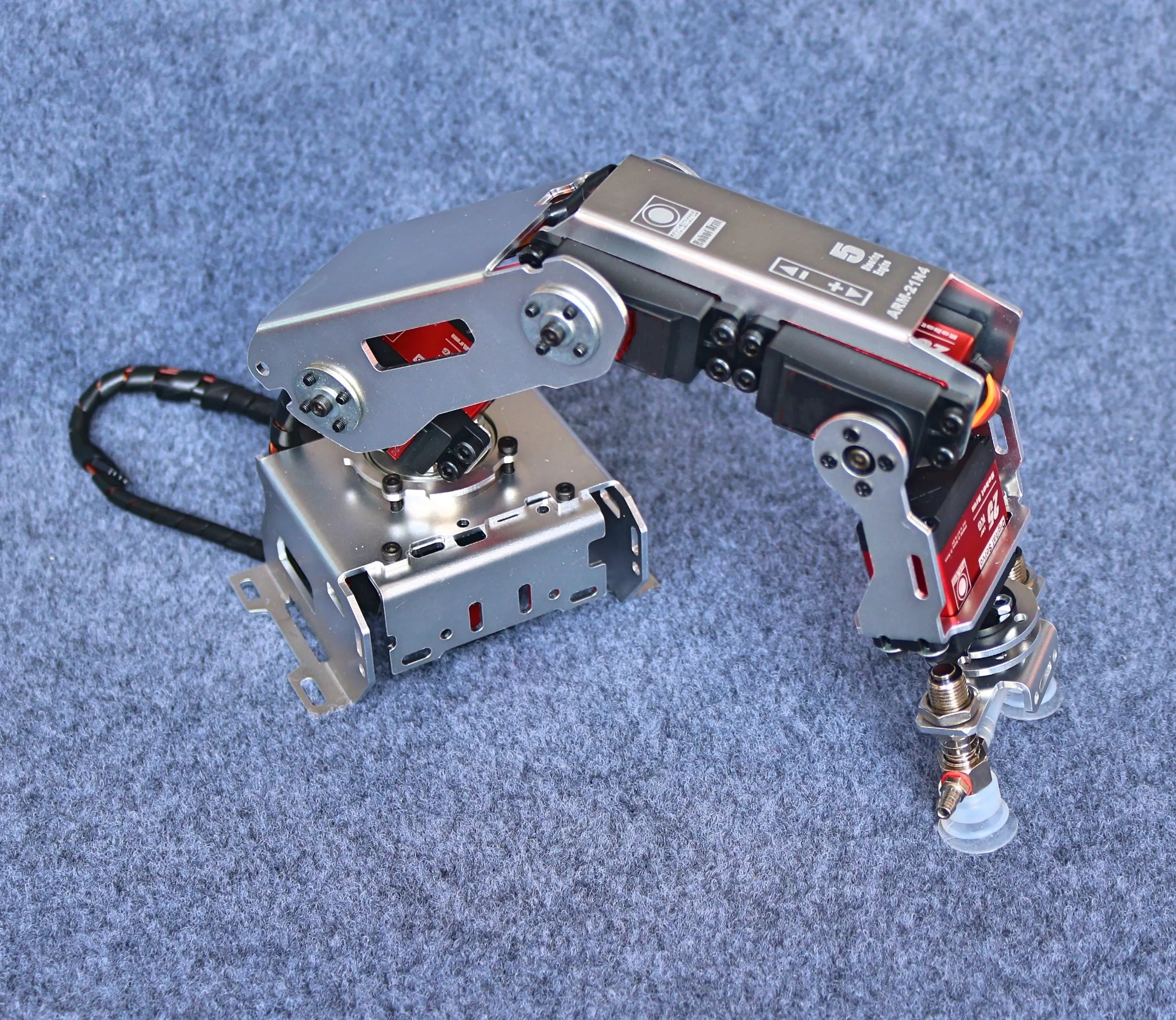

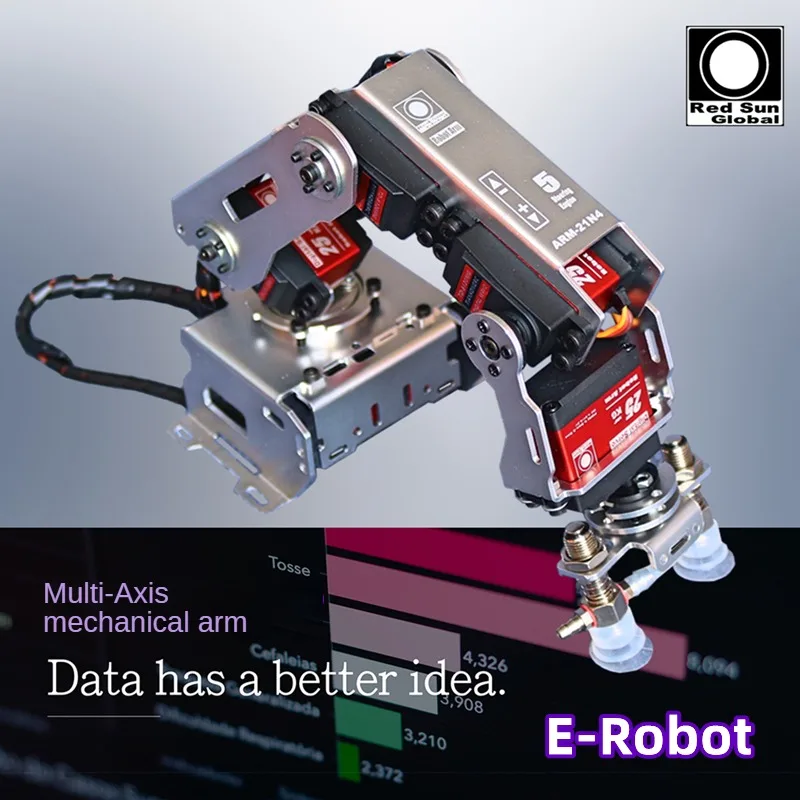

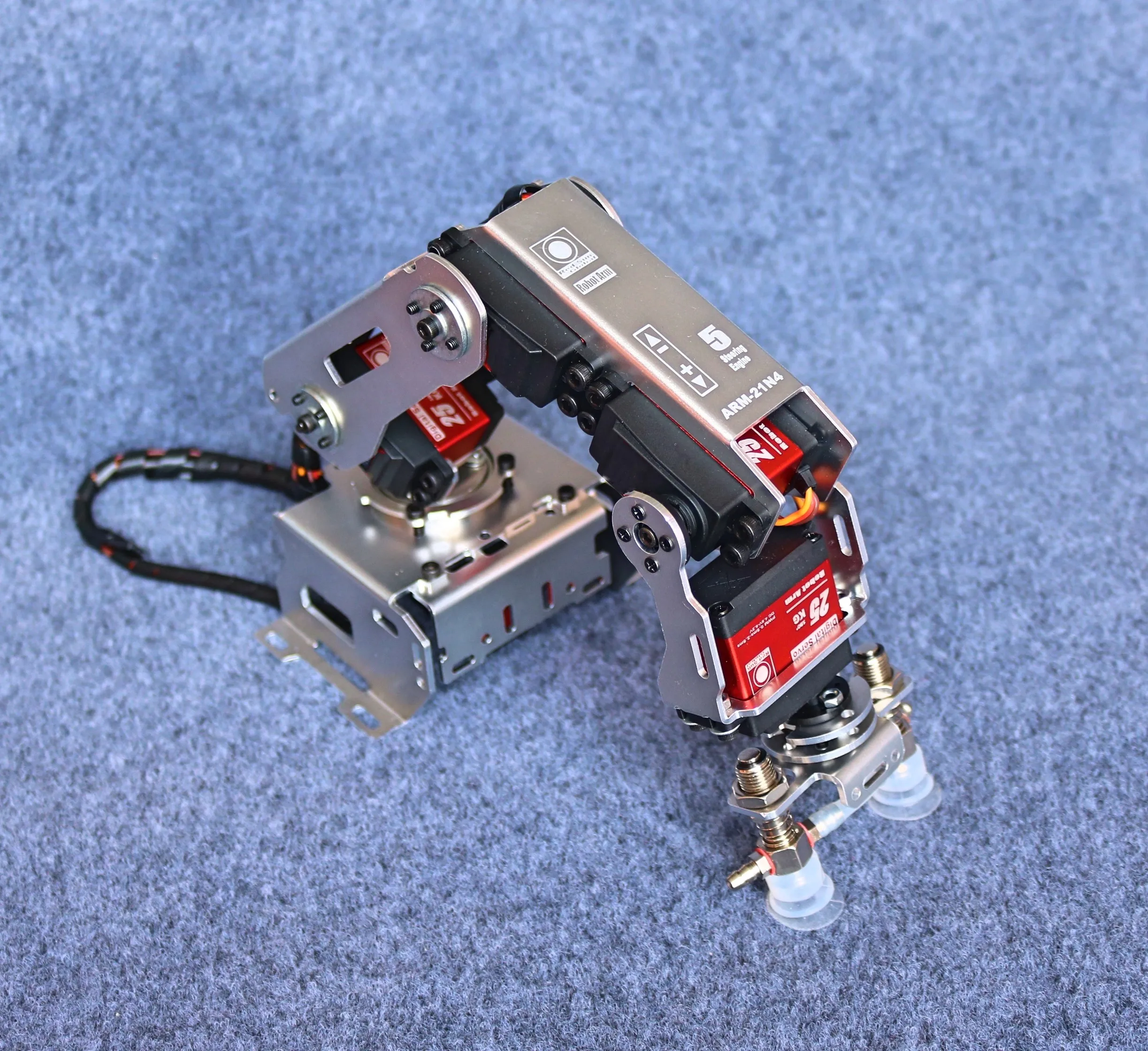

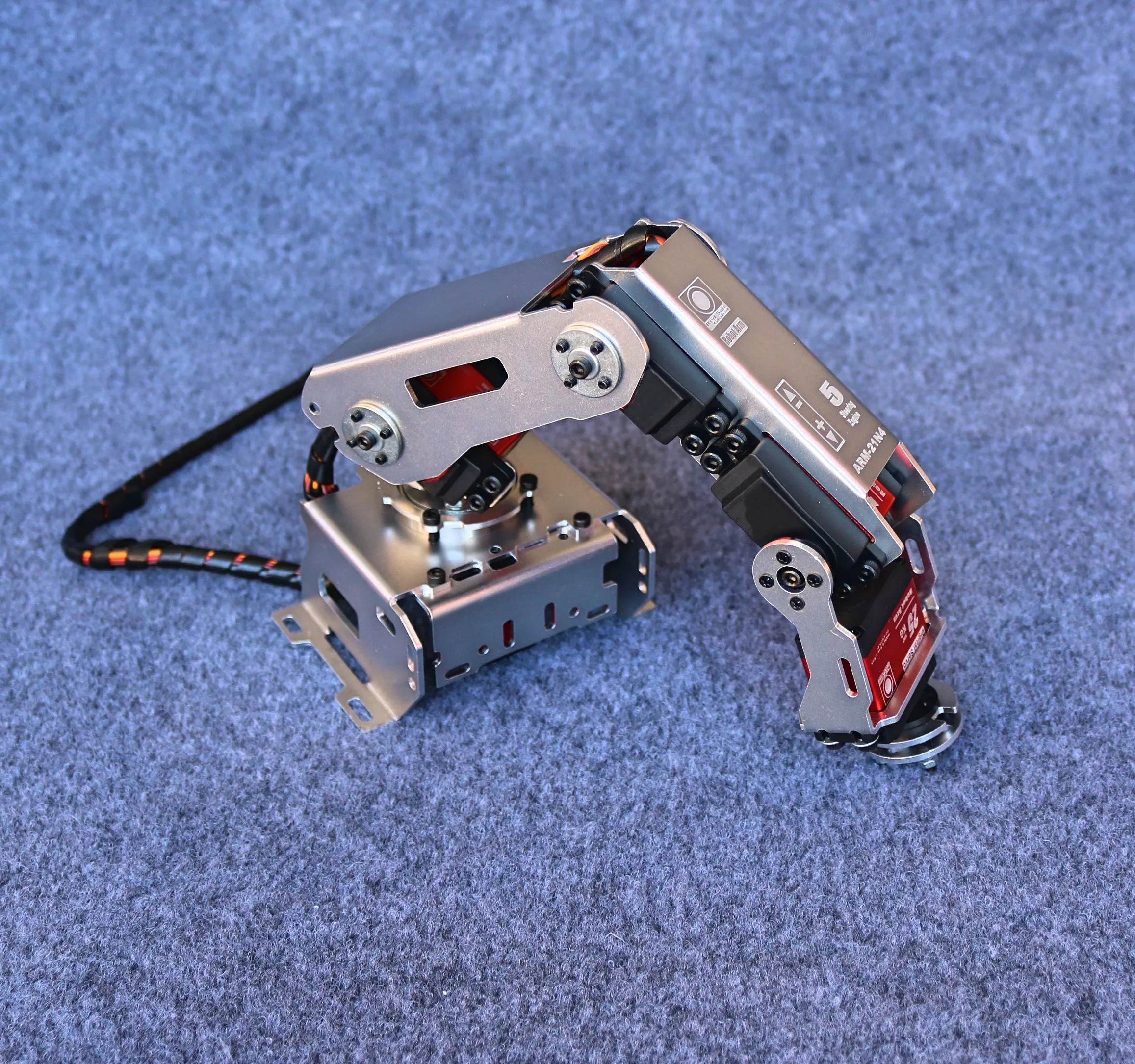

- Upgraded 5-DOF industrial robot arm

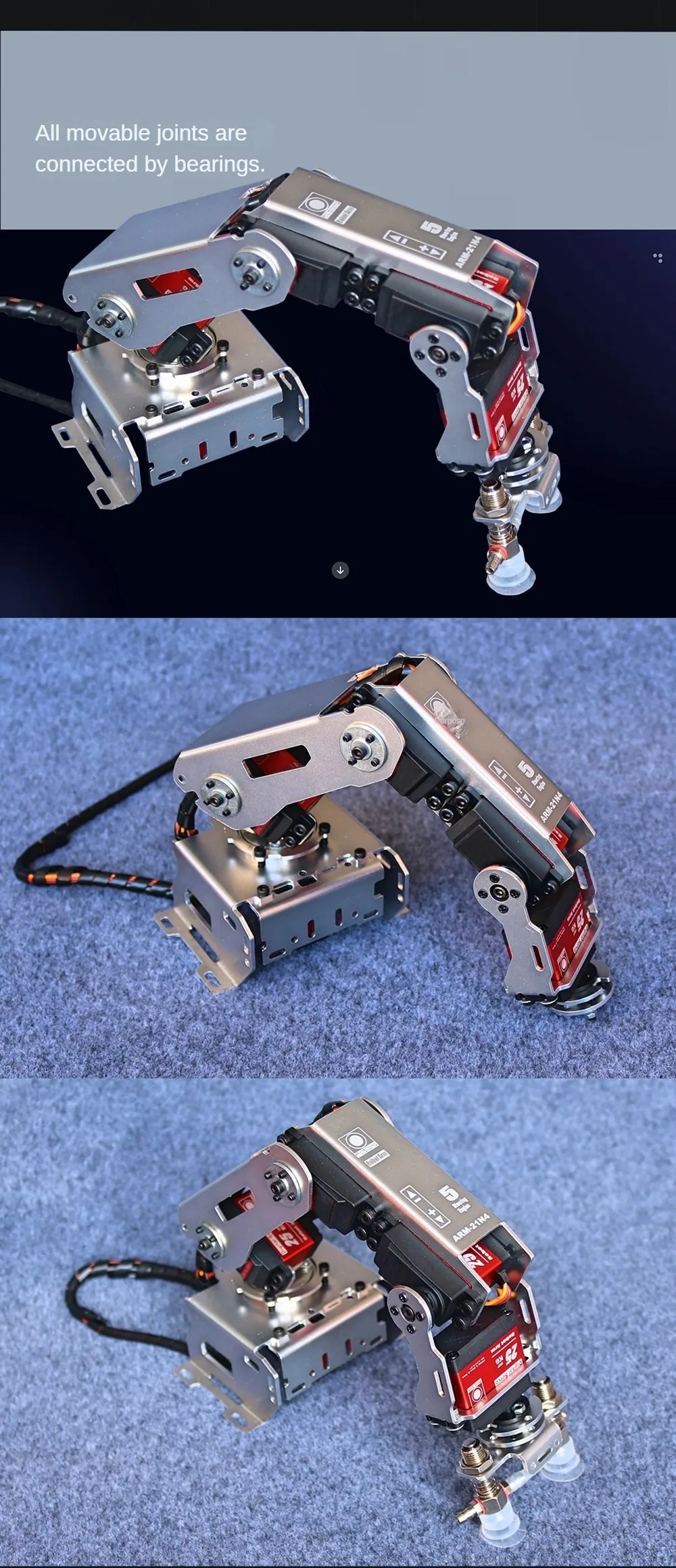

- All movable joints connected by bearings
- 9-year manufacturing experience ensures product quality
- Gripper holder fits suction cups, electromagnets, forks, craws, grippers, etc.

Package Included:

- 1 x Set of Robot Arm(Without servo)


Note:
- Assembly is needed, providing assembly instructions.
- Control circuits, suction cups and grippers are not included.
- Frame only, other items pictured or mentioned are not included, for demonstration purposes only. Thank you for your understanding!



Robot Arm with 20KG Servo

Features:
- Upgraded 6-DOF industrial robot arm
- All movable joints connected by bearings
- 9-year manufacturing experience ensures product quality
- Gripper holder fits suction cups, electromagnets, forks, craws, grippers, etc.
- Comes with 20kg digital servos

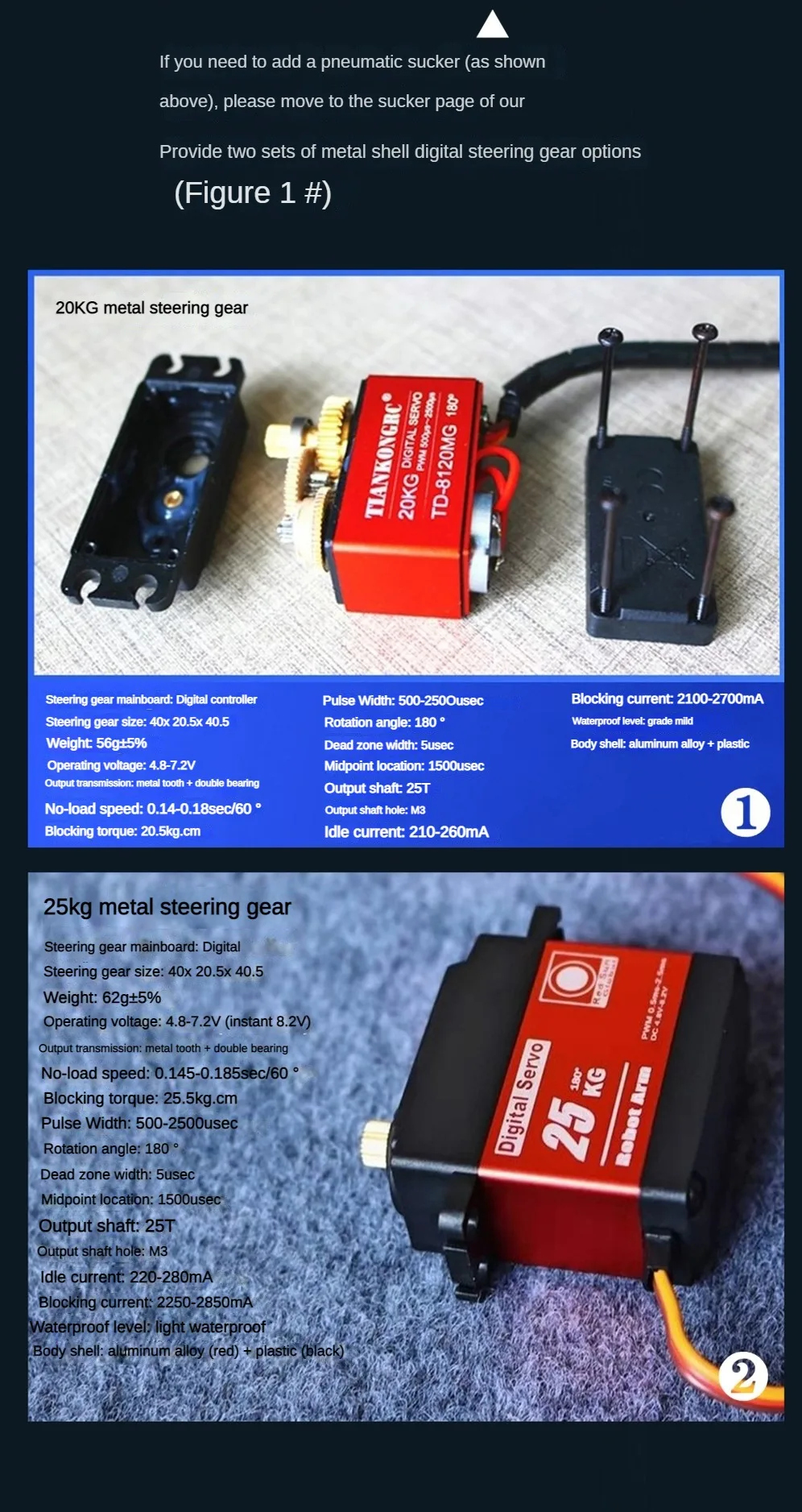

20KG Digital Servo:

- Servo board: Digital controller
- Servo size: 40 x 20.5 x 40.5mm/1.6 x 0.8 x 1.6"
- Weight: 56g±5% (0.1lb±5%)
- Working voltage: 4.8-7.2V
- Output transmission: metal gears + double bearings
- No-load speed: 0.14-0.18sec/60°
- Stall torque: 20.5kg.cm
- Pulse width: 500-2500usec
- Rotation angle: 180°
- Dead zone width: 5usec
- Midpoint position: 1500usec
- Output shaft: 25T
- Output shaft hole: M3
- Idling current: 210-260mA
- Blocking current: 2100-2700mA
- Waterproof level: preliminary
- Shell: aluminum alloy + plastic

Package Included:
- 1 x Set of Robot Arm(With 5pcs 20kg servo + 2 Suction cups(Free gift))


Robot Arm with 25KG Servo

Features:
- Upgraded 6-DOF industrial robot arm
- All movable joints connected by bearings
- 9-year manufacturing experience ensures product quality
- Gripper holder fits suction cups, electromagnets, forks, craws, grippers, etc.
- Comes with 25kg digital servos

25KG Servo:
- Servo board: Digital controller
- Servo Dimensions: 40 x 20.5 x 40.5mm/1.6 x 0.8 x 1.6"
- Weight: 62g±5% (0.1lb±5%)
- Working voltage: 4.8-7.2V (instant 8.2V)
- Output transmission: metal gears + double bearings
- No-load speed: 0.145-0.185sec/60°
- Stall torque: 25.5kg.cm
- Pulse width: 500-2500usec
- Rotation angle: 180°
- Dead zone width: 5usec
- Midpoint position: 1500usec
- Output shaft: 25T
- Output shaft hole: M3
- Idling current: 220-280mA
- Blocking current: 2250-2850mA
- Waterproof level: preliminary
- Shell: aluminum alloy (in red) + plastic (in black)

Package Included:
- 1 x Set of Robot Arm
(With 5pcs 25kg servo + 2 Suction cups(Free gift))

Note:
- Assembly is needed, providing assembly instructions.
- Control circuits, suction cups, grippers and other accessories mentioned above are not included.
