48V 1200W 24" Direct Drive Front Rear Electric Bicycle Conversion Kit
Direct Drive Brushless Electric Bicycle Conversion Kits come with a 1200W hub motor and a 30Amp controller.Kits are ready to install with aluminum double walled rim and a hub motor already attached, all you need to do is to transfer your original tire.
We have two throttle control options to choose from, twist or thumb.

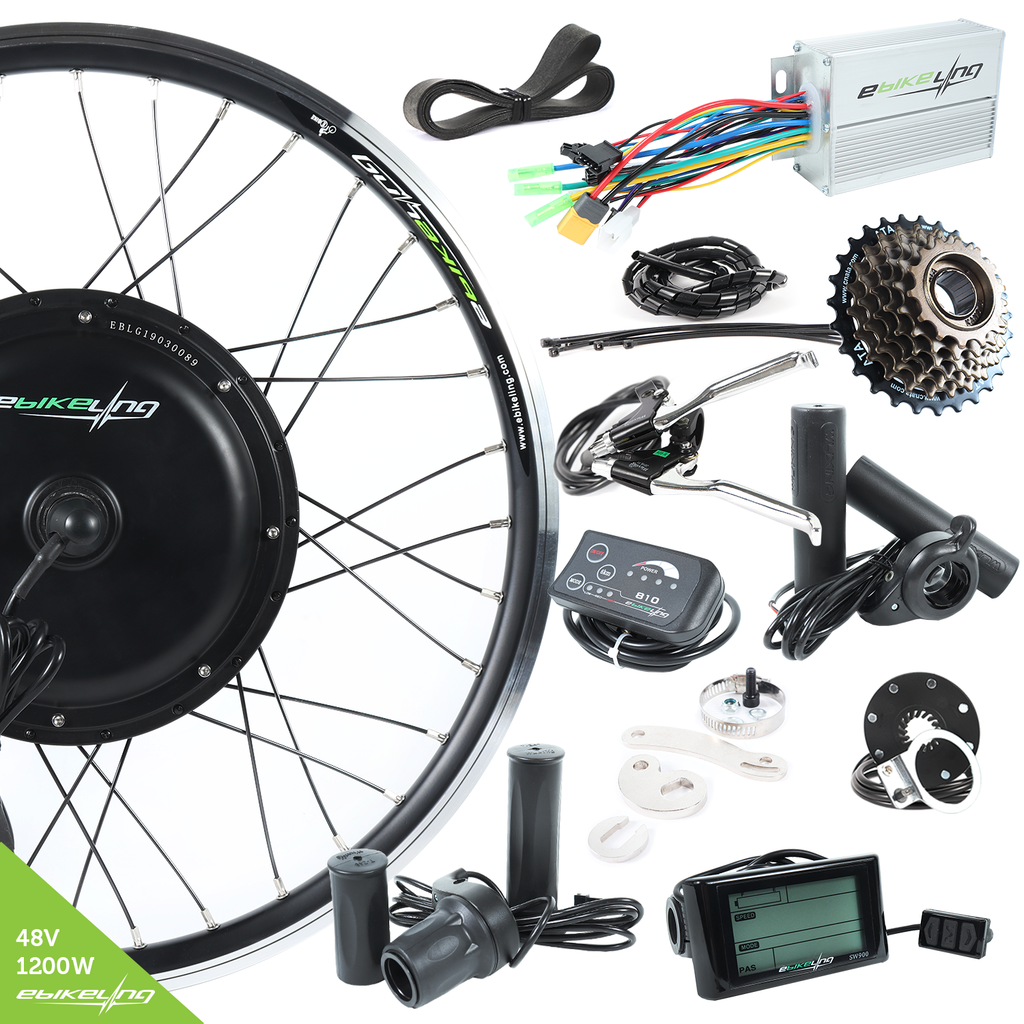

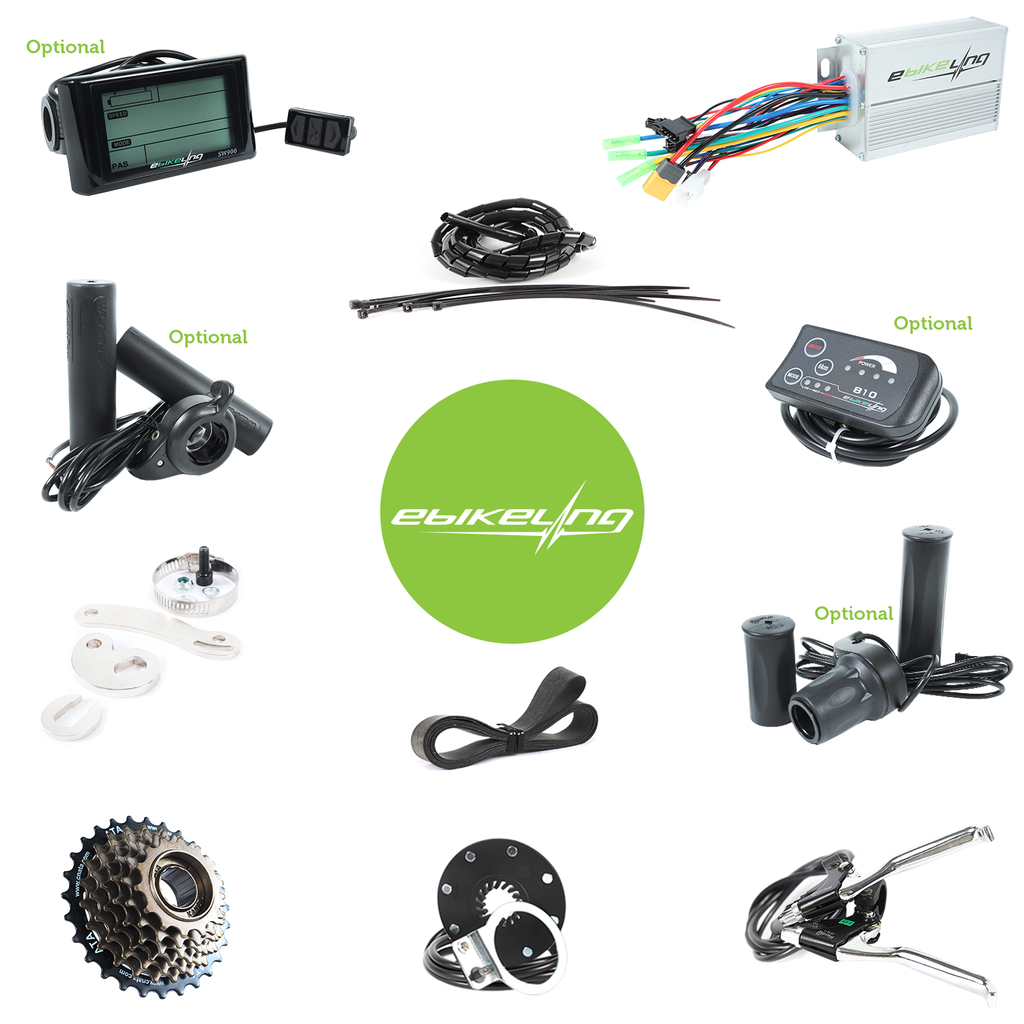

There are several other accessories included to complete this ebike kit such as pedal assist sensor and a set of brake levers with safety cutoff switches.

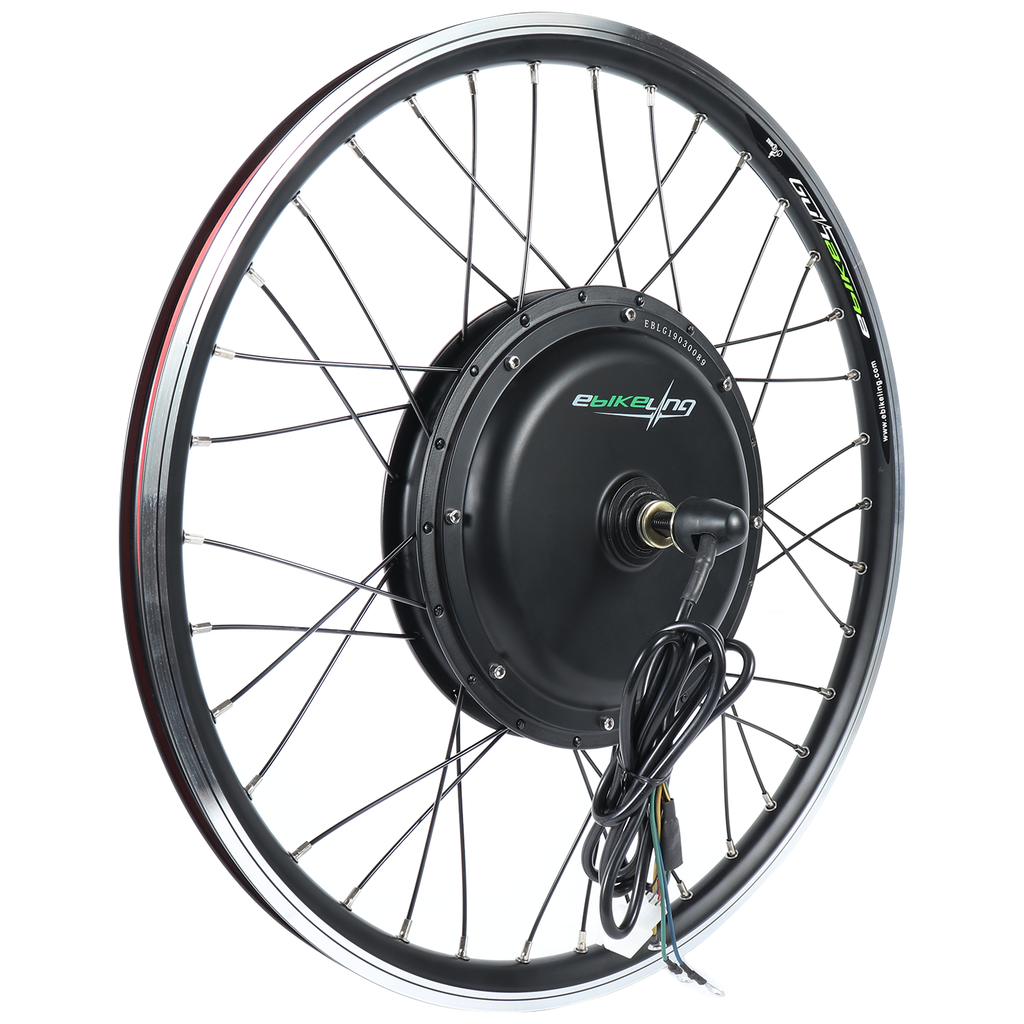

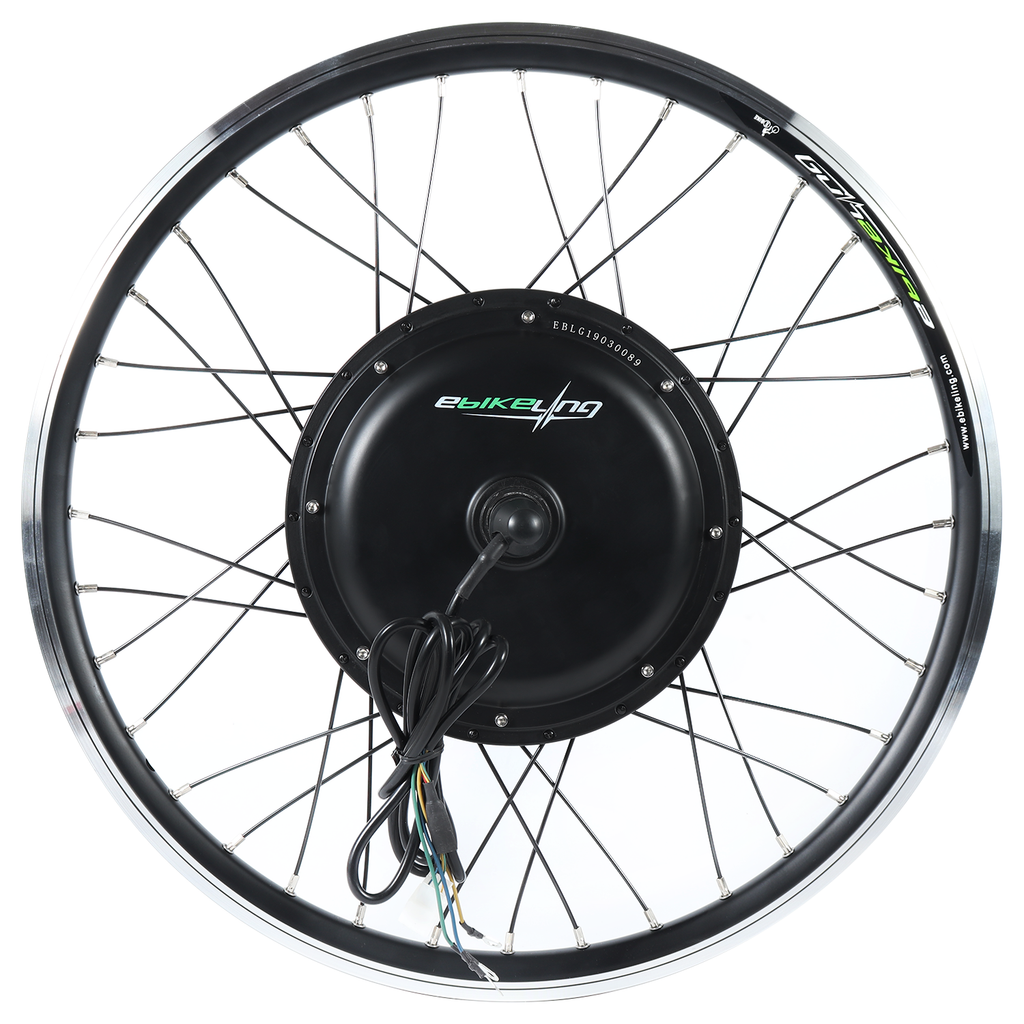

Direct Drive Brushless Hub Motor
Brushless Motor Controller
LED or upgraded LCD controller
Twist or Thumb Throttle
Pedal Assist Sensor
Freewheel (for rear kit)
Two Brake Levers with safety switches, V type and Mechanical Disc brake compatible, will not work on Hydraulic systems.
Installation hardware and zip ties
Aluminum rims have openings for a schrader type valve.
Kit doesn't have regen brake option.
Disc brake compatible
PAS/Brake Levers are optional. Kits will operate without them.
You will be able to use your own brakes and freewheel.
Recommended tire width: 1.75", 1.95", 2.125"
Rim Width (Inner): 19mm
Rim Diameter (Outer): 520mm
Rim Diameter (Inner): 474mm
Spoke: 134mm 12G Carbon Steel Copper Nipples
Rear Dropout: 132mm
Rear Axle Length: 207mm
Front Axle Length: 173mm
Front Dropout: 98mm
Motor Wheel Weight: 14.7lbs
Motor Torque: 30 Nm Efficiency > 82%
Motor RPM (Nominal): 430
Motor Hub Diameter: 242mm
Motor Magnets: 46
Peak Power: 1.45kW
Operating Mode: S1
PLEASE NOTE THIS KIT DOESN'T INCLUDE BATTERY OR CHARGER UNIT
Electronic speed controller and hub motor are covered under 3 month warranty.
Remaining accessories are covered under 30 Days warranty.
