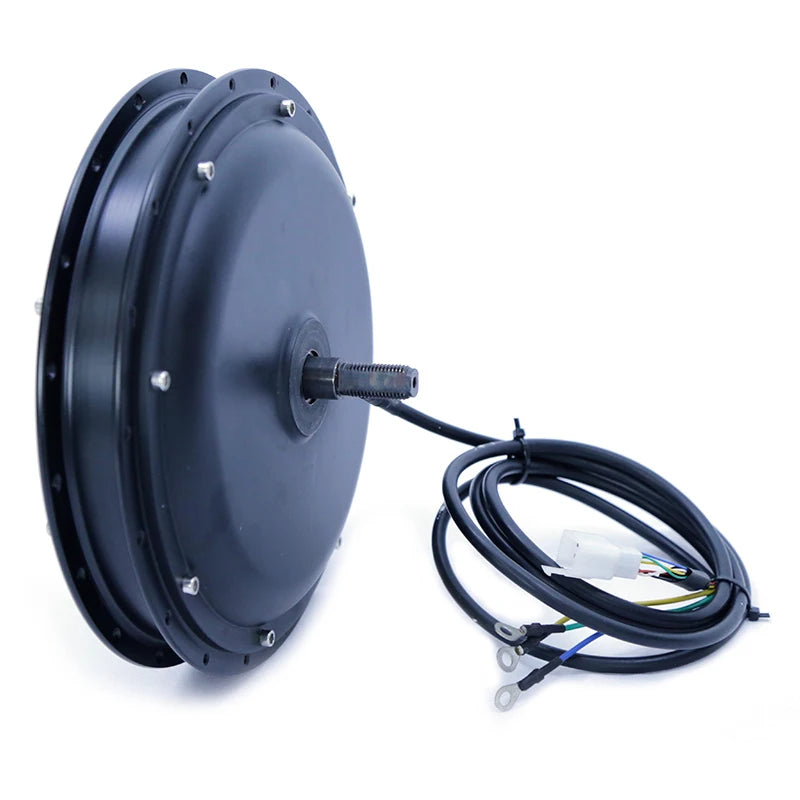

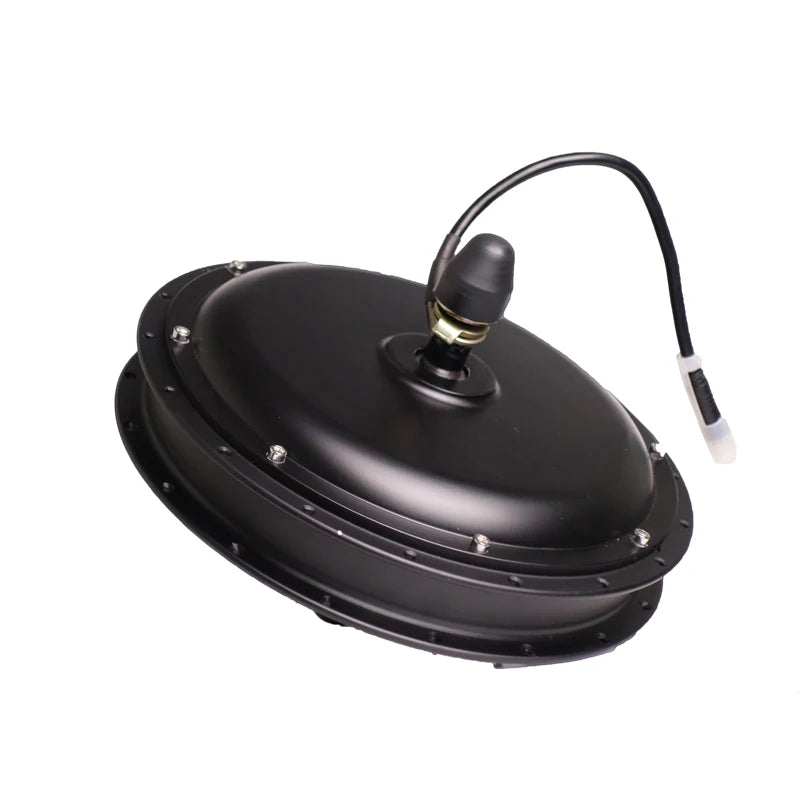

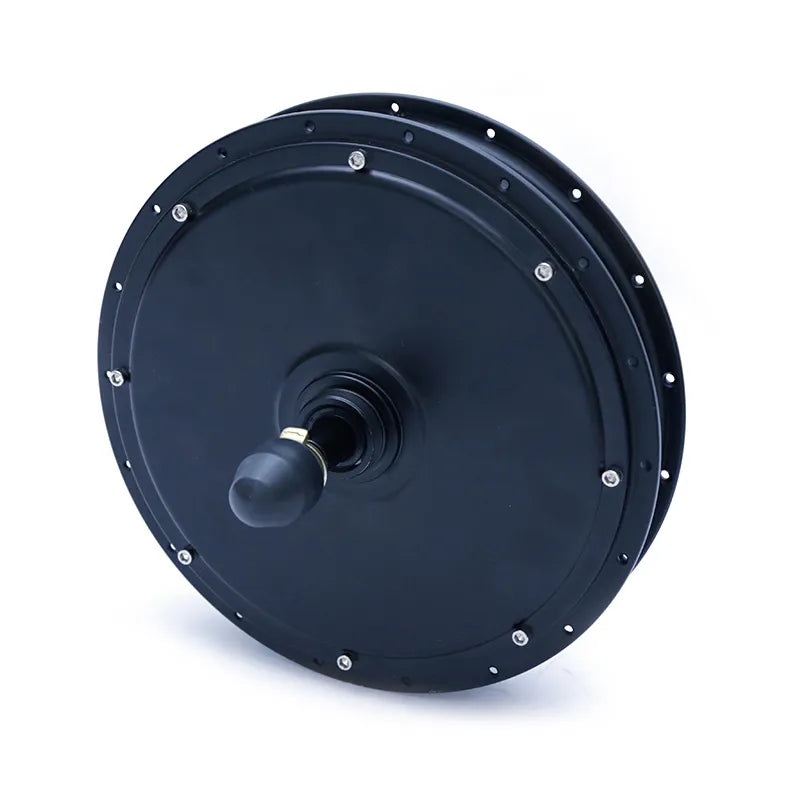

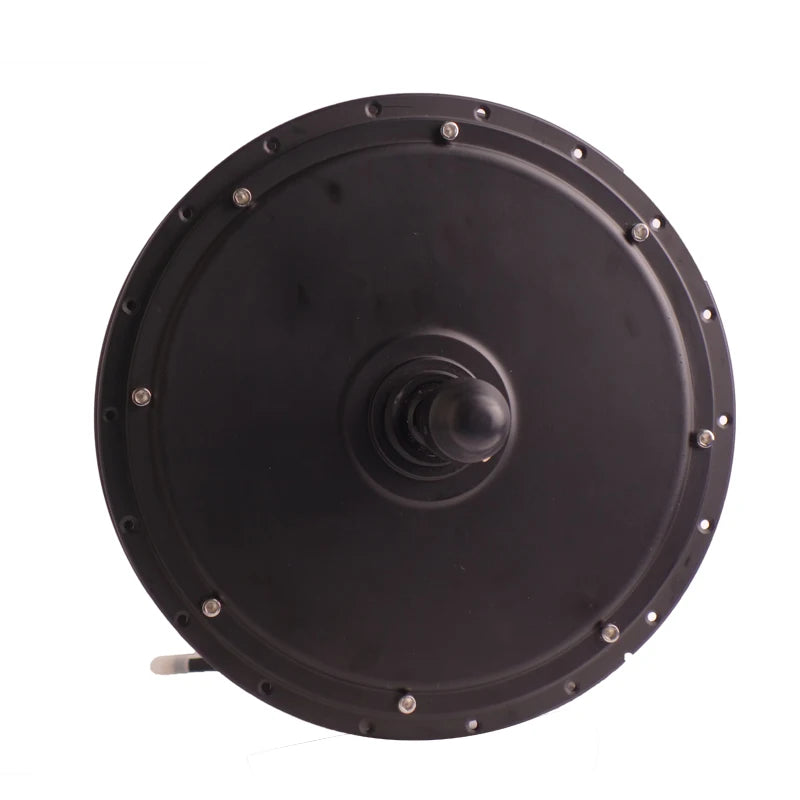

48V 1000W Electric Bicycle Motor Ebike Brushless,Gearless Hub Motor for Rear Wheel e-bike conversion Kit
Free shipping 48v 1000w electric bicycle hub motor front or rear motor types
PRODUCT SPECIFICATIONS
|
Model |
Model |
|
Motor power |
1000w |
|
Axle |
10mm* 14mm |
|
Freewheel |
5s or 6s or 7speed for rear motor. |
|
Voltage |
48v |
|
Magnet Height |
30mm |
|
Design |
Brushless gearless dc |
|
Windings |
11*5 |
|
Waterproof grade |
IP54 |
|
RPM/min |
520 |
|
Cable size |
2mm2 |
|
Max torque |
40N.M |
|
Max Efficiency |
>=88% |
|
Open size |
100mm for front motor, 135mm for rear motor. |
|
Wheel size |
16-28inch |
|
Hall sensor |
Optional |
|
Hall sensor angle |
120 degrees |
|
Integrate speed sensor |
Optional |
|
Brake |
Disc brake |
|
Surface color |
dark black/ sliver white |
|
Temperature sensor |
Yes |
|
N.W |
6.2kgs |
PRODUCT APPLICATION
NC481000,CE certifacte 48v 1000w high quality electric ebike hub motor
PRODUCT PACKING
E smart way is first Chinese online shop dedicate to short distance transportation whether it is for fun or commute, we offer Free Shipping for 48V 1000W Electric Bicycle Motor Ebike Brushless,Gearless Hub Motor for Rear Wheel e-bike conversion Kit
