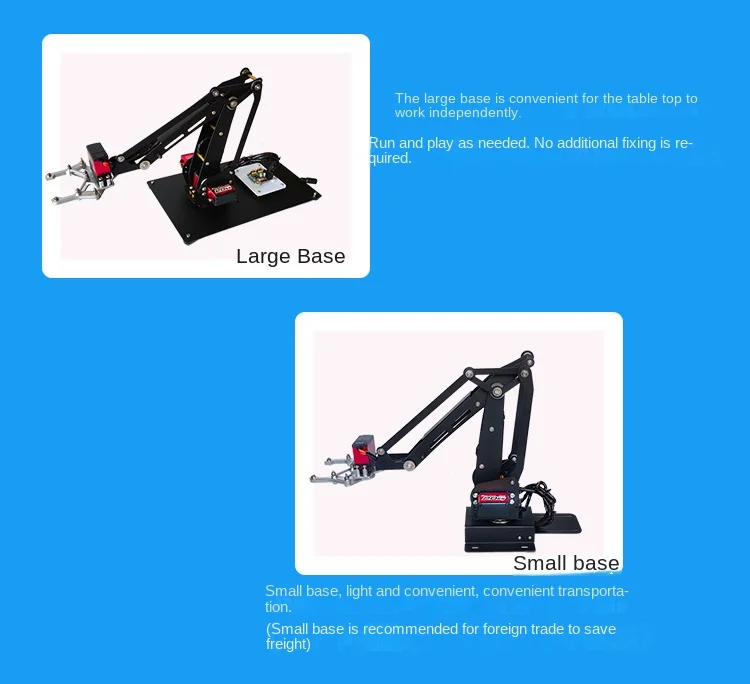

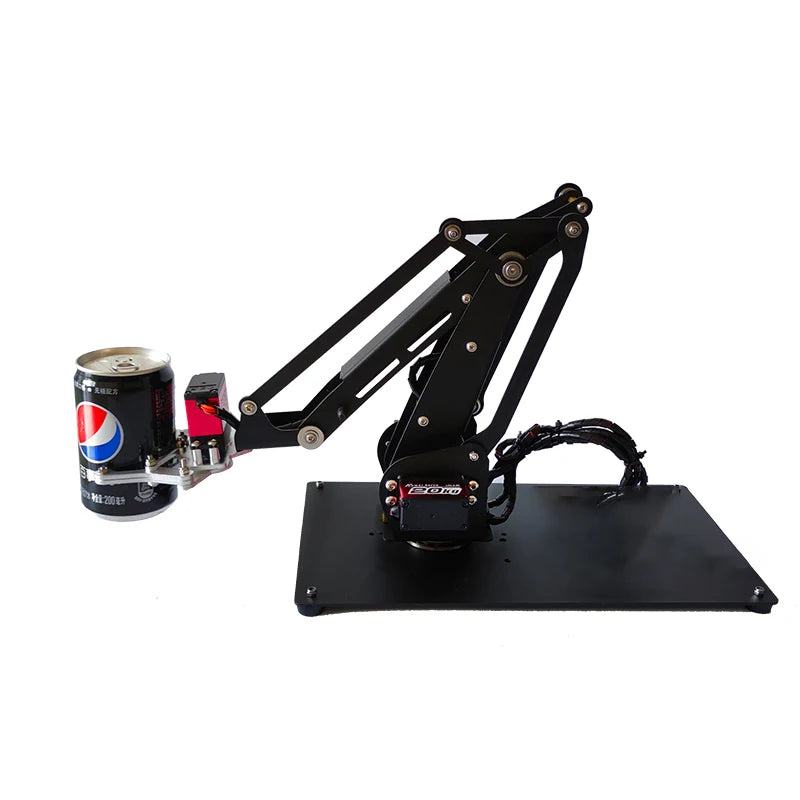

4 DOF Robot Arm with Metal Rotating Big/Small Base For Arduino ESP32 Robot DIY Kit Manipulator Claw Programmable Robot Projects
4 DOF Robot Arm with Metal Rotating Big/Small Base For Arduino ESP32 Robot DIY Kit Manipulator Claw Programmable Robot Projects
4 DOF Robot Arm with Metal Rotating Big/Small Base For Arduino ESP32 Robot DIY Kit Manipulator Claw Programmable Robot Projects
Feature:

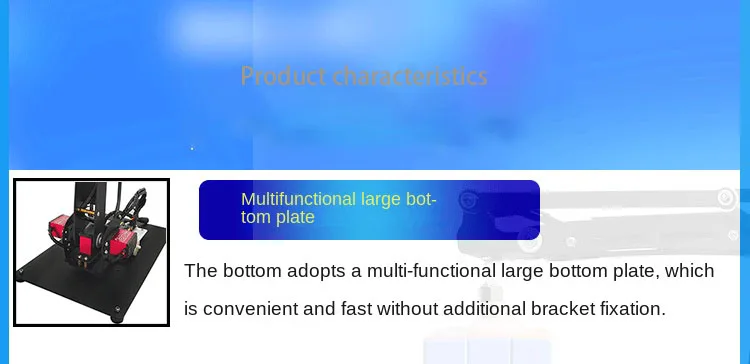

The bottom of the multifunctional bottom plate, with no additional support fixed, convenient and fast. High precision, good design, so the joint is designed with bearings, the whole machine up to 12 bearings, with the corresponding gasket will make the gap fine, make it run more smooth and stable, greatly improve the accuracy, no load repeated motion return precision error control within 1mm. Free complete assembly according to the purchase of package accessories, all free installation and delivery, to avoid tedious parts due to installation errors or improper results
Specification:

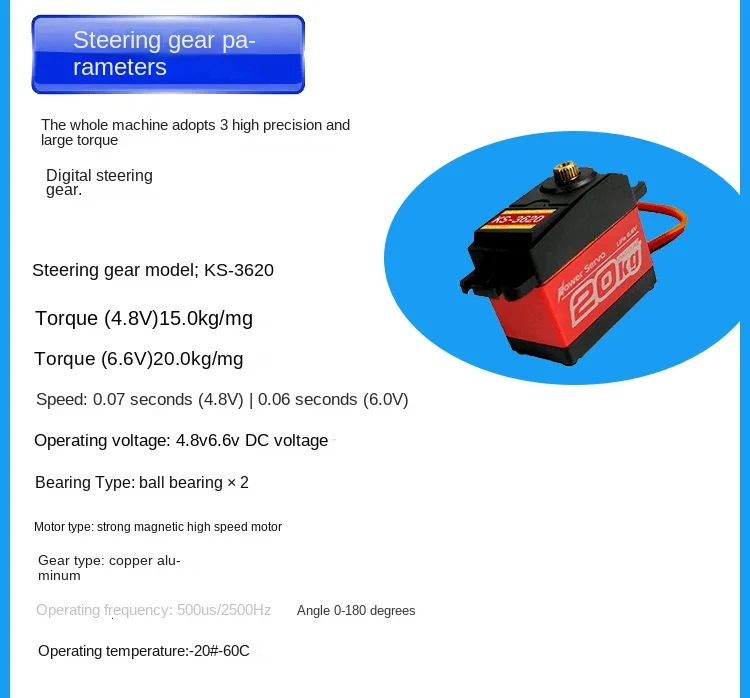

The whole machine adopts 3 high precision and high torque digital steering gear.
Type of steering gear; KS-3620
Torque (4.8V) 15.0kg/mg
Torque (6.6V) 20.0kg/mg
Speed: 0.07s (4.8V) 10.06s (6.OV)
Operating voltage: 4.8v 6.6v DC voltage
Bearing type: ball bearing ×2
Motor type: strong magnetic high speed motor
Gear type: copper aluminum
Operating frequency: 500μs/2500hz Angle 0-180 degrees
Operating temperature: -20° C -60 ° C
Best Quality, Best Service !!!
Package List:

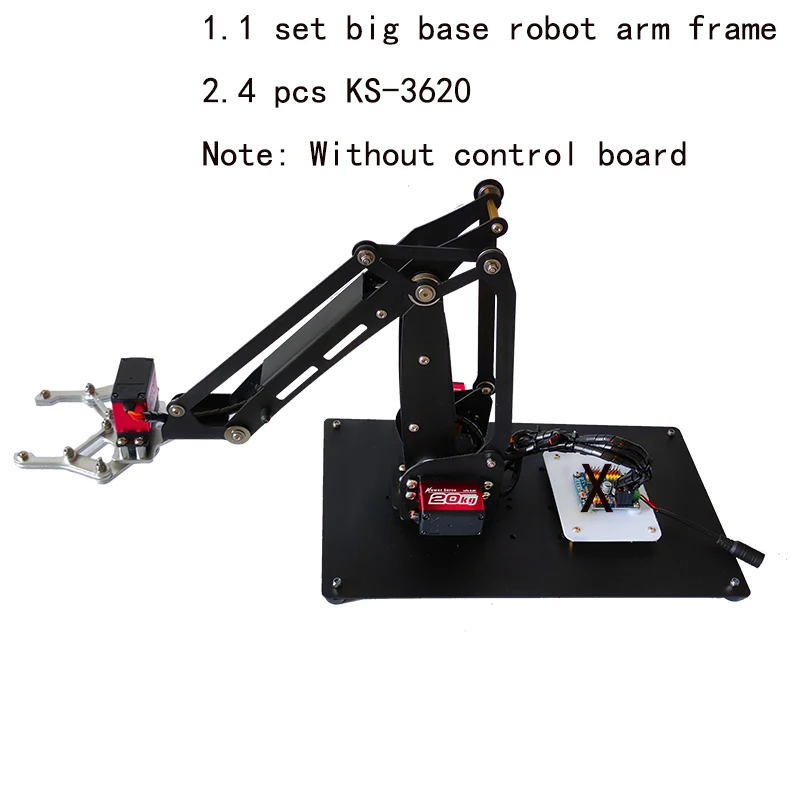

Package 1: Big base 4 dof robot arm frame: 1 set+ 4 pcs KS-3620

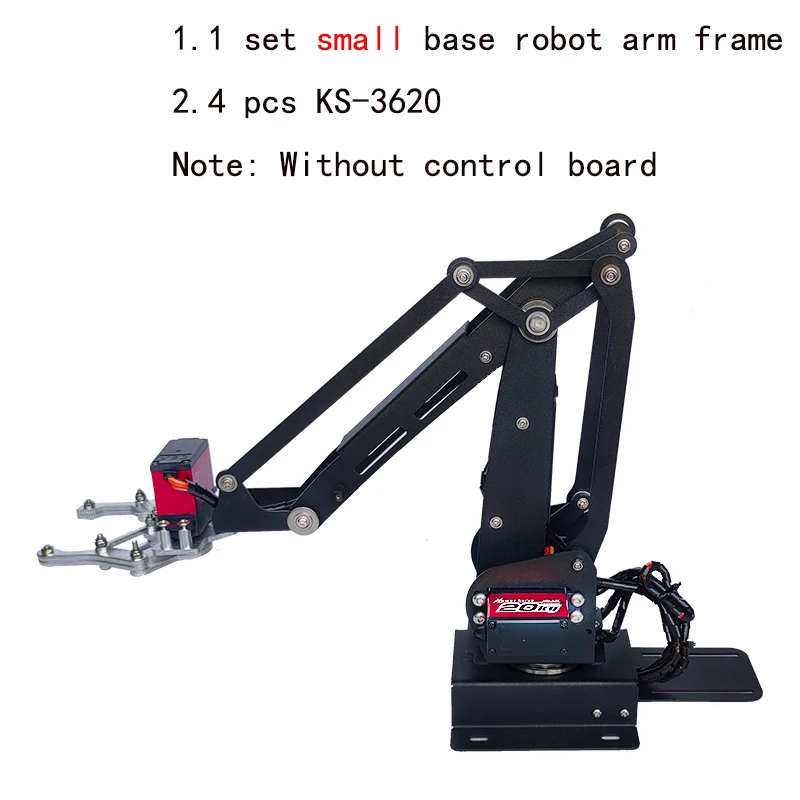

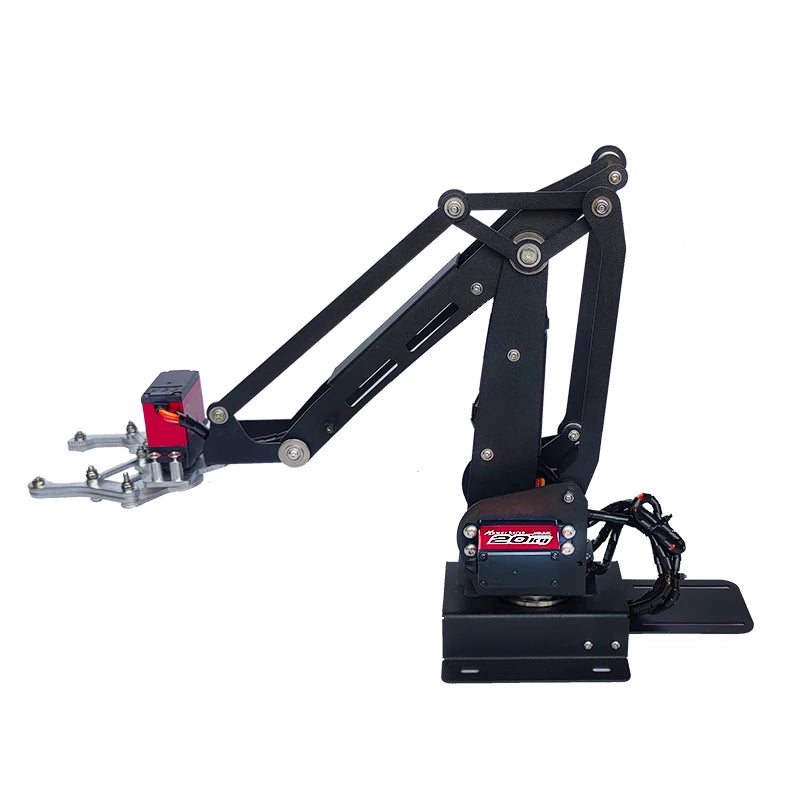

Package 2: Small base 4 dof robot arm frame: 1 set+ 4 pcs KS-3620

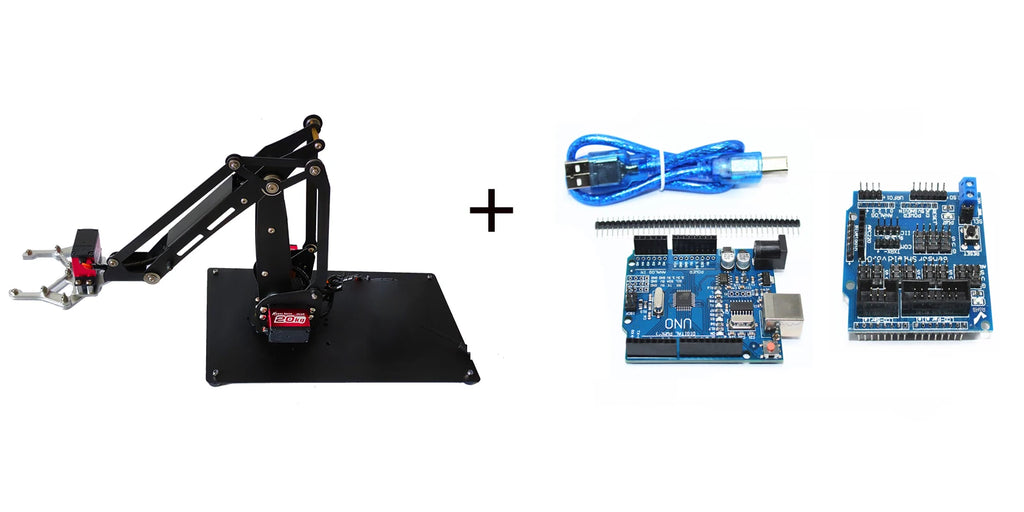

Package 3: Big base 4 dof robot arm frame: 1 set+ 4 pcs KS-3620 + UNO R3 board
Package 4: Small base 4 dof robot arm frame: 1 set+ 4 pcs KS-3620 + UNO R3 board

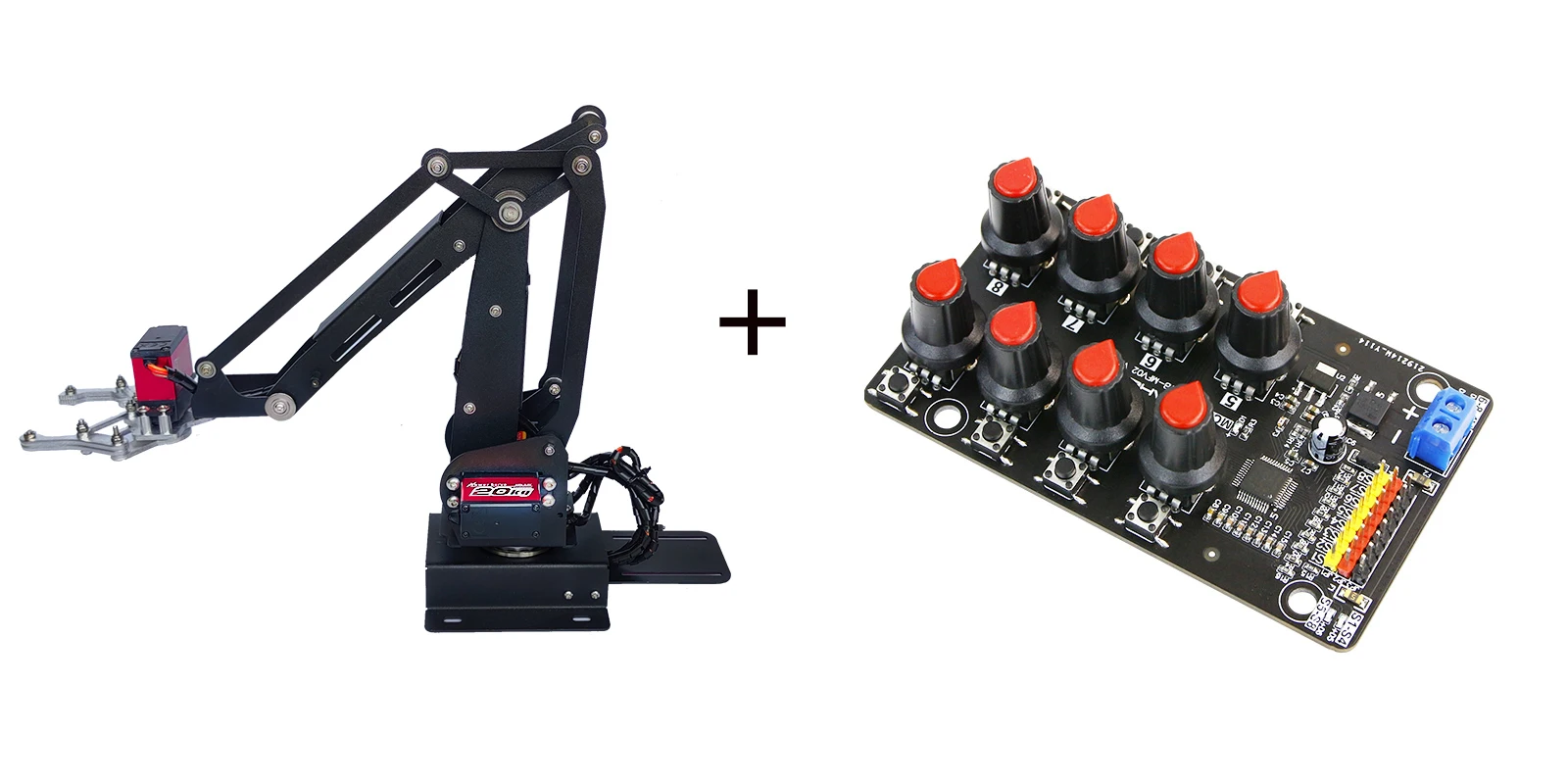

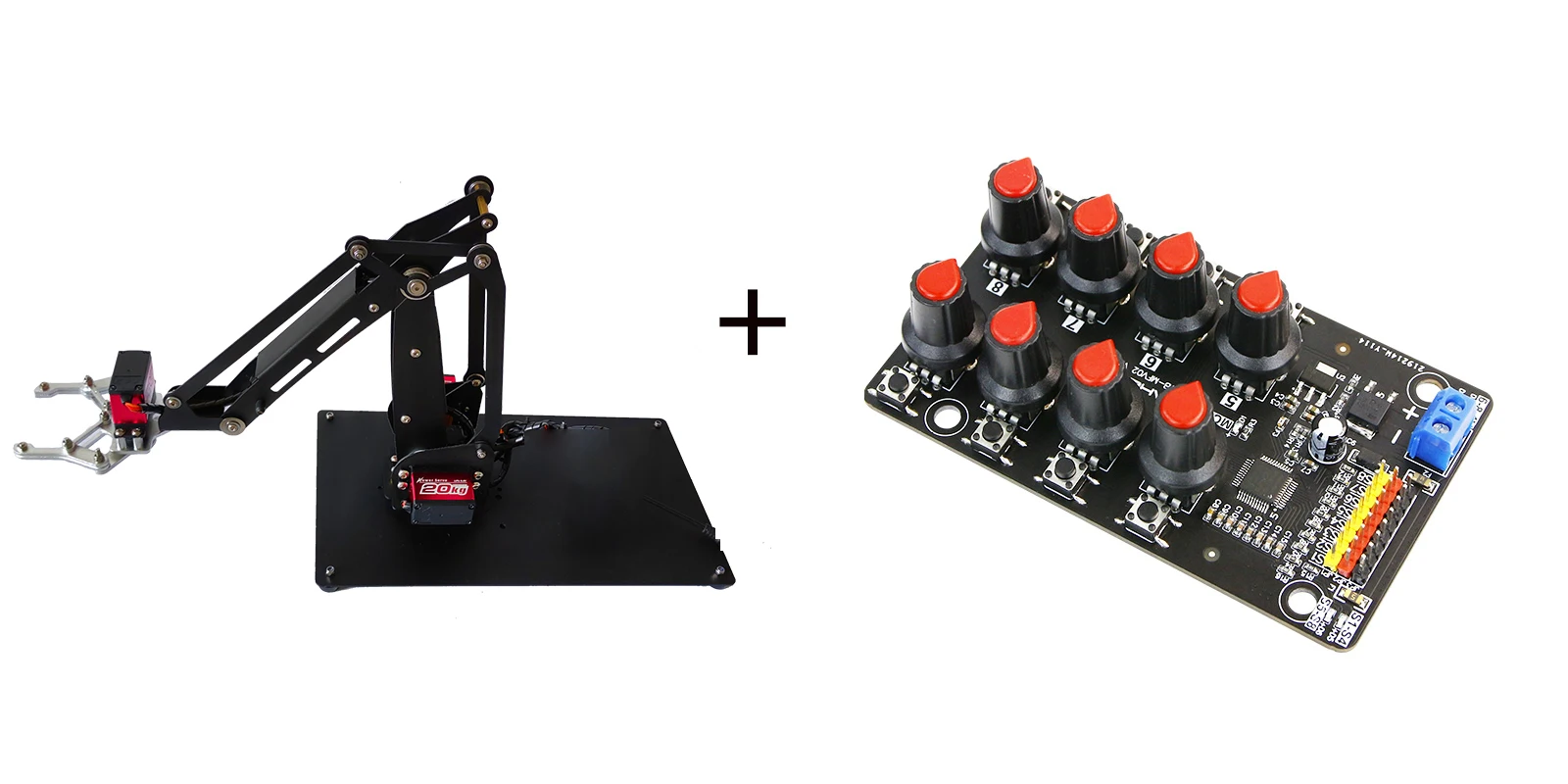

Package 5: Big base 4 dof robot arm frame: 1 set+ 4 pcs KS-3620 + 8 ways control board
Package 6: Small base 4 dof robot arm frame: 1 set+ 4 pcs KS-3620 + 8 ways control board

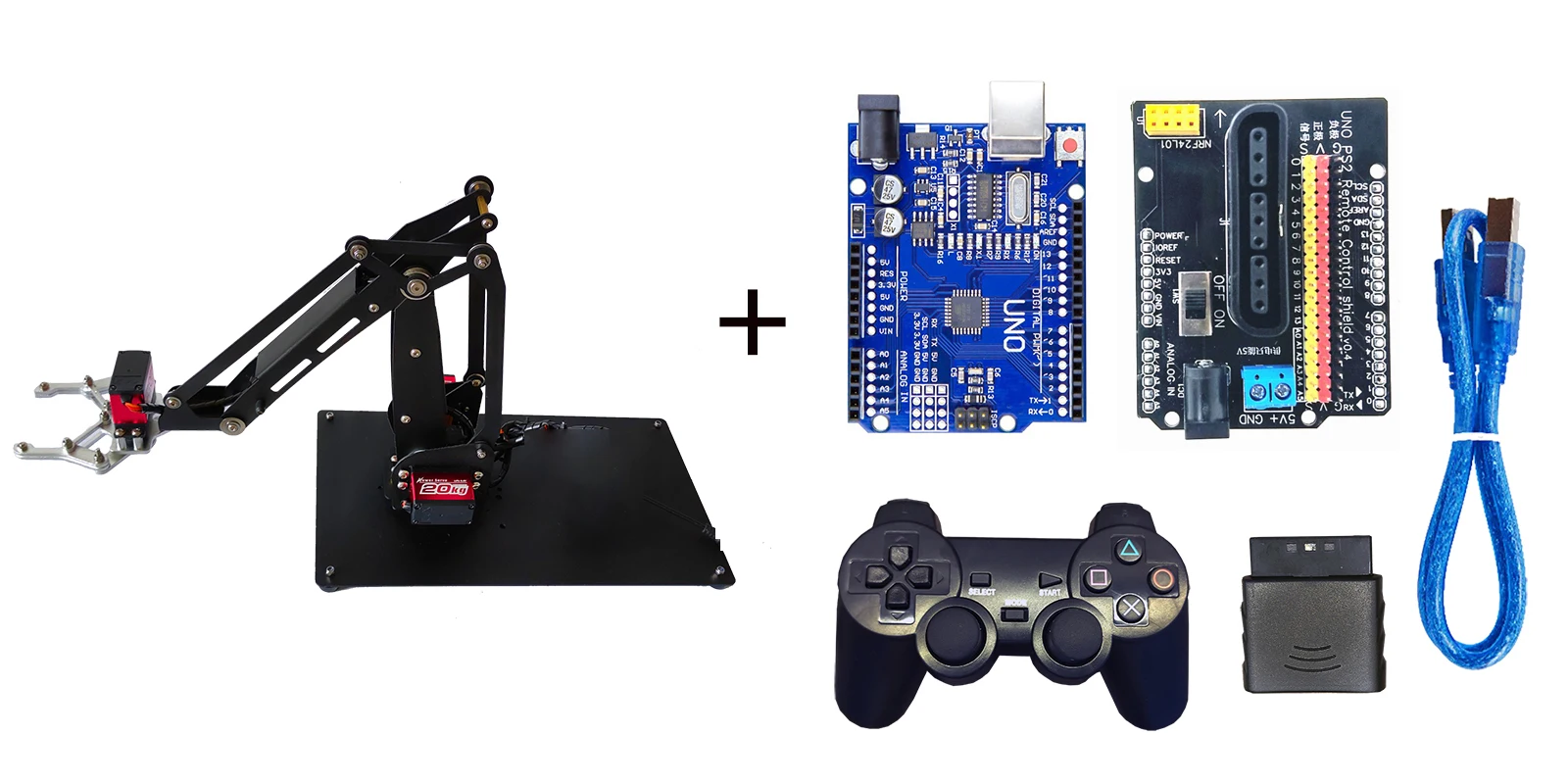

Package 7: Big base 4 dof robot arm frame: 1 set+ 4 pcs KS-3620 + Arduino set + PS2

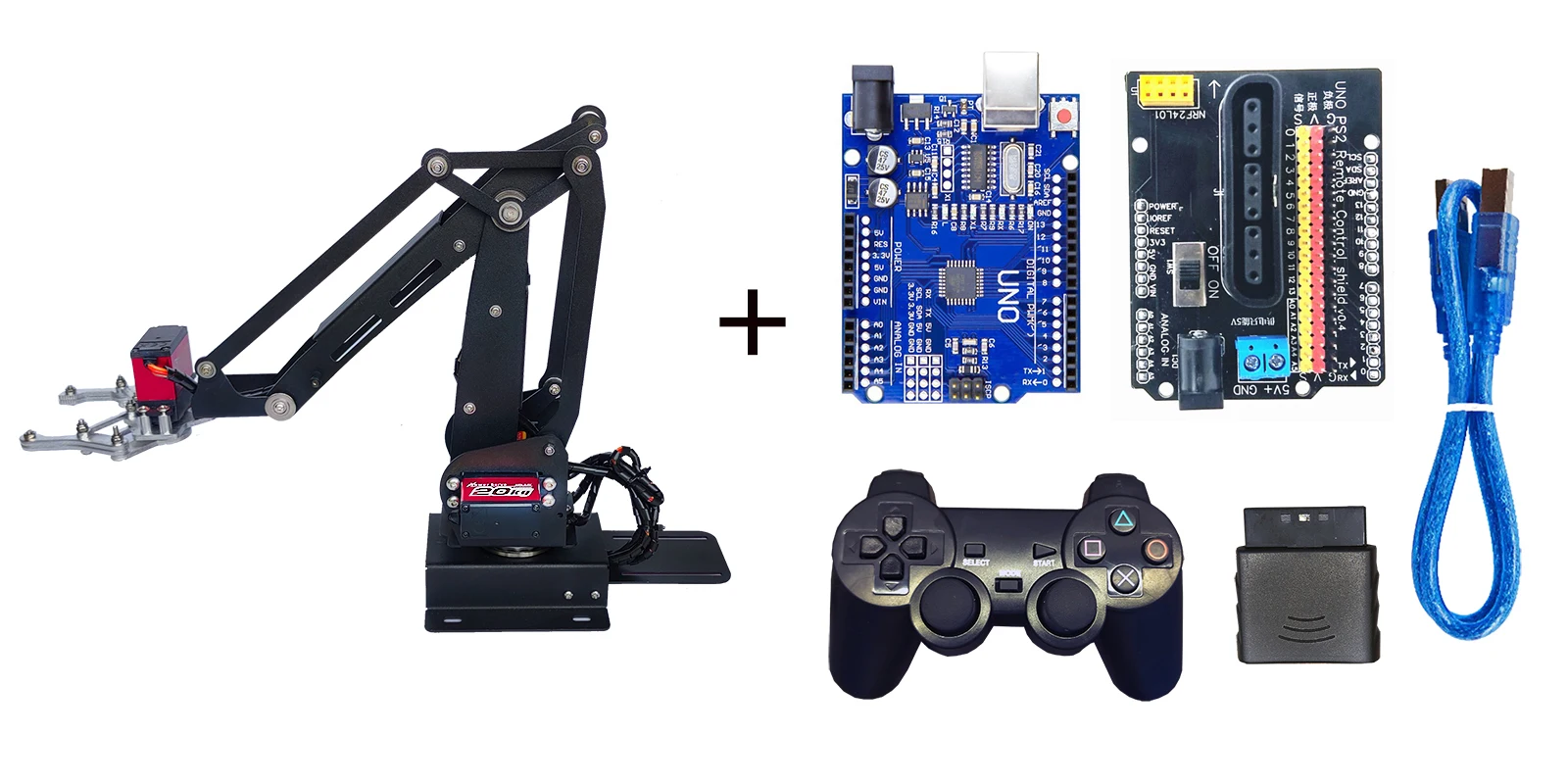

Package 8: Small base 4 dof robot arm frame: 1 set+ 4 pcs KS-3620 + Arduino set + PS2
Note:All kits are assembled and technical documentation can be provided to you free of charge, please contact us.
