Name: AC Motor
Brand: SHINEGLE
Original: China
Maintenance-free motor. It is the most promising motor for electric vehicles. Compared with DC motor, AC motor has more advantages, like larger torque.

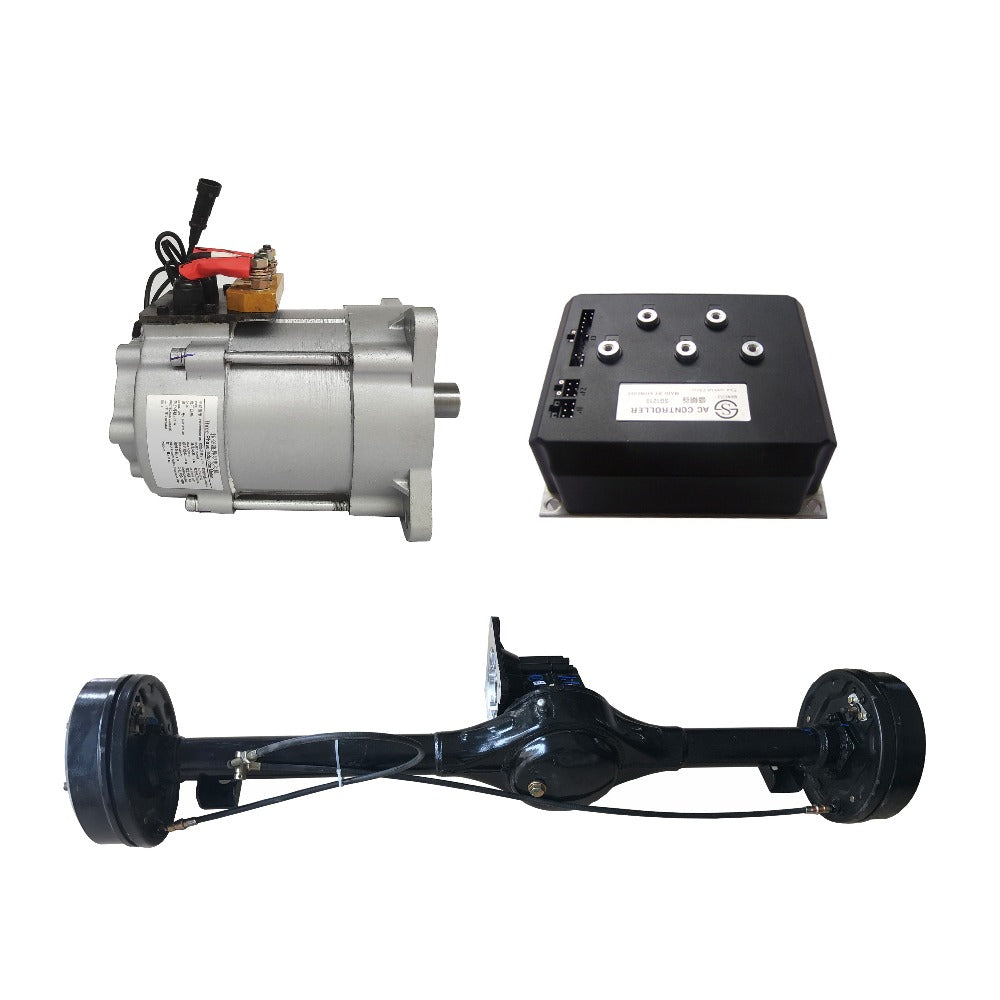

Normally, a conversion kit for electric vehicle is comprised of a motor and controller assembly(includes key switch, stall switch, accelerator and 4m wire harness). Thus, our price does not include battery pack and charger or other parts.
We have devoted ourselves in motor control system for more than 10 years. Our products are sold to all over the world.
We can provide electric ac motor, motor controller (both ac motor controller and bldc motor controller), dashboard, dc-dc converter, etc.

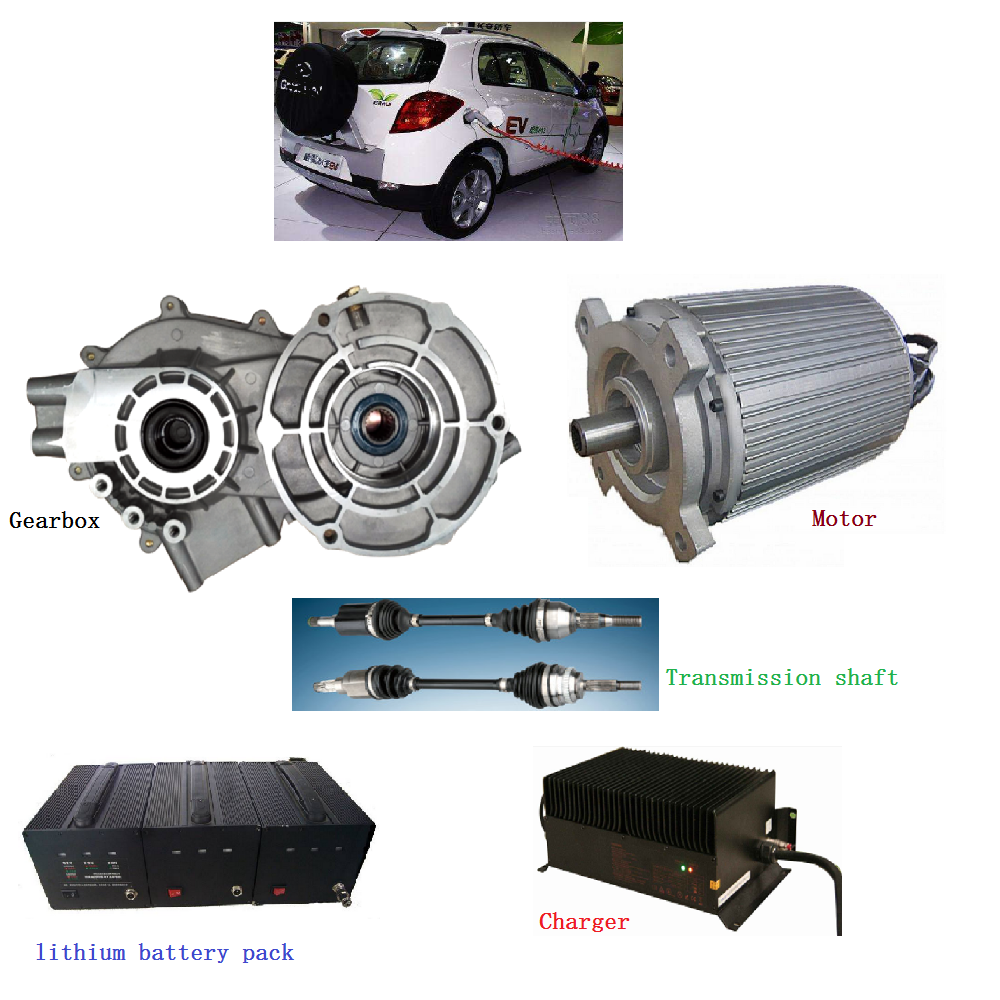

Our driving system is suitable for various types of electric vehicle, like golf cart, electric tricycle, electric tuk tuk, electric atv or utv, electric car (both for cargo or passenger).
SHINEGLE 7.5kw/10kw/15kw electric vehicle conversion kit are especially for those who want to retrofit their fuel cars to EVs.

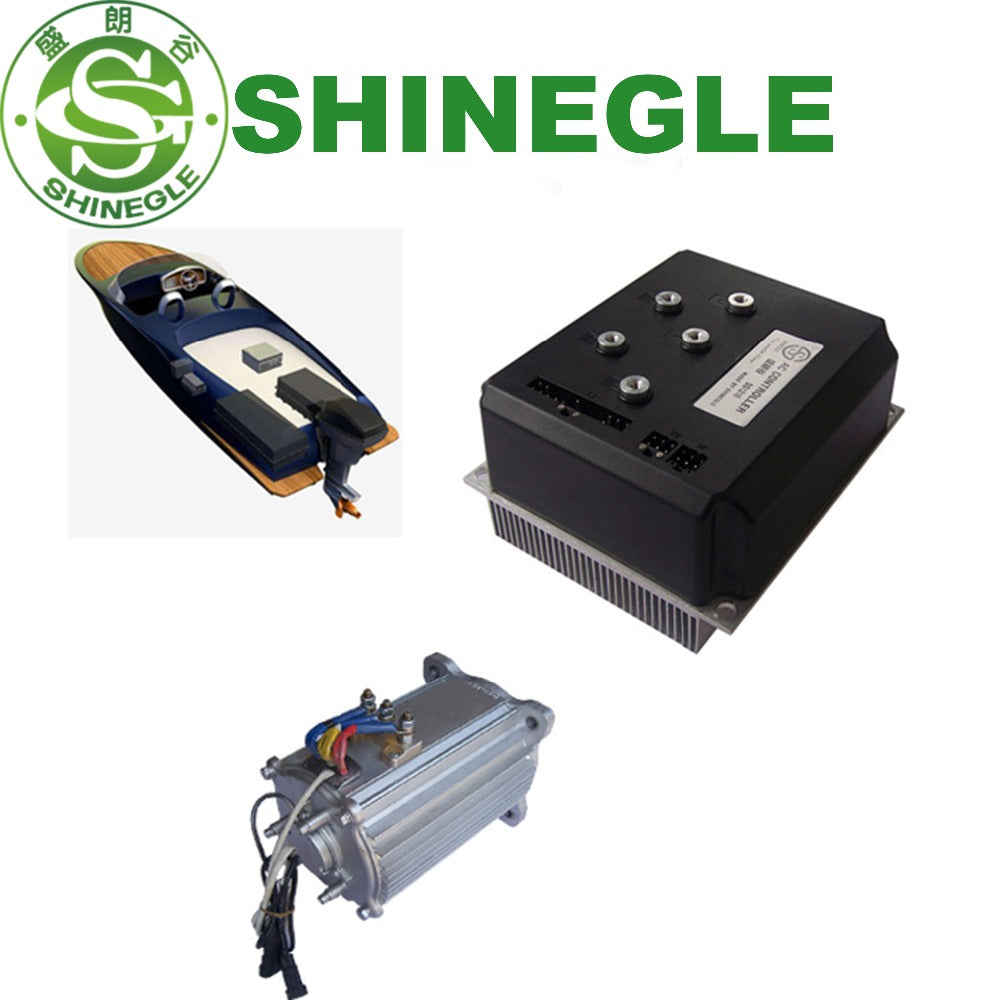

Moreover, Our controller and motor can be applied to electric boat.
As an enterprise with full ability to develop and produce. Our products can be customized according to clients’ needs.
SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
|
|||

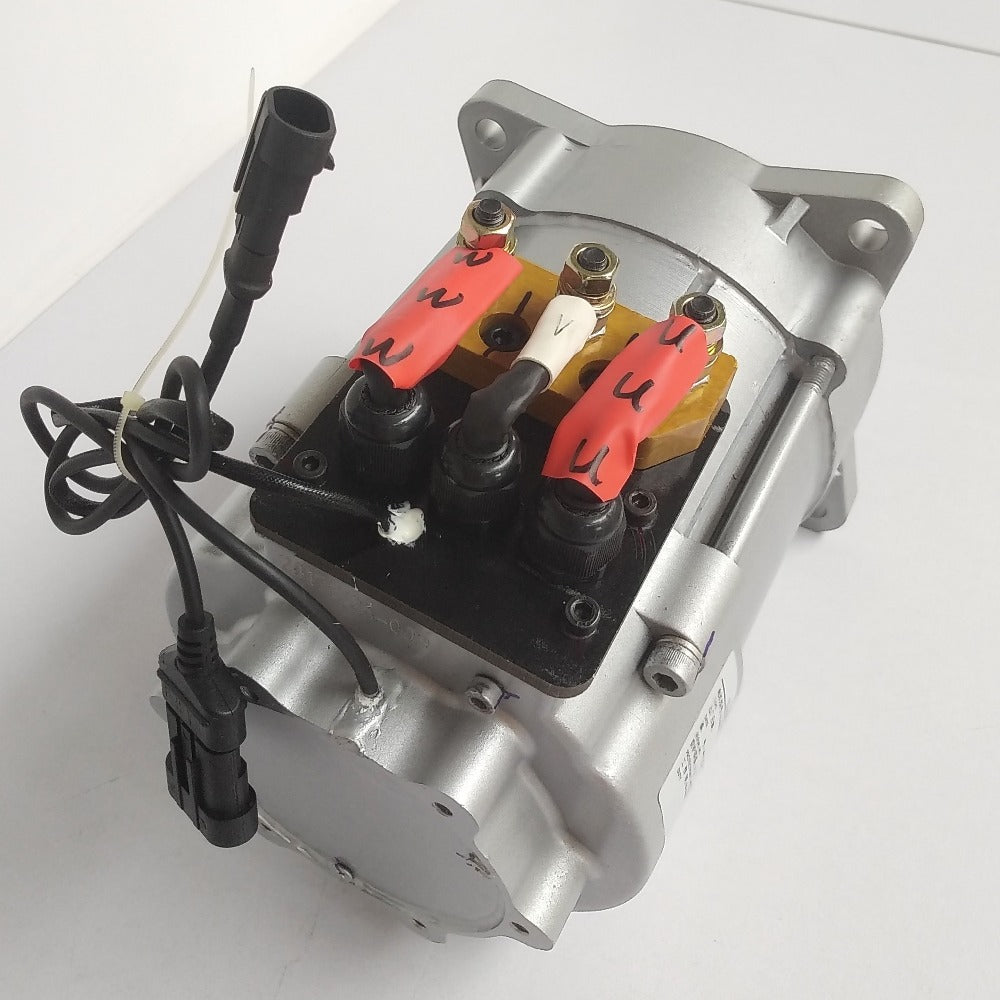

Motor
|
Rate power:7.5/10/15KW
|
Duty:S1
|
Max speed:7500 rpm
|
Rate voltage:72/96/108V
|
Net weight:35~50kg
|
Speed sensor:64 Pulse
|
|
|
Rated speed:3000~4500rpm
|
|
|

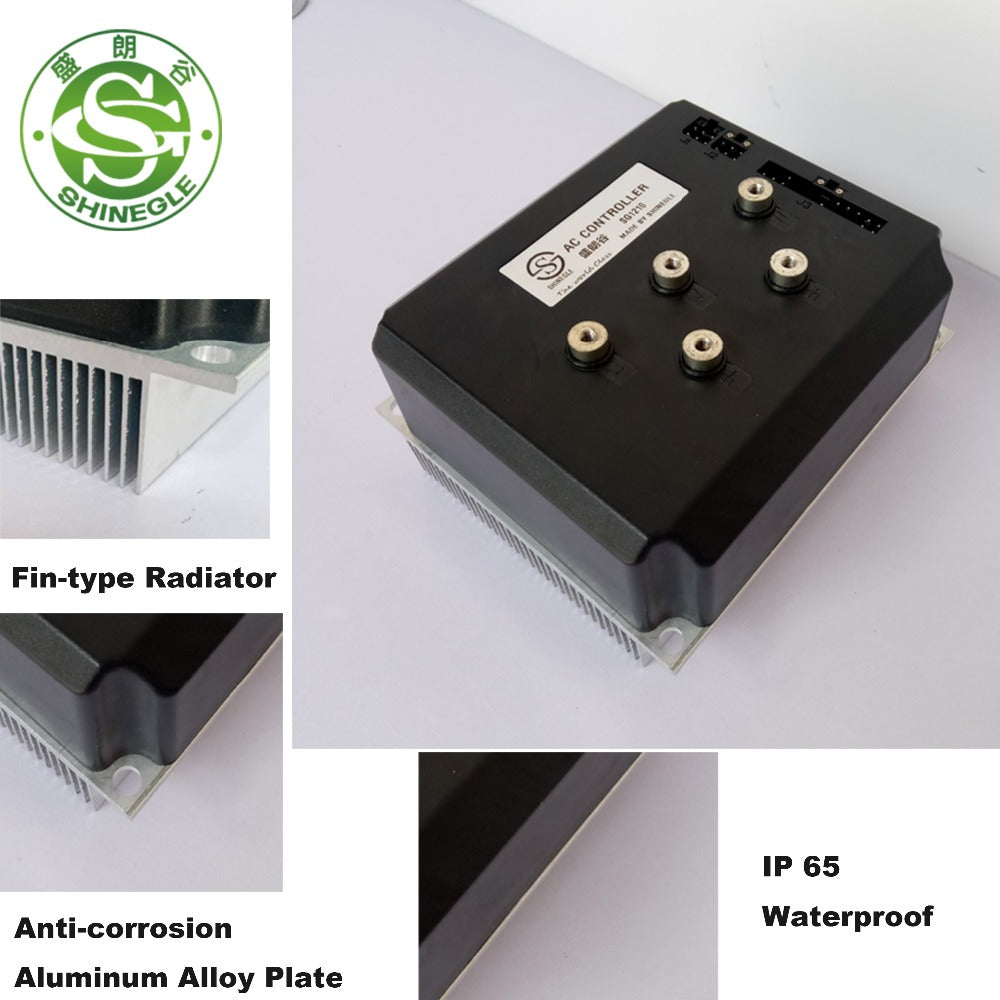

Controller
|
Rated voltage:72/96/108V
|
Rated output current:100/120
|
Max output current:500A
|
Efficiency:98%
|
Protection grade:IP65
|
Packing:wooden box
|
|
Net weight:5~10kg
|
Ambient temperature:-40 ~ 50℃
|
HS:8714990000
|
|

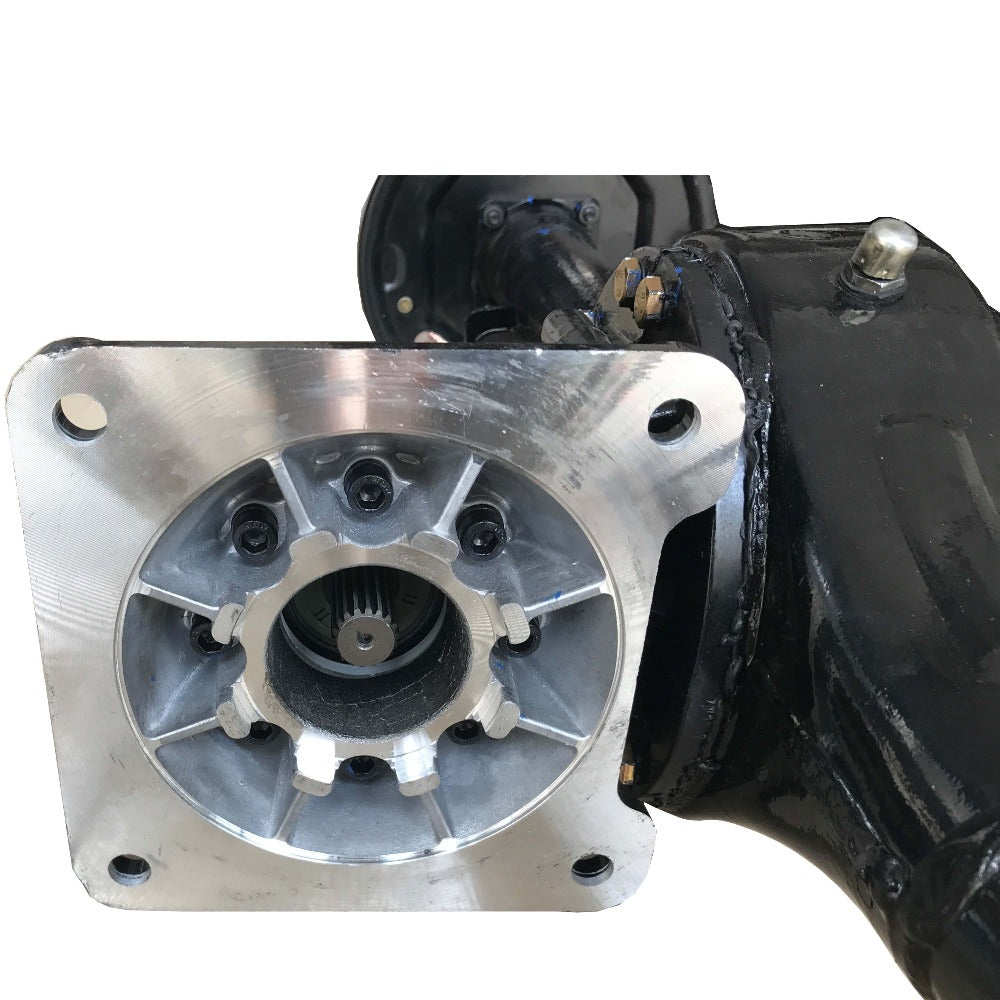

Gearbox
|
Speed capacity:9000 rpm
|
Ratio:6:1/8:1/10:1/12:1
|
Packing:wooden box
|
Torque capacity:180N.m
|
Center distance:50~106mm
|
HS:7326909000
|
|
Noise:≤65dB
|
Est. net weight:15~30kg
|
|
1) High torque and fast speed
2) Hands-on instruction, installation and use
3) Provide customers the fastest system solutions
4) Work with clients to calculate and test
5) Long time system testing, product maturity
Name: AC Motor
Brand: SHINEGLE
Original: China
Maintenance-free motor. It is the most promising motor for electric vehicles. Compared with DC motor, AC motor has more advantages, like larger torque.
Name: Motor Controller
Brand: SHINEGLE
Original: China
Vector control is one of the best ways to control motor. We have tested this system for more than 10 years, and the current stability is very high.
Name: Gearbox
Brand: SHINEGLE
Original: China
Low noise and high transmission efficiency are the two main advantages of the gear box.
Name: Battery and Charger
Brand: SHINEGLE
Original:China
At present, China's lithium-ion battery cell production technology is in the world's leading position. We can provide 100000km protection for our customers.
Name: DC-DC Converter and Dashboard
Brand: SHINEGLE
Original: China
Usage of DC-DC converter: to convert battery voltage to 12V in order to deliver suitable voltage to headlight, air conditioning, etc.
* Customer sends inquiry
* Tailor the right system
* Sample testing support
* Timely technical communication
* Result feedback and improvement
Packing
|
|
Size
|
1280 (L) * 456 (W) * 789 (D)
|
Weight
|
1.2 T
|
Packing Details
|
Normal packing is wooden box(Size: L*W*H). If to European countries,the wooden box will be fumigated. If container is too high,we will use PE film for packing or pack it according to customers special request.
|
Packaging
|
|
Size
|
123 (L) * 456 (W) * 789 (D)
|
Weight
|
100kg
|
Packing Details
|
Normal packing is wooden box(Size: L*W*H). Sometimes we choose cartons when by air.
|
