30kg Load RC Tank Chassis Metal Track 12VDC Motor Shock Absorption for STM32 Controller with FS Handle Programmable Robotic Car
30kg Load RC Tank Chassis Metal Track 12VDC Motor Shock Absorption for STM32 Controller with FS Handle Programmable Robotic Car
30kg Load RC Tank Chassis Metal Track 12VDC Motor Shock Absorption for STM32 Controller with FS Handle Programmable Robotic Car
【 Read carefully before buying 】
Only WT200S chassis: without battery

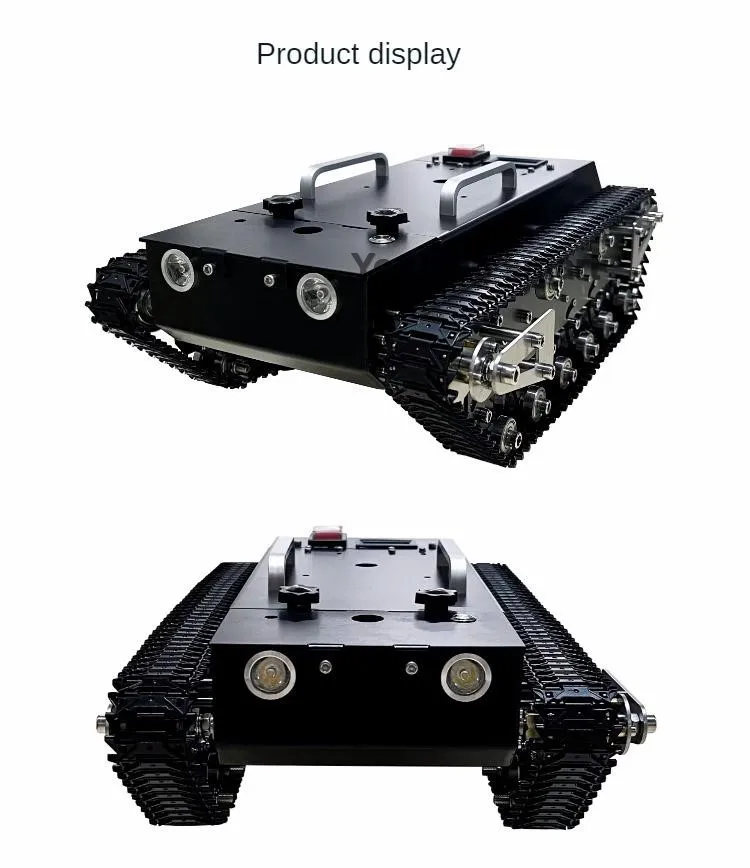

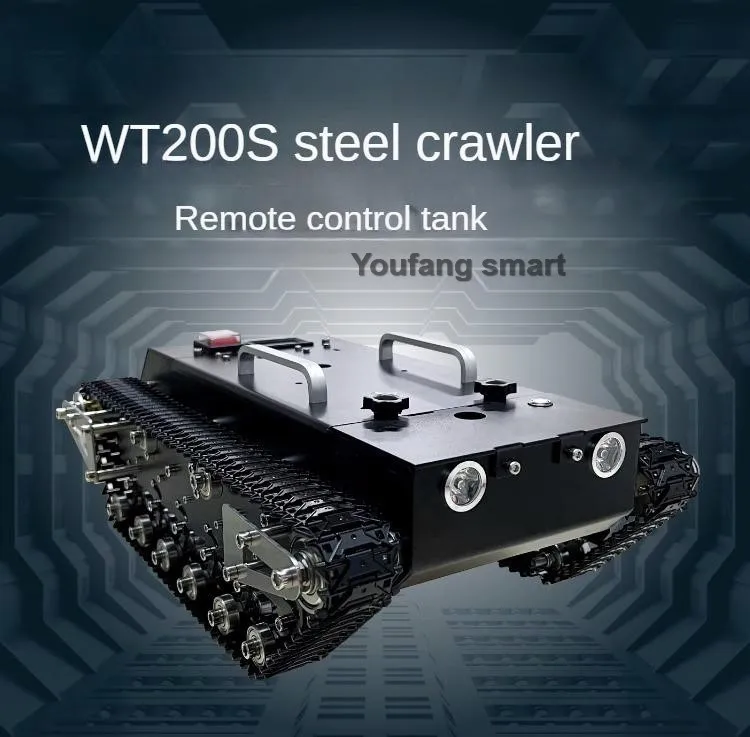

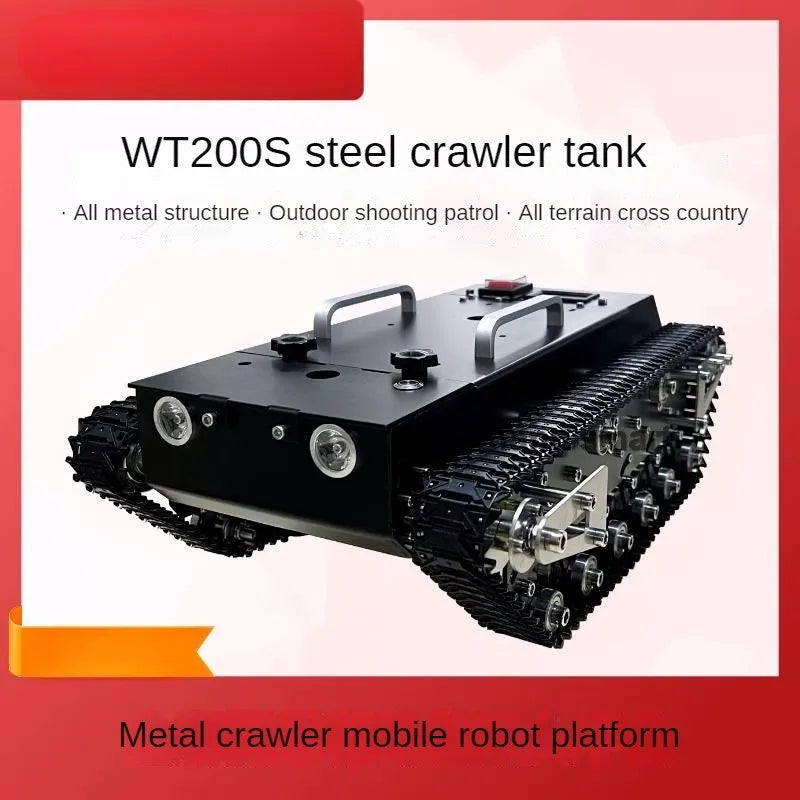

WT-200s Upgraded RC Tank Chassis Metal Track Tank Load 30KG Shock Absorber (Without Controller)
Advantages:
- Excellent workmanship and durable. All kinds of bearings are used in the whole car, which has strong versatility
- Flexible adjustment. According to loads and purposes, you can easily adjust the suspension hardware
- Super shock absorber. Excellent suspension system stabilizes the body, conquering complex terrain like flat ground

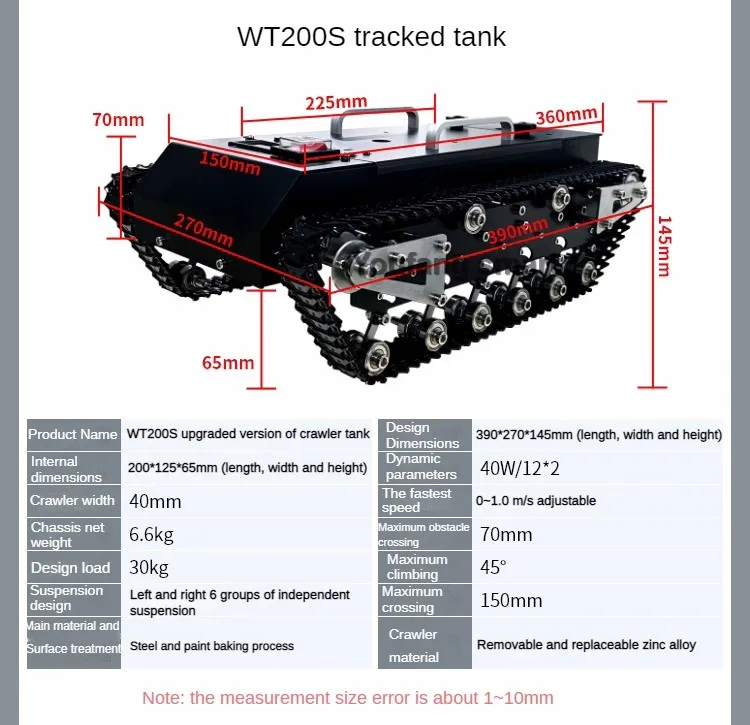

Specifications:
- Product name: WT-200S upgraded version of tracked tank
- Design size: 39*28*13cm (length x width x height)

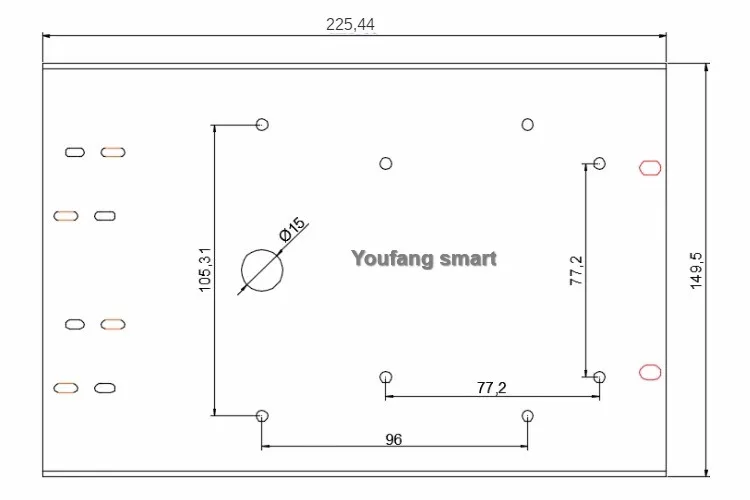

- Internal size: 20*12.5*6.5cm (length x width x height)

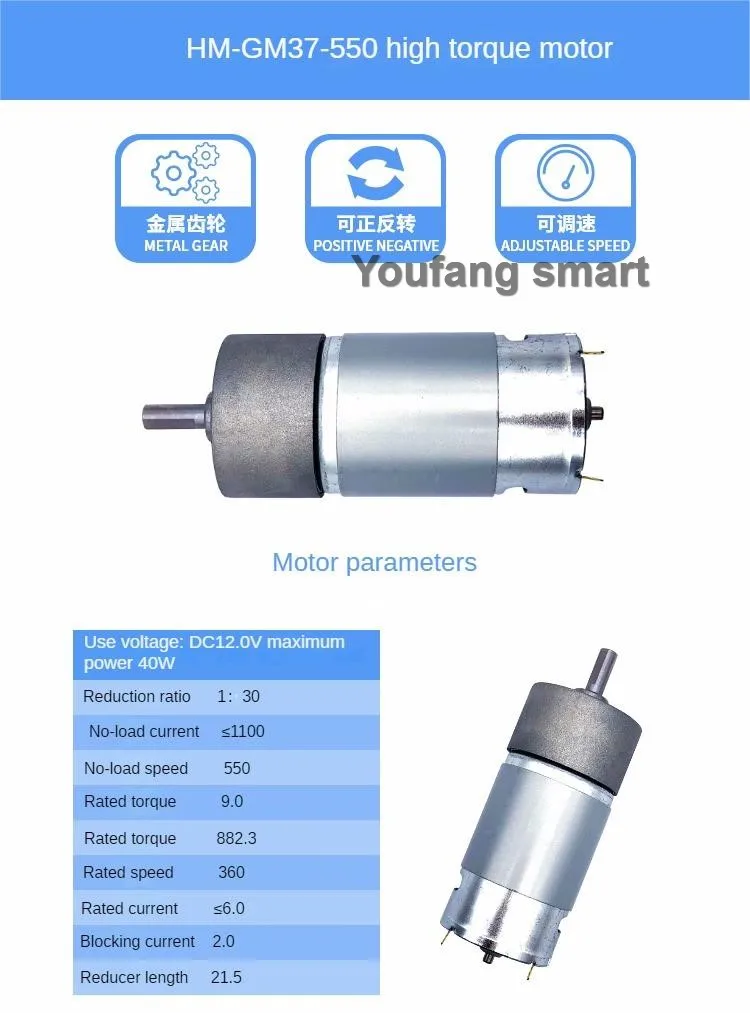

- Power parameters: 40W/12*2
- Track width: 40mm
- Maximum obstacle crossing: 70mm
- Maximum climbing: 45°
- Maximum span: 150mm
- Track material: zinc alloy, removable and replaceable
- The fastest speed: 0~1.5m/s adjustable
- Net weight of chassis: 6.6kg
- Design load: 30kg
- Suspension design: 6 groups of independent suspension on each side
- Main body material and surface treatment: steel and paint process
Package Included:
- 1 x Track Tank chassis
Note:
- Due to manual measurement, please allow error at about 1cm. Thank you for your understanding!
- It is assembled.without battery.
Full set / More set :
WT-200s Upgraded RC Tank Chassis Metal Track Tank Load 30KG Shock Absorber (Ready To Use Version)
Advantages:
- Excellent workmanship and durable. All kinds of bearings are used in the whole car, which has strong versatility
- Flexible adjustment. According to loads and purposes, you can easily adjust the suspension hardware
- Super shock absorber. Excellent suspension system stabilizes the body, conquering complex terrain like flat ground
Specifications:
- Product name: WT-200S upgraded version of tracked tank
- Design size: 39*28*13cm (length x width x height)
- Internal size: 20*12.5*6.5cm (length x width x height)
- Power parameters: 40W/12*2
- Track width: 40mm
- Maximum obstacle crossing: 70mm
- Maximum climbing: 45°
- Maximum span: 150mm
- Track material: zinc alloy, removable and replaceable
- The fastest speed: 0~1.5m/s adjustable
- Net weight of chassis: 6.6kg
- Design load: 30kg
- Suspension design: 6 groups of independent suspension on each side
- Main body material and surface treatment: steel and paint process

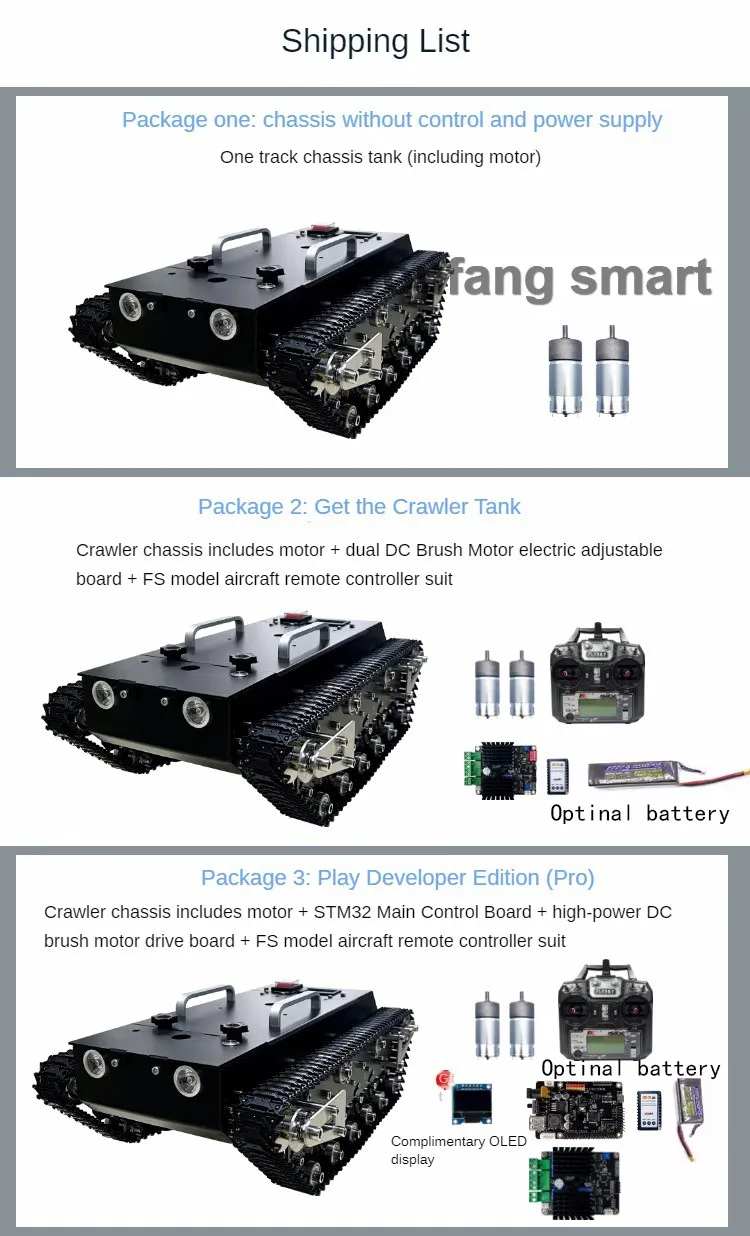

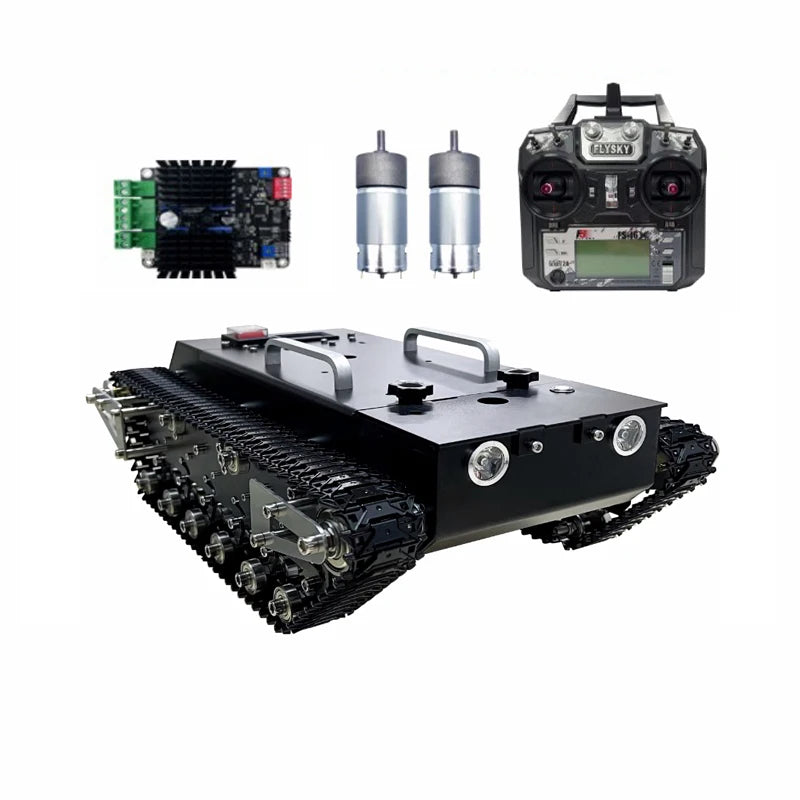

(Full set / More set no battery )Package Included:
- 1 x Track Tank

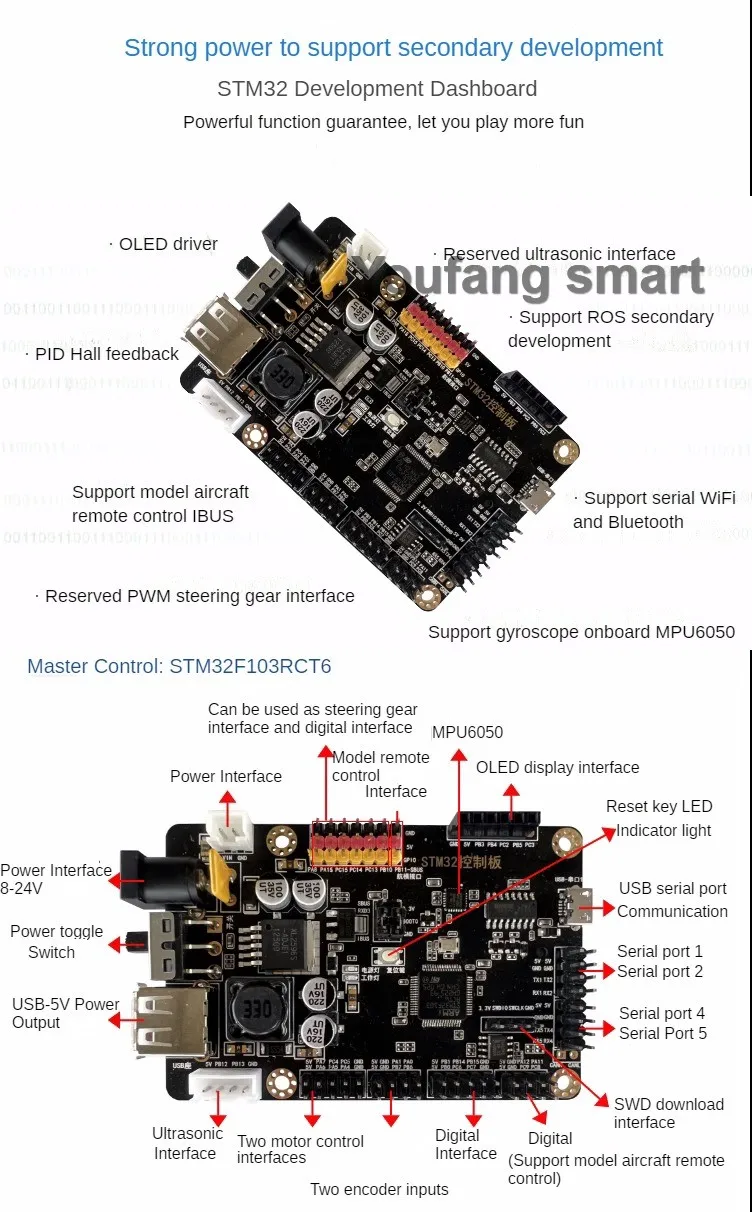

- 1 x For MC Controller
- 1 x Driver Board
- 1 x Receiver
(Full set / More setwith battery )Package Included:
- 1 x Track Tank
- 1 x For MC Controller
- 1 x Driver Board
- 1 x Receiver
- 1 x Lithium battery
- 1 x Battery charger
Note:
- Due to manual measurement, please allow error at about 1cm. Thank you for your understanding!
- It is assembled.
- Lithium battery is optional in Full set / More set.
We can provide technical documents to our customers, please leave your email address.
