25Kg Load RC Tank V3 Mecanum Wheel Robot Car for Arduino Robot DIY Kit with Encoder Motor and Ps2 Handle Programmable robot Kit
Note:
1.If you buy a smart car without an encoder, the maximum load is about 10kg,
and it is recommended to use a 12V power lithium battery.
2.If you want the maximum load to be 25kg, it is recommended to buy a motor smart car with an encoder reduction ratio of 1-90, and use a 12V power lithium battery to achieve such a large load of 25kg.
3.In addition:
The smaller the reduction ratio, the faster the motor speed and the less load.
The larger the reduction ratio, the fuller the motor speed, and the greater the load.
【 Read carefully before buying 】
Product details

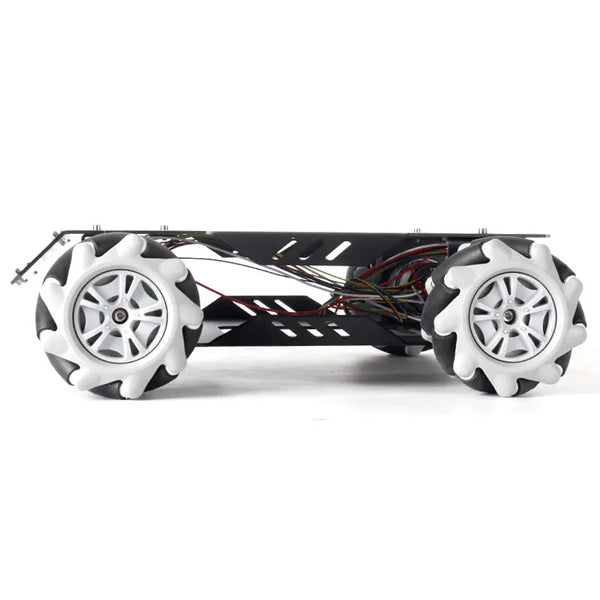

Product name: Upgraded V3 McNamm Wheel Smart car Aluminum alloy metal
ersion with suspension swing arm and encoder motor
Product packaging: Box
Product size: 285mm*250mm*82mm
[Performance characteristics]
Aluminum alloy metal chassis, reinforced and durable, surface anodized treatment equipped with 37-520 gear motor, optional encoder motor and different tooth ratio
37 motor without encoder:
-
Simple and easy to use, two stages can be powered on and can be adjusted, but can not accurately control the speed can not get motor speed can not do closed-loop control

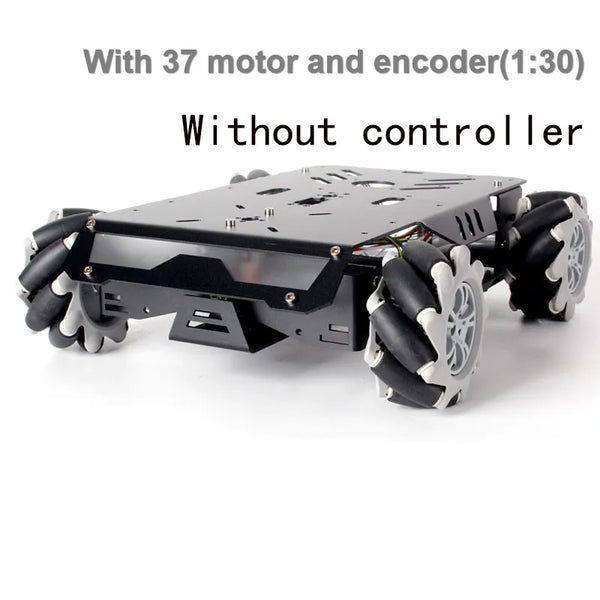

37 encoder Motor(1:30,1:90):
37 encoder Motor 1:30: High speed,Lower the load
37 encoder Motor 1:90: Lower speed, Big the load
-
The motor can run with power and speed can be accurately controlled by algorithm (closed-loop control)
-
You can read the motor speed or feedback the motor position
Package list:
Car set: 1 set Robot car + 4pcs motor

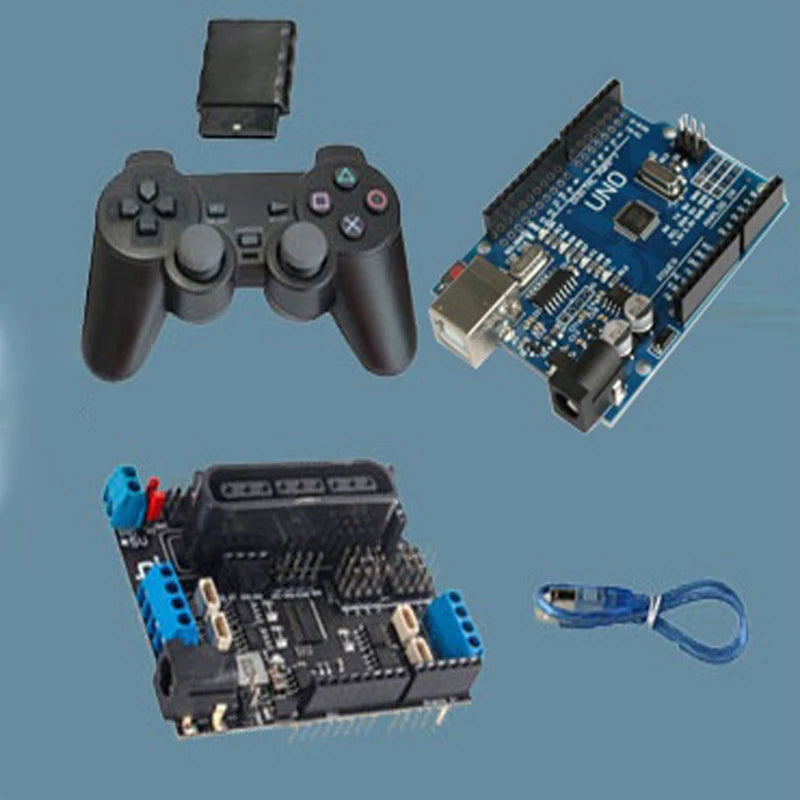

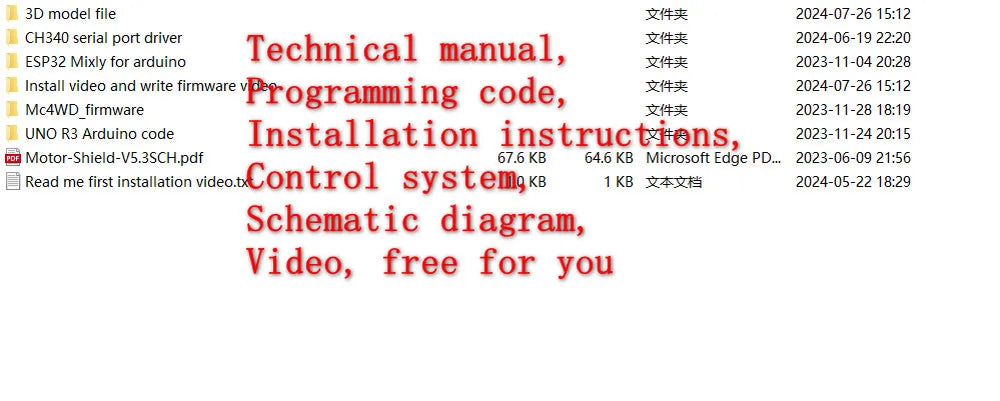

Full set: 1 set Robot car + 4pcs motor + UNO controller + Battery compartment (Free gift)+ USB flash drive (Free gift, have technical document. If you can't find the USB flash drive, please contact us send an electronic version of the technical file)
Note:
1.This is unassembled, you need to assemble it, we provide installation tutorials and open source code for free，Please leave your email address
2.Due to the customs policy, the product is mailed without a battery, and 11.1-12.6 V is recommended.It is recommended to use 12V lithium battery or 3pcs 18650 battery
