2019 New Design All internal cables carbon road bike Aero design frame disc brake bicycle

Sale price $4,127.68 Regular price $4,387.88

2019 New Design All internal cables carbon road bike Aero design frame disc brake bicycle

Brand Name: ICAN
Applicable People: Unisex
Rim Material: Carbon Fibre
Type: Road Bike
Foldable: NO
Gender: Men
Fork Suspension: No
Frame Material: Carbon Fibre
Fork Material: Carbon Fibre
Stature: 150-200cm
Net Weight: 7.9kg
Length (m): 1.4
Braking System: Double Disc Brake
Gross Weight: 8kg
Volume: 0.03 m3
Front Fork Type: Keine Dämpfung
Pedal Type: Ordinary Pedal
Wheel Size: 700C road disc wheelset
Frame Type: Hard Frame (Non-rear Damper)
Load Capacity: 160kg



2019 New Design All internal cables carbon road bike Aero design frame disc brake bicycle

New Version carbon road disc frame with All internal cable



Look at the A9, look at it. You know this is going to be one fast aero disc braked road bike, that is a long description. The A9 is designed to be the frameset that takes your cycling to speeds you never imagined you would hit.

aero A9

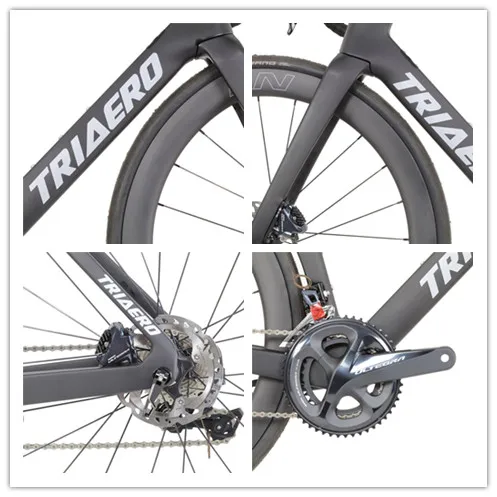

A9 parts

The A9 is constructed from a mix of Toray T700 and T800 carbon fiber cloth. Using the combination of carbon fiber allowed us to keep the weight down while building aero shaped profiles to help you slice your way through the air. This frameset will help guide you to new Strava times, and people will wonder how you suddenly got so fast.


Featuring thru axles front and rear, a massively oversized BB86 bottom bracket area, a 1.5” head tube and some seriously oversized chain stays this frameset will make sure every watt of your energy is transferred to the road and is used for pushing you along.


You’ll be going so fast, you’ll be glad of the flat mount brake calipers you have fitted. A 160mm at the front and a rear 140mm rotor will make sure you can keep your speed under control. You also don’t have to worry about hoses or cables costing you watts. With our new carbon fiber stem and handlebar, we have take integration to new levels. You’ll never see your cables or hoses once you’ve fitted them. Don’t worry we have made this as simple as possible.



Product info:



Frame: FULL CARBON SUPER LIGHT /AERO/DISC /INTERNAL CABLES 2019TRIAERO A9 52CM 1050+_50g  fits :28mm tire

Front fork spacing: CARBON RIGID FORK T800 TRIAERO AO9  100*12mm FLAT MOUNT 160MM
Rear frame end spacing: 142*12mm    FLAT MOUNT 140MM


Groupset: DRIVERTAIN----SHIMANO R8000

Drivetrain:  SHIMANO ULTEGRA 8020 DISC

Shifters:SHIMANO ULTEGRA R8020

Brakes:SHIMANO ULTEGRA R8070 FLAT MOUNT

Rotors:f'ront SHIMANO 160 MM rear SHIMANO 140 MM

Front derailleur:SHIMANO ULTEGRA R8000

Rear derailleur:SHIMANO ULTEGRA R8000

Crankset:SHIMANO ULTEGRA R8000 172.5mm 50/34T

Cassette:SHIMANO ULTEGRA R8000 11/28T

Chain:SHIMANO ULTEGRA R8000

Headset: 1-1/2 to 1-1/2
Stem: Carbon ST05 90mm

andlbar: HB005-420mm
Saddle: Carbon SD006

 Complete Bike Weight: 7.98KG(excluding pedal)

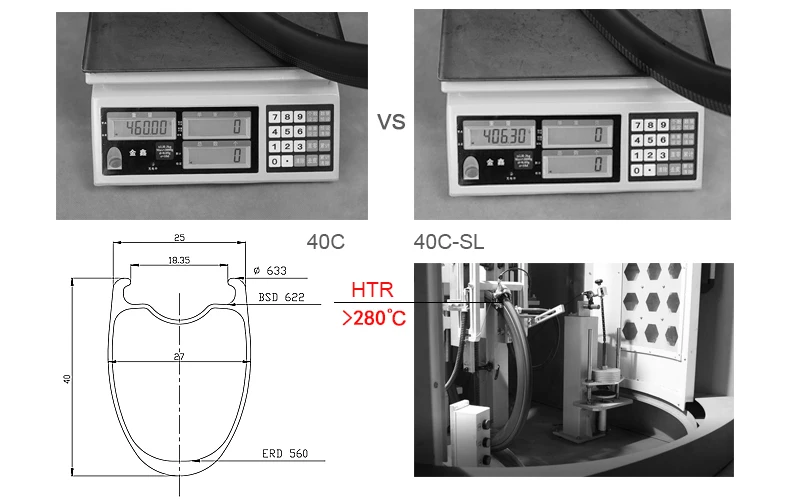

40C



A9 geometry





About the Package

Imagine if you could be satisfied and content with your purchase. That can very much be your reality with the 2019 New Design All internal cables carbon road bike Aero design frame disc brake bicycle.
