135mm Neweset V3 135mm drop out ebike kit 52V WF2000W electric bike conversion kit with 52V 17AH DP lithium battery
2020 Neweset V3 E Bike Kit 52V 2000W Electric Bike Conversion Kit With 52V 17AH DP Lithium Battery

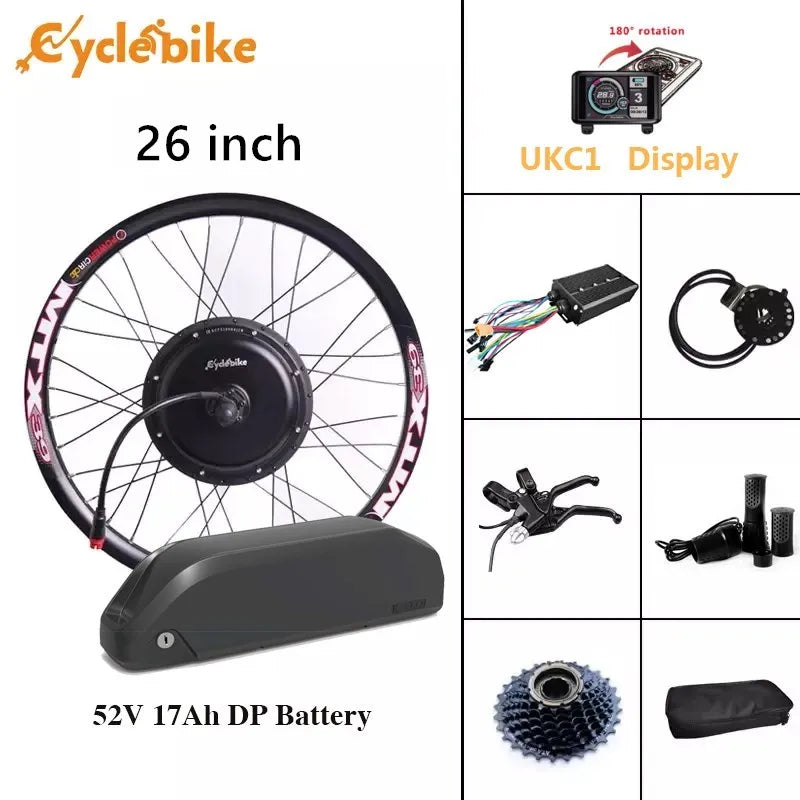

Packing list:
1. 52V 2000W powerful brushless gearless
MTX rim Bicycle Wheel: 20" 24" 26" 27.5" 28" 29"700c
2. Display: UKC1
3. Controller:52v 45 amp smart controller
4. Controller bag
5. PAS:newest 8 manget pas
6. Electric brake levers：WuXing electric brake levers

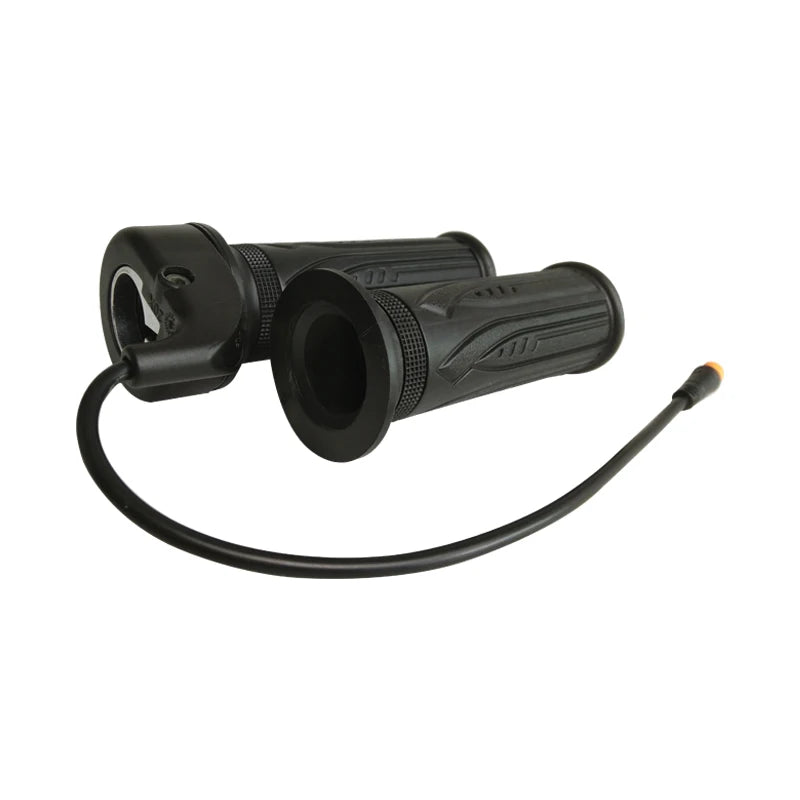

7. twist throttle
8. 7-speed flywheel (only for rear drive )
9.Torque Arm Safe for Customer as a gift .
10.52v 17ah DP style lithium battery
11.1x 52v 2A charger
12.Book manul,ties
13. Good Packing
2000w e bike motor:
MTX RIM:
NOTE: The MTX rim is the strong rim and works with 1.95,2.1,2.3,2.5,3.0 tires. But it is working for disc brake Only, can't use V brake !!!! Please choose the normal rim for V brake bike .
Features of the 52V 2000W Electric Bike Conversion Kit Product:
1. High Quality 15 MOSFET 40A ±1 Controller (Includes cruise Function )
2. Rear 52V 2000W motor, V3 motor with 3.0 m2 Phase Cable. 140mm Dropouts
3. Strong Double-wall Aluminium Alloy Rim MTX sun-ringle From USA .
4. Full Speed: about 60-65km/hour
5. Certificates: CE, CCC, EN15194, ISO 9001-2000
|
Electric wheel Size
|
20″ Wheel Motor
|
24″ Wheel Motor
|
26″ Wheel Motor
|
700c Wheel Motor
|
28″ Wheel Motor
|
29″ Wheel Motor
|
|
Voltage
|
52V
|
52V
|
52V
|
52V
|
52V
|
52V
|
|
Power
|
2000W
|
2000W
|
2000W
|
2000W
|
2000W
|
2000W
|
|
High Motor Efficiency
|
>85%
|
>85%
|
>85%
|
>85%
|
>85%
|
>85%
|
|
Speed
|
0-45km
|
0-50km
|
0-65km
|
0-65km
|
0-65km
|
0-65km
|
|
Front or Rear Fork Dropout Requirement
|
100mm for front motor, 135mm for rear motor
|
100mm for front motor, 135mm for rear motor
|
100mm for front motor, 135mm for rear motor
|
100mm for front motor, 135mm for rear motor
|
100mm for front motor, 135mm for rear motor
|
100mm for front motor, 135mm for rear motor
|
|
Available Speed Gear Quantity
|
7-Speed for rear motor only
|
7-Speed rear motor only
|
7-Speed rear motor only
|
7-Speed rear motor only
|
7-Speed rear motor only
|
7-Speed rear motor only
|
|
Bike rim
|
20″
|
24″
|
26″
|
700C
|
28″
|
29″
|
|
Controller Specifications
|
|
Input Voltage
|
DC 48V(Universal)
|
DC 48V(Universal)
|
DC 48V(Universal
|
DC 48V(Universal
|
DC 48V(Universal
|
DC 48V(Universal
|
|
Min.Voltage
|
DC 40±0.5V
|
DC 40±0.5V
|
DC 40±0.5V
|
DC 40±0.5V
|
DC 40±0.5V
|
DC 40±0.5V
|
|
Rated Current
|
20A
|
20A
|
20A
|
20A
|
20A
|
20A
|
|
Max. Current
|
40±1A
|
40±1A
|
40±1A
|
40±1A
|
40±1A
|
40±1A
|
|
Speed set
|
1-4.2V
|
1-4.2V
|
1-4.2V
|
1-4.2V
|
1-4.2V
|
1-4.2V
|
UKC1 display:
1) Type: UKC1 Display for Electric Bike
2) Display voltage: 48V 52V 60V 72V
3) Function: ASSIST SPEED Battery MiIeag
Controller:
1) Spec : 52v 45Amp.
2) Functions: Low Brake, Display, Throttle,Temperature sensor, Pedal Assist Sesor, Light- battery's voltage
3)size:170mm*105mm*50mm
Lithium Battery:
Other Accessories:
Packing for 52V 2000W e bike kit :
