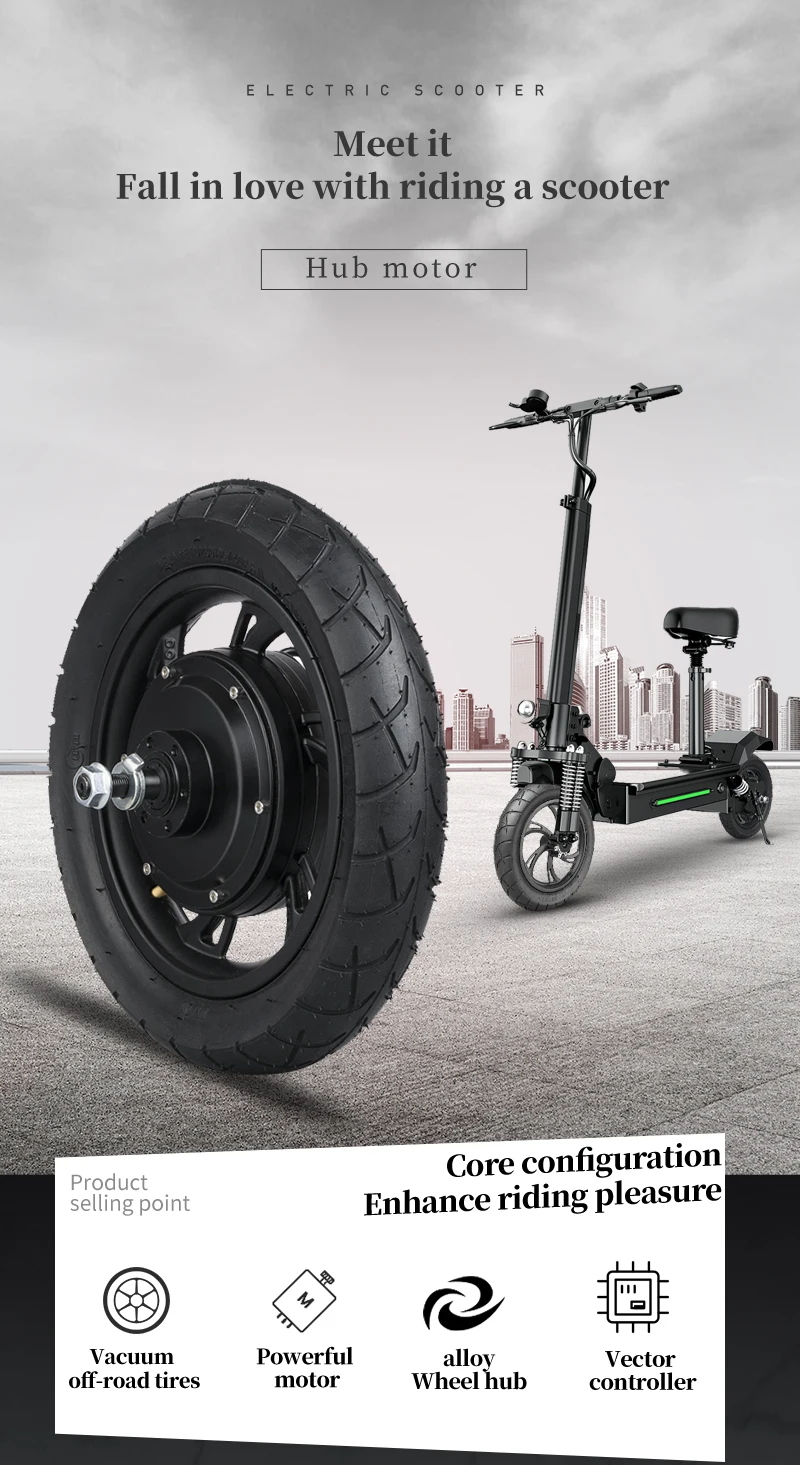

12inch BLDC Scooter Hub Motor Wheel 48V 500W Brushless Non-Gear Hub Motor 36V 350W E Bike Motor Wheel For Electric Scooter Ebike
About Wheel Motor:
About Wheel Motor:
1. Rated Voltage: 36V/48V DC
2. Rated Watt: 350W / 500W

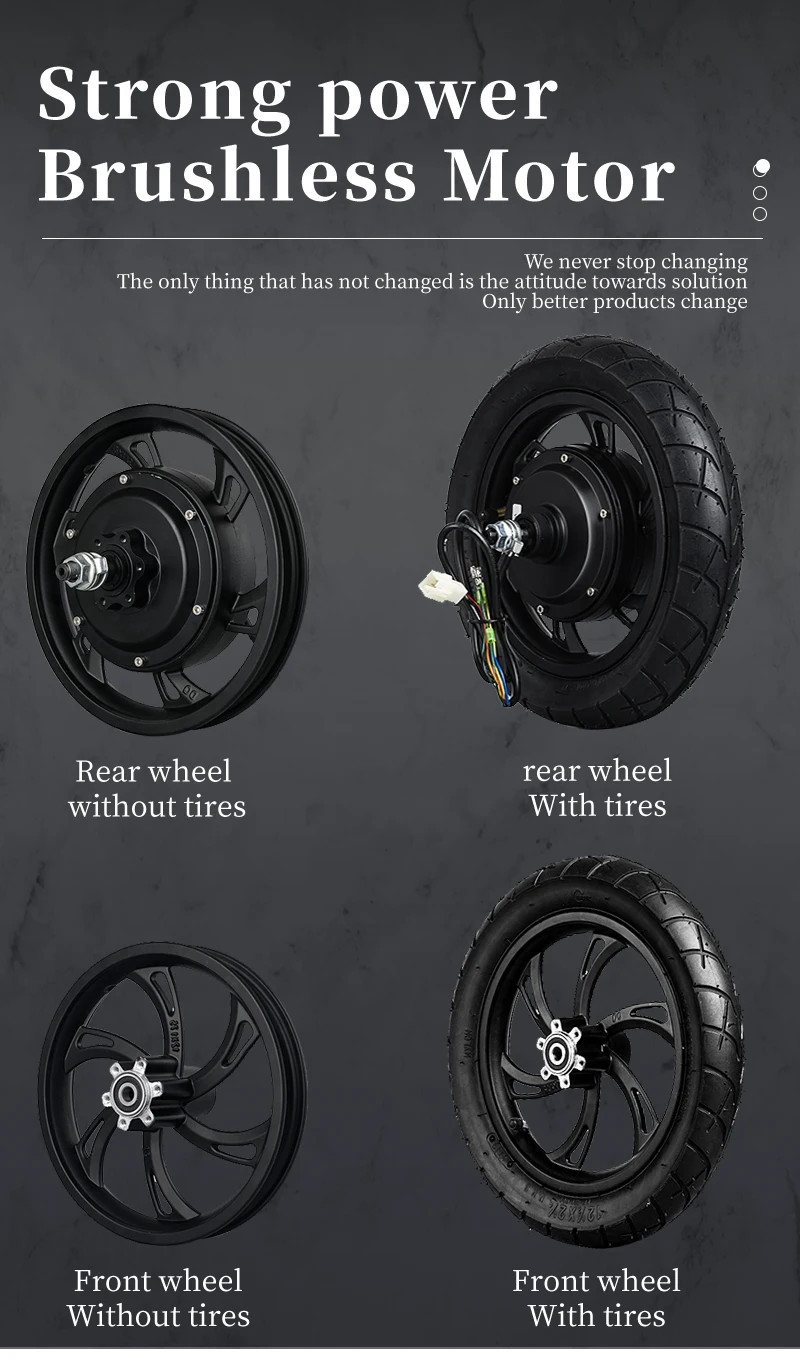

3. Motor Type: Brushless DC NON-GEAR hub motor
4. Motor Wheel Size: 12" 12inch , for 12inch folding Bike , and Scootor motor

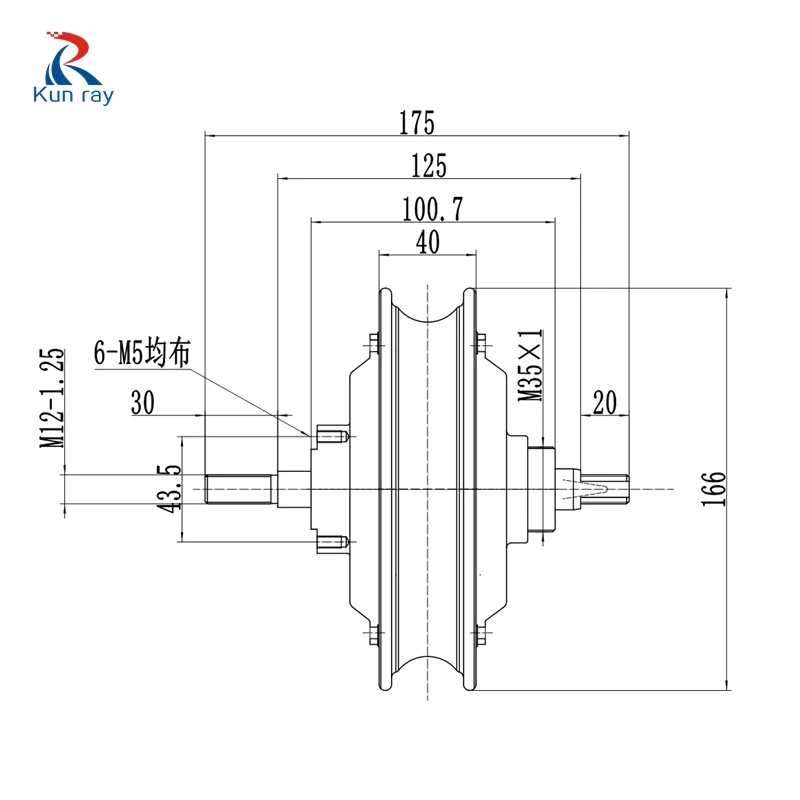

5. Fork Size:135mm
6. Brake Type: V brake
7. RIM Material: aluminum alloy

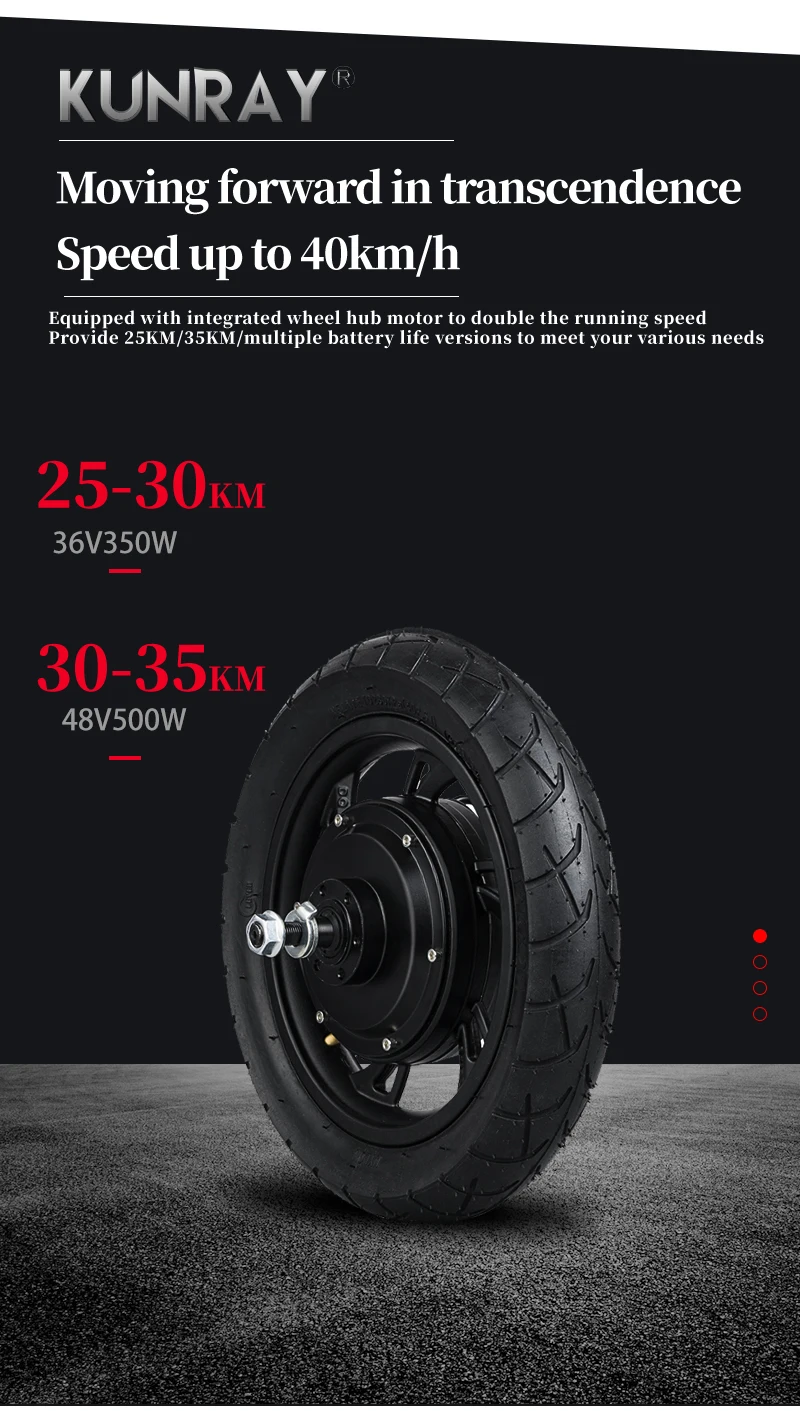

8. Motor speed: 36V350W about 25-30km . 48v500w about 30-35km
9. Load Weight: about 100-200KG
10. Motor can add Tire: 12X2.125 inner air tire
11. Current: 17A/22A
12.CUSTOMER NOTE: THE LINK WITH MANY SKU FOR YOU CHOOSE. ALL ITEMS IS SAME
THE PICTURE , PLEASE CHECK WHICH YOU WANT!
Packing List:
Same which you choose!! same with the picture which you choose!!

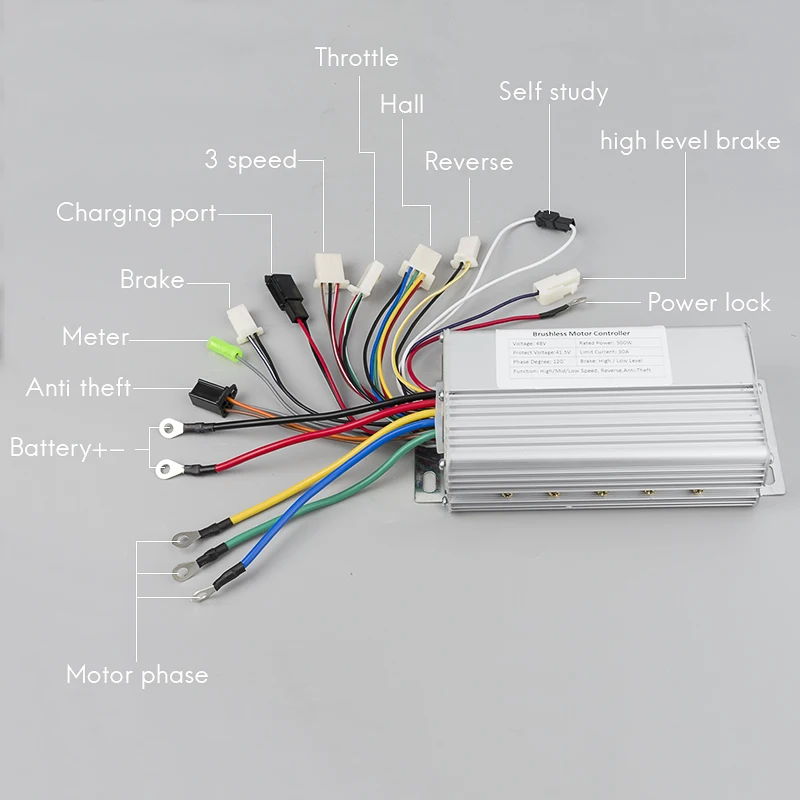

About BLDC motor controller

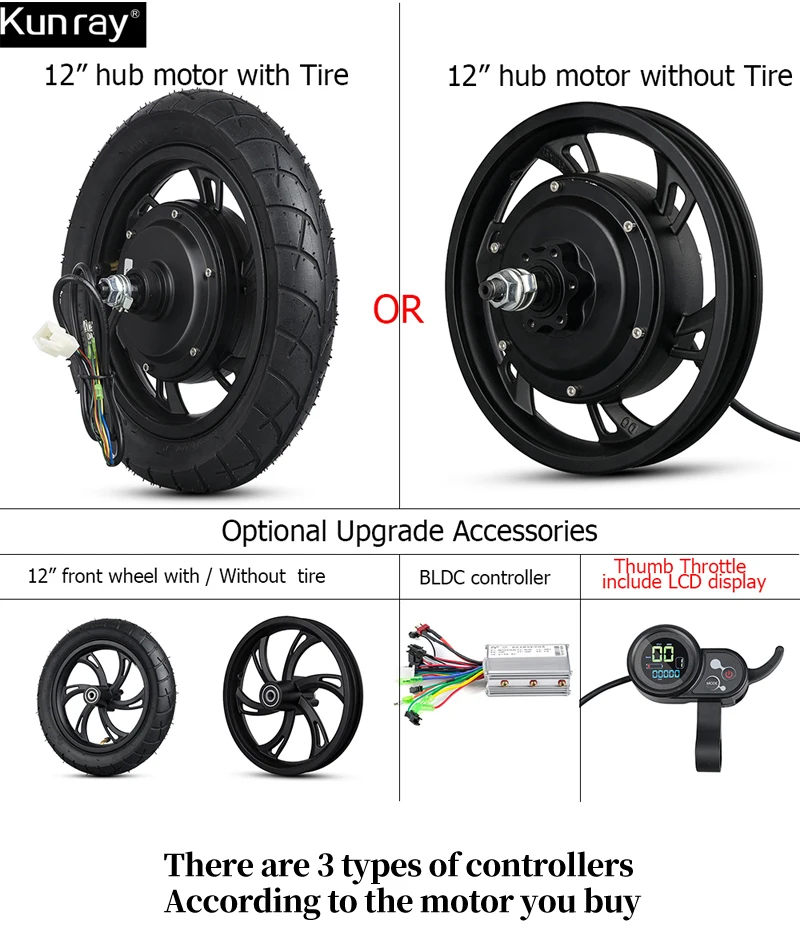

1. the link include 3 type controller
one is for 36V350W motor ,but can not work for any LCD display.

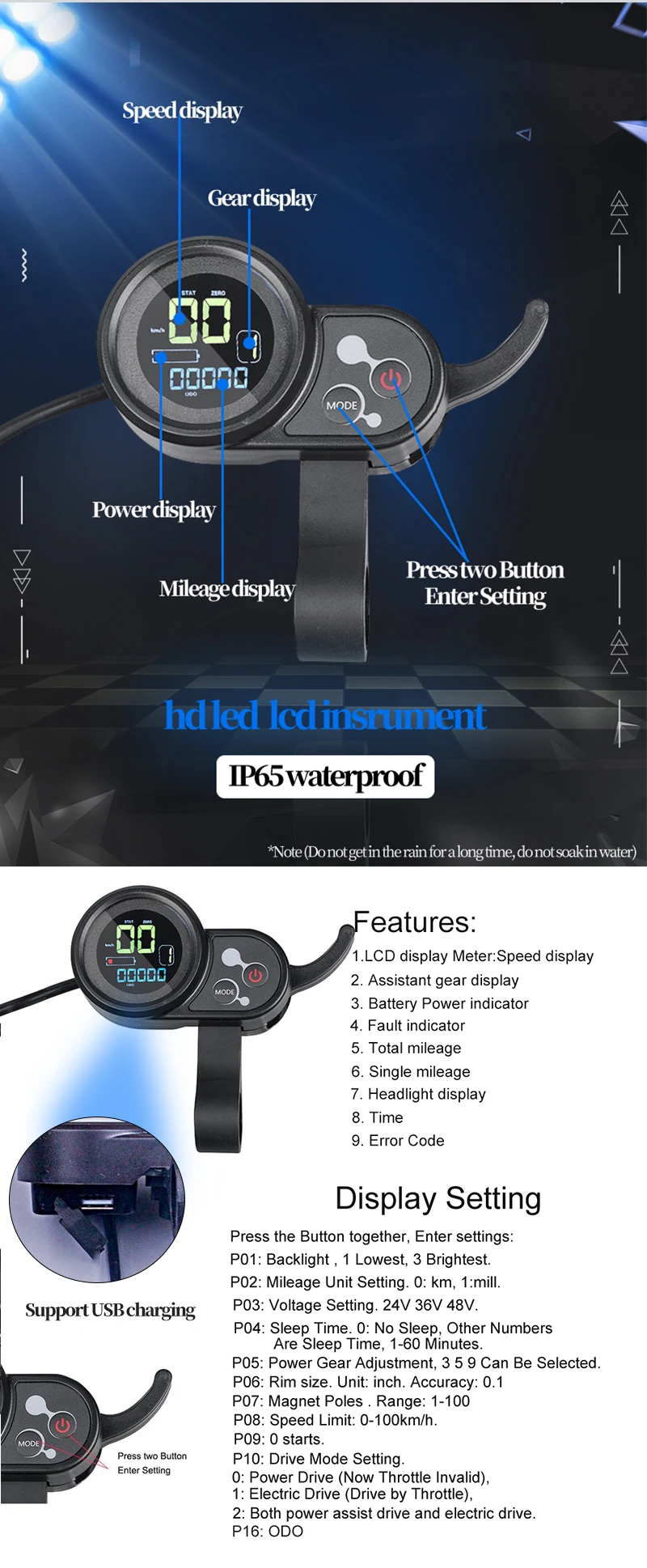

one is for 36V350W hub motor,but with LCD display and include thumb throttle.

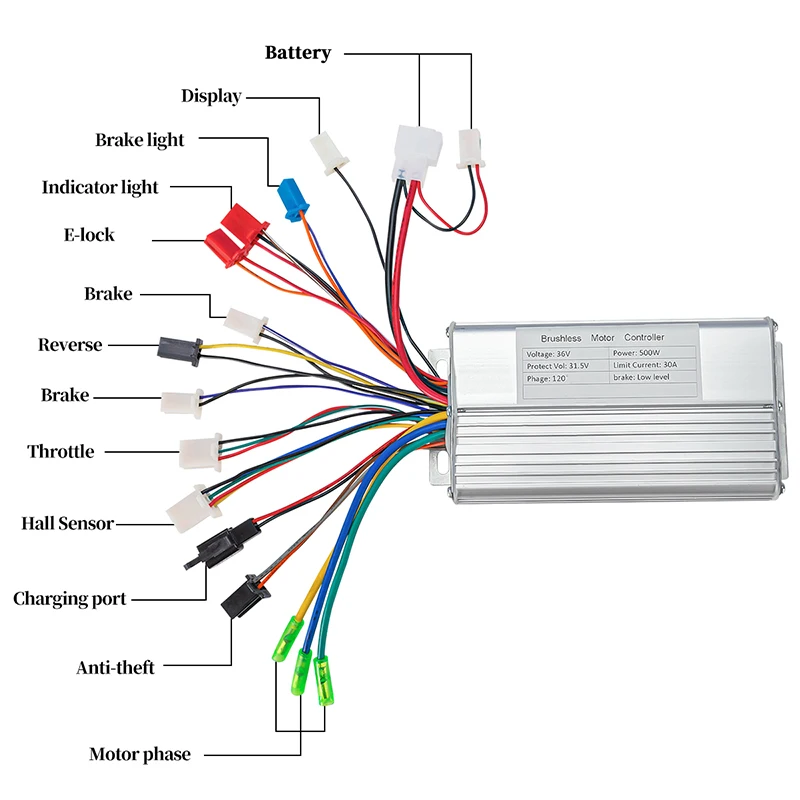

one is for 48V500W hub wheel motor , can not fit with LCD display.

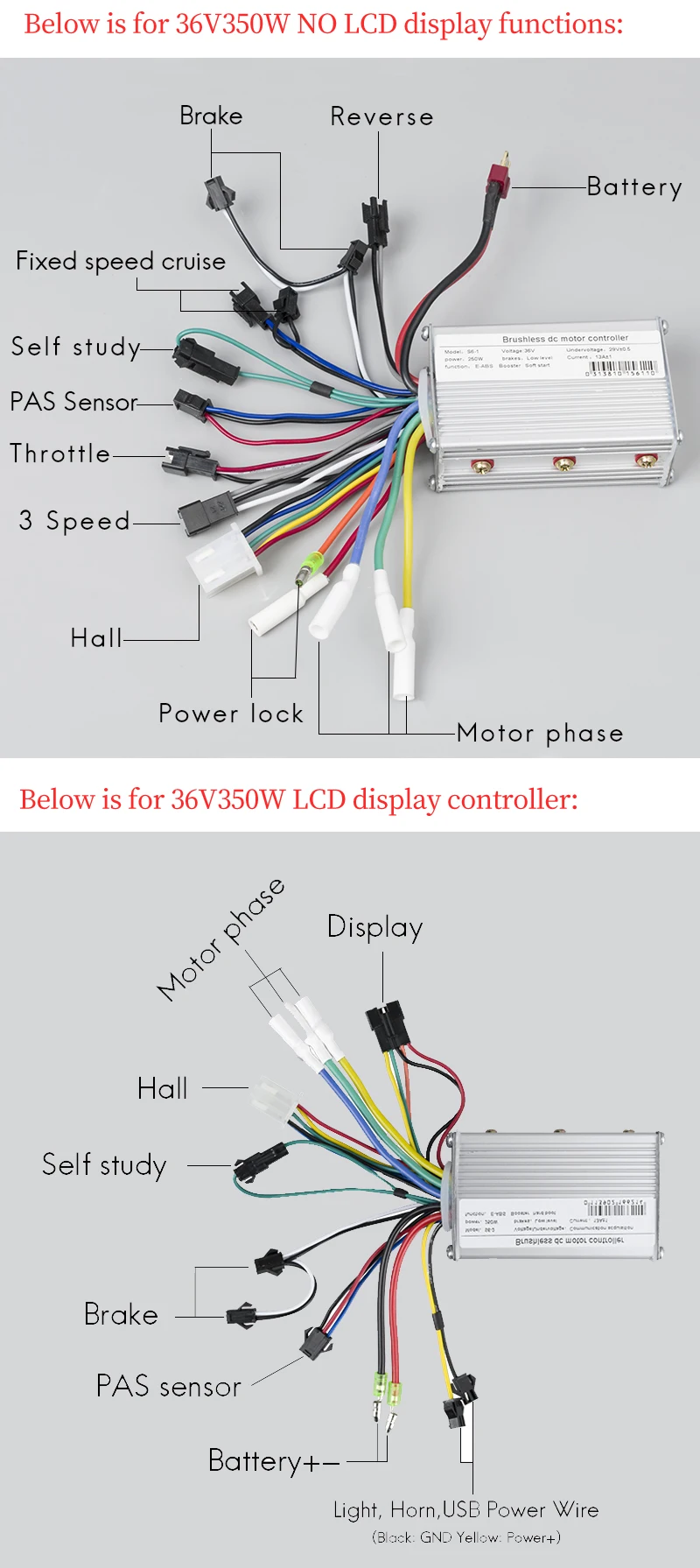

2. FUNCTIONS: SAME WITH THE WIRING DIAGRAM
PAY ATTENTION:
350W motor is different with the 500W motor with attern
