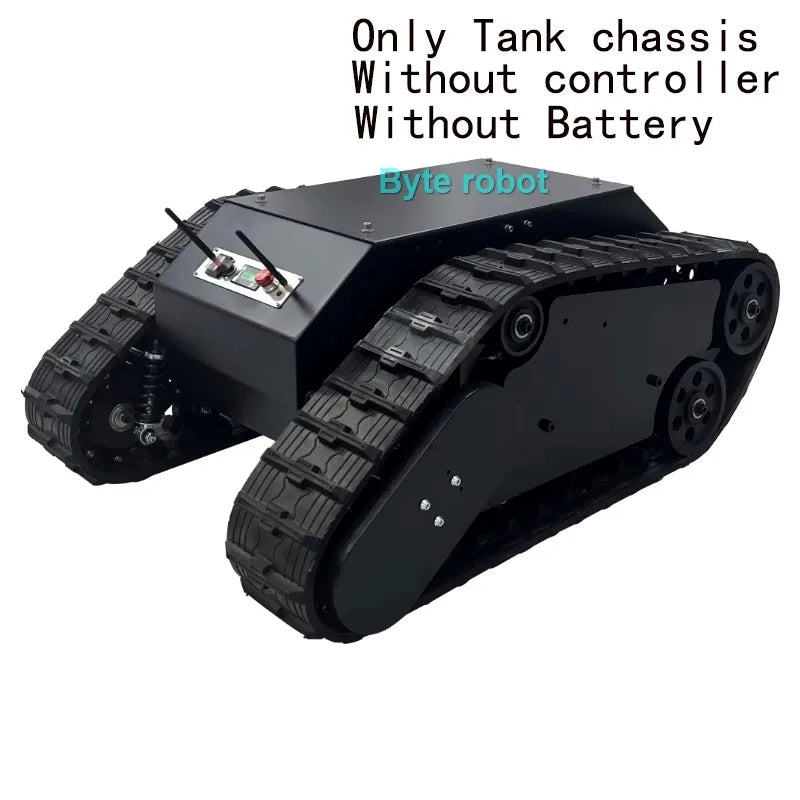

100Kg Large Load RC Tank TS5.0 Metal Chassis Rubber Tracks Overweight 90KG Obstacle Surmounting Tank For ROS STM32 Develop Robot
100Kg Large Load RC Tank TS5.0 Metal Chassis Rubber Tracks Overweight 90KG Obstacle Surmounting Tank For ROS STM32 Develop Robot
100Kg Large Load RC Tank TS5.0 Metal Chassis Rubber Tracks Overweight 90KG Obstacle Surmounting Tank For ROS STM32 Develop Robot
Note:
Due to customs policy requirements, the power supply cannot be mailed, so it is recommended to use the power supply 48V30Ah lithium battery

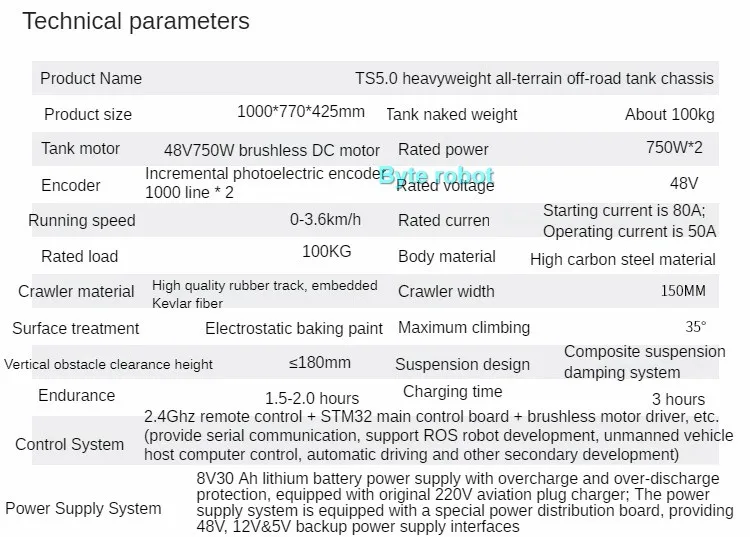

Product Description:
-
Name: TS5.0 Tank Chassis
-
Tank Boay Material:Steel
-
Surface Treatment:Electrostatic Paint
-
Tracks: 150mm width rubber tracks with kevlar fibers of inner tension layer
-

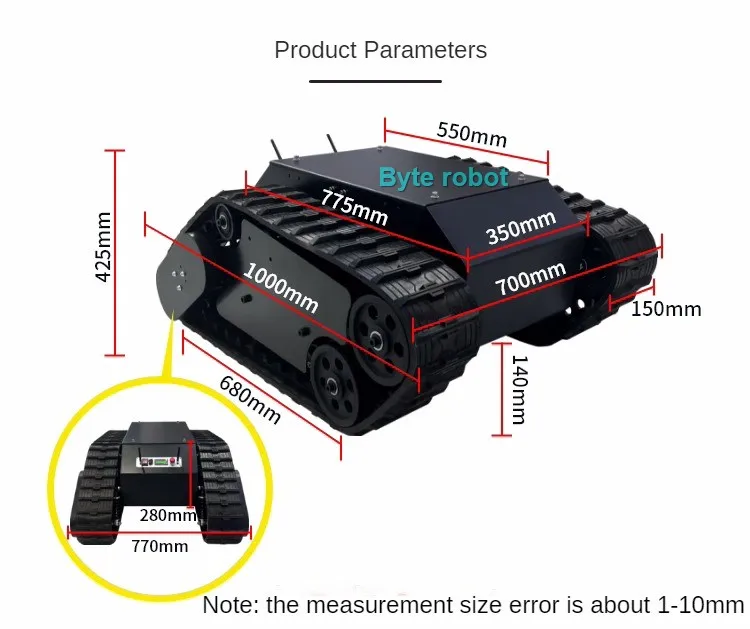

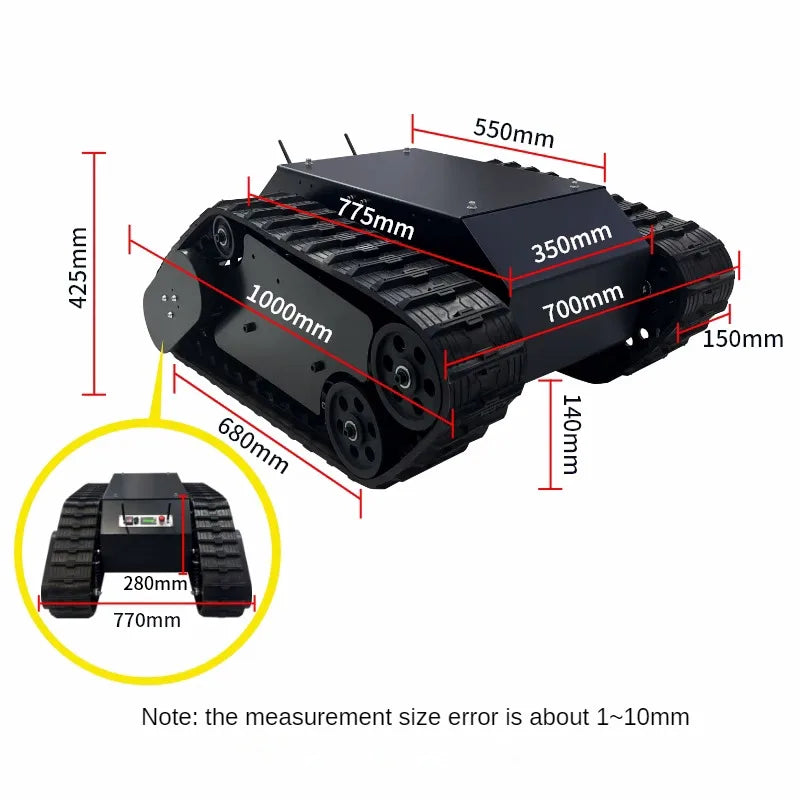

Size: 1000* 790 *430mm (length * width * height)
-
Working Voltage: 48V
-
Working Current Request:30Ah（The battery needs to be configured by yourself）
-
Running speed:0-5.4km/h
-
Tank Weight: 100KG
-
Type of Motor:48V*1000W DC brushless motor
-
Rated Power：1000W*2
-
Code Wheel Parameters：Imported photoelectric incremental encoder 1000 lines * 2
-
Max Obstacle：180mm
-
Climbing Angle:＜35°with load
-

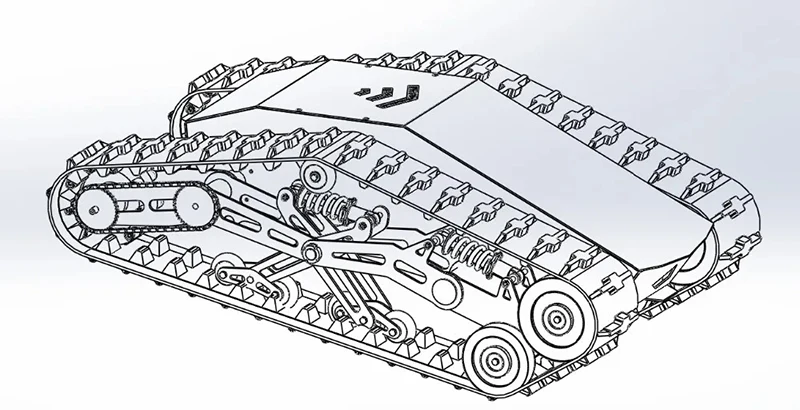

Shock-absorbing Design：Composite suspension damping system
-
Operating Temperature：-20℃~60℃
-
Loading:100KG
-

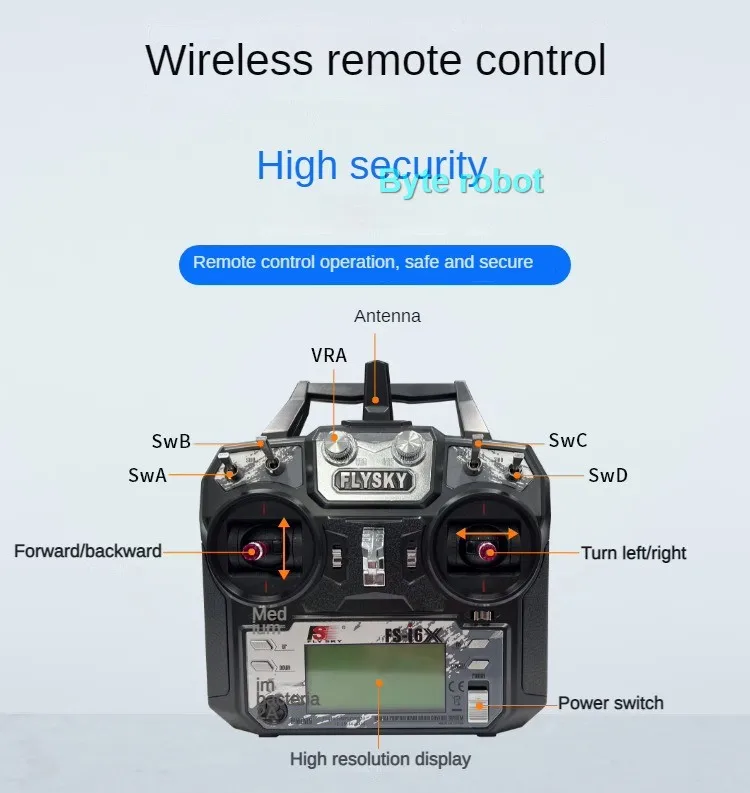

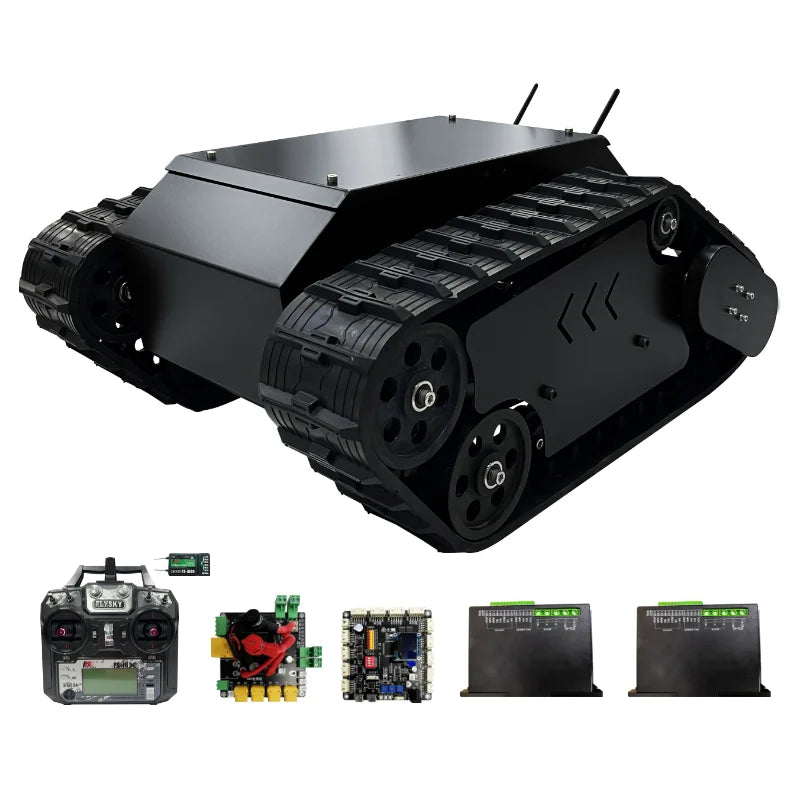

Control system: 2.4Ghz remote control + STM32 main control board + brushless motor driver, etc. (serial communication is provided, supporting ROS robot development, unmanned vehicle host computer control, automatic driving and other secondary development)
Power supply system: 48V30Ah lithium battery power supply with overcharge and overdischarge protection,The power supply system is equipped with a special power distribution board, providing 48V, 12V&5V backup power supply interfaces.
Tank bare weight: about 100kg
Rated power: 750W*2
Rated voltage: 48V
Rated current: starting current is 80A,The operating current is 50A
Body material: high carbon steel
TRACK WIDTH: 150MM
Maximum climb: 35°
Suspension design: composite suspension shock absorption system
Charging time: 3 hours
Note:

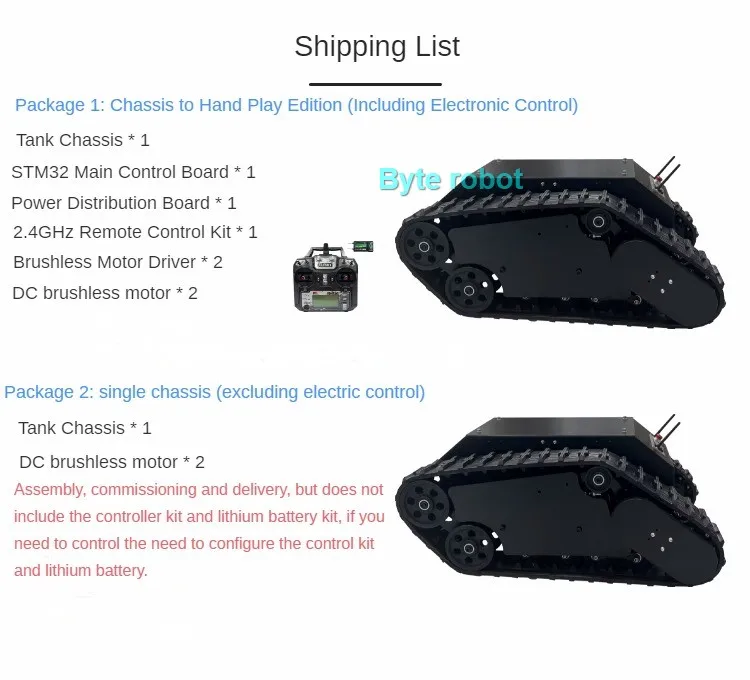

1. the product is unassembled, we offer the source code and installtion manual by email.
2. Shipping without battery,so it is recommended to use the power supply 48V30Ah lithium battery
