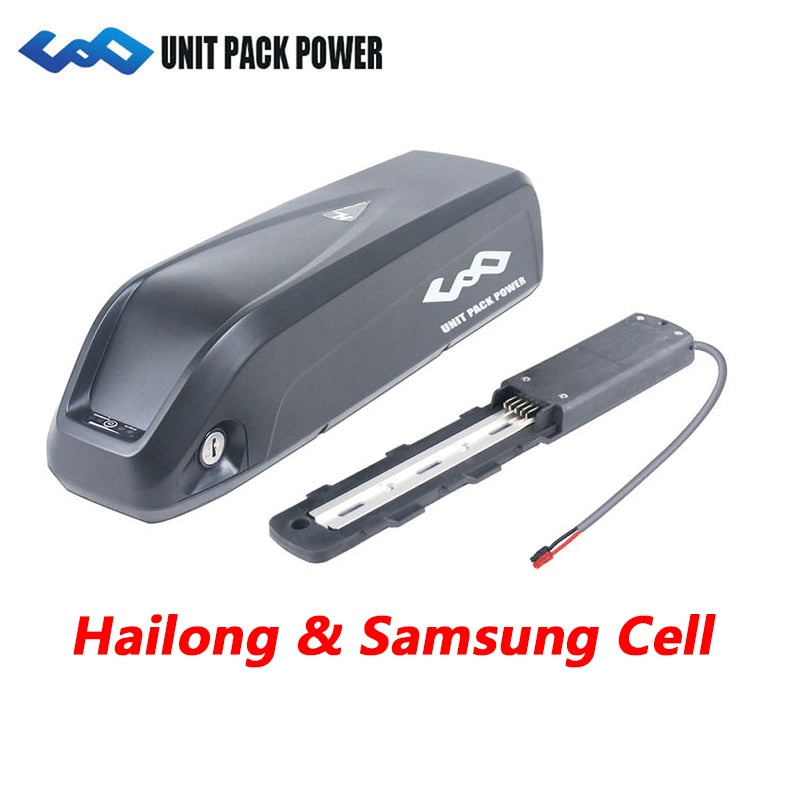

100% Samsung Cell 36V 10.4AH 11.6AH 13AH 14.5AH Hailong Frame eBike Battery 48V10.4AH 52V10.4AH Lithium Electric Battery
Brand Name: UNITPACKPOWER
Capacity: 10 - 20Ah
Voltage: 36v
Type: Lithium Battery
Nonimal voltage: 36V 48V 52V optional
Nonimal capacity: 10.4AH 11.6AH 13AH 14.5AH
Built-in cell: Samsung 3500mAH 18650 Cell
BMS: 20A for 36V, 25A for 48V 30A for 52V
Dimension: 365*90*90 mm
Weight: 3.7KG
Charge temperature: 0-45℃
Dicharge temperature: -20~65℃
Suitable motor power: Bafang BBSHD Tongsheng 1500W 1200W 1000W 750W 500W
Cycle life: Over 80% capacity after 800 times
100% Samsung Cell 36V 10.4AH 11.6AH 13AH 14.5AH Hailong Frame eBike Battery 48V10.4AH 52V10.4AH Lithium Electric Battery
Make the battery works for you
Kindly let us know what charge plug (UK, EU, AU, US optional) and discharge connector ( No. A~ J) you would like. Or you will get the default ones.
What you could get in your parcel
Parameters you may be interested
Parameter |
36V14.5AH |
48V10.4AH |
36V10.4AH |
52V10.4AH |
36V13AH |
36V11.4AH |
Nominal voltage |
36V |
48V |
36V |
52V |
36V |
36V |
Nominal capacity |
14.5AH |
10.4AH |
10.4AH |
10.4AH |
13AH |
11.4AH |
Built-in cell |
Samsung 2900mAH |
Samsung 2600mAH |
Samsung 2600mAH |
Samsung 2600mAH |
Samsung 2600mAH |
Samsung 2900mAH |
Configuration |
10S5P |
13S4P |
10S4P |
14S4P |
10S5P |
10S4P |
Charge cut off voltage |
42V |
54.6V |
42V |
58.8V |
42V |
42V |
Discharge cut off voltage |
28V |
36.4V |
28V |
39.2V |
28V |
28V |
BMS |
20A |
25A |
20A |
30A |
20A |
20A |
Suitable motor power |
0 to 560W |
0 to 910W |
0 to 560W |
0 to 1176W |
0 to 560W |
0 to 560W |
Dimension |
360*90*90 mm |
|||||
Weight |
3.7kg (Battery only, without charge and package) |
|||||
Charge temperature |
0-45℃ |
|||||
Discharge temperature |
-20-65℃ |
|||||
Standard charge current |
2A |
|||||
Warranty |
12 months |
|||||
Cycle life |
Over 80% capacity after 800 cycles |
Why your battery unique
Unit Pack Power can do more than you can ever image
Needing warranties?
Batteries received within 30 days get free return and fully refund;
Batteires recevied within 12 months get technical assistance as well as accessories for reparing.
Worring about shipping fee and tax?
For EU Countries customer: (Tax free)
Air to Europe firstly, then dispatch by Europe UPS/DPD, tracking number can be trackable online after UPS/DPD transferred the parcel.
Shipping time is usually 7-12 working days (not including Sat Sun) after delivery.
For USA Customers: (Tax free)
Shipping by FedEx/UPS, Shipping time is usually 6-12 working days after delivery.
Special Line:
1)Shipping by Special Line to Australia, Malaysia, Thailand, Taiwan, Shipping time is usually 4-12 working days.
2)Shipping by Special Line to Russia (Tax free), tracking online update after arriving Moscow. Shipping time is usually 18-28 working days.
Please note: battery can't be sent to any island address, if you're from an Island address, please check with us before order.
Batteries are good friends, take good care of them
Do not immerse the battery in water or seawater, keep the battery stands by in a cool dry surrounding.
Does not use or leave the battery near a heat source as fire or heater.
Use the battery charger specifically for that purpose when recharging.
Do not reverse the position and negative terminals.
Do not connect the battery electrodes to an electrical outlet.
Do not discard the battery in fire or a heater.
Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.
Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.
Do not strike, trample or throw the battery.
Do not directly solder the battery and pierce the battery with a nail or other sharp objects.
