UPP High Performance Triangle 52v ebike battery 52v 20ah Lithium battery pack With Charger for 1000W 1500W Motor easy-smart-way.myshopify.com
Sale

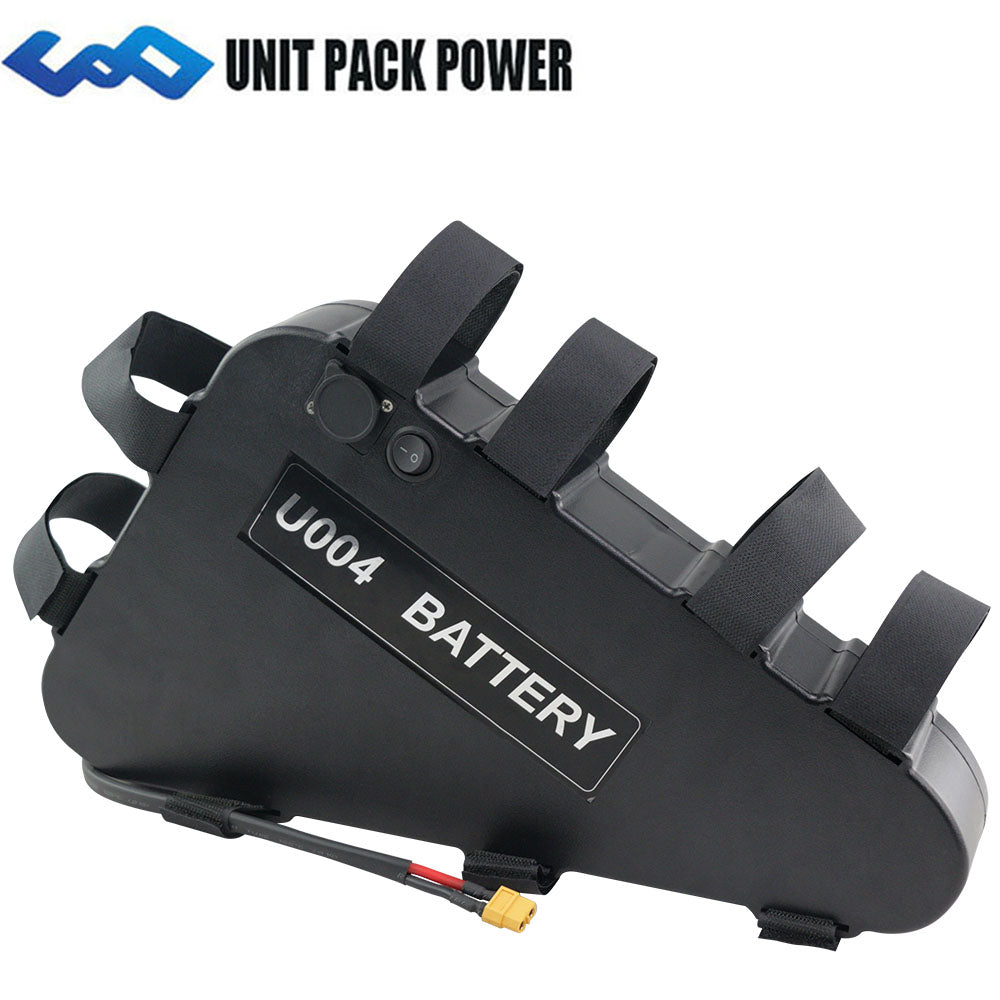

UPP High Performance Triangle 52v ebike battery 52v 20ah Lithium battery pack With Charger for 1000W 1500W Motor

$624.68 $664.88

UPP High Performance Triangle 52v ebike battery 52v 20ah Lithium battery pack With Charger for 1000W 1500W Motor

Brand Name: UNITPACKPOWER
Capacity: 10 - 20Ah
Voltage: 52V
Type: Lithium Battery
Rated Capacity: 20Ah
Watt Hours: 1040Wh
Cells: 18650 3.7V 2500mAh 3C cells
Fit for motor: 48V/52V 750W 1000W 1500w(optional)
Configuration: 14S8P
Battery Net Weight: 6.6kg
Battery Dimensions: 400*235*365*T80 MM
Charger: 58.8v 2.5A/3A
Lifecycle: 800-1000 Cycles with DOD80%
Certificate: CE,UL,RoHS,MSDS,UN38.3
Warranty: 12 months



UPP High Performance Triangle 52v ebike battery 52v 20ah Lithium battery pack With Charger for 1000W 1500W Motor

Unique Advantage of this item:

With patent private mold hard plastic triangle case, other manufacturer don't have and can't copy, the case is so stronger a lot than normal cloth triangle bag.

With high power high voltage and high capacity.



Charger plugs and Discharge connectors optional:

1.Charger Plug:   US EU UK AU    plugs optional, will provide according to delivery country if without requested.

2. Discharge Connector: There are 8 kinds optional as below picture, will provide naked cable or soldered with default connector if without requested.



discharge connectors for ebike batteryPlugs for ebike battery Charger






Specification

Nominal Voltage: 52V
Rated Capacity: 20Ah
Watt Hours:1040Wh
Cell inside: 18650 3.7V 2500mAh 3C cells
Configuration: 14S8P
Standard Charge Current: 2-5A
Max charge voltage: 58.8V
AC input: 110-240v,50/60HZ
BMS Continue Discharge Current: 30A/40A optional
Peak Discharge Current: 110A

options 1 "for 0-1000w motor"

Fit for Motors: 48V/52V 250W 350W 500W 750W 1000W



options 2 "for 1200w1500w motor"

Fit for Motors: 48V/52V 250W 350W 500W 750W 1000W 1200W 1500W



Note: battery voltage should keep same with motor.

Usually 52V battery can fit for most of 48V motor too, please double check whether your 48V motor support 52V battery before you choose 52V battery for your 48V motor.



Charged Cut-off Voltage: 58.8V
Discharge Cut-off Voltage: 42V
Battery Net Weight: 6.6Kg
Battery Dimensions: 364*232*64*343*80mm
Charger Connector: US/EU/UK/AU AC plug and DC Connector
Operating Temperature: Charging 0℃-45℃, Discharge -20℃~65℃
Lifecycle: 800-1000 Cycles with DOD80%



Package included


1pc 52V 20Ah Battery pack

1pc Plastic Case

10pcs Reclosable Fasteners

1pc 58.8V 2.5A or 3A Charger.

​



联派源开关联派源USB联派源出电联派源电源显示137 硕通

U004ok1Install-triangle case battery







Shipping Ways


About Shipping:

Battery is a special product, all batteries need several cycle test before delivery, so production and
test time need about 3-7 days after confirm order;

For EU Countries customer: (Tax free)
Air to Europe firstly, then dispatch by Europe UPS/DPD, tracking number can be trackable online after UPS/DPD transfered the parcel.
Shipping time is usually 7-12 working days( not including Sat Sun) after delivery.

For USA Customers: (Tax free)
Shipping by Fedex/UPS, Shipping time is usually 6-12 working days after delivery.

Special Line:
1)Shipping by Special Line to Australia, Malaysia, Thailand, Taiwan, Shpping time is usually 4-12 working days.
2)Shipping by Specail Line to Russia(Tax free), tracking online update after arriving Moscow. Shipping time is usually 18-28 working days.

Please note: battery can't be sent to any island address, if you're from a Island address, please check with us before order.

UnitPackPower also have warehouse and maintenance center at USA and Germany, if you want quicker shipping





Shipping ways

Guarantee

We provide 1 year warranty for all electric bike batteries.
Any battery with quality problem in o  n  e month we can return the money after you provide the proof.
After one month we can send BMS or cells to you for repair,or you can send it back to repair as well.
All our electric bicycle batteries with high quality cells and BMS, and they will be 100% tested before shipping.
Top brand lithium battery manufacturer in China, rest assured to buy.


We don't supply warranty service for the following situation :


The battery goes over water
The battery is broken man-made
The cells are burnt out after using .
Return the battery without reason
Open a case without contacting us


Feedback

Our battery can fit all motor kit, but exclude these four : Bosch, SHIMANO, Yamaha, Panasonic .

Please contact us, If you can't conifrm your motor.
If you have any problems please feel free to contact us BEFORE you leave negative feedback or file a case.

Any problem is not a problem, as long as you contact us.

Your satisfaction and positive feedback is very important to us.
Please kindly leave positive feedback and 5 Stars for us if you are satisfied with our items and services.

Company Information:

Company info-UPPCompany info-UPP1Company info-UPP2


FAQ

Q: What type of this electric bike battery?
A: It is li ion battery,Chemical is Li(NiCoMn)O2.

Q: What is the difference between li ion battery,NI-MH battery and Lead acid battery?
A: E-bike Li-ion battery have longer cycle life,normal cycle life is 800-1000 times, and also with light weight,small size, No memory effect,Nontoxic, environmental friendly.

Q: What's temperature range of charge and discharge?
A: Charge Temperature: 0 to 45°C and Discharge Temperature: -20 to 65°C

Q: What kind of cells used on this electric bicycle battery?
A: Different capacity with different cells, we make the battery with original A grade Samsung,Panasonic,Sanyo,LG and high quality domestic cells,all can be customized as your requests.

Q: Do your e-bike battery come with charger?
A: All of our e-bike batteries come with charger.We have normal charger and fast charger.If you need fast charger please contact with us.

Q: Do your electric bike batteries come with BMS?
A: Yes, Our batteries all with SEIKO IC BMS, with stable performance.Which can protect the battery avoid short circuit,Overcharged,Over discharge and Over current.


Q: Can you provide OEM and ODM service?
A: Yes, We are a professional Electric Bike Battery manufacture with factory, which produce all kind of high quality E-bike lithium batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit our factory.


Lithium battery features

Longer battery life, the life expectancy is two times that of lead-acid batteries.
Rechargeable and no memory effect.
The weight is more lighter.
Smaller dimensions and can be customized.
Safer and more environmentally friendly, No heavy metals and hazardous substances.
BMS built-in IC chip will prevent battery pack over charge, over discharge, over-current,
over-heat, short circuit .


Warnings

Do not immerse the battery in water or seawater, keep the battery stands by in a cool dry surrounding.
Does not use or leave the battery near a heat source as fire or heater.
Use the battery charger specifically for that purpose when recharging.
Do not reverse the position and negative terminals.
Do not connect the battery electrodes to an electrical outlet.
Do not discard the battery in fire or a heater.
Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.
Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.
Do not strike, trample or throw the battery.
Do not directly solder the battery and pierce the battery with a nail or other sharp objects.

UnitPackPower batteries have insured to China Ping An Insurance, rest assured to buy.
