Tangsheng TSDZ 2 48V 500W Torque Sensor VLCD5 VLCD6 XH18 Display Mid D - E Smart Way

Free Shipping On All Orders Storewide

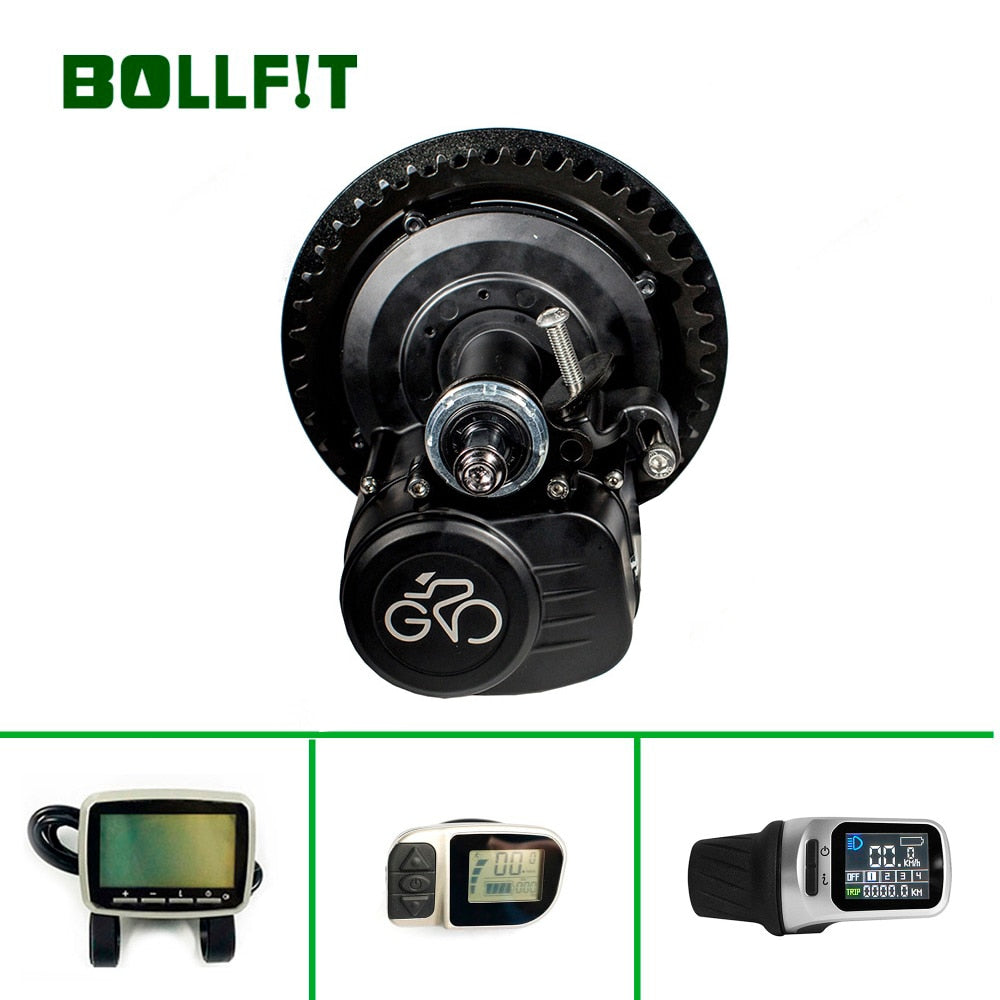

Tangsheng TSDZ 2 48V 500W Torque Sensor VLCD5 VLCD6 XH18 Display Mid Drive Central Motor Ebike Electric bicycle Conversion kit

Regular price $419.68

Tangsheng TSDZ 2 48V 500W Torque Sensor VLCD5 VLCD6 XH18 Display Mid Drive Central Motor Ebike Electric bicycle Conversion kit



Brand Name: BOLLFIT
Voltage: 48V
Design: Brushless
Wattage: 301 - 400w
Motor Type: Brushless Gear Hub Motor
Motor Type: TSDZ2 mid drive motor kit
Model: 48V 500W KIT TSDZ-2

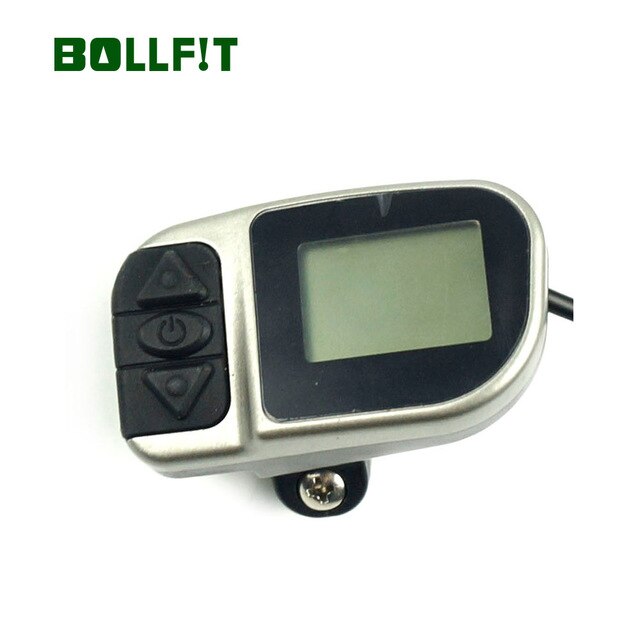

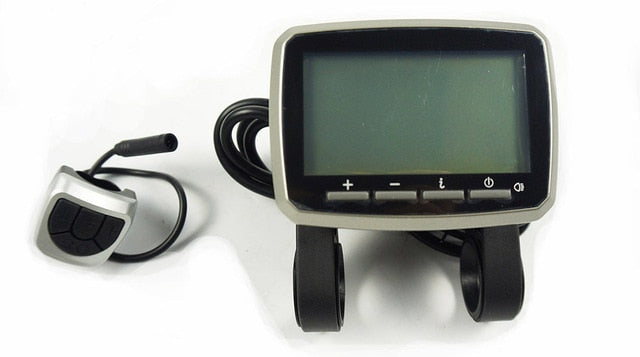

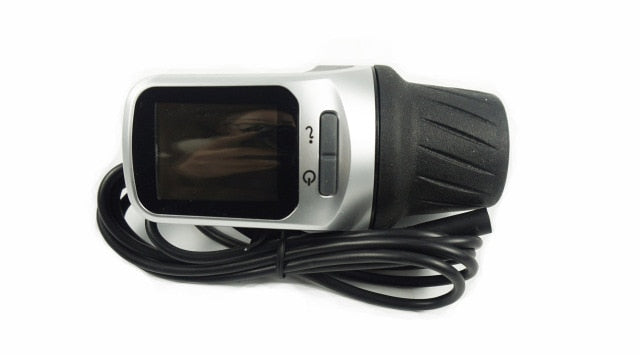

LCD Display: VLCD6&VLCD5&XH18 For option
Chain Wheel: 42T
Feature: Mid Drive
BB Size: 68-73mm



Tangsheng TSDZ 2 48V 500W Torque Sensor VLCD5 VLCD6 XH18 Display Mid Drive Central Motor Ebike Electric bicycle Conversion kit







TSDZ-2 Tongsheng Mid-drive Motor Kit (VLCD6 Display)
Power:Voltage:36/48V Power: 250/350/500W
Power Assist Ratio :36%-300%
Speed:25KM/H-40KM/H(Speed limit is available)
MAX Torque:80 N.m
Efficiency: > 85%
SENSOR : Torque Sensor
Centification:CE/EN 14764/ROHS
Waterproof Grade:IP65
Net Motor Weight: 3.6kg
Package Weight:5.5-6.0kg
Bracket bottom length:68/73mm (Standard:JIS)
Motor Operation Temperature:-20℃-45℃
Speed within 25-30km/h can help you ride further


Packing list:
Tongsheng Mid Drive Motor * 1 pcs
Speed Sensor + Magnet * 1 set
Chain Wheel: 52T 42T 34T (We can help you to change the chain wheel size) *1 pcs
XH18 Display *1 pcs
Thumb Throttle * 1 pcs
Crank* 1 pair
1T2 cable
Front and Rear Light *1 (optinal)


Gifts:Magic Scarf or Other Gift ,36V 250W label *2



Warranty :​motor is one year






HOW DO I KNOW IF THE MID DRIVE CONVERSION KITS WILL FIT MY BIKE?


The Mid Drive Kits are designed to fit bikes with a 68mm (2.68 in.) or 73mm (2.87 in.) wide bottom bracket shell and 35mm inside diameter.  This encompasses the vast majority of bikes excluding some newer high end bikes with an Integrated Bottom Bracket, and Fat tire Bikes with a 100mm wide bottom bracket shell

This midmotor cannot be used on carbon fiber bicycle.If you cannot install the motor due to yourown bicycle problem .We will refuse to provide the after sale service.I/'m so sorry.Please make sure the details of your bike before you order it.


Bollfit Service Advantages:



1,We/'d like to change the brake lever into Hydraulic Brake Sensor freely. Please kindly mark while you make order if you need.(Attention: Just VLCD5 set has ebrake function.If you order VLCD6 or XH18 set ,No ebrake function.Also no brake sensor function)


2,If you buy TSDZ2  mid-drive motor kit and follow our store. we/'ll send you a pair of connectors (PP30 , Bullet, XT60 )  as gift to you.Please leave a message to tell me which one do you need.


3,We also provide two 36V 250W labels as a gift for every customer who order this midmotor.


4,In the following countries, your tax will be paied by us if you buy DDP shipping service together with motor kit.



the United Kingdom Germany Belgium Luxembourg Netherlands Slovenia France Poland Austria Czech Republic Denmark Hungary Slovakia Lithuania Spain Sweden Latvia Italy Portugal Estonia Croatia Finland.





Package list

  •  1* TSDZ2 mid drive motor with torque sensor.
  •  1* Speed sensor with magnets
  •  1* thumb throttle
  •  1* Ebrake
  •  1* E-bus cable set(can compatible till 28inch bike)
  •  1* 42T chainwheel
  •  1* Lcd display: VLCD6/VLCD5/XH18
  •  2* 36V250W labels
  •
  • Attention: If you order VLCD5 set.With ebrake and throttle function.No E-BUS cable.If you order VLCD6 or XH18 set.No Ebrake function.With E-BUS cable.


Parameter

1. Easy assembling;
2. Maximum Torque: 80N.M;
3. Built-in Controller and both side torque sensor;
4. Weight: 3.6Kg;
5. LCD Display.
6. Power: 500W
7. Power Assistant Ratio: 36%~300%;
8. Limited Speed: 25Km/h;
9. Chainwheel: 42T;
10.High efficiency, low battery power consumption, safety long riding.
11.Current cutoff as long as pedaling stopped
12. This midmotor cannot be used on carbon fiber bicycle.If you cannot install the motor due to your own bicycle problem .We will refuse to provide the after sale service.I/'m so sorry.Please make sure the details of your bike before you order it.
























tax



The Tangsheng TSDZ 2 48V 500W Torque Sensor VLCD5 VLCD6 XH18 Display Mid Drive Central Motor Ebike Electric bicycle Conversion kit destined to impress, and priced at only $414.68, for a limited time.

Inventory Last Updated: Dec 18, 2024
