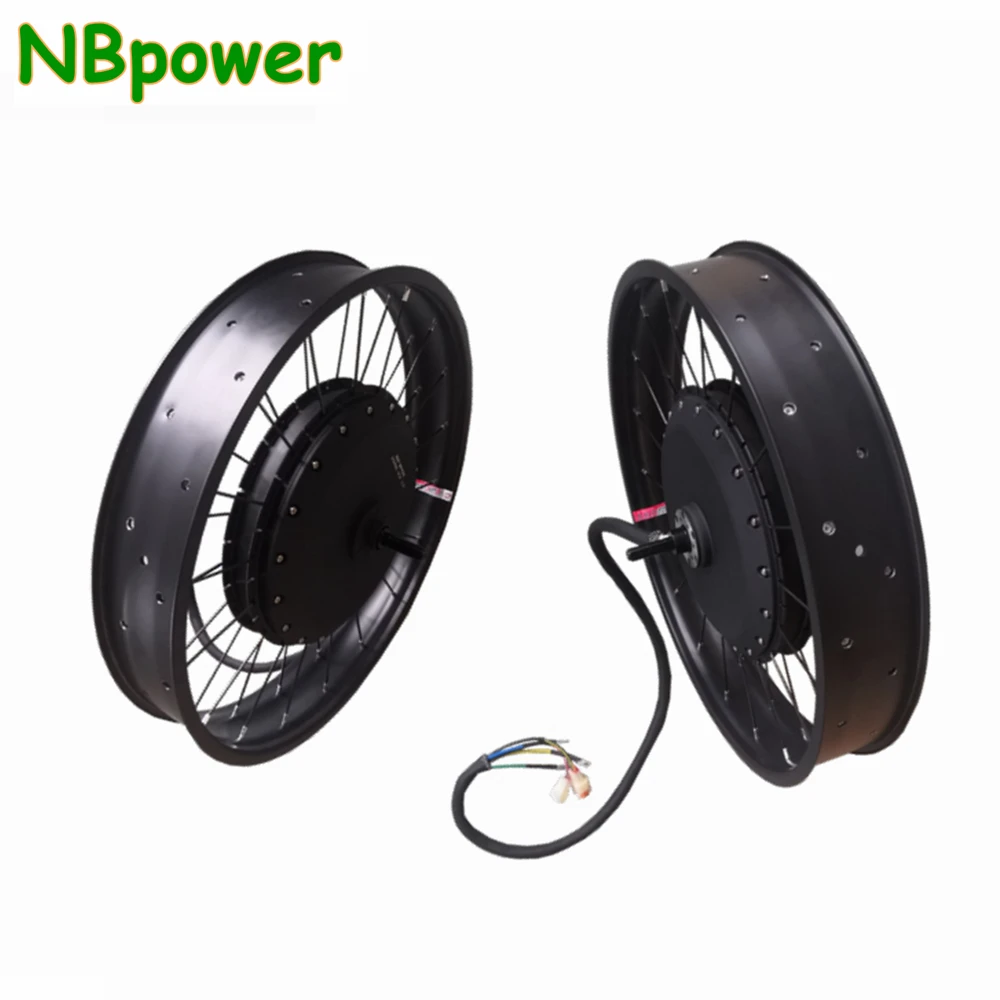

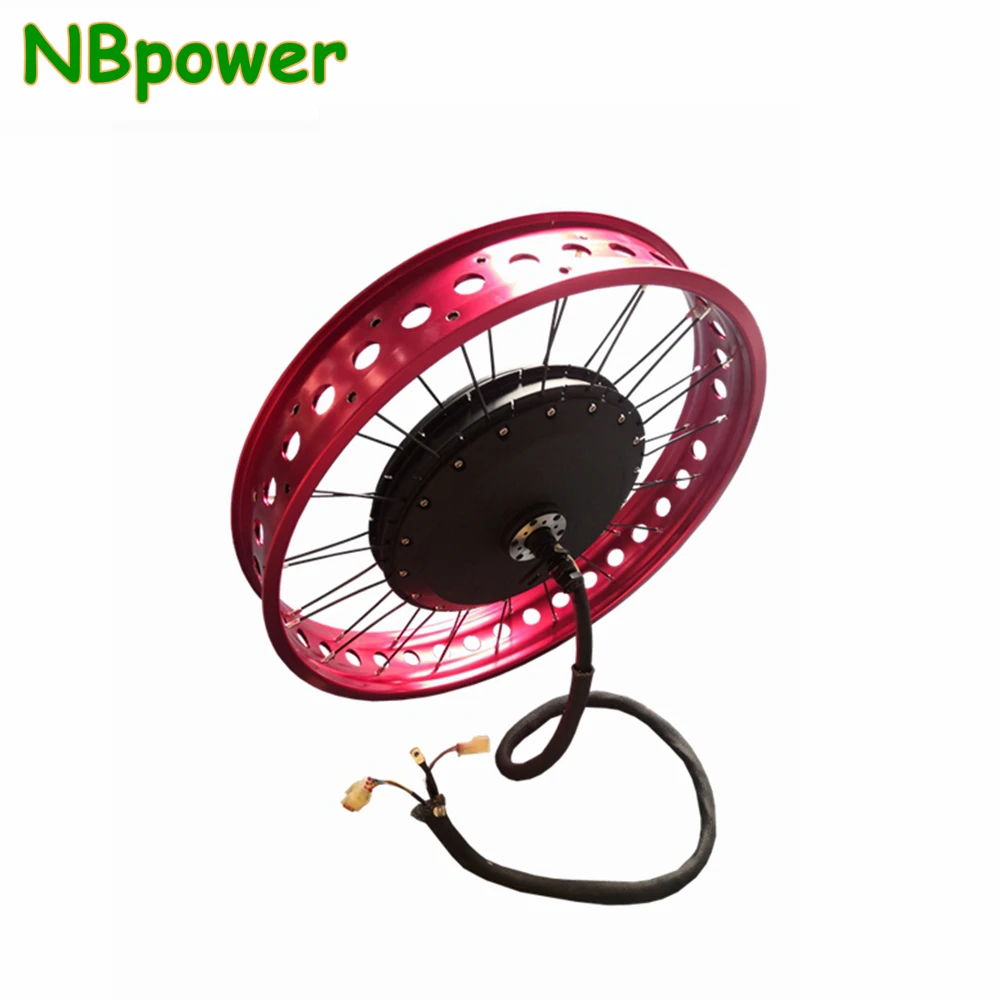

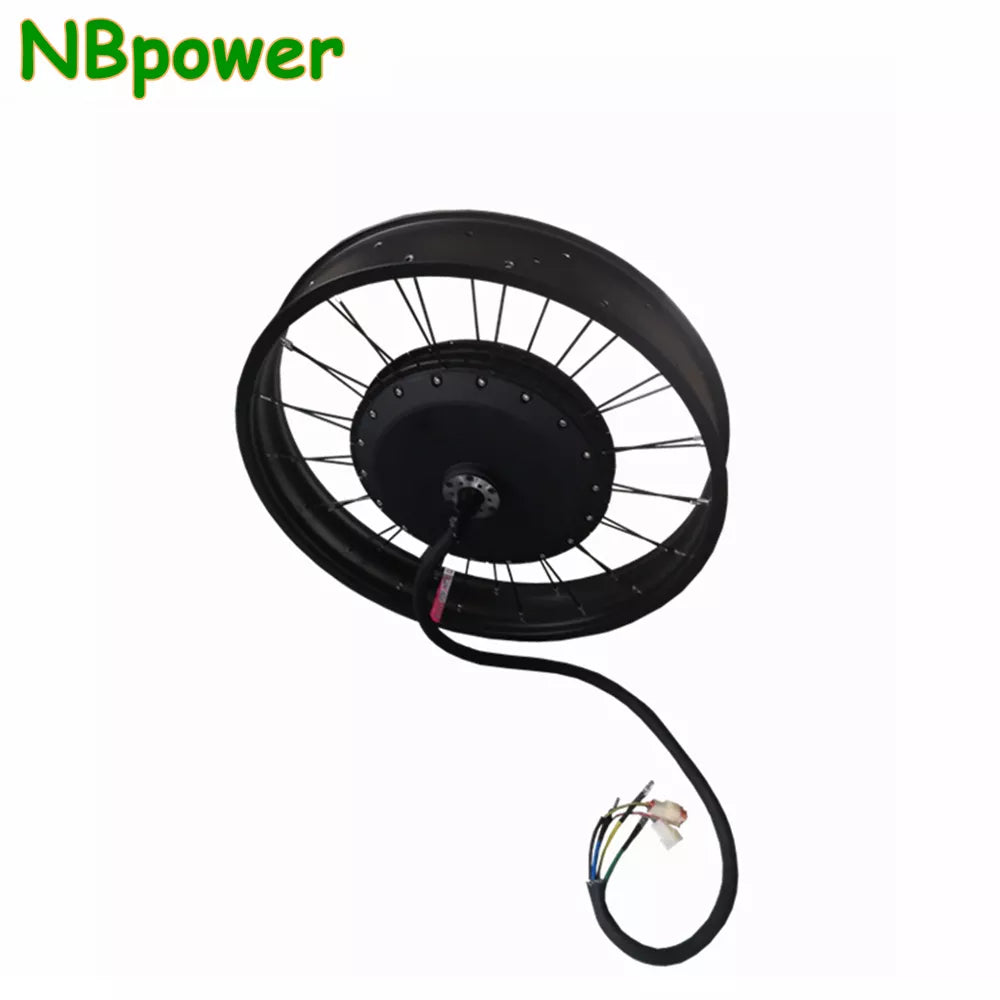

QS 150mm Dropout 48-96V 8000W 40H Electric Fat Bike Rear Motor Wheel 26X4.0 Rim Max Speed 110km/h
Packaging list
1. 26X4.0 QS 48-96V 8000W 150mm dropout rear hub motor wheel
(Black 80mm width rim in the picture by default, if need other rim please contact us）
2. Single speed freewheel
Difference between 3.5T and 5T : 3.5T is high speed version（Speed reach 120km/h without load at 72V）, 5T is high torque version(Speed reach 70-75km/h without load at 72V). And if you often ride on mountain road or your ebike will load heavy weight, then 5T is better for you.
Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor
Brand: QS Motor,QSMOTOR
Motor Design: Double axle without rim (not integrated), 36 spoke holes, OD 4.2mm
Matching Rim size: 17inch, 18inch, 19, 21inch moped wheel. 26inch fat bike wheel
Magnet Height: 40mm, 16 pole pairs
Stator: Aluminmum Core
Rated Power: 8000W
Rated Voltage: 72V as default
Max Speed: 130KPH
kV: 11.46/12.46/13.54/15.69/17.71etc.
Max Torque: approx 250N.m
Max Efficiency: 86-91%
Thermic Probe: KTY83/122 (as default, optional)
Working Temperature: 70-120℃ , peak 150 ℃
Brake type: Bike Disc brake, PCD6*44mm(as default)
Drop-outs/Rear Fork Width for installation: 150mm
Dual Hall Set with waterproof connectors
16mm⊃2; Cross Section of Phase Wire (not include insulation layer)
Hall Sensor Phasing angle: 120 degree
Waterproof Grade: IP54
