Bafang 8fun BBS02B 36V 500W DPC18 850C C965 LCD Display 52T Central Engine Mid Drive Motor Electric Bike Conversion Kit
Brand Name: okfeet
Voltage: 36V
Design: Brushless
Wattage: > 400w
Motor Type: Side Hung Motor
Chainwheel: 44T/46T/48T/52T
LCD display: C961/C965/850C/500C/750C/DPC18/KD718/SW102
Bafang motor Model: BBS02B
Controller current: 18A
Fit for: 68mm bracket bottom
Motor Power: 500W
Net Motor Weight: 4.3kg
Waterproof Grade: IP65
Bafang Model: MM G340.500
Package Weight: 6.5kg
Bafang 8fun BBS02B 36V 500W DPC18 850C C965 LCD Display 52T Central Engine Mid Drive Motor Electric Bike Conversion Kit
Service
1.If your brake lever is Hydraulic Brake .We can upgrade the ebrake to brake sensor.Please leave a message when you place the order.
2.We supply 44T 46T 48T 52T chainwheel.If you need replace.Please also leave a message.Thanks.
3.About the battery connector.We supply 3 versions.Bullet.PP30.XT60.Please also leave a message.Thanks.
4.If you need a label sticker of 36V 250W.Please tell me .We can send the sticker to you.
5.This is for 68mm bottom branket.(JIS)If your bottom branket is 73mm.Please contact us.
6.This kit is not for Carbon fiber bicycle.
7.We provide a front light OR a installation tool as a gift.Please leave me a message which one do you need.The default gift is tool.
8.In the following countries, your tax will be paied by us if you buy DDP shipping service together with motor kit.
the United Kingdom Germany Belgium Luxembourg Netherlands Slovenia France Poland Austria Czech Republic Denmark Hungary Slovakia Lithuania Spain Sweden Latvia Italy Portugal Estonia Croatia Finland.
Main parameter
Construction: Gear drive
Max Torque: 100 N.m
Display: C961 C965 SW102 / 850C 750C DPC18 KD718 500C (colorful display) Optional
Integrated Controller Current :25A
New Controller Code : 211
Stator Widing : 7T
Teeth Number:44T 46T 48T 52T (Optional)
Shaft standard: JIS
Pedal sensor: speed sensor
Noise Grade: ＜55dB
Certifications : CE / EN14764 / ROHS
Salt spray test standard (h) :96

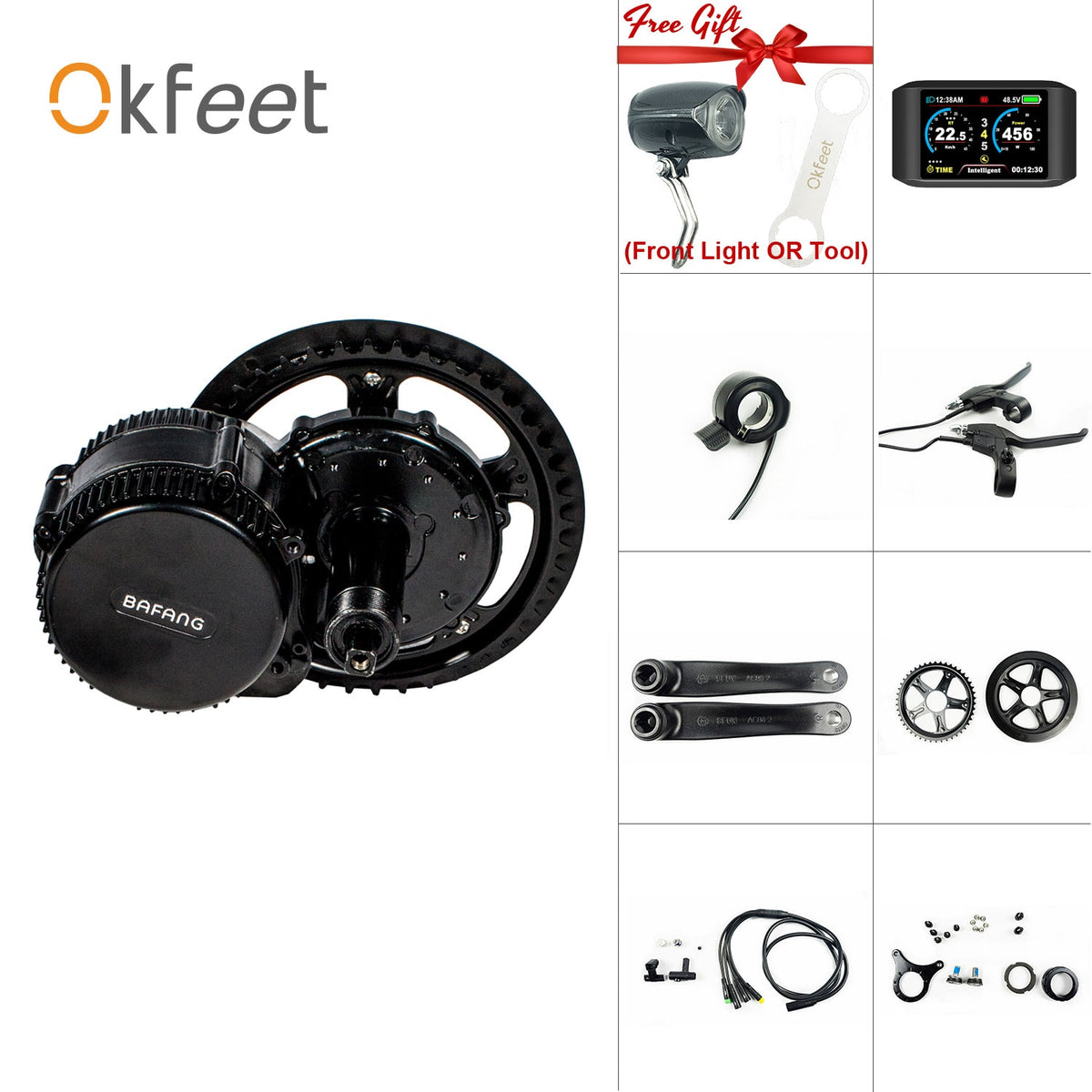

Packaging included:
1 * 36V 500W Mid Drive Motor
1 Pair * Brake Levers (can be changed to brake sensor for free, please kindly leave us message if you need)
1 Pair * Crank
1 Pair * Chainwheel (44T/46T/48T/52T opition, please kindly leave us message if you want change the chain wheel)
1 Set * Thumb Throttle
1 Set * Speed Sensor
1 * Display ( Optional)
1 * 4 in 1 Cable
1 * Accessories
Gifts: 1 pcs 6V Front Light OR a installation tool
If you need different power connector.Please contact me.
If you need a 36V 250W label sticker.Please tell me .
Thanks!
WARRANTY
Battery:1 year Parts:6 months motor:2 years
Based on the purchase data:free repair.Buyer pay for return postage and resend postage.
EXPRESS
Usually we send the goods as the shipping method you choose.But some times we may change the shipping method,also as fast as you choose.Please understand.
SYSTEM MATCH
Before you place the order about controller or display.Please contact us without hesitation and send me some your old conversion system pictures .Because some are same appearance but has different communication protocol.They may not match your old conversion system.
CUSTOMS TAX
Usually we declare the minimum value to save your customs tax.But due to different policies in different countries,there might be some customs tax should be paid by buyer.So you could leave a message when placing the order about how much value you would like to declare.
FEEDBACK
Your satisfaction will be our best return for serving you. Please give us a five-star rating if you are satisfied with our products.If you are not satisfied,please contact us.We will serve you until you satisfied.
