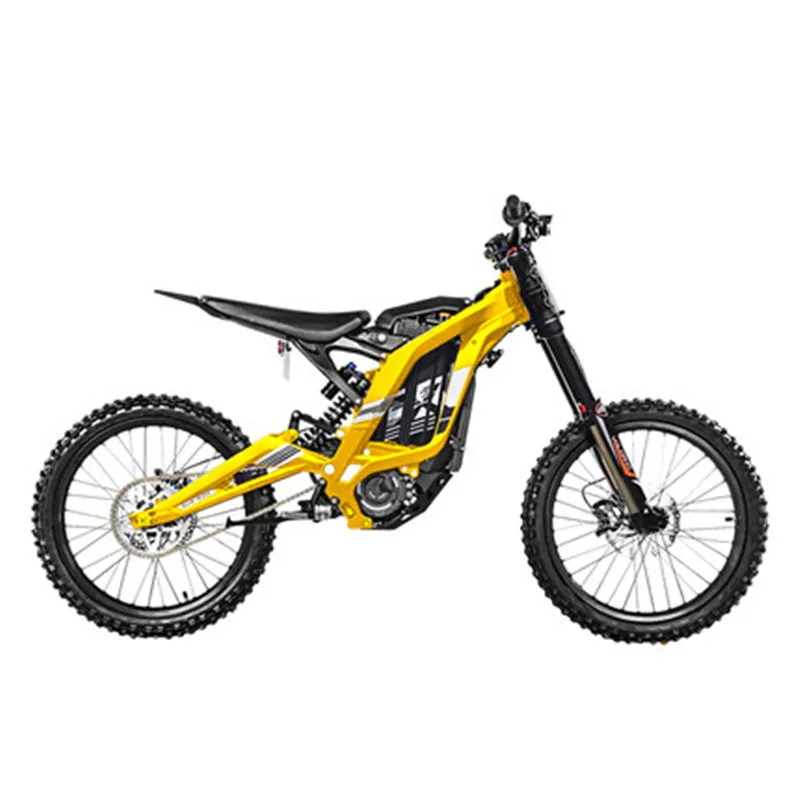

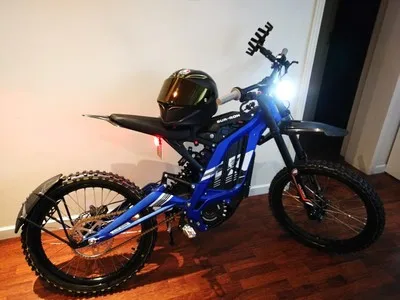

Electric motor Sur-ron Light Bee X version electric motorcycle off-road electric mountian bikes super ebike all terrain SUV
Brand Name: JimMia
Voltage: 48V
Foldable: No
Wattage: > 500w
Power Supply: Lithium Battery
Rated Passenger Capacity: One Seat
Wheel Size: 26“
Max Speed: 30-50km/h
Motor: Brushless
Certification: ce
Range per Power: 31 - 60 km
Frame Material: Aluminum Alloy
Style: Luxury Type
Model Number: JM01
Electric motor Sur-ron Light Bee X version electric motorcycle off-road electric mountian bikes super ebike all terrain SUV
If you have any questions please contact customer service
PARAMETER
Length: 1870mm
Width: 780mm
Height: 1040mm
Minimum floor distance: 270mm
Wheelbase: 1260mm
Vehicle quality: 50 kg
Front axle mass distribution: 24 kg
Rear axle mass distribution: 26 kg
Maximum load weight: 100 kg
Angle and itinerary
Anteversion: 26 °
Direction of steering angle: 46 °
Fork travel: 200mm
After the reduction / round travel: 87 / 210mm
Performance and transmission
Motor maximum speed: 4500r / min
Cooling method: forced air cooling
Climbing angle: 35 °
Endurance: 100 km (20 km / h speed)
Maximum torque: 200N. m
Transmission type and transmission ratio: 1: 7.6
Stick: belt + chain
Belt specifications: horse brand HTD 8 M CXA stick
Frame and shock

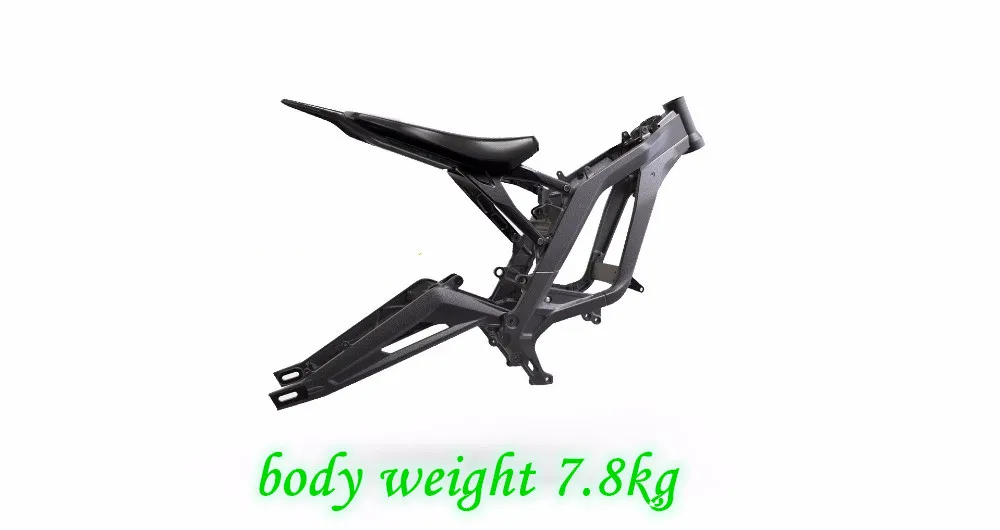

Frame type: aluminum double cradle
Front shock type: double cylinder is vertical telescope
After the shock type: multi-link center shock
Tires and brakes
Tire specifications (front): 70 / 100-19
Tire specifications (after): 70 / 100-19
Rim type (front): 19x1,4
Rim type (after): 19x1,4
Brake type (front): to brake the four-piston hydraulic discs
Brake type (rear): to brake the four-piston hydraulic discs
Electronic components
Motor: 48V 3000W
Lithium battery: 48V25AH
Controller type: 48adaptive
ECU type: GPS data connection
Speaker: European standard speaker
Charger type: constant current constant voltage 58.8V-5A
Power battery specifications: 51.8V25AH lithium battery pack
Front headlight type: bicycle headlight (V) (W) (mm)
Brake Light / Taillight Type: Bicycle Deuterium (v) (w)
USB power supply: USB-2.1A single socket
Instrument: IBN negative liquid crystal instrument
