STM32 and Arduino versions do not include a power adapter (12V 5A)

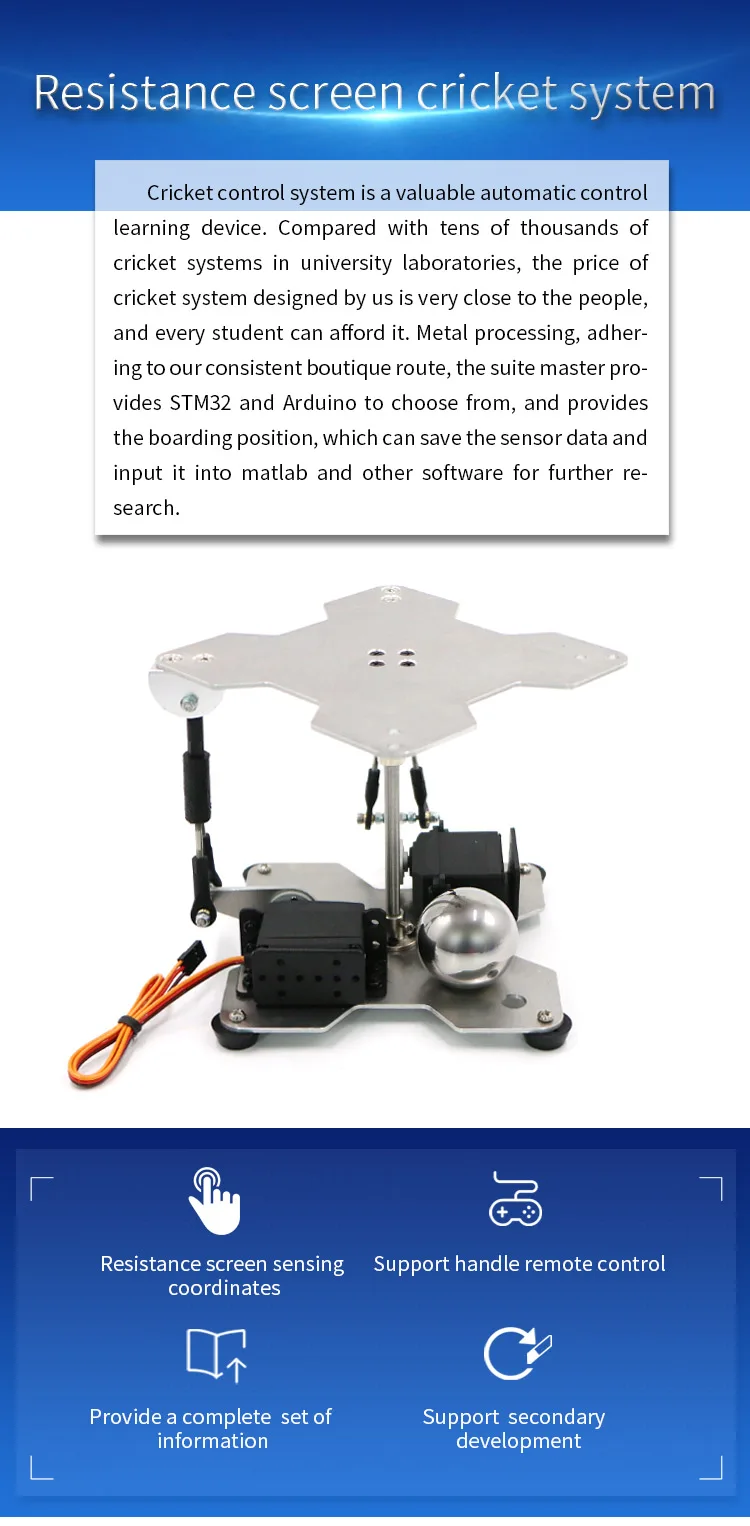

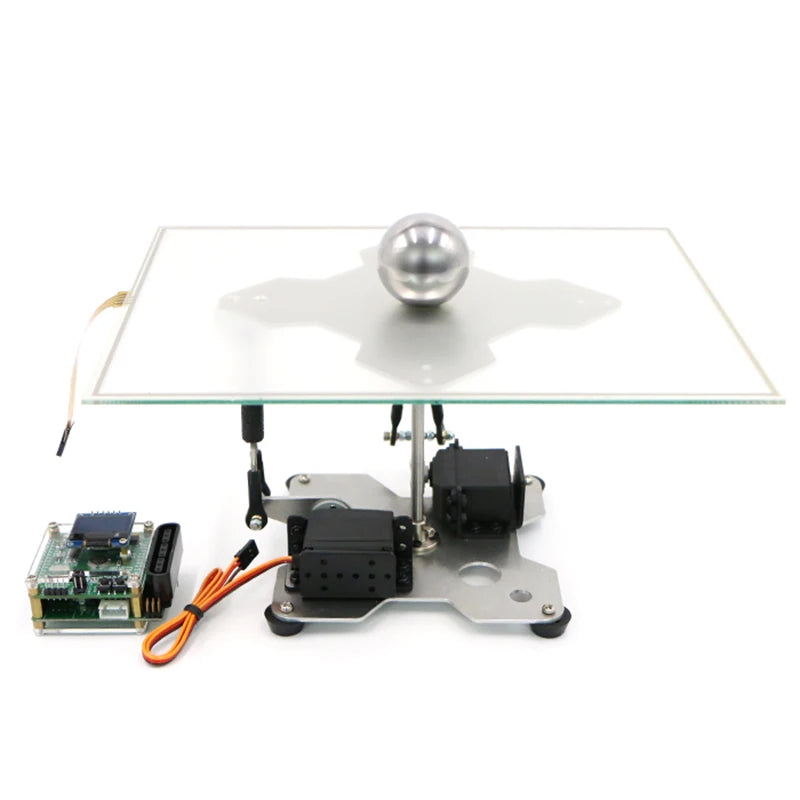

The ball and plate system is a valuable automatic control learning device. Our ball and plate system is competitively priced compared to the expensive equipment in college laboratories, and every ordinary study can bear the cost. The products use metal processing, adhering to our consistent boutique strategy, providing relevant learning materials and source code.

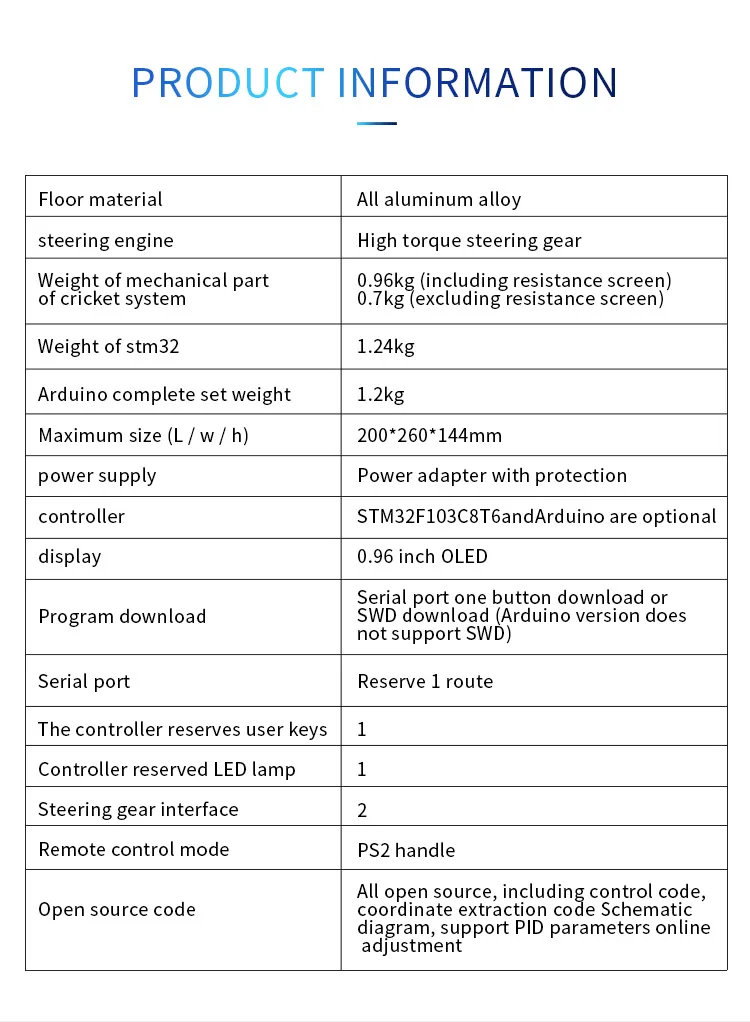

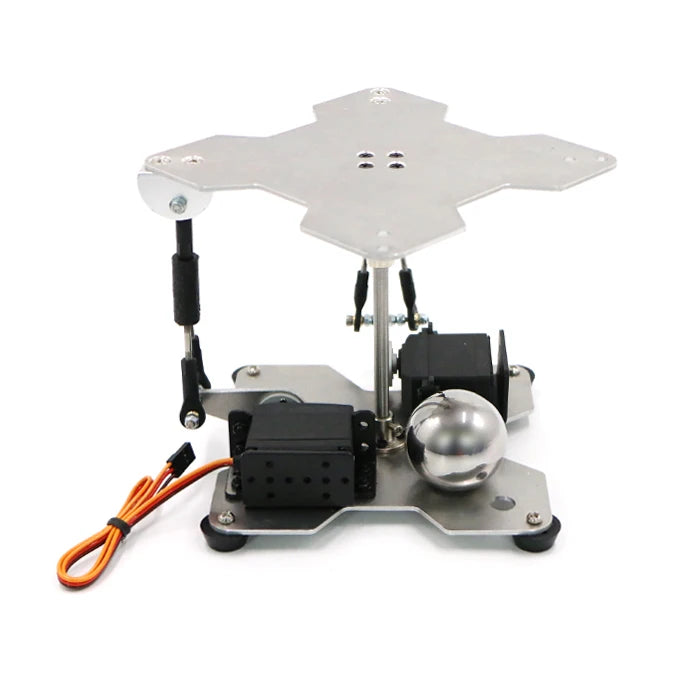

• Base material: all aluminum alloy

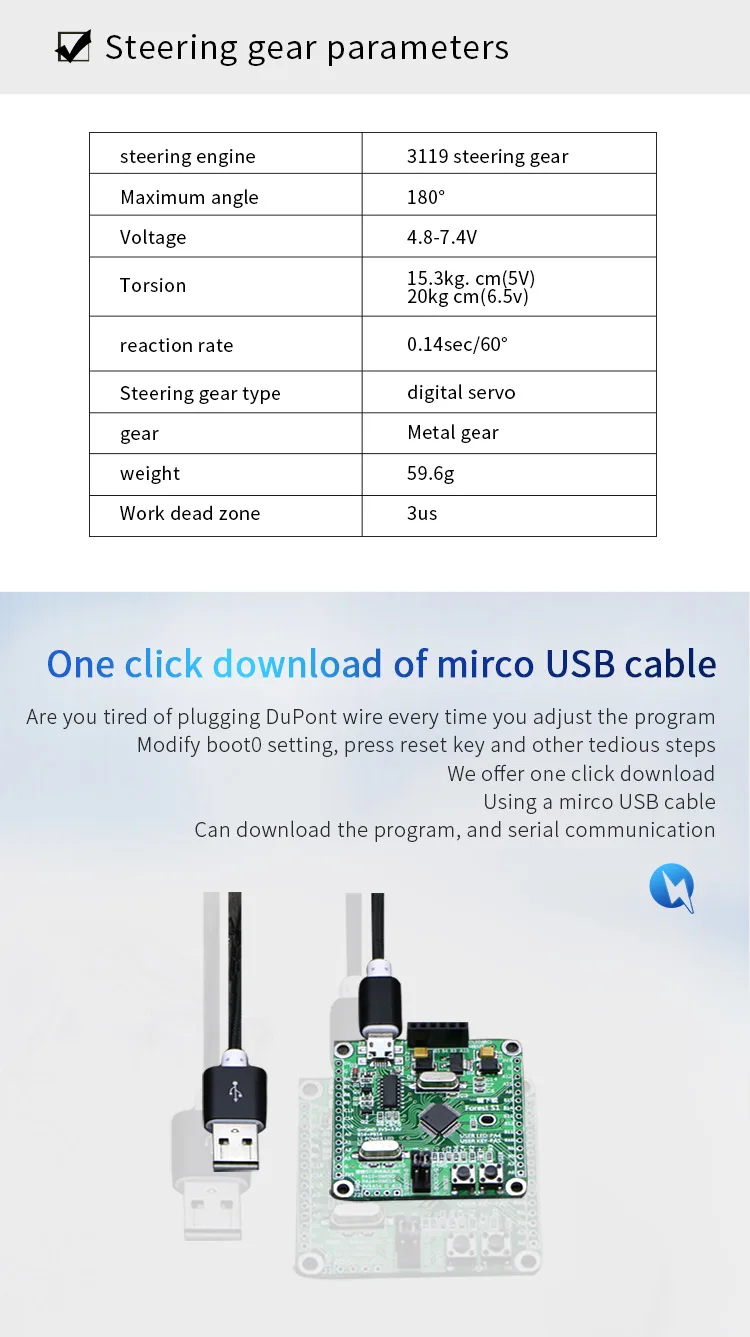

• Steering gear: high torque steering gear

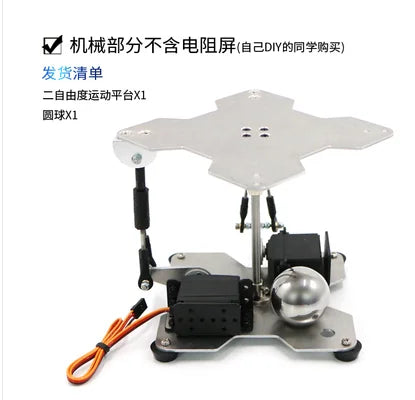

• Mechanical part weight: 934g

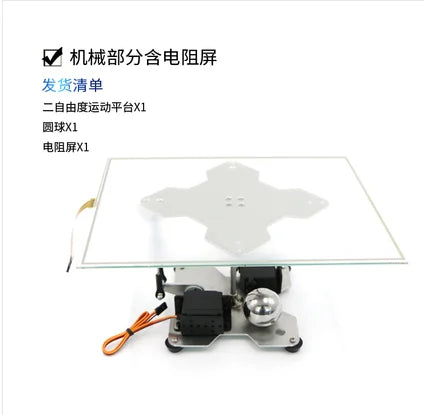

• Mechanical part + electronically controlled weight: 1477g
• Maximum size (length, width and height): 200*260*144mm
• Power supply: protected power adapter

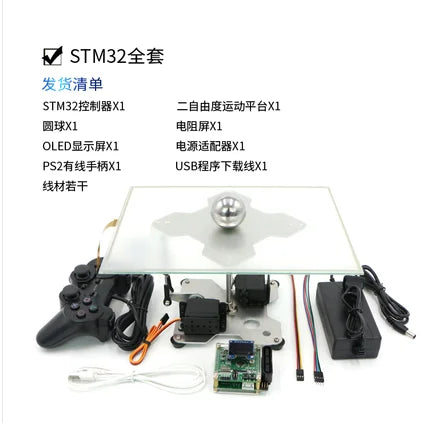

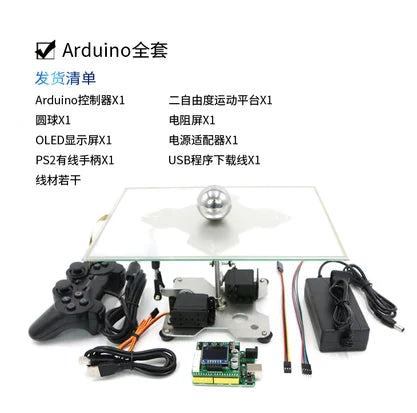

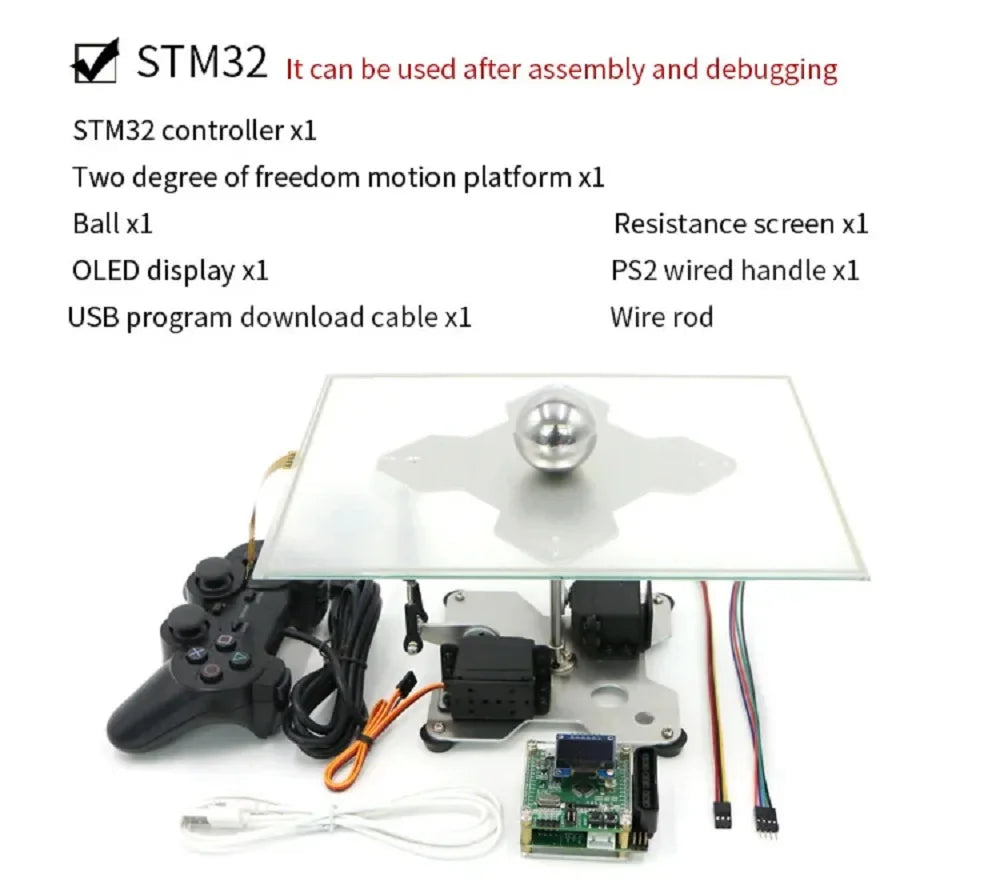

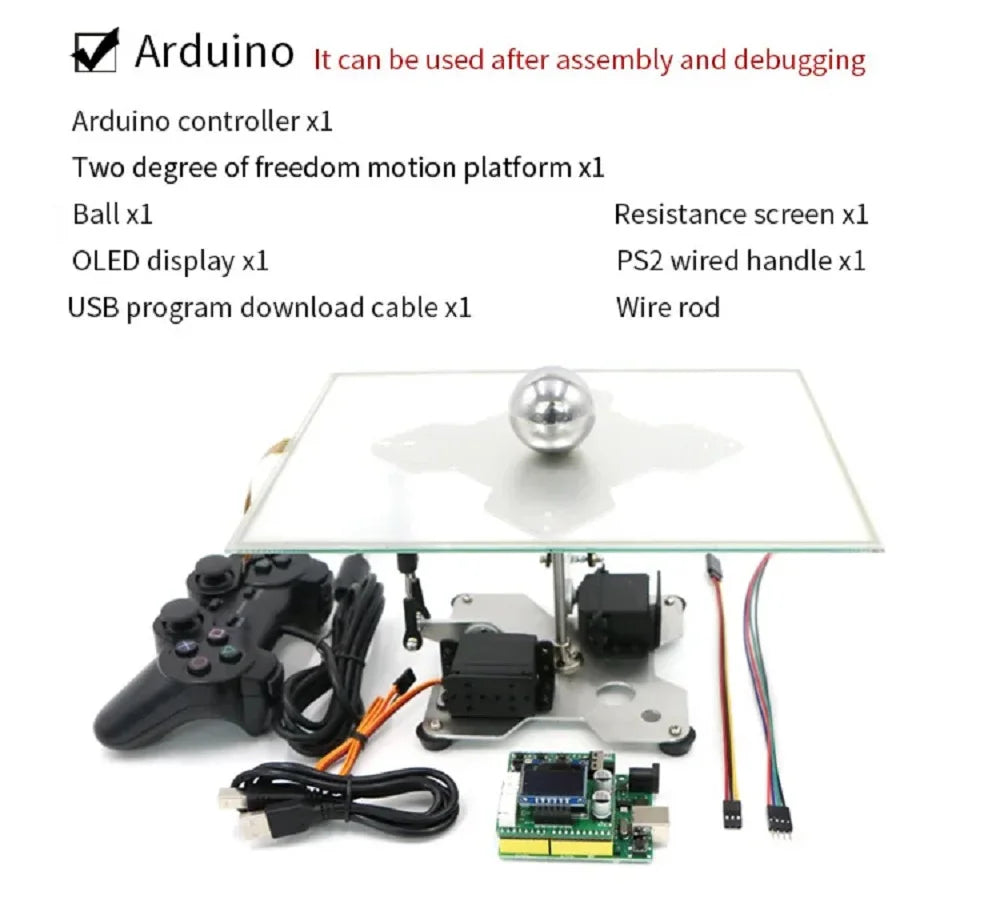

• Controller: STM32F103C8T6 and compatible Arduino optional
• Display: 0.96 inch OLED
• Program download: serial one-click download or SWD download (compatible with Arduino version does not support SWD)
• Serial port: reserved 1 way
• User button: 1
• LED lights: 1
• Servo interface: 2

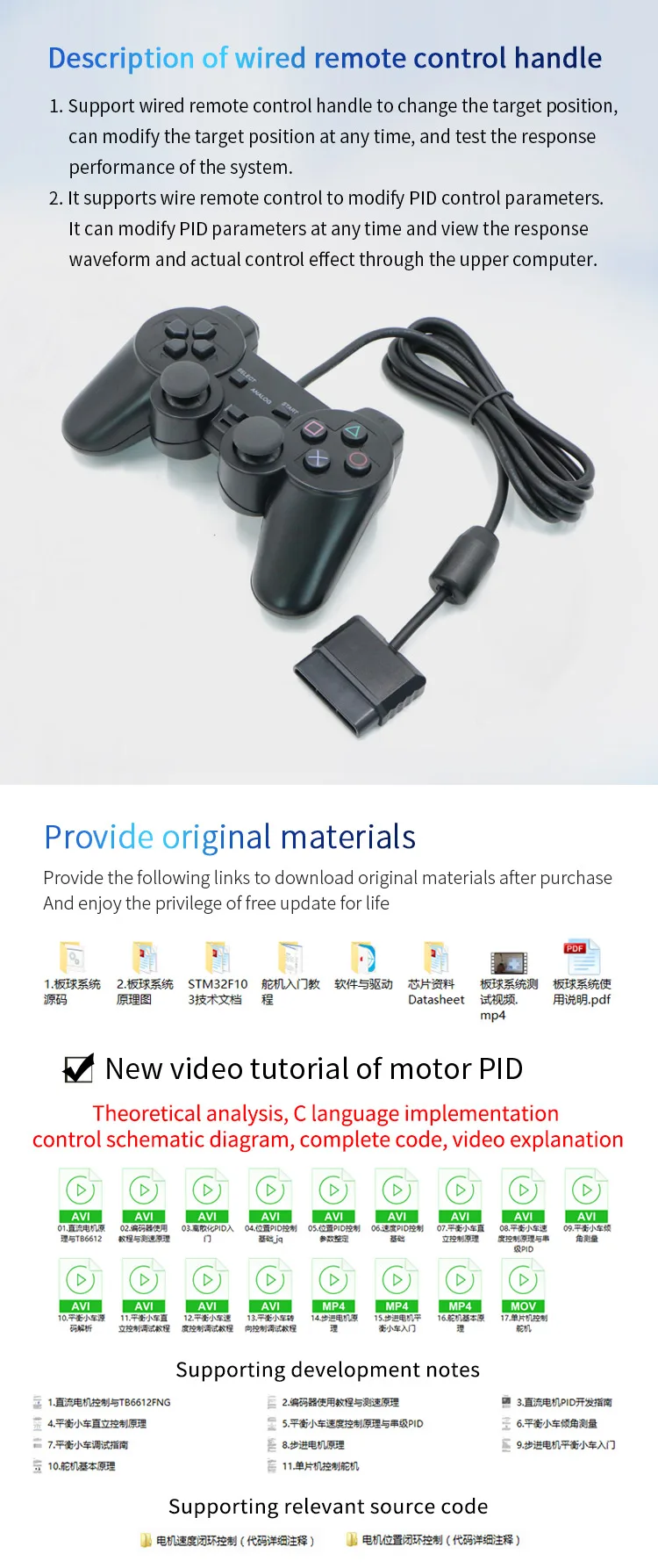

• Remote control mode: PS2 handle
• Code: open source: full open source, including control code, coordinate extraction code, schematic, etc., support PID parameters online adjustment.
