Waterproof IP68 drainage pipeline inspection robot chassis AVA-P6 pipe unclogging robot machine with 30m underwater depth
1. Introduction:
AVA-P6 can be equipped with mud pump, reamer, camera, high-pressure water gun and other equipment. It also support secondary development and application customization.
2. Application:
1. Sludge removal of sewage treatment tank, aquaculture tank, grit chamber, and minimum 900mm diameter urban pipe network, more safe and efficient, to avoid people entering underwater/underground hazardous areas (urban pipe network contains carbon dioxide, flammable methane, hydrogen sulfide and other toxic gases).
2. Detection of gas pipeline and oil transportation pipeline.
3. Delivery of maintenance tools.
4. Laying urban pipe network, with large tensile force, it can drag cable for long distance.
3. Advantage:

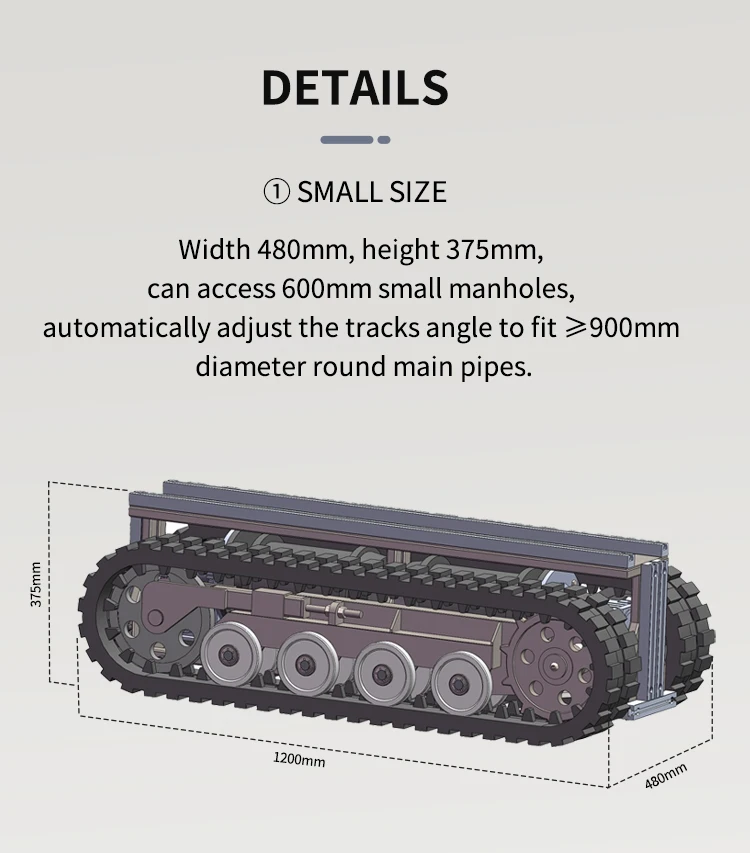

1. Small width 475mm, can access 600mm small manholes.

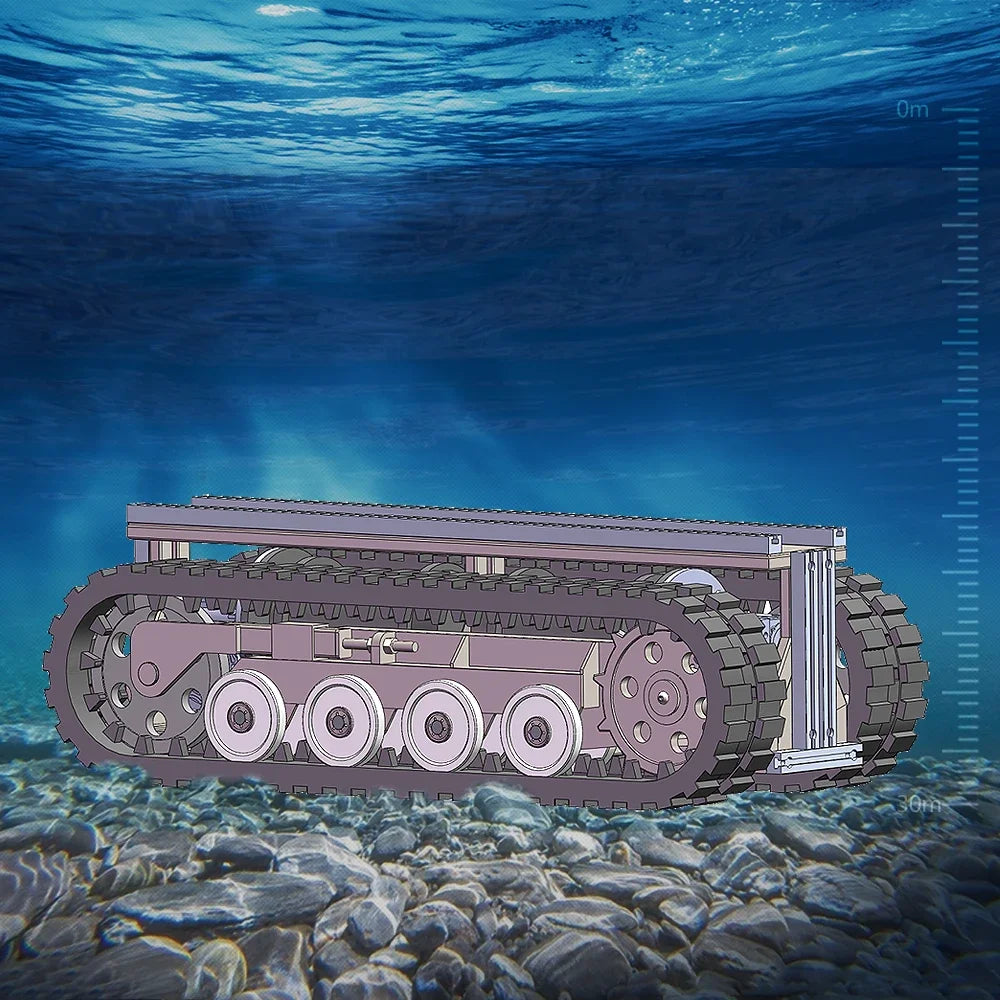

2. Oil seal motor, suitable for 30m depth underwater operation.

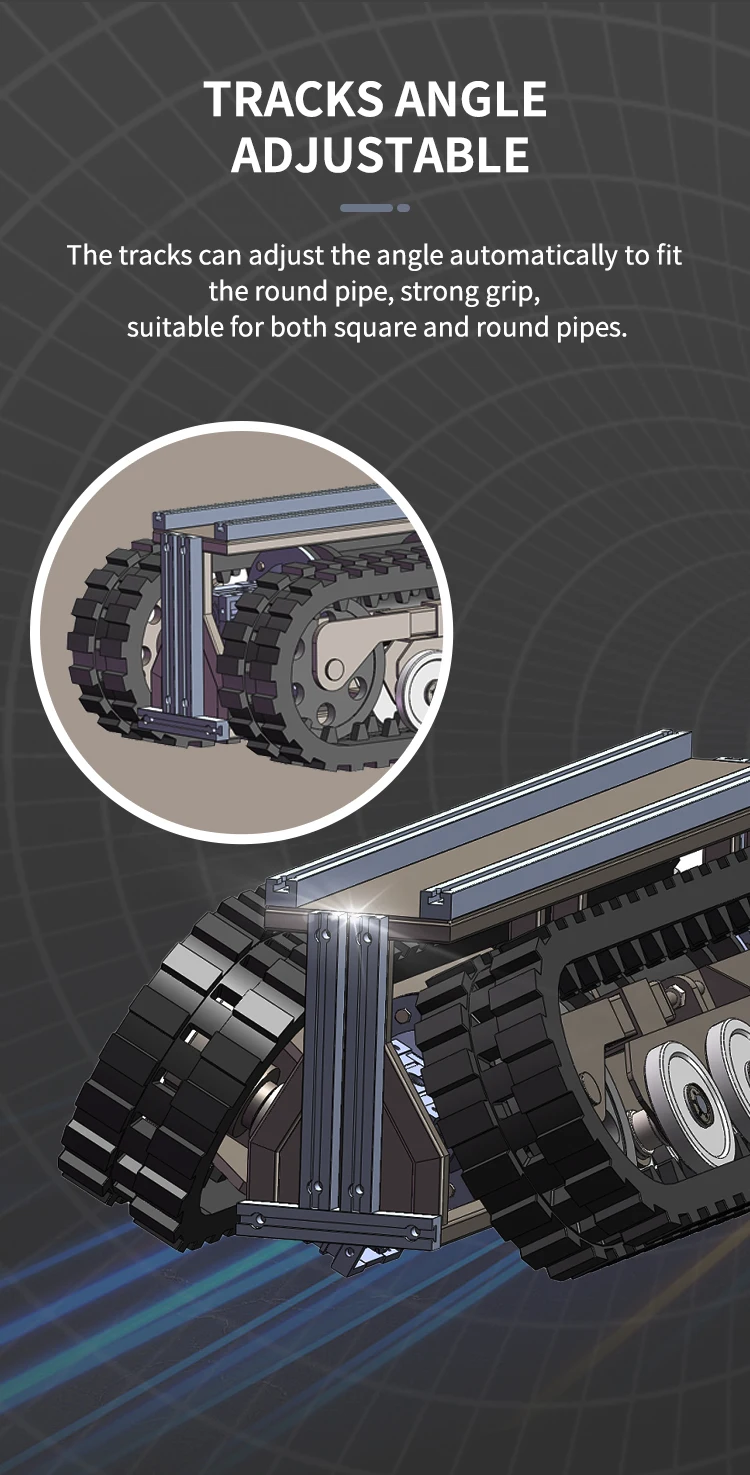

3. The tracks can adjust the angle automatically to fit the round pipe, strong grip, suitable for both square and round pipes.
4. The front can be equipped with siphon mud pump, reamer, high-pressure water gun and other cleaning tools to crush and clean reed roots, grass roots, household garbage and other colloidal substances.(cutting the plant roots and other sediments at the pipe junction)

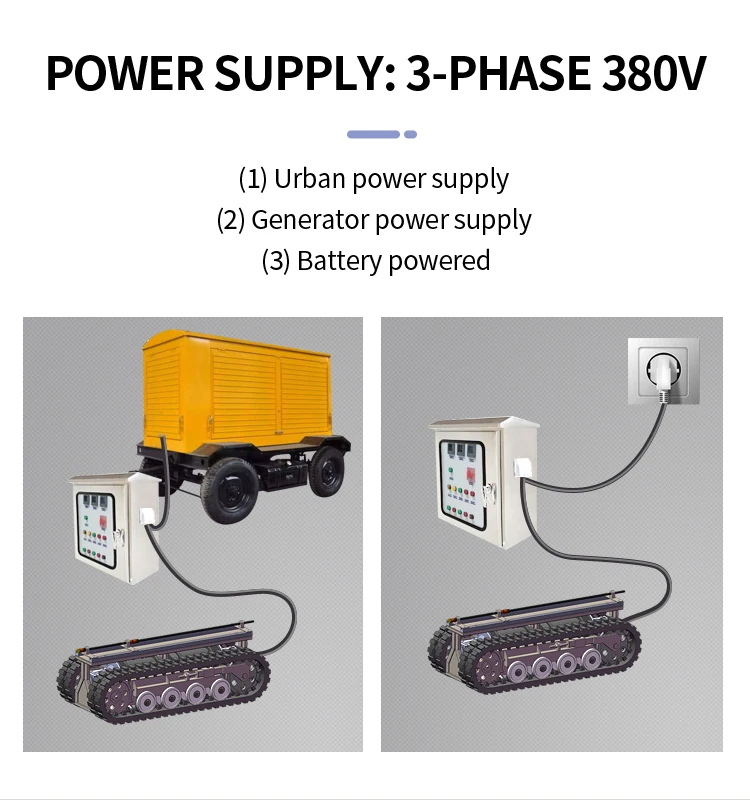

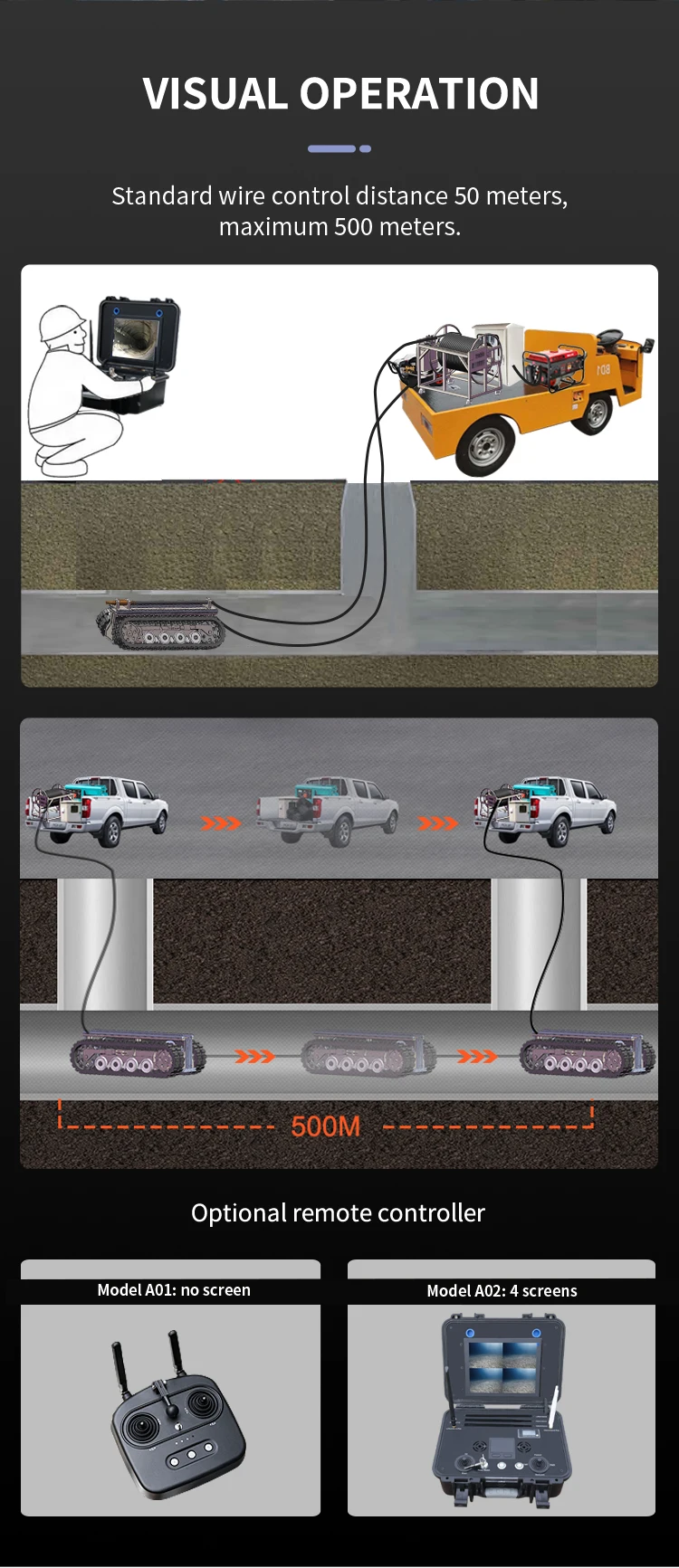

5. High-voltage drive, standard wire control distance 50meters, maximum 500 meters.
6. Optional remote control box.
7. Optional IP68 underwater camera, visual operation.

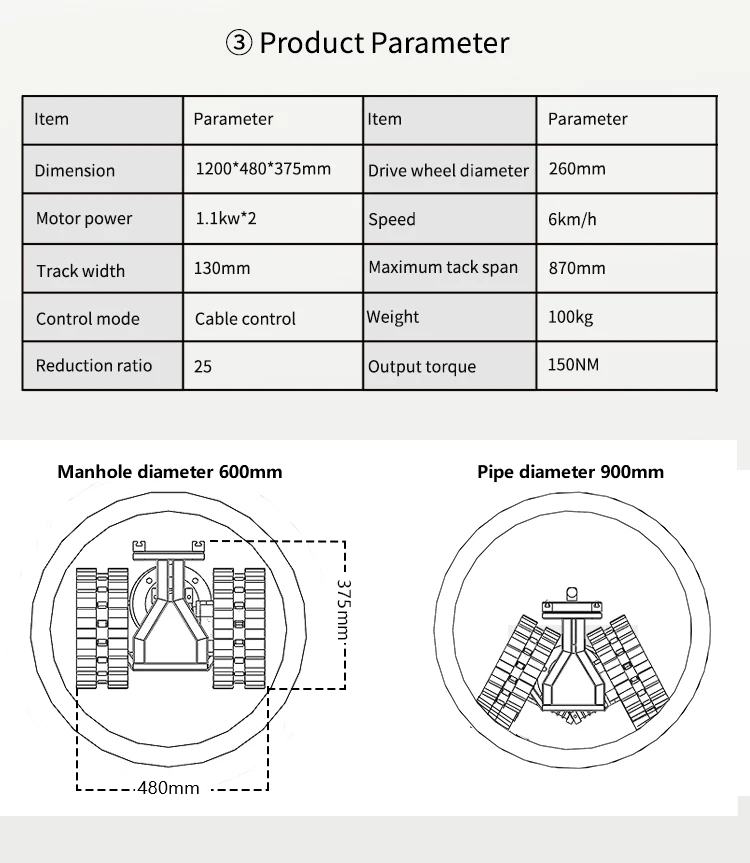

4. Specification:
|
Item |
Parameter |
Item |
Parameter |
|
Dimension |
1200*480*375mm |
Drive wheel diameter |
260mm |
|
Motor power |
1.1Kw*2 |
Speed |
6km/h |
|
Track width |
130mm |
Maximum track span |
870mm |
|
Control mode |
Cable control |
Weight |
100Kg |
|
Reduction ratio |
25 |
Output torque |
150NM |
5. Picture show:
Packing: Wooden case or as customer requirement.
Delivery way: By express, by air or by ship.
