SiAECOSYS QSMOTOR QS165 V2 5000W 72V 35H Hall Version PMSM Mid Drive Motor Kits with ND72680 Controller
NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)
For165 5000W hall motor powertrain kits,it could be used for Dirty Bike, which could be 72V 90KPH.
e.g. Similar Light bee
E-bike weight, approx 80kg+1*70kg
Speed: peak 90km/h
Gear ratio: 1:4.77
Climbing slope: 20°@10kph@150kg@60s
Tire: 100/70-19
P.S. If you have any confused about the shipping cost, please feel free to contact with us.
Also could place order but don't pay first, then we could adjust the price.
One set including below kits
1. 1pc X QS 165 5000W V2 Hall Mid drive motor
2. 1pcs X Fardriver ND72680 sine wave motor controller
3. 1pcs X Fardriver bluetooth adapter
4. 1pcs X DKD speedometer
5. 1pcs X Z6 throttle with combination switch
Key Features
1) Light weight and small dimension compare to hub motor
2) High performance benefit from flux weakening
3) High efficiency during climbing, and better acceleration
4) Support regenerative braking
Product Description
1. QSMOTOR 165 5000W V2 Hall Mid drive motor

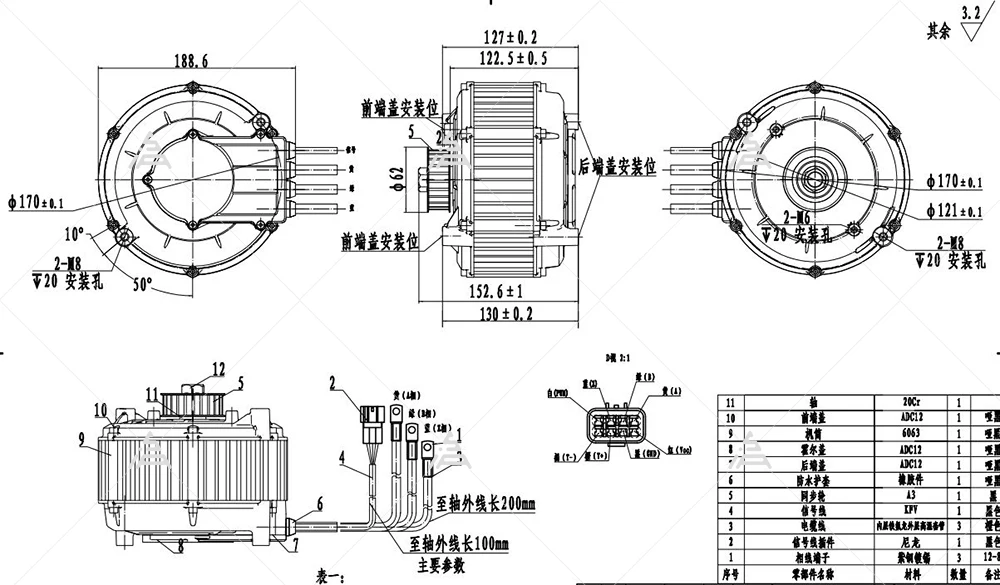

Drawing
Test Report

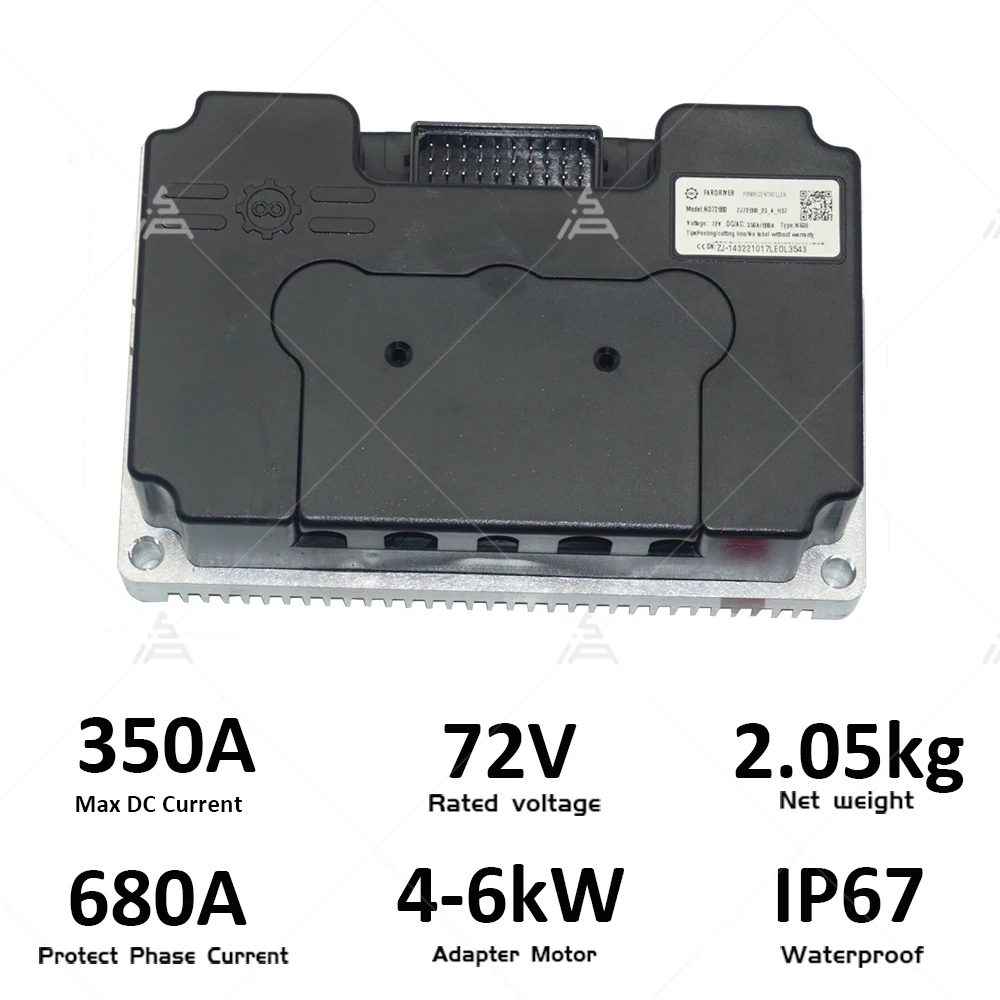

2.ND72680 sine wave motor controller
Fardriver controller is sine wave type controller, which is brushless DC controllerwith self-learning function. Generally, it matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.
Drawing

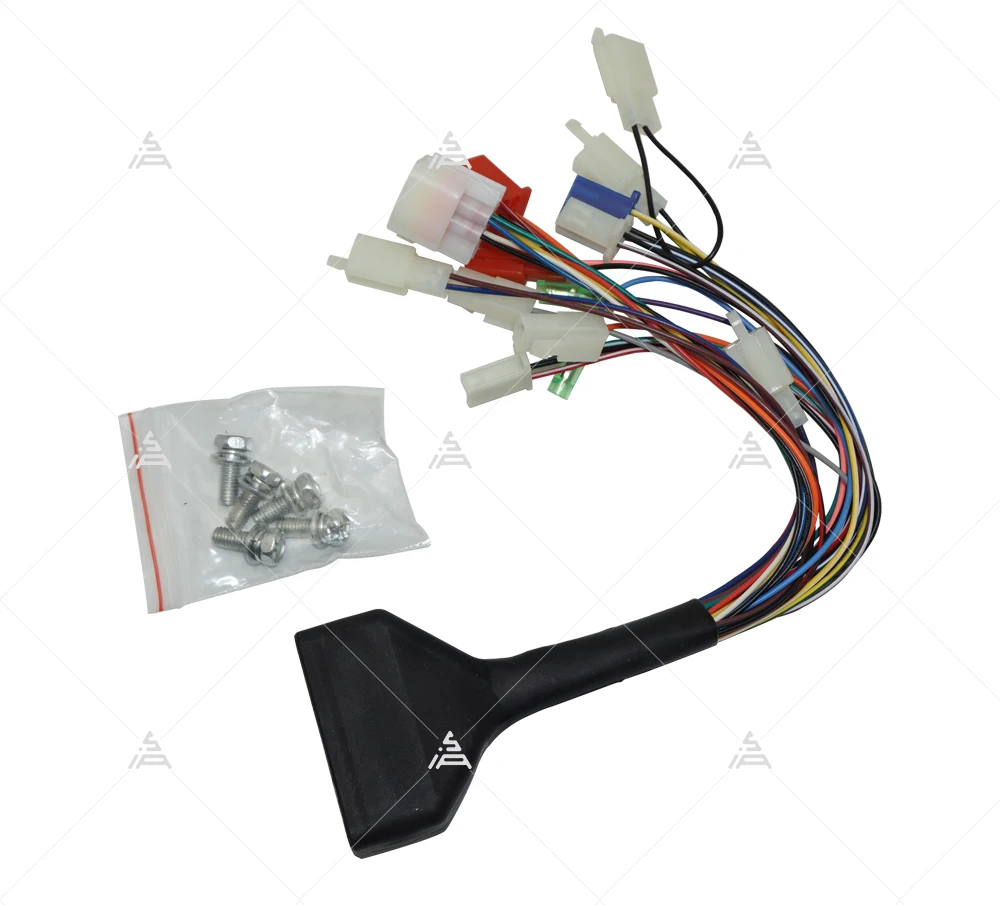

Adapter Cable

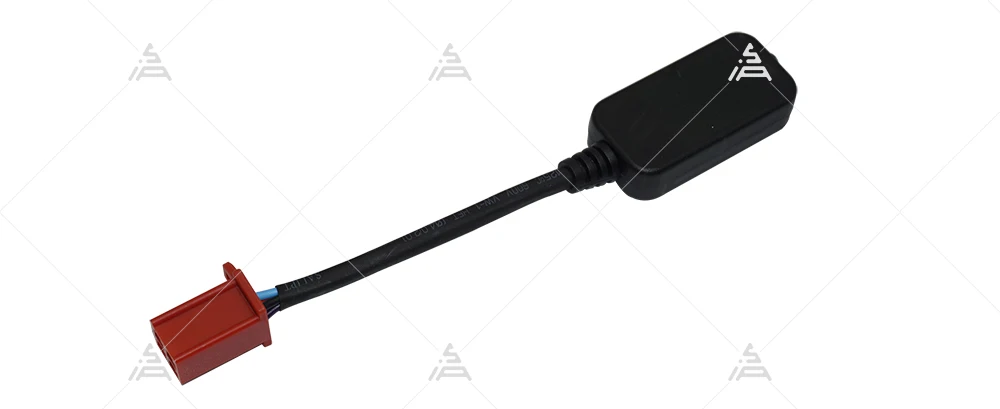

Bluetooth Adapter

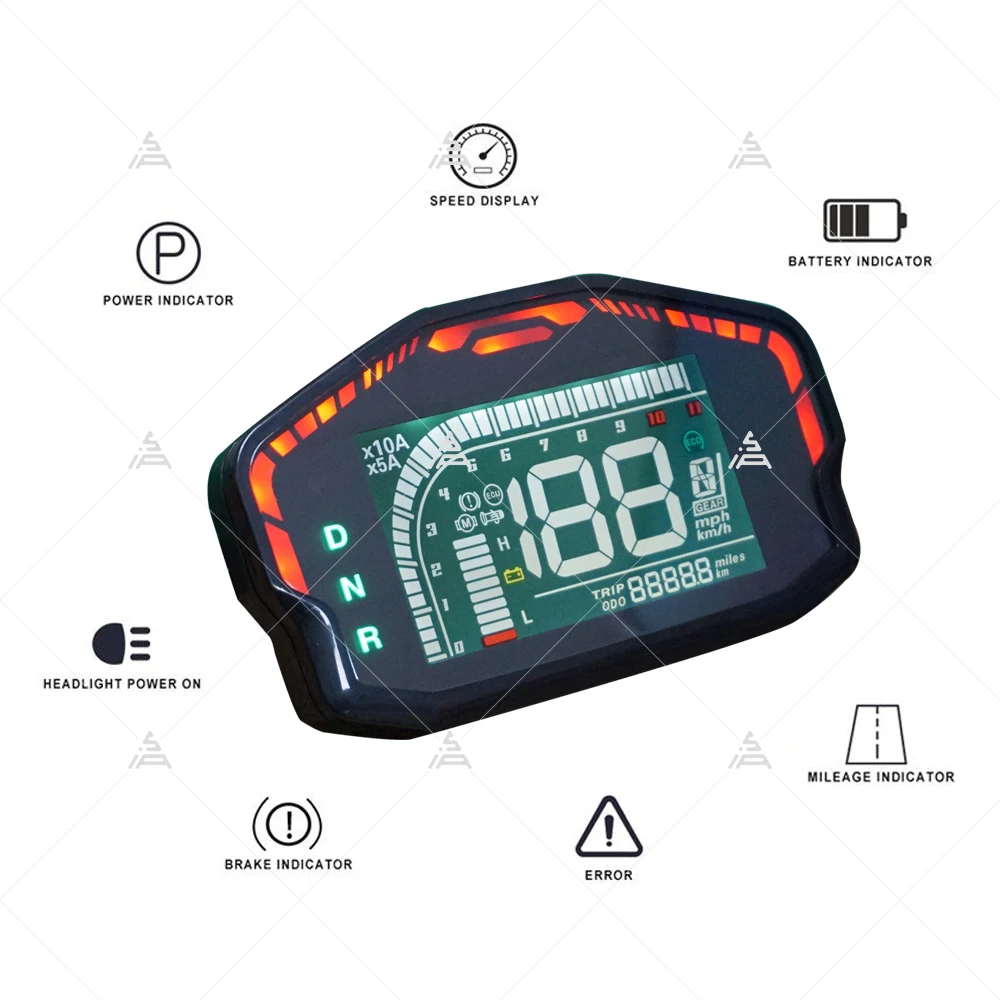

3. DKD speedometer

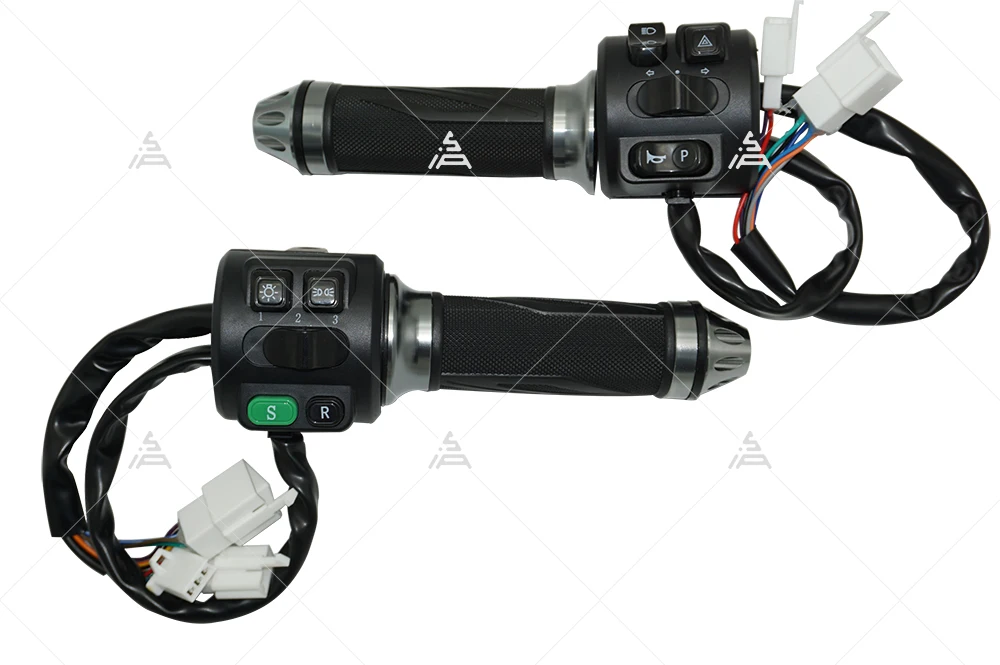

4. Z6 throttle with combination switch
With Reverse, Parking button( throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.
It match with controller well.
