SIAECOSYS/QS212 10inch 1000W+ZWK060032A kits QS212 1000W 10*2.15inch V1.12 60V Hub Motor kit with ZWK060032A Controller for Elec

SIAECOSYS/QS212 10inch 1000W+ZWK060032A kits QS212 1000W 10*2.15inch V1.12 60V Hub Motor kit with ZWK060032A Controller for Electric Scooter

For QS new high cost performance 10inch V1.12 version E-Scooter wheel hub motor, it could be used for electric scooter.

QS212 10inch 1000W hub motor match with ZWK060032A 32A controller can reach 40KPH at 60V, 540 RPM withFlux

Weakening,  MaxTorquemore than 88N.m,  Max efficiency can more than 86%, suitable for E-scooter.

NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

P.S. If you have any confused about the shipping cost, please feel free to contact with us.

Also could place order but don't pay first, then we could adjust the price.

One set including below kits

Combo1.

1. 1pcs XQS212 10x2.15inch 1000W V1.12 hub motor with disc brake version

2. 1pcs XZWK060032ASquare Wave Controller

3. 1pcs XRD334 speedometer

4. 1pcs XZ6 Throttle

5. 1pcs XVehicle wiring harness with relay, flasher, one button to start anti-theft kit and DC converter

Combo2.

1. 1pcs XQSMOTOR 212 10x2.15inch 1000W V1.12 hub motor with drum brake version

2. 1pcs XZWK060032ASquare Wave Controller

3. 1pcs XRD334 speedometer

4. 1pcs XZ6 Throttle

5. 1pcs XVehicle wiring harness with relay, flasher, one button to start anti-theft kit and DC converter

Key Features

1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). High efficiency: 83.3~89.5%

Product Description

1. QSMOTOR 212 10x2.15inch 1000W V1.12 hub motor

Drawing

Disc Brake version

Drum Brake version

2. ZWK060032Asquare wave controller

Default function: 1/2/3/S/P/R gear; can be used at 60V or 48V

Pls note that ZWK060032A controller is unable to program.

Drawing

Test Report(for reference)

212 10x2.15inch 1000W V1.12 hub motor with ZWK060032Acontroller

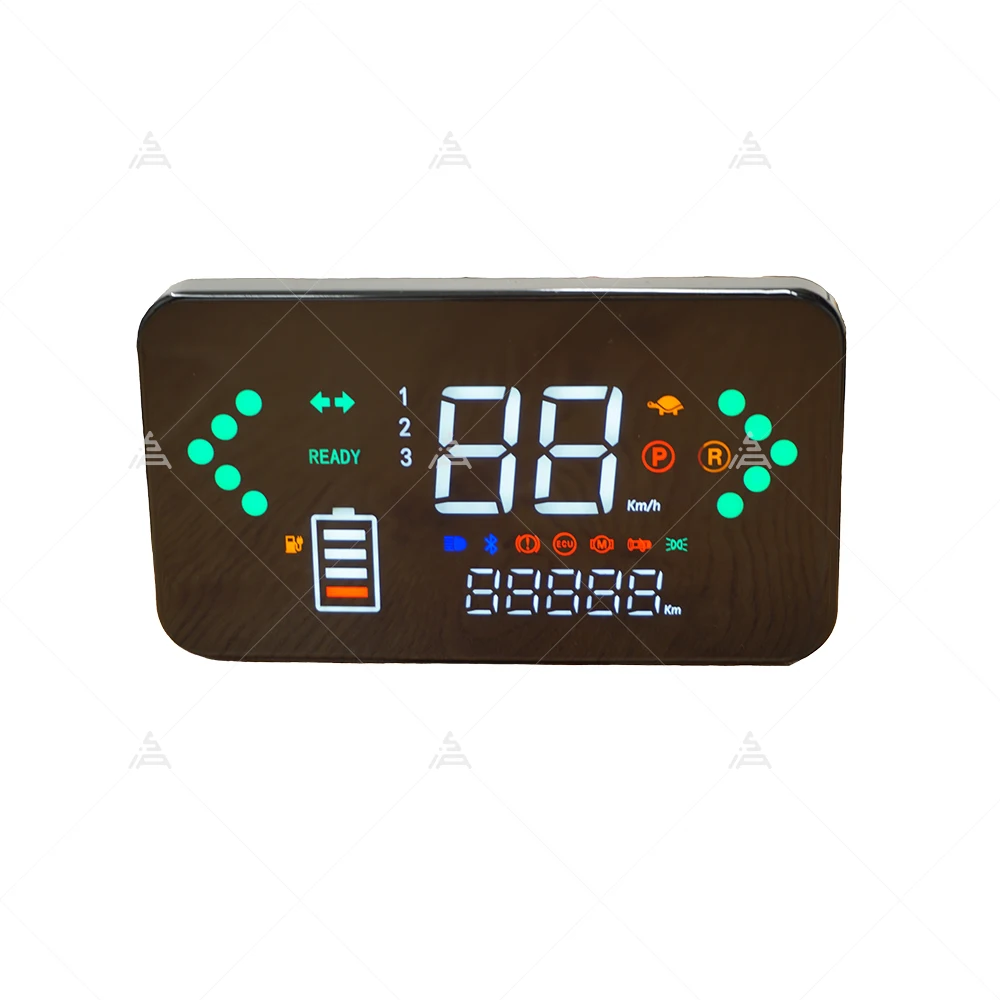

3. RD334 Speedometer

It can display1 / 2 / 3 / S / R / Pgear; can achieve remote switch; can update the matching motor parameter like pole pairs, rim size; can be used at 48V/60V/72V.

Please note that RD334 speedometer is Line communication.

4. Z6 throttle with combination switch

With Reverse, Parking button( throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.

It match with CHIFENG controller well.

5. Vehicle wiring harness

Pls note that this vehicle wiring harness is suitable for ZWK060032A/ZWK060035A/ZWK060045A controller.
