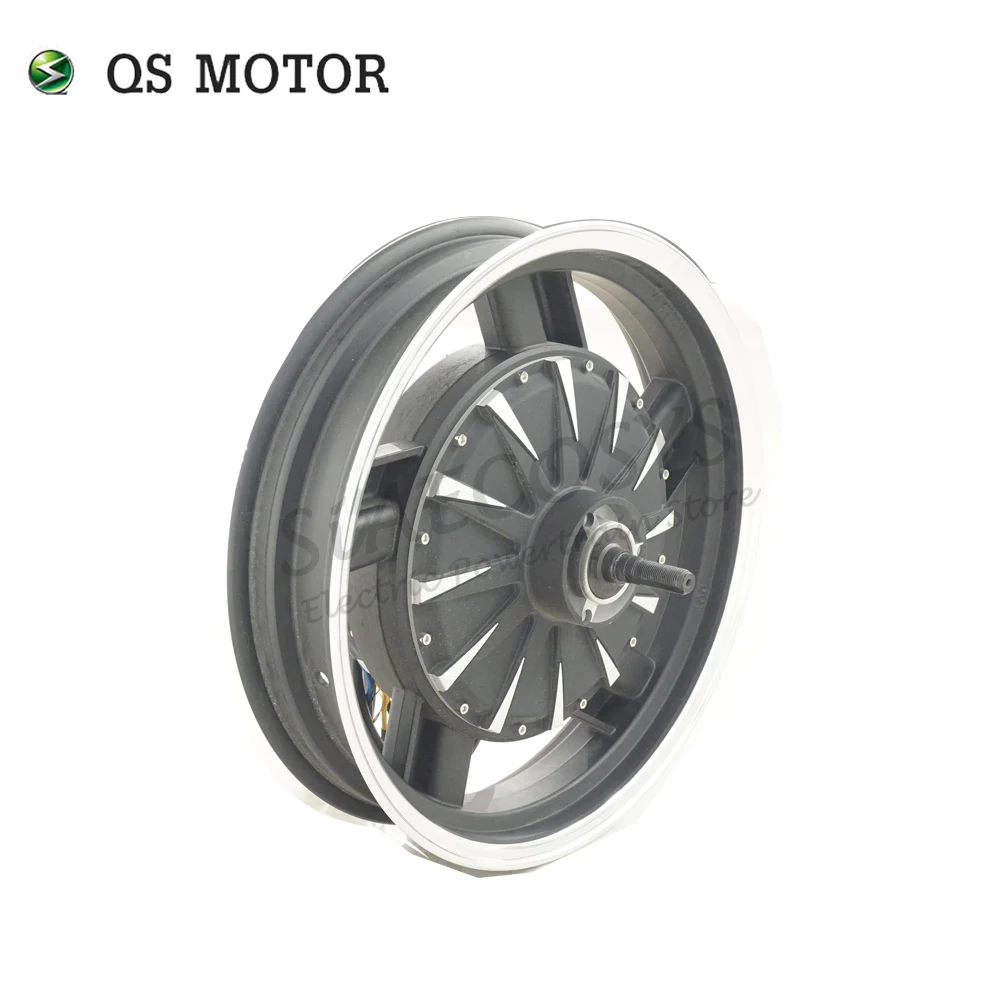

QS Motor 17inch 3kW 260 40H V1.4 big slot version BLDC Electric Scooter Motorcycle in wheel hub motor with conversion kits
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)
For 17inch E-scooter Wheel hub motor, it could be used for electric scooter, electric motorcycle.
260 motor means the diameter of iron ring of rotor is 260mm.
Compare to 260 model, 260 model is more suitable for low power version, more economical for bulk order.
V1.4 has bigger slot than V1 version, can adapt more copper wires, better heat resistance.
Key Features
1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
PS.1). Above quotation base on 260 17inch electric scooter wheel hub motor, 48V~120V.
2). Above configuration is suggested for mass production,
for EV enthusiast, V1.4 motor could be over-voltaged to gain more speed/performance (customizable).
Product description
Genearlly Spec:
Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
Brand: QS Motor, QSMOTOR
Motor Design: Double axle with 17inch moped rim (integrated)
Rim Size:17x3.5inch(Narrow Tire as default), matched tire: 130/70-17 etc
Magnet Height: 40mm, 24 pole pairs
Stator: Aluminum Core
Rated Power: 3000W
Speed: 30KPH-90KPH, it's customized, genearlly we will design as 72V75KPH.
Work voltage range: 48V-120V, will be 72V as default.
Max Torque approx 202.0N.m
KV: 5.69/8.35/12.29 (optional)
Thermic Probe: KTY83-122 (as default, optional)
Max Efficiency approx 88%
Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm
Drop-outs: 200mm
Dual Halls with waterproof connectos(One for spare, in case of damage)
10mm² Phase Wire
Waterproof Grade: IP65
Color: Black Bar (As default)

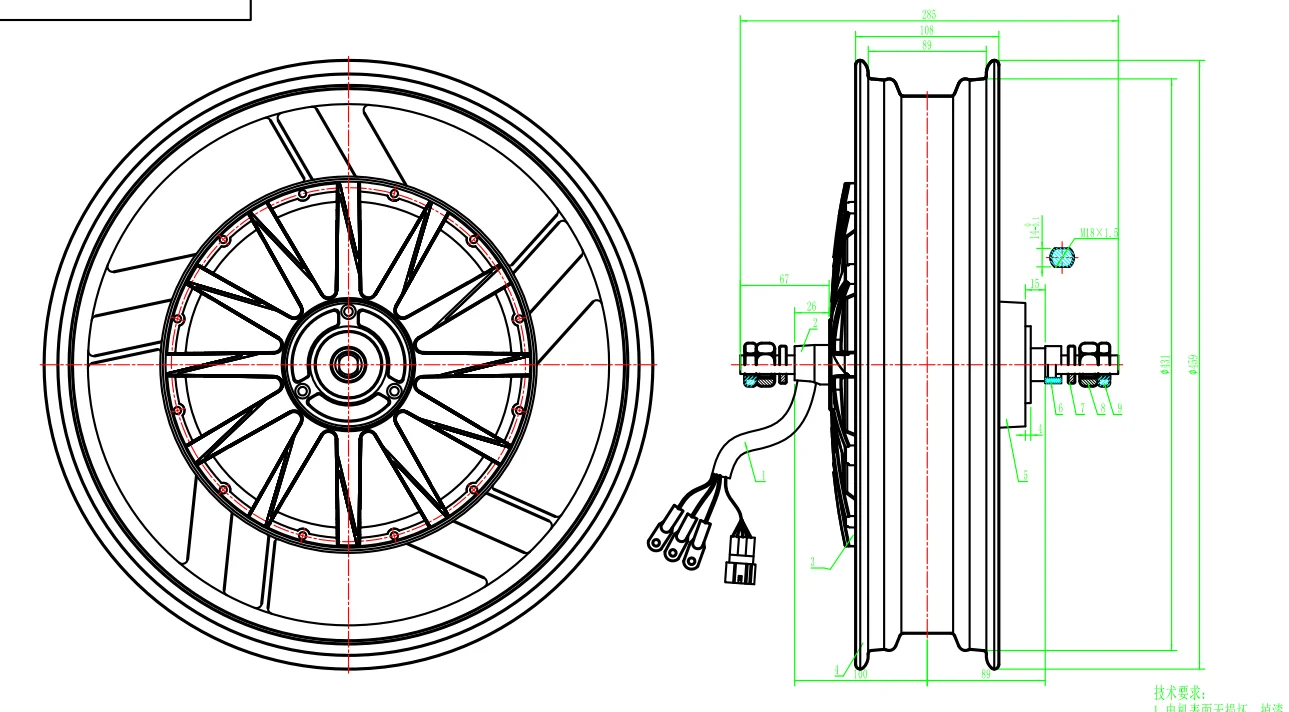

Dimension Drawing:
17*3.5inch 260 in-wheel hub motor(Integrated)
Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.
