QS Motor 17*3.5inch 6kW 260 50H V4 version BLDC Electric Scooter Motorcycle in wheel hub motor with conversion kits
For 17inch E-scooter Wheel hub motor, it could be used for electric scooter, electric motorcycle.
260 motor means the diameter of iron ring of rotor is 260mm.
Compare to 260 model, 260 model is more suitable for low power version, more economical for bulk order.
Key Features
1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
Product description
Genearlly Spec:
-
Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
-
Brand: QS Motor, QSMOTOR
-
Motor Design: Double axle with 17inch moped rim (integrated)
-
Rim Size:17x3.5inch(Narrow Tire as default), matched tire: 130/70-17 etc
-
Magnet Height: 50mm, 16 pole pairs
-
Stator: Aluminum Core
-
Rated Power: 6000W
-
Speed: 30KPH-120KPH, it's customized, genearlly we will design as 72V110KPH.
-
Work voltage range: 48V-120V, will be 72V as default.
-
Max Torque approx 290.0N.m
-
Thermic Probe: KTY83-122 (as default, optional)
-
Max Efficiency approx 88%
-
Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm
-
Drop-outs: 200mm
-
Dual Halls with waterproof connectos(One for spare, in case of damage)
-
16mm² Phase Wire
-
Waterproof Grade: IP65
-
Color: Black Bar (As default)
Dimension Drawing:
-
17*3.5inch 260 6kw V4 in-wheel hub motor(Integrated)
（Waiting for update）

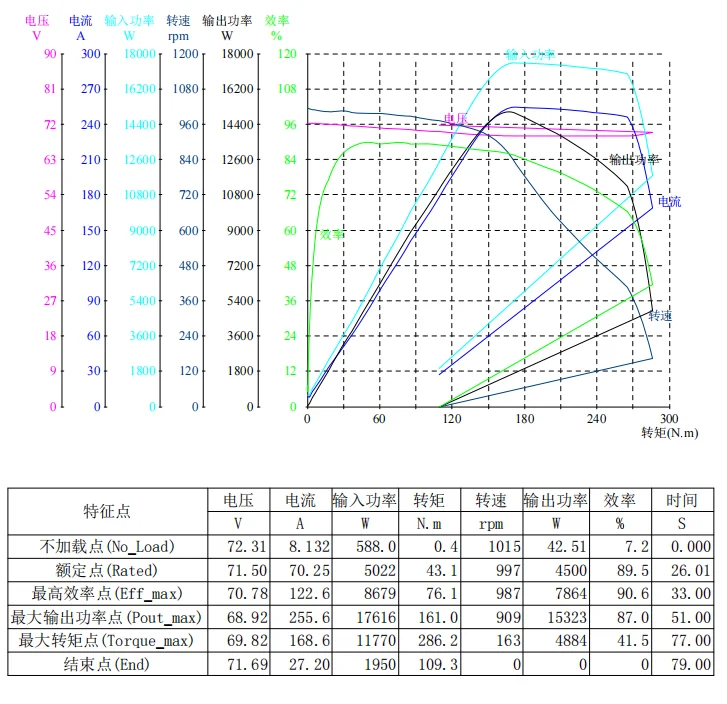

Test report:
Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.
